Bosch GSH 27 VC / 3611C0A0P0 / EU 230 Volt Spare Parts

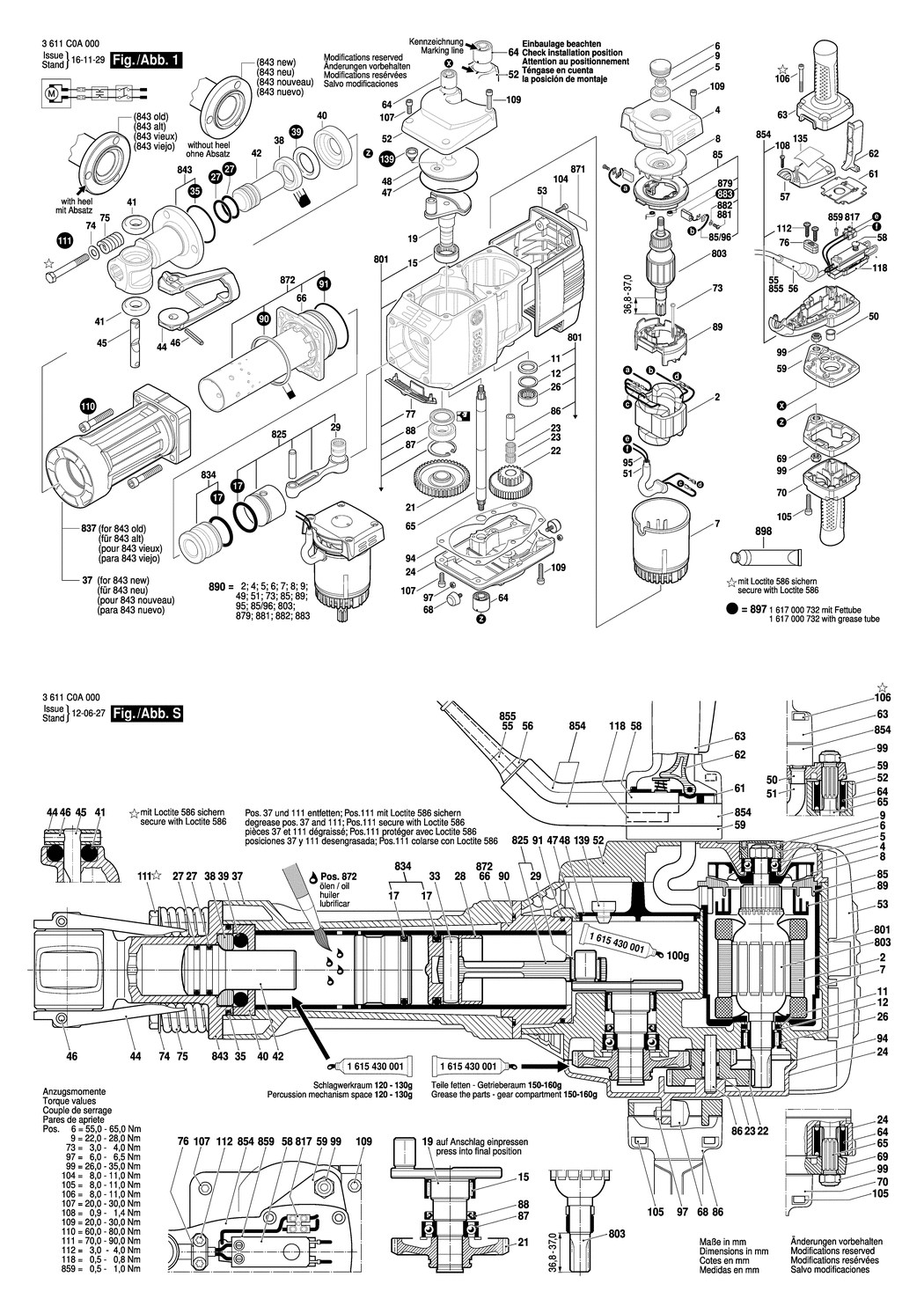

An exploded drawing and listing for the Bosch GSH 27 VC / 3611C0A0P0 / EU 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 220-240V BSD-160422052R.A1 160422052R	£134.16	£160.99
4 - BEARING COVER BSD-1615805073.A0 1615805073	£58.76	£70.51
5 - GROOVE BALL BEARING 12x37x12 BSD-1610900015.A13 1610900015	£23.86	£28.63
6 - SCREW PLUG BSD-1615500214.A15 1615500214	£21.68	£26.01
7 - INSULATING HOUSING BSD-1615108104.A5 1615108104	£31.64	£37.97
8 - FAN BSD-1616610089.A5 1616610089	£18.96	£22.75
9 - HEX NUT DIN 985-M12X1 BSD-1613313000.A39 1613313000	£2.80	£3.36
11 - FELT WASHER BSD-1610108013.A4 1610108013	£2.16	£2.59
12 - SUPPORTING DISC 1.0 MM BSD-1610102616.A0 1610102616	£2.80	£3.36
15 - NEEDLE-ROLLER BEARING D35xD47x17 BSD-1610910091.A10 1610910091	£33.74	£40.49
17 - O-RING BSD-1610210210.A3 1610210210	£14.91	£17.89
19 - ECCENTRIC SHAFT BSD-1616110044.A4 1616110044	£167.68	£201.22
21 - CYLINDRICAL GEAR Z=45 BSD-1616318009.A15 1616318009	£116.15	£139.38
22 - CYLINDRICAL GEAR Z=19/52 BSD-1616328036.A1 1616328036	£179.37	£215.24
23 - NEEDLE-ROLLER ASSEMBLY BSD-1610913005.A15 1610913005	£8.67	£10.41
24 - GEAR COVER BSD-1615500444.A4 1615500444	£103.14	£123.77
26 - NEEDLE-ROLLER BEARING D25xD37x17 BSD-1610910092.A1 1610910092	£31.64	£37.97
27 - O-RING BSD-1610210213.A1 1610210213	£6.52	£7.83
29 - NEEDLE-ROLLER BEARING BSD-1610910097.A3 1610910097	£31.64	£37.97
35 - O-RING BSD-1610210211.A1 1610210211	£8.67	£10.41
37 - GUIDE TUBE BSD-1600A014T8.A2 1600A014T8	£306.81	£368.17
38 - SUPPORTING DISC BSD-1610102094.A4 1610102094	£5.87	£7.04
39 - DAMPING RING BSD-1610290103.A2 1610290103	£16.41	£19.69
40 - INTERMEDIATE FLANGE BSD-1615700073.A4 1615700073	£70.24	£84.29
41 - O-RING 17.3x17.7 MM BSD-1610210008.A34 1610210008	£5.58	£6.70
42 - STRIKER PIN BSD-1613123014.A0 1613123014	£103.14	£123.77
44 - RETAINING BRACKET BSD-1618045026.A9 1618045026	£179.37	£215.24
45 - LOCKING BOLT BSD-1613103004.A34 1613103004	£54.42	£65.30
46 - SLOTTED SPRING PIN 8x55 DIN 1481 BSD-2917760187.A32 2917760187	£2.80	£3.36
47 - O-RING 100x3 MM BSD-1900210172.A25 1900210172	£10.10	£12.12
48 - SEALING CAP BSD-1610516017.A2 1610516017	£18.96	£22.75
50 - PROTECTION SLEEVE BSD-3600421500.A2 3600421500	£2.61	£3.13
51 - CORD GUARD BSD-1610703057.A2 1610703057	£5.58	£6.70
52 - FAN COVER BSD-1615500417.A0 1615500417	£57.02	£68.42
53 - COVERING HOOD BSD-1615500414.A4 1615500414	£93.88	£112.65
56 - CORD GUARD BSD-1610703055.A5 1610703055	£10.10	£12.12
57 - SWITCH COVER BSD-1615500418.A4 1615500418	£5.58	£6.70
58 - SWITCH BSD-1617200124.A0 1617200124	£40.80	£48.96
59 - INTERMEDIATE PLATE BSD-1615700057.A0 1615700057	£116.15	£139.38
61 - DUST PROTECTION BSD-1615700059.A0 1615700059	£7.36	£8.83
62 - SWITCH-PAWL BSD-1612026153.A4 1612026153	£5.30	£6.36
63 - HANDLE BSD-1615132124.A4 1615132124	£45.67	£54.80
64 - RUBBER TORSION-BAR BSD-1616334000.A2 1616334000	£27.23	£32.68
65 - TOOTHED SHAFT BSD-1613060005.A2 1613060005	£54.42	£65.30
66 - BACKUP RING BSD-1610290101.A2 1610290101	£57.02	£68.42
68 - RUBBER BUFFER BSD-1613465001.A29 1613465001	£5.58	£6.70
69 - INTERMEDIATE PLATE BSD-1615700058.A4 1615700058	£88.07	£105.68
70 - HANDLE BSD-1615132125.A0 1615132125	£48.38	£58.06
73 - TAPPING SCREW 4.8x78 MM. TORX T-20 BSD-1603435036.A125 1603435036	£1.75	£2.10
74 - DISC SPRING BSD-2916160010.A2 2916160010	£2.80	£3.36
75 - COMPRESSION SPRING BSD-1614614009.A2 1614614009	£10.10	£12.12
76 - FASTENING CLAMP BSD-1611302015.A0 1611302015	£2.16	£2.59
77 - VENTILATION GRID BSD-1615500431.A0 1615500431	£4.26	£5.11
85 - BRUSH HOLDER BSD-1614336045.A5 1614336045	£33.74	£40.49
85/96 - CONNECTING CABLE BSD-1614448037.A5 1614448037	£10.10	£12.12
86 - BEARING BOLT BSD-1610300033.A27 1610300033	£21.52	£25.83
87 - GROOVE BALL BEARING 25x52x15 BSD-1610900027.A0 1610900027	£27.23	£32.68
88 - ROTARY SHAFT LIP SEAL BSD-1610283016.A7 1610283016	£10.10	£12.12
89 - SPACER BSD-1610009008.A7 1610009008	£3.72	£4.47
90 - RECTANGULAR RING BSD-1611015061.A2 1611015061	£2.80	£3.36
91 - O-RING BSD-1610210212.A2 1610210212	£2.61	£3.13
94 - SEALING PLATE BSD-1611015021.A27 1611015021	£2.80	£3.36
95 - WIRING HARNESS BSD-1614413010.A4 1614413010	£7.36	£8.83
97 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1541 2915011007	-
99 - HEX NUT DIN 985-10-M10x1 BSD-3613313500.A27 3613313500	£2.80	£3.36
104 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x20-8.8 BSD-2910141201.A64 2910141201	£2.61	£3.13
105 - MICROENCAPSULATED SCREW DIN 912-M6X30-8.8 BSD-2914551188.A2 2914551188	£2.80	£3.36
106 - MICROENCAPSULATED SCREW DIN 912-M6X55-8.8 BSD-2914551189.A9 2914551189	£1.75	£2.10
107 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x20-8.8 BSD-2910141242.A78 2910141242	£1.75	£2.10
108 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1438 2603490023	£1.75	£2.10
109 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x35-8.8 BSD-2910141248.A32 2910141248	£1.75	£2.10
110 - HEX SOCKET HEAD CAP SCREW DIN-M12x70-8.8 BSD-2910141356.A16 2910141356	£2.61	£3.13
111 - HEX SCREW BSD-1613414024.A1 1613414024	£6.52	£7.83
112 - TORX OVAL-HEAD SCREW BSD-1613490021.A2 1613490021	£1.75	£2.10
118 - SUPPRESSION FILTER BSD-1614503011.A3 1614503011	£33.74	£40.49
135 - REFERENCE PLATE BSD-1611110H20.A11 1611110H20	£3.72	£4.47
139 - PLUG BSD-1610508050.A2 1610508050	£2.61	£3.13
801 - MOTOR HOUSING BSD-1617000726.A0 1617000726	£458.51	£550.21
803 - ARMATURE 220-240V BSD-1614011139.A2 1614011139	£306.81	£368.17
817 - CONNECTING TERMINAL BSD-1611091006.A35 1611091006	£1.75	£2.10
825 - PISTON ASSEMBLY GROUP BSD-1617000727.A4 1617000727	£63.50	£76.20
834 - STRIKER BSD-1617000728.A0 1617000728	£72.18	£86.62
837 - GUIDE TUBE BSD-1600A011ER.A2 1600A011ER	£352.76	£423.31
843 - TOOLHOLDER BSD-1607000C8U.A4 1607000C8U	£410.78	£492.94
854 - SWITCH HOUSING BSD-1617000730.A4 1617000730	£23.86	£28.63
855 - POWER SUPPLY CORD BSD-1617000723.A13 1617000723	£27.23	£32.68
859 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x12-5.8 BSD-2910011088.A168 2910011088	£1.75	£2.10
871 - NAMEPLATE BSD-160111A3H5.A318 160111A3H5	£2.61	£3.13
872 - HAMMER PIPE BSD-1617000731.A0 1617000731	£357.27	£428.72
879 - SPIRAL SPRING BSD-1614652001.A35 1614652001	£3.72	£4.47
881 - TORX OVAL-HEAD SCREW M4x10 BSD-1613490005.A14 1613490005	£2.61	£3.13
882 - SPRING LOCK WASHER BSD-1610151007.A15 1610151007	£1.75	£2.10
883 - CARBON-BRUSH SET BSD-1617000425.A7 1617000425	£27.23	£32.68
890 - UN. FLANGE-MTD. MOTOR BSD-1617000733.A0 1617000733	£653.78	£784.53
897 - WEAR AND TEAR PART SET BSD-1617000732.A4 1617000732	£102.57	£123.08
898 - GREASE TUBE 225 ML BSD-1615430015.A23 1615430015	£37.27	£44.72
