Bosch GSH 11 E / 0611316796 / EU 230 Volt Spare Parts

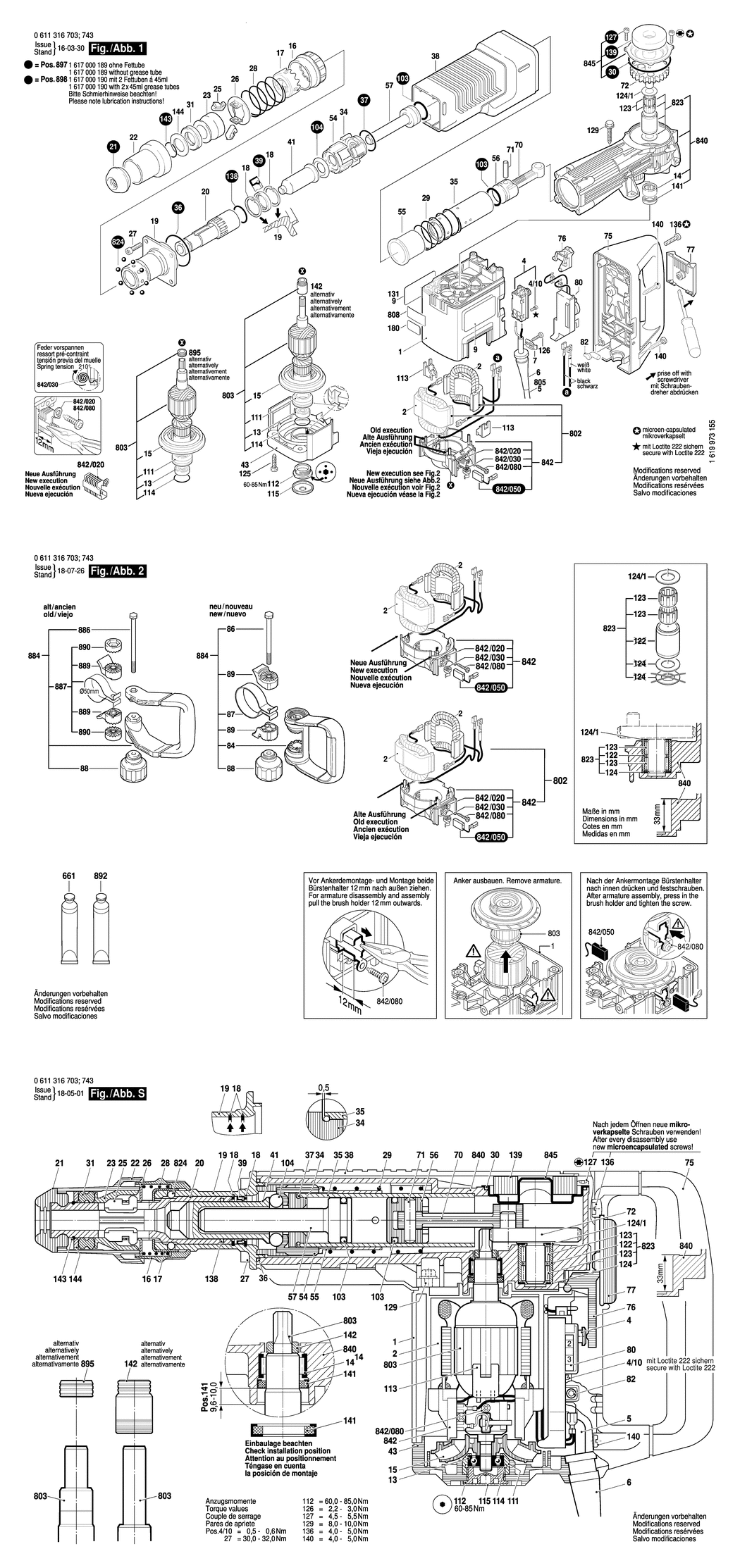

An exploded drawing and listing for the Bosch GSH 11 E / 0611316796 / EU 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615108091.A9 1615108091	£35.42	£42.51
4 - SWITCH BSD-1617200048.A67 1617200048	£19.91	£23.89
4/10 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x12-5.8 BSD-2910011088.A103 2910011088	£1.84	£2.21
6 - GROMMET dia9.7-dia12x89 MM BSD-1610703053.A203 1610703053	£2.74	£3.29
7 - FASTENING CLAMP BSD-1601302019.A15 1601302019	£1.84	£2.21
13 - GROOVE BALL BEARING BSD-2610909310.A20 2610909310	£17.22	£20.67
14 - NEEDLE-ROLLER BEARING BSD-1610910089.A36 1610910089	-
15 - FAN BSD-1616610083.A19 1616610083	£22.60	£27.12
16 - RATCHET SLEEVE BSD-1610499022.A18 1610499022	£3.91	£4.69
17 - RETAINING SNAP RING BSD-1610590004.A11 1610590004	£12.04	£14.45
18 - SPRING RETAINING RING BSD-1610119010.A10 1610119010	£3.91	£4.69
19 - CLAMPING-FLANGE BSD-1615700034.A19 1615700034	£70.24	£84.29
20 - TOOLHOLDER BSD-1618597067.A9 1618597067	£81.81	£98.17
21 - PROTECTIVE CAP BSD-1610508025.A10 1610508025	£4.48	£5.37
22 - PROTECTION SLEEVE BSD-1610499023.A2 1610499023	£3.72	£4.47
23 - STOP SLEEVE BSD-1610521011.A19 1610521011	£19.91	£23.89
25 - STOPPING DEVICE BSD-1612300025.A11 1612300025	£9.11	£10.93
26 - INDEXING DISK BSD-1610290027.A10 1610290027	£3.91	£4.69
27 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x30-10.9 BSD-2910151246.A12 2910151246	£2.61	£3.13
28 - COMPRESSION SPRING BSD-1614621002.A9 1614621002	£2.16	£2.59
29 - COMPRESSION SPRING BSD-1614621003.A11 1614621003	£2.80	£3.36
30 - O-RING 79.5x2.65 MM BSD-1610210147.A2 1610210147	£2.74	£3.29
31 - DAMPING RING BSD-1610290026.A10 1610290026	£2.80	£3.36
34 - SPACER TUBE BSD-1610390029.A10 1610390029	£19.91	£23.89
35 - HAMMER PIPE BSD-1615806108.A19 1615806108	£75.79	£90.95
36 - O-RING 64.0x2.5 MM BSD-1610210127.A12 1610210127	£1.84	£2.21
37 - O-RING 35.0x3.0 MM BSD-1610210128.A8 1610210128	£2.27	£2.72
38 - COVERING HOOD BSD-1615190093.A5 1615190093	£23.86	£28.63
39 - ROTARY SHAFT LIP SEAL BSD-1600A01MK9.A10 1600A01MK9	-
41 - STRIKER PIN BSD-1618710071.A1 1618710071	£22.76	£27.31
43 - BEARING COVER BSD-1615808083.A14 1615808083	£28.68	£34.41
54 - CONTROL DISC BSD-1610190019.A20 1610190019	£9.11	£10.93
55 - CONTROL BUSHING BSD-1610420005.A12 1610420005	£21.68	£26.01
56 - HAMMER PISTON BSD-1618700064.A11 1618700064	£12.64	£15.17
57 - STRIKER BSD-1618710062.A19 1618710062	£59.53	£71.44
70 - CONNECTING ROD BSD-1612001033.A11 1612001033	£12.64	£15.17
71 - STRAIGHT PIN BSD-1613101006.A11 1613101006	£2.94	£3.53
72 - ECCENTRIC COG WHEEL Z=60 BSD-1616317045.A20 1616317045	£73.75	£88.50
75 - HANDLE BSD-1615132082.A0 1615132082	£39.13	£46.96
76 - CONTROL LEVER BSD-1612026049.A2 1612026049	£3.28	£3.94
77 - SHIFT PLATE BSD-1612026048.A9 1612026048	£7.72	£9.27
80 - SPEED GOVERNOR 220-240V BSD-1617233055.A0 1617233055	£65.08	£78.10
82 - LIGHT CONDUCTOR BSD-1615510000.A0 1615510000	£2.27	£2.72
84 - AUXILIARY HANDLE BSD-160202508D.A20 160202508D	£19.91	£23.89
86 - HEX SCREW BSD-2911021267.A26 2911021267	£3.91	£4.69
87 - CLAMPING BAND BSD-1611316010.A20 1611316010	£6.52	£7.83
88 - STAR KNOB M8 BSD-1619P16922.A35 1619P16922	£6.45	£7.74
89 - CLAMPING PIECE BSD-1600A00748.A12 1600A00748	£2.80	£3.36
103 - O-RING 30.0x5.0 MM BSD-1610210122.A9 1610210122	£6.52	£7.83
104 - O-RING 22.0x11.0 MM BSD-1610210123.A11 1610210123	£2.94	£3.53
111 - BUSHING BSD-3610501500.A22 3610501500	£22.76	£27.31
112 - THREADED RING BSD-3613461500.A8 3613461500	£12.64	£15.17
113 - SPACER BSD-1610009007.A9 1610009007	£2.16	£2.59
114 - O-RING 30.0x2.5 MM BSD-1610210139.A39 1610210139	£2.74	£3.29
115 - PROTECTIVE CAP BSD-1610508027.A25 1610508027	£2.94	£3.53
123 - NEEDLE-ROLLER ASSEMBLY BSD-1610913013.A3 1610913013	£9.11	£10.93
124/1 - THRUST BEARING DISC BSD-1610101608.A34 1610101608	£2.27	£2.72
125 - TORX OVAL-HEAD SCREW 5.5x25 BSD-1613435010.A17 1613435010	£2.27	£2.72
126 - SCREW 4x16 BSD-2603490022.A2968 2603490022	£1.84	£2.21
127 - MICROENCAPSULATED SCREW DIN 912-M 5x12-8.8 BSD-2914551117.A37 2914551117	£1.84	£2.21
129 - SCREW AND WASHER ASSEMBLY 6.3x32 BSD-1613433001.A48 1613433001	£1.84	£2.21
131 - MANUFACTURER'S NAMEPLATE BSD-160111C1VG.A5 160111C1VG	£2.61	£3.13
136 - TORX OVAL-HEAD SCREW M6x30 BSD-1613490029.A17 1613490029	£1.75	£2.10
138 - O-RING 32.0x2.5 MM BSD-1610210130.A20 1610210130	£7.72	£9.27
139 - FELT WASHER BSD-1610108020.A8 1610108020	£9.11	£10.93
140 - TORX OVAL-HEAD SCREW 5.5x25 BSD-1613435010.A16 1613435010	£2.27	£2.72
141 - ROTARY SHAFT LIP SEAL BSD-1610290028.A12 1610290028	£3.91	£4.69
142 - BUSHING BSD-1610300063.A0 1610300063	£16.41	£19.69
143 - RETAINING RING DIN 7993 A 30 BSD-2916540017.A20 2916540017	£2.27	£2.72
144 - SUPPORTING DISC BSD-1610102029.A11 1610102029	£3.91	£4.69
661 - GREASE TUBE 30 ML BSD-1615430010.A168 1615430010	£6.85	£8.22
805 - POWER SUPPLY CORD BSD-1617000723.A78 1617000723	£28.59	£34.31
808 - NAMEPLATE BSD-160111A3H3.A3022 160111A3H3	£2.74	£3.29
823 - NEEDLE-ROLLER ASSEMBLY BSD-1617000403.A9 1617000403	£21.68	£26.01
824 - BALL DIN 5401-6.5MM-III-ST BSD-1617000240.A12 1617000240	£3.91	£4.69
840 - IMPACT MECHANISM HOUSING BSD-1617000969.A8 1617000969	£195.26	£234.31
842 - BRUSH HOLDER BSD-1600A005AF.A0 1600A005AF	£40.80	£48.96
842/020 - BRUSH GUIDE BSD-1614336017.A18 1614336017	£12.04	£14.45
842/030 - SPIRAL SPRING BSD-1614652004.A12 1614652004	£7.72	£9.27
842/050 - CARBON-BRUSH SET BSD-1617014126.A26 1617014126	£15.65	£18.78
842/050 - CARBON-BRUSH SET 10 x 1 617 014 126 BSD-1607000481.A4 1607000481	£102.57	£123.08
842/080 - TAPPING SCREW DIN 7981-ST3.5x16-C-H BSD-2910611012.A64 2910611012	-
845 - HOUSING COVER BSD-1617000418.A11 1617000418	£12.64	£15.17
884 - AUXILIARY HANDLE BSD-160202508E.A9 160202508E	£42.84	£51.41
886 - HEX SCREW DIN 931-M8x130-8.8 BSD-2911011270.A31 2911011270	£4.48	£5.37
887 - CLAMPING BAND dia50 MM BSD-1617000188.A17 1617000188	£10.61	£12.73
889 - CLAMPING PIECE BSD-1618040053.A11 1618040053	£3.91	£4.69
890 - CATCH DISK BSD-1610190053.A7 1610190053	£2.49	£2.99
892 - GREASE TUBE 45 ML BSD-1615430014.A1 1615430014	£11.87	£14.24
895 - OIL RETURN RING BSD-3613344500.A12 3613344500	£10.61	£12.73
897 - WEAR AND TEAR PART SET BSD-1617000189.A3 1617000189	£37.27	£44.72
898 - WEAR AND TEAR PART SET BSD-1617000190.A13 1617000190	£62.51	£75.01

Attribute Name	Value
Brand	Bosch
