Bosch GSH 10 C / 0611311750 / I 230 Volt Spare Parts

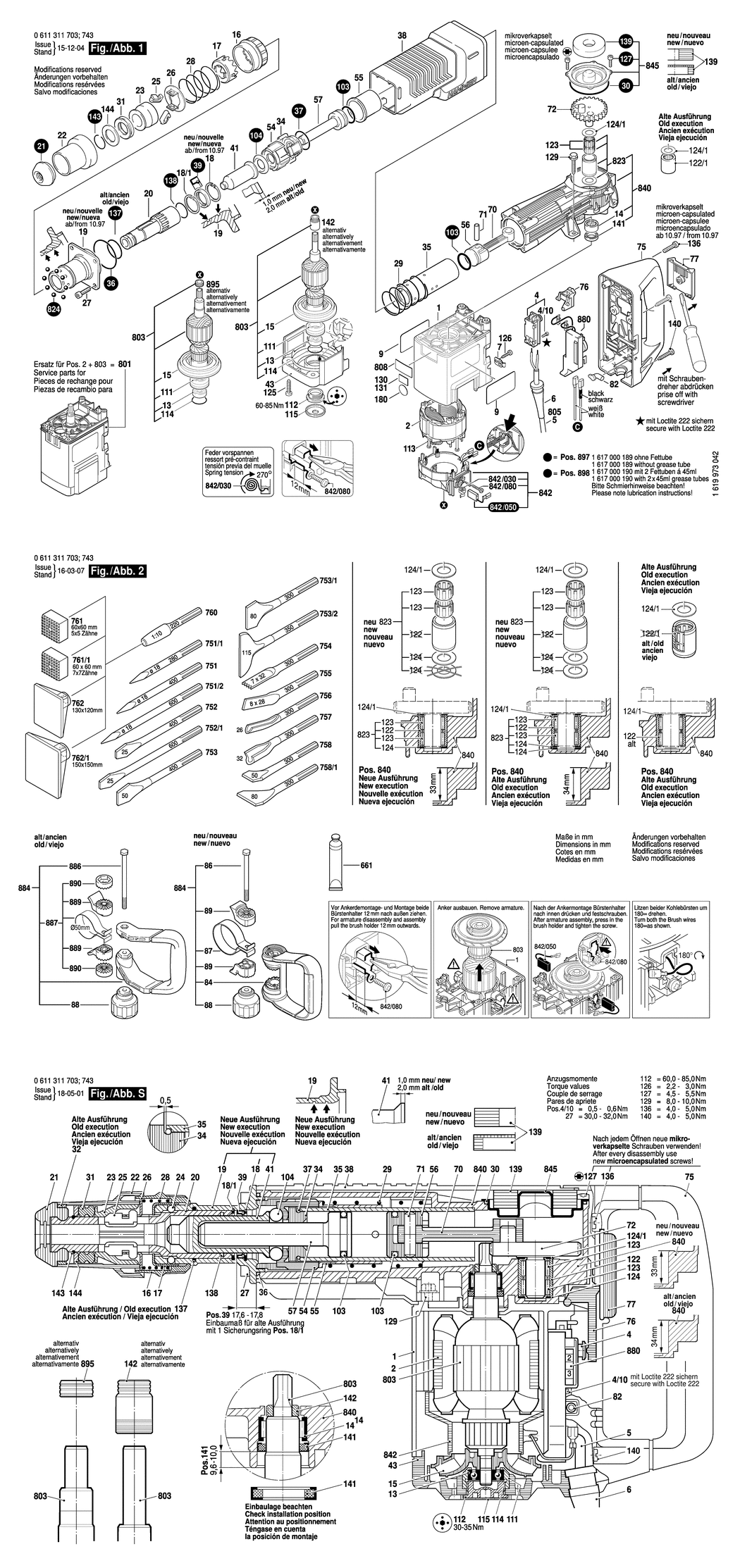

An exploded drawing and listing for the Bosch GSH 10 C / 0611311750 / I 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3615102507.A3 3615102507	-
2 - UN. FLANGE-MTD. MOTOR 220-240V BSD-1617220073.A18 1617220073	-
4 - SWITCH BSD-1617200048.A87 1617200048	£18.96	£22.75
4/10 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x12-5.8 BSD-2910011088.A142 2910011088	£1.75	£2.10
5 - POWER SUPPLY CORD IL 4.15m 2 x 1.0mm H07 RN-F BSD-1614460047.A8 1614460047	£18.96	£22.75
6 - GROMMET dia9.7-dia12x89 MM BSD-1610703053.A171 1610703053	£2.61	£3.13
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A752 3600703011	£2.80	£3.36
7 - FASTENING CLAMP BSD-1601302018.A752 1601302018	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1611110641.A3 1611110641	-
13 - GROOVE BALL BEARING BSD-2610909310.A2 2610909310	£16.41	£19.69
14 - NEEDLE-ROLLER BEARING BSD-1610910089.A24 1610910089	-
15 - FAN BSD-1616610078.A11 1616610078	-
16 - RATCHET SLEEVE BSD-1610499022.A2 1610499022	£3.72	£4.47
17 - RETAINING SNAP RING BSD-1610590004.A20 1610590004	£12.04	£14.45
18 - SPRING RETAINING RING BSD-1610119010.A13 1610119010	£3.72	£4.47
18/1 - SPRING RETAINING RING BSD-1610119010.A14 1610119010	£3.72	£4.47
19 - CLAMPING-FLANGE BSD-1615700034.A6 1615700034	£70.24	£84.29
20 - TOOLHOLDER BSD-1618597067.A3 1618597067	£81.81	£98.17
21 - PROTECTIVE CAP BSD-1610508025.A19 1610508025	£4.26	£5.11
22 - PROTECTION SLEEVE BSD-1610499023.A18 1610499023	£3.72	£4.47
23 - STOP SLEEVE BSD-1610521011.A2 1610521011	£18.96	£22.75
25 - STOPPING DEVICE BSD-1612300025.A20 1612300025	£8.67	£10.41
26 - INDEXING DISK BSD-1610290027.A1 1610290027	£3.72	£4.47
27 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x30-10.9 BSD-2910151246.A15 2910151246	£2.61	£3.13
28 - COMPRESSION SPRING BSD-1614621002.A6 1614621002	£2.16	£2.59
29 - COMPRESSION SPRING BSD-1614621003.A14 1614621003	£2.80	£3.36
30 - O-RING 79.5x2.65 MM BSD-1610210147.A20 1610210147	£2.61	£3.13
31 - DAMPING RING BSD-1610290026.A19 1610290026	£2.80	£3.36
34 - SPACER TUBE BSD-1610390029.A19 1610390029	£18.96	£22.75
35 - HAMMER PIPE BSD-1615806108.A7 1615806108	£72.18	£86.62
36 - O-RING 64.0x2.5 MM BSD-1610210127.A20 1610210127	£1.75	£2.10
37 - O-RING 35.0x3.0 MM BSD-1610210128.A0 1610210128	£2.16	£2.59
38 - COVERING HOOD BSD-1615190052.A3 1615190052	-
39 - ROTARY SHAFT LIP SEAL BSD-1600A01MK9.A7 1600A01MK9	-
41 - STRIKER PIN BSD-1618710071.A22 1618710071	£21.68	£26.01
43 - BEARING COVER BSD-1615808083.A17 1615808083	£27.31	£32.77
54 - CONTROL DISC BSD-1610190019.A7 1610190019	£8.67	£10.41
55 - CONTROL BUSHING BSD-1610420005.A20 1610420005	£21.68	£26.01
56 - HAMMER PISTON BSD-1618700064.A20 1618700064	£12.04	£14.45
57 - STRIKER BSD-1618710062.A2 1618710062	£59.53	£71.44
70 - CONNECTING ROD BSD-1612001033.A19 1612001033	£12.04	£14.45
71 - STRAIGHT PIN BSD-1613101006.A19 1613101006	£2.80	£3.36
72 - ECCENTRIC COG WHEEL Z=60 BSD-1616317045.A7 1616317045	£70.24	£84.29
75 - HANDLE BSD-1615132051.A2 1615132051	£37.27	£44.72
76 - CONTROL LEVER BSD-1612026049.A13 1612026049	£3.12	£3.75
77 - SHIFT PLATE BSD-1612026048.A3 1612026048	£7.36	£8.83
82 - LIGHT CONDUCTOR BSD-1615510000.A32 1615510000	£2.16	£2.59
84 - AUXILIARY HANDLE BSD-160202508D.A10 160202508D	£18.96	£22.75
86 - HEX SCREW BSD-2911021267.A2 2911021267	£3.72	£4.47
87 - CLAMPING BAND BSD-1611316010.A7 1611316010	£6.52	£7.83
88 - STAR KNOB M8 BSD-1619P16922.A10 1619P16922	£6.45	£7.74
89 - CLAMPING PIECE BSD-1600A00748.A23 1600A00748	£2.80	£3.36
103 - O-RING 30.0x5.0 MM BSD-1610210122.A20 1610210122	£6.52	£7.83
104 - O-RING 22.0x11.0 MM BSD-1610210123.A0 1610210123	£2.80	£3.36
111 - BUSHING BSD-3610501500.A14 3610501500	£21.68	£26.01
112 - THREADED RING BSD-3613461500.A0 3613461500	£12.04	£14.45
113 - TAPPING SCREW ST-4.8x57.5-TORX.T20 BSD-1613435009.A173 1613435009	£1.75	£2.10
114 - O-RING 30x2 MM BSD-1900210130.A45 1900210130	£3.72	£4.47
115 - PROTECTIVE CAP BSD-1610508027.A15 1610508027	£2.80	£3.36
122 - NEEDLE-ROLLER ASSEMBLY BSD-1617000403.A19 1617000403	£21.68	£26.01
123 - NEEDLE-ROLLER ASSEMBLY BSD-1610913013.A13 1610913013	£8.67	£10.41
124/1 - THRUST BEARING DISC BSD-1610101608.A20 1610101608	£2.16	£2.59
125 - TORX OVAL-HEAD SCREW 5.5x25 BSD-1613435010.A3 1613435010	£2.16	£2.59
126 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A586 2910211019	£1.75	£2.10
127 - MICROENCAPSULATED SCREW DIN 912-M 5x12-8.8 BSD-2914551117.A6 2914551117	£1.75	£2.10
127 - MICROENCAPSULATED SCREW DIN 912-M 5x12-8.8 BSD-2914551117.A7 2914551117	£1.75	£2.10
129 - SCREW AND WASHER ASSEMBLY 6.3x32 BSD-1613433001.A29 1613433001	£1.75	£2.10
131 - MANUFACTURER'S NAMEPLATE BSD-1611110703.A0 1611110703	-
136 - TORX OVAL-HEAD SCREW M6x30 BSD-1613490029.A5 1613490029	£1.75	£2.10
137 - O-RING 41.0x2.5 MM BSD-1610210129.A7 1610210129	£3.72	£4.47
138 - O-RING 32.0x2.5 MM BSD-1610210130.A0 1610210130	£7.36	£8.83
139 - FELT WASHER BSD-1610108020.A3 1610108020	£8.67	£10.41
140 - TORX OVAL-HEAD SCREW 5.5x25 BSD-1613435010.A4 1613435010	£2.16	£2.59
141 - ROTARY SHAFT LIP SEAL BSD-1610290028.A19 1610290028	£3.72	£4.47
142 - BUSHING BSD-1610300063.A14 1610300063	£16.41	£19.69
143 - RETAINING RING DIN 7993 A 30 BSD-2916540017.A31 2916540017	£2.16	£2.59
144 - SUPPORTING DISC BSD-1610102029.A0 1610102029	£3.72	£4.47
661 - GREASE TUBE 30 ML BSD-1615430010.A141 1615430010	£6.52	£7.83
751 - POINTED CHISEL dia18x400 MM BSD-1618600011.A15 1618600011	-
751/1 - POINTED CHISEL dia18x280 MM BSD-1618600023.A16 1618600023	£15.76	£18.91
751/2 - POINTED CHISEL dia18x600 MM BSD-1618600012.A8 1618600012	£24.81	£29.77
752 - COLD CHISEL 25x400 MM BSD-1618600202.A7 1618600202	-
752/1 - COLD CHISEL 25x600 MM BSD-1618600203.A16 1618600203	£19.16	£22.99
753 - SPADE-SHAPED CHISEL 50x400 MM BSD-1618601006.A22 1618601006	-
753/1 - WIDE CHISEL 80x300 MM BSD-1618601008.A22 1618601008	£35.31	£42.37
753/2 - WIDE CHISEL 115x350 MM BSD-1618601007.A1 1618601007	£70.58	£84.70
754 - TOOTHED CHISEL 32x7x300 MM BSD-1618601302.A1 1618601302	£33.08	£39.70
755 - MORTAR RAKING CHISEL 28x8x300 MM BSD-1618601303.A22 1618601303	-
756 - GOUGE 26x300 MM BSD-1618601101.A1 1618601101	£35.13	£42.16
757 - GOUGE 32x300 MM BSD-1618601102.A22 1618601102	£44.80	£53.76
758 - TILE CHISEL 50x300 MM BSD-1618601018.A1 1618601018	-
758/1 - WIDE CHISEL 80x300 MM BSD-1618601019.A22 1618601019	£60.98	£73.17
760 - CHISEL HOLDER 65x220 MM BSD-1618609003.A1 1618609003	£35.27	£42.32
761 - BUSH HAMMER 60x60 MM. Z= 5x5 BSD-1618623205.A22 1618623205	£64.85	£77.82
761/1 - BUSH HAMMER 60x60 MM. Z= 7x7 BSD-1618623206.A1 1618623206	£64.85	£77.82
762 - TAMPING TOOL 120x130 MM BSD-1618633101.A7 1618633101	£87.83	£105.40
762/1 - TAMPING TOOL 150x150 MM BSD-1618633102.A16 1618633102	£128.02	£153.62
784 - AUXILIARY HANDLE dia50 MM BSD-2602025076.A4 2602025076	£29.49	£35.39
801 - UN. FLANGE-MTD. MOTOR 220-240V BSD-1617220073.A19 1617220073	-
803 - UN. FLANGE-MTD. MOTOR 220-240V BSD-1617220073.A20 1617220073	-
808 - DEMOLITION HAMMER BSD-0611309703.A3 0611309703	-
823 - NEEDLE-ROLLER ASSEMBLY BSD-1617000403.A18 1617000403	£21.68	£26.01
824 - BALL DIN 5401-6.5MM-III-ST BSD-1617000240.A19 1617000240	£3.72	£4.47
840 - IMPACT MECHANISM HOUSING BSD-1617000969.A6 1617000969	£195.26	£234.31
842 - BRUSH HOLDER BSD-1614336016.A4 1614336016	-
842/030 - SPIRAL SPRING BSD-1604652015.A323 1604652015	£2.80	£3.36
842/050 - CARBON-BRUSH SET BSD-1617014126.A33 1617014126	£14.91	£17.89
842/050 - CARBON-BRUSH SET 10 x 1 617 014 126 BSD-1607000481.A1 1607000481	£102.57	£123.08
842/080 - TAPPING SCREW DIN 7981-ST3.5x16-C-H BSD-2910611012.A48 2910611012	-
845 - HOUSING COVER BSD-1617000418.A5 1617000418	£12.04	£14.45
880 - SPEED GOVERNOR 220-240V BSD-1617233026.A34 1617233026	£46.82	£56.18
884 - AUXILIARY HANDLE BSD-160202508E.A16 160202508E	£40.80	£48.96
886 - HEX SCREW DIN 931-M8x130-8.8 BSD-2911011270.A55 2911011270	£4.26	£5.11
887 - CLAMPING BAND dia50 MM BSD-1617000188.A7 1617000188	£10.10	£12.12
889 - CLAMPING PIECE BSD-1618040053.A6 1618040053	£3.72	£4.47
890 - CATCH DISK BSD-1610190053.A27 1610190053	£2.49	£2.99
895 - OIL RETURN RING BSD-3613344500.A15 3613344500	£10.10	£12.12
897 - WEAR AND TEAR PART SET BSD-1617000189.A13 1617000189	£37.27	£44.72
898 - WEAR AND TEAR PART SET BSD-1617000190.A3 1617000190	£59.53	£71.44

Attribute Name	Value
Brand	Bosch
