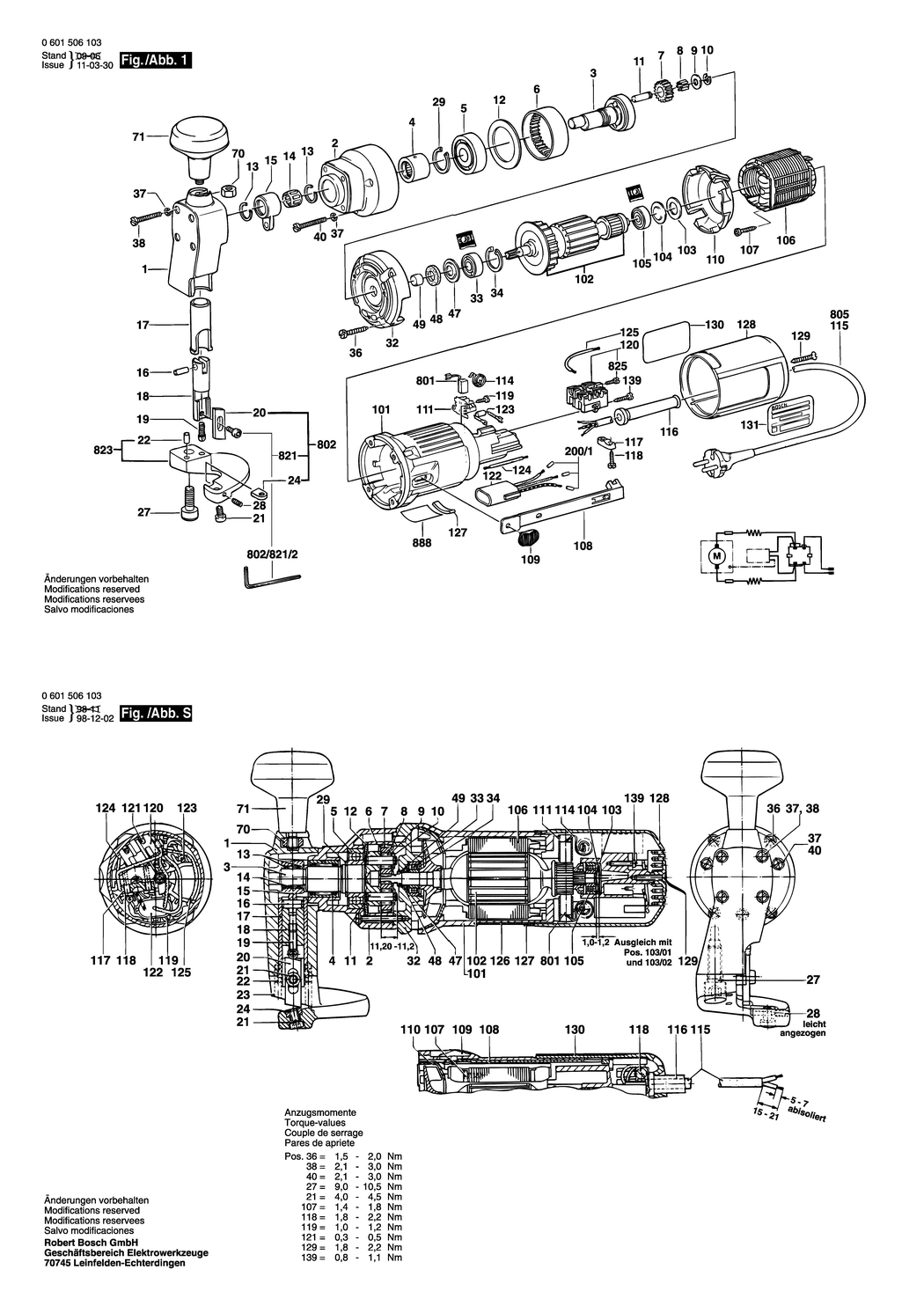

1 - GEAR COVER
BSD-2605500054.A11
2605500054
|
£75.79
|
£90.95
|
|
|
2 - GEAR HOUSING
BSD-2605806312.A25
2605806312
|
£50.80
|
£60.96
|
|
|
3 - ECCENTRIC SHAFT
BSD-2606122003.A5
2606122003
|
£98.57
|
£118.28
|
|
|
4 - NEEDLE BEARING
BSD-2600914011.A36
2600914011
|
£22.60
|
£27.12
|
|
|
5 - GROOVE BALL BEARING 20x42x12
BSD-1900900274.A5
1900900274
|
£27.23
|
£32.68
|
|
|
6 - RING GEAR Z=66
BSD-2606334040.A2
2606334040
|
£27.23
|
£32.68
|
|
|
7 - CYLINDRICAL GEAR Z=30
BSD-3606316057.A0
3606316057
|
£7.36
|
£8.83
|
|
|
8 - NEEDLE ROLLER
BSD-1903201520.A0
1903201520
|
£1.75
|
£2.10
|
|
|
9 - SHIM 1.2 MM
BSD-1600100611.A47
1600100611
|
£1.84
|
£2.21
|
|
|
10 - LOCKING WASHER 5 DIN 6799
BSD-2916080908.A94
2916080908
|
£1.84
|
£2.21
|
|
|
11 - BEARING BOLT
BSD-2603105021.A31
2603105021
|
£2.74
|
£3.29
|
|
|
12 - DISC SPRING
BSD-2600550017.A39
2600550017
|
£5.58
|
£6.70
|
|
|
13 - RETAINING RING
BSD-2600224009.A36
2600224009
|
£1.84
|
£2.21
|
|
|
14 - NEEDLE-ROLLER CAGE
BSD-2600913035.A37
2600913035
|
£11.30
|
£13.56
|
|
|
15 - CONNECTING ROD
BSD-2602001001.A37
2602001001
|
£54.42
|
£65.30
|
|
|
16 - BEARING BOLT
BSD-2603100003.A2
2603100003
|
£2.61
|
£3.13
|
|
|
17 - BEARING SLEEVE
BSD-2600400001.A3
2600400001
|
£50.80
|
£60.96
|
|
|
18 - LIFTING ROD
BSD-2603070008.A3
2603070008
|
£50.80
|
£60.96
|
|
|
19 - ADJUSTING SCREW
BSD-2603480001.A2
2603480001
|
£10.61
|
£12.73
|
|
|
20 - UPPER BLADE
BSD-2608635065.A6
2608635065
|
£17.22
|
£20.67
|
|
|
21 - HEX SOCKET HEAD CAP SCREW
BSD-3603414029.A0
3603414029
|
£2.94
|
£3.53
|
|
|
22 - STRAIGHT PIN
BSD-3603100040.A13
3603100040
|
£1.84
|
£2.21
|
|
|
24 - LOWER BLADE
BSD-2608635042.A0
2608635042
|
£18.96
|
£22.75
|
|
|
27 - HEX SOCKET HEAD CAP SCREW M 10x22 DIN 912-8.8
BSD-2910141290.A0
2910141290
|
£1.84
|
£2.21
|
|
|
28 - SET SCREW
BSD-2603400011.A30
2603400011
|
£2.80
|
£3.36
|
|
|
29 - SPRING RETAINING RING DIN 471 20x1.2
BSD-2916650011.A64
2916650011
|
£2.16
|
£2.59
|
|
|
32 - INTERMEDIATE FLANGE
BSD-3605700042.A8
3605700042
|
£75.79
|
£90.95
|
|
|
33 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A351
2600905021
|
£8.67
|
£10.41
|
|
|
34 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A424
2916660008
|
£2.16
|
£2.59
|
|
|
36 - TORX OVAL-HEAD SCREW
BSD-2914201508.A35
2914201508
|
£1.84
|
£2.21
|
|
|
37 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A1135
2916690003
|
£1.75
|
£2.10
|
|
|
38 - SOCKET HEAD CAP SCREW DIN 84-BM4x40-8.8
BSD-2910021138.A66
2910021138
|
£2.74
|
£3.29
|
|
|
40 - SOCKET HEAD CAP SCREW DIN 84-BM4x30-8.8
BSD-2910021134.A242
2910021134
|
£1.75
|
£2.10
|
|
|
47 - CUPPED WASHER
BSD-2600500002.A569
2600500002
|
£1.75
|
£2.10
|
|
|
48 - FELT WASHER
BSD-2600108002.A70
2600108002
|
£2.27
|
£2.72
|
|
|
49 - RECEPTACLE
BSD-2600400008.A454
2600400008
|
£1.75
|
£2.10
|
|
|
70 - HEX NUT DIN 934-M8-8-A
BSD-2915011009.A156
2915011009
|
£2.74
|
£3.29
|
|
|
71 - HANDLE
BSD-2602026001.A2
2602026001
|
£5.57
|
£6.68
|
|
|
101 - MOTOR HOUSING
BSD-2605108051.A27
2605108051
|
£22.60
|
£27.12
|
|
|
102 - ARMATURE 220-230V
BSD-2604010608.A3
2604010608
|
£75.79
|
£90.95
|
|
|
103 - SHIM 0.2 MM
BSD-2600101022.A54
2600101022
|
£1.84
|
£2.21
|
|
|
103 - SHIM 0.3 MM
BSD-2600101023.A493
2600101023
|
£1.84
|
£2.21
|
|
|
103 - SHIM 0.5 MM
BSD-2600101020.A578
2600101020
|
£1.84
|
£2.21
|
|
|
104 - SHIM
BSD-2600150004.A674
2600150004
|
£2.27
|
£2.72
|
|
|
105 - BALL BEARING 7x22x7
BSD-1900905018.A130
1900905018
|
£19.91
|
£23.89
|
|
|
106 - FIELD 220-230V
BSD-2604220445.A92
2604220445
|
£28.59
|
£34.31
|
|
|
107 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F
BSD-2603435015.A611
2603435015
|
£2.27
|
£2.72
|
|
|
108 - ADJUSTING SLIDE
BSD-2602319005.A143
2602319005
|
£1.84
|
£2.21
|
|
|
109 - SWITCH HANDLE
BSD-2602026015.A59
2602026015
|
£1.75
|
£2.10
|
|
|
110 - COVER DISC
BSD-2601328045.A247
2601328045
|
£2.16
|
£2.59
|
|
|
111 - BRUSH HOLDER
BSD-1600A003G4.A68
1600A003G4
|
£3.72
|
£4.47
|
|
|
114 - SPIRAL SPRING
BSD-1604652013.A1
1604652013
|
£1.84
|
£2.21
|
|
|
115 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05 VV-F
BSD-1604460427.A92
1604460427
|
£12.04
|
£14.45
|
|
|
116 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A162
2600703012
|
£2.94
|
£3.53
|
|
|
117 - CABLE CLIP
BSD-2601035001.A1897
2601035001
|
£1.84
|
£2.21
|
|
|
118 - SCREW 4x16
BSD-2603490022.A2023
2603490022
|
£1.84
|
£2.21
|
|
|
119 - LENS HEAD SCREW 3x10 ST
BSD-1613435034.A531
1613435034
|
£1.84
|
£2.21
|
|
|
120 - SWITCH
BSD-2607200674.A166
2607200674
|
£16.41
|
£19.69
|
|
|
122 - SUPPRESSION FILTER
BSD-2607329104.A9
2607329104
|
£10.10
|
£12.12
|
|
|
123 - SUPPRESSION FILTER
BSD-3604465000.A3
3604465000
|
£5.57
|
£6.68
|
|
|
124 - CONNECTING CABLE L=68MM
BSD-2604448039.A12
2604448039
|
£2.16
|
£2.59
|
|
|
125 - CONNECTING CABLE L=125MM
BSD-2604448040.A56
2604448040
|
£2.61
|
£3.13
|
|
|
128 - HOUSING COVER
BSD-2600508036.A15
2600508036
|
£10.61
|
£12.73
|
|
|
129 - TAPPING SCREW DIN 7982-ST3.9x22C-H
BSD-2910601321.A41
2910601321
|
-
|
|
|
|
130 - STICKER
BSD-3601110354.A3
3601110354
|
£3.91
|
£4.69
|
|
|
131 - STICKER
BSD-3601110384.A0
3601110384
|
£3.91
|
£4.69
|
|
|
139 - TAPPING SCREW DIN 7971-BZ2.9x16
BSD-2910211007.A191
2910211007
|
£1.75
|
£2.10
|
|
|
801 - CARBON-BRUSH SET
BSD-3607031630.A2
3607031630
|
-
|
|
|
|
802 - SET OF KNIVES
BSD-2607010025.A0
2607010025
|
£29.74
|
£35.69
|
|
|
802/821/2 - OFFSET SCREWDRIVER DIN 911. SW3
BSD-1907950004.A3
1907950004
|
£5.87
|
£7.04
|
|
|
821 - SET OF SCREWS
BSD-3607031645.A0
3607031645
|
£17.22
|
£20.67
|
|
|
823 - BLADE HOLDER
BSD-2608042003.A8
2608042003
|
£179.37
|
£215.24
|
|
|
825 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1771
2603410001
|
£1.84
|
£2.21
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A5442
160111A3H3
|
£2.74
|
£3.29
|
|
