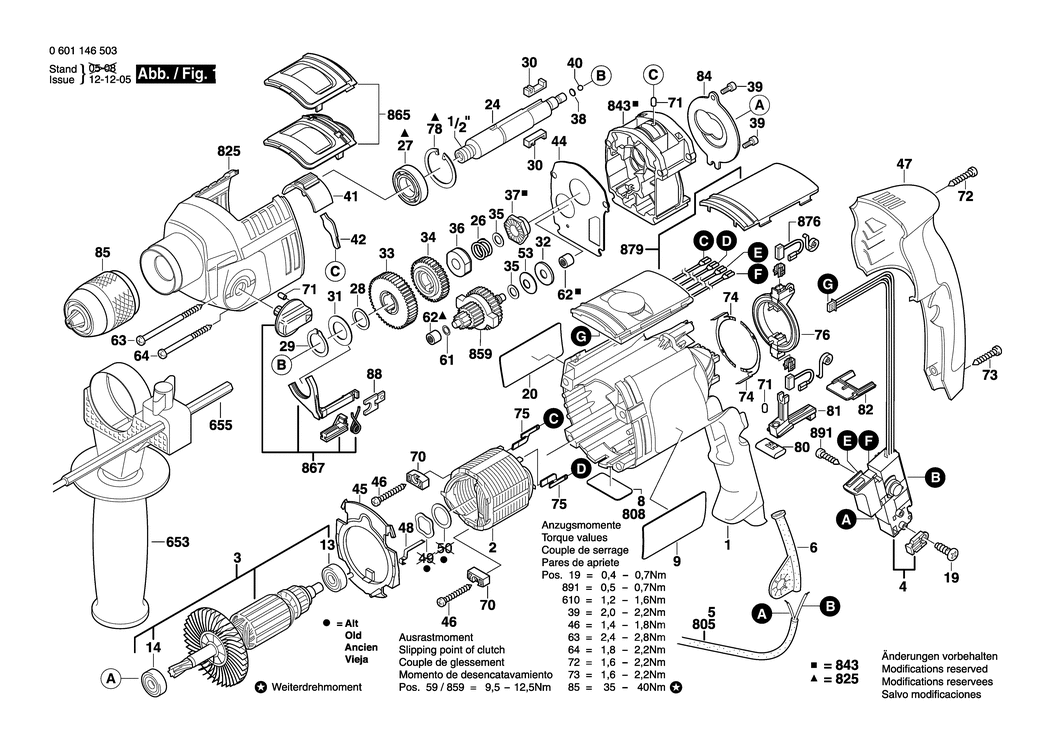

1 - MOTOR HOUSING
BSD-2605104784.A3
2605104784
|
£25.68
|
£30.81
|
|
|
2 - FIELD 230-240V
BSD-1604220395.A0
1604220395
|
£24.45
|
£29.34
|
|
|
3 - ARMATURE WITH FAN 230-240V
BSD-2604011249.A1
2604011249
|
£41.62
|
£49.95
|
|
|
4 - SWITCH
BSD-2607200544.A1
2607200544
|
£33.22
|
£39.87
|
|
|
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1604460401.A4
1604460401
|
£19.45
|
£23.34
|
|
|
6 - GROMMET dia6.2-dia6.9x90 MM
BSD-2600707066.A169
2600707066
|
£2.60
|
£3.12
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601116656.A1
2601116656
|
£2.61
|
£3.13
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A2160
2600905032
|
£5.57
|
£6.68
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-1610905017.A15
1610905017
|
£13.12
|
£15.75
|
|
|
19 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A728
2603490017
|
£2.27
|
£2.72
|
|
|
20 - REFERENCE PLATE
BSD-2601117958.A2
2601117958
|
£2.74
|
£3.29
|
|
|
24 - DRILLING SPINDLE
BSD-2606135099.A0
2606135099
|
£14.08
|
£16.89
|
|
|
26 - COMPRESSION SPRING
BSD-2604616013.A9
2604616013
|
£2.74
|
£3.29
|
|
|
27 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A290
1900905163
|
£11.30
|
£13.56
|
|
|
28 - SHIM 0.5 MM
BSD-2600100695.A124
2600100695
|
£1.84
|
£2.21
|
|
|
29 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A149
2916650008
|
£1.84
|
£2.21
|
|
|
30 - FLAT KEY
BSD-2602300032.A56
2602300032
|
£3.72
|
£4.47
|
|
|
31 - RETAINING WASHER
BSD-2600101671.A143
2600101671
|
£1.84
|
£2.21
|
|
|
32 - SHIM
BSD-2600101056.A1
2600101056
|
£1.75
|
£2.10
|
|
|
33 - CYLINDRICAL GEAR
BSD-2606317084.A54
2606317084
|
£13.78
|
£16.54
|
|
|
34 - CYLINDRICAL GEAR
BSD-2606317098.A81
2606317098
|
£12.64
|
£15.17
|
|
|
35 - SHIM 0.3 MM
BSD-2600101047.A185
2600101047
|
£1.84
|
£2.21
|
|
|
36 - CATCH DISK
BSD-2600190090.A20
2600190090
|
£2.64
|
£3.17
|
|
|
37 - CATCH DISK
BSD-2600190078.A25
2600190078
|
£6.16
|
£7.39
|
|
|
38 - SHIM WASHER 1.0 MM
BSD-2600000021.A128
2600000021
|
£1.84
|
£2.21
|
|
|
38 - SHIM WASHER 1.35 MM
BSD-2600000030.A76
2600000030
|
£1.75
|
£2.10
|
|
|
38 - SHIM WASHER 1.7 MM
BSD-2600000031.A58
2600000031
|
£1.75
|
£2.10
|
|
|
39 - THREAD-FORMING TAP. SCREW M4x8
BSD-2603410048.A14
2603410048
|
£1.84
|
£2.21
|
|
|
40 - BALL 5.25 MM
BSD-2603230007.A38
2603230007
|
£1.75
|
£2.10
|
|
|
40 - BALL DIN 5401-5 G28
BSD-1903230009.A825
1903230009
|
£1.84
|
£2.21
|
|
|
40 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A78
1903230010
|
£1.84
|
£2.21
|
|
|
41 - CHANGEOVER LEVER
BSD-2602098014.A1
2602098014
|
£1.95
|
£2.34
|
|
|
42 - PRESSURE PLATE
BSD-2600114016.A12
2600114016
|
£2.45
|
£2.94
|
|
|
44 - GASKET
BSD-2601073014.A12
2601073014
|
£1.38
|
£1.66
|
|
|
45 - AIR GUIDE PLATE
BSD-2600148007.A9
2600148007
|
£1.75
|
£2.10
|
|
|
46 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A683
2603490024
|
£1.84
|
£2.21
|
|
|
47 - HOUSING COVER
BSD-2605132053.A0
2605132053
|
£9.97
|
£11.96
|
|
|
48 - CONTACT SPRING
BSD-2601324046.A12
2601324046
|
-
|
|
|
|
53 - DISC SPRING
BSD-2600550008.A114
2600550008
|
£1.84
|
£2.21
|
|
|
61 - SHIM 0.3 MM
BSD-2600100607.A204
2600100607
|
£1.75
|
£2.10
|
|
|
62 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A97
2600914010
|
£2.94
|
£3.53
|
|
|
63 - HEADLESS SCREW
BSD-2603435070.A55
2603435070
|
£2.16
|
£2.59
|
|
|
64 - HEADLESS SCREW
BSD-2603435077.A9
2603435077
|
£1.84
|
£2.21
|
|
|
70 - HOLDING-DOWN-APPLIANCE
BSD-2601328068.A2
2601328068
|
£1.84
|
£2.21
|
|
|
71 - RATCHET CAP
BSD-2600590006.A28
2600590006
|
£1.84
|
£2.21
|
|
|
72 - TORX OVAL-HEAD SCREW 4x30
BSD-2603490025.A78
2603490025
|
£1.84
|
£2.21
|
|
|
73 - SCREW 4x16
BSD-2603490022.A2084
2603490022
|
£1.84
|
£2.21
|
|
|
74 - CONTACT BAR
BSD-2601324045.A11
2601324045
|
-
|
|
|
|
75 - BLADE TERMINAL
BSD-2604477005.A14
2604477005
|
£1.84
|
£2.21
|
|
|
76 - BRUSH PLATE
BSD-2604337096.A0
2604337096
|
£15.65
|
£18.78
|
|
|
78 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A170
2916660014
|
£1.75
|
£2.10
|
|
|
80 - CHANGE-OVER SWITCH
BSD-2602099016.A13
2602099016
|
£2.45
|
£2.94
|
|
|
81 - CARRIER BRACKET
BSD-2602319024.A9
2602319024
|
£1.75
|
£2.10
|
|
|
82 - END STOP
BSD-2602319025.A14
2602319025
|
£1.32
|
£1.58
|
|
|
84 - RETAINING WASHER
BSD-2601098067.A11
2601098067
|
£2.45
|
£2.94
|
|
|
85 - KEYLESS CHUCK HSB 4
BSD-2608572143.A6
2608572143
|
£66.68
|
£80.01
|
|
|
88 - HOLDING PLATE
BSD-2601328070.A20
2601328070
|
£1.84
|
£2.21
|
|
|
653 - AUXILIARY HANDLE dia43 MM
BSD-2602025118.A96
2602025118
|
£14.91
|
£17.89
|
|
|
655 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001009.A460
1613001009
|
£3.91
|
£4.69
|
|
|
808 - MARKING PLATE
BSD-2601117712.A0
2601117712
|
£1.84
|
£2.21
|
|
|
825 - GEAR HOUSING
BSD-2605806894.A1
2605806894
|
£35.42
|
£42.51
|
|
|
843 - INTERMEDIATE FLANGE
BSD-2605700942.A1
2605700942
|
£35.12
|
£42.15
|
|
|
859 - TRANSMISSION
BSD-1600A00MM2.A11
1600A00MM2
|
£37.72
|
£45.27
|
|
|
865 - BULB SHIELD
BSD-2605510901.A10
2605510901
|
£12.37
|
£14.84
|
|
|
867 - TOOTHED RACK
BSD-2606308923.A1
2606308923
|
£3.34
|
£4.01
|
|
|
876 - CARBON-BRUSH SET
BSD-2604321927.A3
2604321927
|
£11.37
|
£13.64
|
|
|
879 - SPEED GOVERNOR 230-240V
BSD-2607230902.A2
2607230902
|
-
|
|
|
|
891 - CROSS RECESSED-HEAD SCREW M3x5
BSD-2603410046.A83
2603410046
|
£2.27
|
£2.72
|
|
