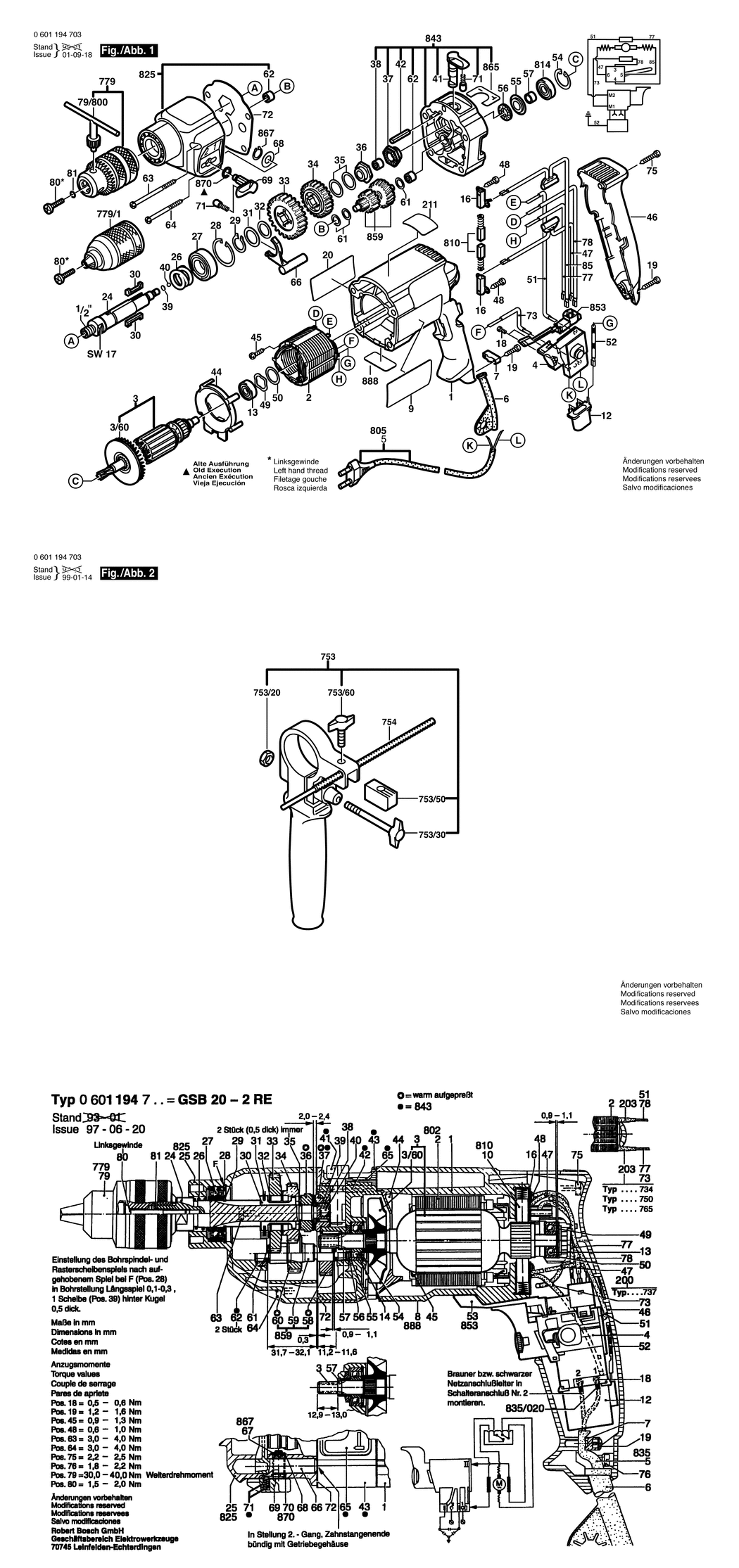

1 - MOTOR HOUSING
BSD-2605104309.A29
2605104309
|
£23.86
|
£28.63
|
|
|
2 - FIELD 220-240V
BSD-1604220254.A53
1604220254
|
£21.68
|
£26.01
|
|
|
3 - ARMATURE 230-240V
BSD-2604010739.A57
2604010739
|
-
|
|
|
|
3/60 - FAN
BSD-2606610029.A23
2606610029
|
£2.74
|
£3.29
|
|
|
4 - SWITCH
BSD-2607200209.A164
2607200209
|
£40.80
|
£48.96
|
|
|
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460147.A5
2604460147
|
£16.41
|
£19.69
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A662
2600707059
|
£3.72
|
£4.47
|
|
|
7 - CABLE CLIP
BSD-2601035001.A1118
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118694.A5
2601118694
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329114.A114
2607329114
|
-
|
|
|
|
13 - BALL BEARING 7x22x7
BSD-1900905018.A1137
1900905018
|
£18.96
|
£22.75
|
|
|
16 - BRUSH HOLDER
BSD-2604337003.A205
2604337003
|
£2.16
|
£2.59
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1016
2603410001
|
£1.75
|
£2.10
|
|
|
19 - SCREW 4x16
BSD-2603490022.A369
2603490022
|
£1.84
|
£2.21
|
|
|
20 - REFERENCE PLATE
BSD-2601118697.A3
2601118697
|
-
|
|
|
|
24 - DRILLING SPINDLE 1/2.SW 17
BSD-2606135032.A17
2606135032
|
-
|
|
|
|
26 - COMPRESSION SPRING
BSD-2604616002.A42
2604616002
|
£1.84
|
£2.21
|
|
|
27 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A417
1900905163
|
£11.30
|
£13.56
|
|
|
28 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A454
2916660014
|
£1.75
|
£2.10
|
|
|
29 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A307
2916650008
|
£1.84
|
£2.21
|
|
|
30 - FLAT KEY
BSD-2602300028.A47
2602300028
|
-
|
|
|
|
31 - RETAINING WASHER
BSD-2600101671.A237
2600101671
|
£1.84
|
£2.21
|
|
|
32 - SHIM 1.0 MM
BSD-2600101515.A21
2600101515
|
£2.05
|
£2.46
|
|
|
33 - CYLINDRICAL GEAR Z=48
BSD-2606317045.A10
2606317045
|
£14.72
|
£17.67
|
|
|
34 - CYLINDRICAL GEAR Z=36
BSD-2606317037.A198
2606317037
|
-
|
|
|
|
35 - SHIM 0.5 MM
BSD-2600101616.A221
2600101616
|
-
|
|
|
|
35 - SHIM 0.3 MM
BSD-2600101617.A98
2600101617
|
£1.75
|
£2.10
|
|
|
36 - CATCH DISK
BSD-2600190052.A200
2600190052
|
£8.17
|
£9.80
|
|
|
37 - CATCH DISK
BSD-2600190057.A99
2600190057
|
-
|
|
|
|
38 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A472
2600917003
|
£2.94
|
£3.53
|
|
|
39 - SHIM WASHER 0.2 MM
BSD-2600000012.A99
2600000012
|
£1.75
|
£2.10
|
|
|
39 - SHIM WASHER 0.5 MM
BSD-2600000014.A54
2600000014
|
£1.75
|
£2.10
|
|
|
39 - SHIM WASHER 1.35 MM
BSD-2600000030.A157
2600000030
|
£1.75
|
£2.10
|
|
|
40 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A610
1903230010
|
£1.75
|
£2.10
|
|
|
41 - ROTARY KNOB
BSD-2602026017.A57
2602026017
|
£7.36
|
£8.83
|
|
|
42 - SLOTTED SPRING PIN 4x30 MM DIN 7346
BSD-2917780105.A173
2917780105
|
£1.75
|
£2.10
|
|
|
44 - COVER DISC
BSD-2601328033.A81
2601328033
|
-
|
|
|
|
45 - TAPPING SCREW
BSD-2603435086.A369
2603435086
|
£1.75
|
£2.10
|
|
|
46 - HOUSING COVER
BSD-2605132049.A28
2605132049
|
£7.36
|
£8.83
|
|
|
47 - SUPPRESSION FILTER L=126 MM
BSD-2604465097.A139
2604465097
|
£5.58
|
£6.70
|
|
|
48 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1574
2603490017
|
£2.16
|
£2.59
|
|
|
49 - SHIM
BSD-2600150004.A303
2600150004
|
£2.27
|
£2.72
|
|
|
50 - SHIM WASHER 0.3 MM
BSD-2600101027.A210
2600101027
|
£1.75
|
£2.10
|
|
|
50 - SHIM WASHER 0.2 MM
BSD-2600101665.A54
2600101665
|
£1.75
|
£2.10
|
|
|
50 - SHIM WASHER 0.5 MM
BSD-2600101667.A73
2600101667
|
£1.84
|
£2.21
|
|
|
51 - CABLE L=130 MM
BSD-2604448005.A400
2604448005
|
£1.75
|
£2.10
|
|
|
52 - EARTH CONDUCTOR
BSD-2604448097.A85
2604448097
|
£1.75
|
£2.10
|
|
|
54 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A809
2916660008
|
£2.16
|
£2.59
|
|
|
55 - CUPPED WASHER
BSD-2600500002.A179
2600500002
|
£1.75
|
£2.10
|
|
|
56 - FELT WASHER
BSD-2600108077.A39
2600108077
|
£1.75
|
£2.10
|
|
|
57 - RECEPTACLE
BSD-2600400008.A348
2600400008
|
£1.75
|
£2.10
|
|
|
61 - SHIM 0.3 MM
BSD-2600100607.A939
2600100607
|
£1.75
|
£2.10
|
|
|
62 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A520
2600914010
|
£2.80
|
£3.36
|
|
|
63 - HEADLESS SCREW
BSD-2603435070.A23
2603435070
|
£2.16
|
£2.59
|
|
|
64 - HEADLESS SCREW 65 MM
BSD-2603435071.A98
2603435071
|
-
|
|
|
|
66 - ADJUSTING SLIDE
BSD-2602033006.A23
2602033006
|
£2.80
|
£3.36
|
|
|
68 - SHIM WASHER
BSD-2600100618.A257
2600100618
|
£1.75
|
£2.10
|
|
|
69 - ROTARY KNOB
BSD-2602026038.A103
2602026038
|
-
|
|
|
|
71 - RATCHET CAP
BSD-2600590006.A1228
2600590006
|
£1.75
|
£2.10
|
|
|
72 - GASKET
BSD-2601073012.A13
2601073012
|
£1.75
|
£2.10
|
|
|
73 - CONNECTING CABLE L=110 MM
BSD-2604448146.A18
2604448146
|
£1.84
|
£2.21
|
|
|
75 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A148
2603490024
|
£1.75
|
£2.10
|
|
|
77 - CONNECTING CABLE L=68 MM
BSD-2604448100.A52
2604448100
|
£1.75
|
£2.10
|
|
|
78 - CONNECTING CABLE
BSD-2604448239.A9
2604448239
|
-
|
|
|
|
79/800 - CHUCK WRENCH SG2
BSD-2607950007.A1041
2607950007
|
£6.52
|
£7.83
|
|
|
80 - COUNTERSUNK-HEAD SCREW M6x31 MM
BSD-2603421209.A63
2603421209
|
£1.32
|
£1.58
|
|
|
81 - RETAINING RING
BSD-2604601004.A435
2604601004
|
£1.75
|
£2.10
|
|
|
85 - SUPPRESSION FILTER L=148 MM
BSD-2604465086.A57
2604465086
|
£5.58
|
£6.70
|
|
|
753 - AUXILIARY HANDLE dia43 MM
BSD-1619P10682.A276
1619P10682
|
£12.49
|
£14.99
|
|
|
753/20 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A863
2915011007
|
-
|
|
|
|
753/30 - WING SCREW M6x(15)55
BSD-1613480007.A296
1613480007
|
£1.75
|
£2.10
|
|
|
753/50 - CLAMPING PLATE M6
BSD-2608040014.A368
2608040014
|
-
|
|
|
|
753/60 - WING SCREW M6x20 MM
BSD-1613480008.A126
1613480008
|
£1.75
|
£2.10
|
|
|
754 - DEPTH-GAUGE
BSD-2603001019.A189
2603001019
|
£2.63
|
£3.16
|
|
|
779 - KEY CHUCK dia1.5-13 MM
BSD-1608571080.A59
1608571080
|
£28.59
|
£34.31
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321905.A456
2604321905
|
£11.30
|
£13.56
|
|
|
814 - GROOVE BALL BEARING 9x24x7
BSD-2600905039.A225
2600905039
|
£12.04
|
£14.45
|
|
|
825 - GEAR HOUSING
BSD-2605806990.A65
2605806990
|
-
|
|
|
|
843 - INTERMEDIATE FLANGE
BSD-2605700936.A53
2605700936
|
£46.82
|
£56.18
|
|
|
853 - CHANGE-OVER SWITCH
BSD-2607200231.A339
2607200231
|
£17.22
|
£20.67
|
|
|
859 - TOOTHED SHAFT Z= 10/22/29
BSD-2606100903.A32
2606100903
|
-
|
|
|
|
865 - STICKER
BSD-2601110076.A67
2601110076
|
-
|
|
|
|
867 - LOCKING WASHER DIN 6799-4-FSt
BSD-2916080007.A74
2916080007
|
£2.61
|
£3.13
|
|
|
870 - PARTS SET
BSD-2607010226.A82
2607010226
|
£2.33
|
£2.80
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2405
160111A3H3
|
£2.61
|
£3.13
|
|
