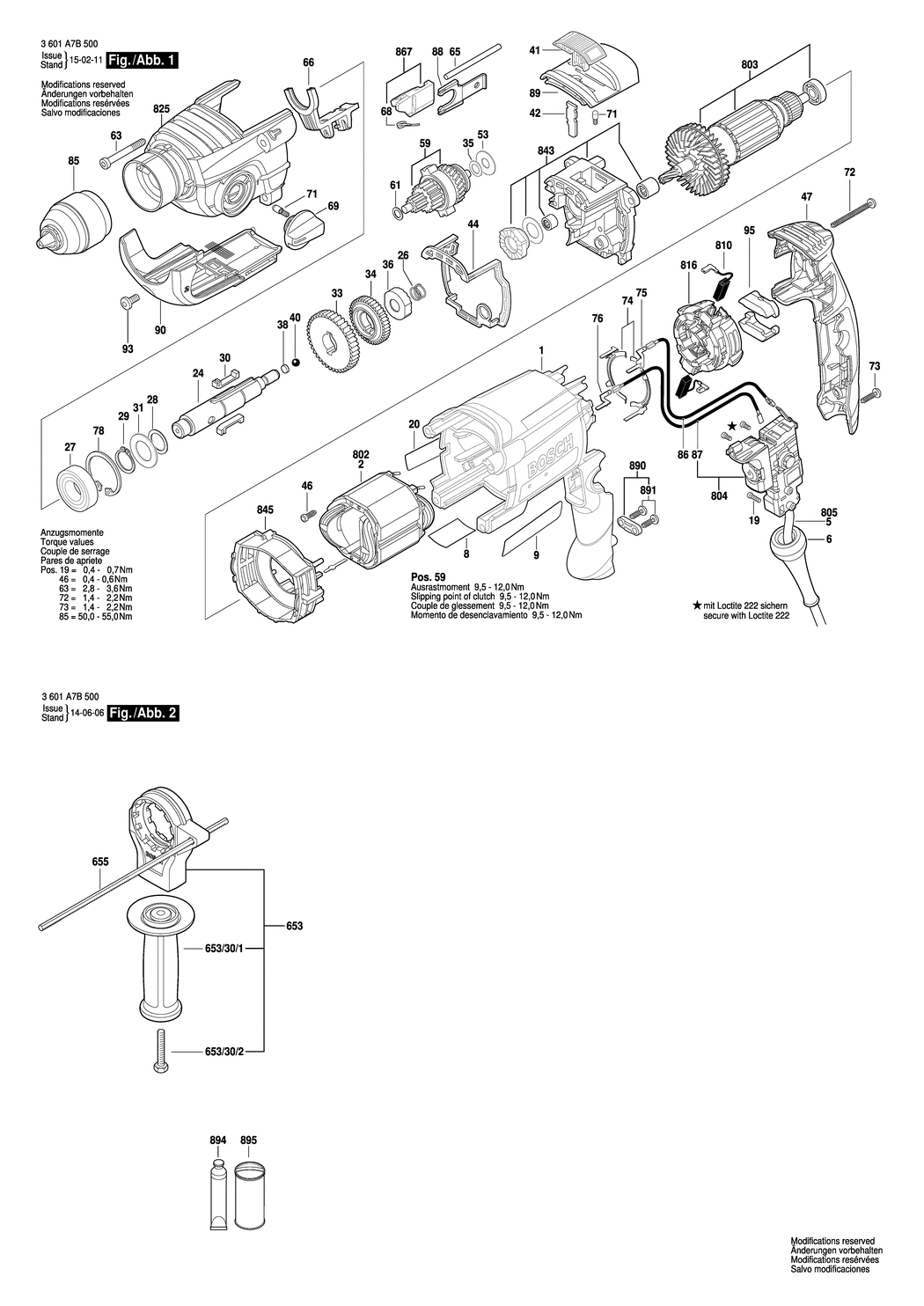

1 - MOTOR HOUSING
BSD-1618B00A04.A18
1618B00A04
|
£31.64
|
£37.97
|
|
|
2 - FIELD 220-240V
BSD-1604220456.A5
1604220456
|
£21.68
|
£26.01
|
|
|
2 - FIELD 110-120V
BSD-2604220732.A1
2604220732
|
-
|
|
|
|
5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.0mm H05 RN-F
BSD-2604460204.A20
2604460204
|
£31.64
|
£37.97
|
|
|
6 - CABLE SLEEVE dia6.4-dia7.0x66 MM
BSD-2600707075.A1
2600707075
|
£2.61
|
£3.13
|
|
|
8 - NAMEPLATE
BSD-160111A3ZR.A0
160111A3ZR
|
£2.33
|
£2.80
|
|
|
9 - MANUFACTURER'S NAMEPLATE GSB 19-2 RE
BSD-2601115611.A3
2601115611
|
-
|
|
|
|
19 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A99
2603490017
|
£2.16
|
£2.59
|
|
|
20 - REFERENCE PLATE
BSD-2601115517.A7
2601115517
|
£2.33
|
£2.80
|
|
|
24 - DRILLING SPINDLE
BSD-2606135138.A10
2606135138
|
£16.41
|
£19.69
|
|
|
26 - COMPRESSION SPRING
BSD-2604616006.A196
2604616006
|
£1.75
|
£2.10
|
|
|
27 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A159
1900905163
|
£11.30
|
£13.56
|
|
|
28 - SHIM 0.5 MM
BSD-2600100695.A78
2600100695
|
£1.75
|
£2.10
|
|
|
29 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A137
2916650008
|
£1.75
|
£2.10
|
|
|
30 - FLAT KEY
BSD-2602300032.A14
2602300032
|
£3.72
|
£4.47
|
|
|
31 - RETAINING WASHER
BSD-2600101671.A29
2600101671
|
£1.75
|
£2.10
|
|
|
33 - CYLINDRICAL GEAR
BSD-2606317084.A40
2606317084
|
£13.12
|
£15.75
|
|
|
34 - CYLINDRICAL GEAR
BSD-2606317098.A3
2606317098
|
£12.04
|
£14.45
|
|
|
35 - SHIM 0.3 MM
BSD-2600101047.A121
2600101047
|
£1.75
|
£2.10
|
|
|
36 - CATCH DISK
BSD-2600190105.A73
2600190105
|
£2.61
|
£3.13
|
|
|
38 - SHIM WASHER 1.0 MM
BSD-2600000021.A95
2600000021
|
£1.75
|
£2.10
|
|
|
38 - SHIM WASHER 1.35 MM
BSD-2600000030.A46
2600000030
|
£1.75
|
£2.10
|
|
|
38 - SHIM WASHER 1.7 MM
BSD-2600000031.A95
2600000031
|
£1.75
|
£2.10
|
|
|
40 - BALL DIN 5401-5 G28
BSD-1903230009.A692
1903230009
|
£1.75
|
£2.10
|
|
|
40 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A206
1903230010
|
£1.75
|
£2.10
|
|
|
40 - BALL 5.25 MM
BSD-2603230007.A117
2603230007
|
£1.75
|
£2.10
|
|
|
41 - SLIDE SWITCH
BSD-1618B00800.A17
1618B00800
|
£1.75
|
£2.10
|
|
|
42 - PRESSURE PLATE
BSD-2601074008.A14
2601074008
|
£1.75
|
£2.10
|
|
|
44 - SEAL
BSD-2601015099.A6
2601015099
|
£5.58
|
£6.70
|
|
|
46 - THREAD-FORMING TAP. SCREW DIN 7981-ST3.5x9.5-F
BSD-1613435007.A7
1613435007
|
£1.75
|
£2.10
|
|
|
47 - HOUSING COVER
BSD-1618B00A02.A8
1618B00A02
|
£14.91
|
£17.89
|
|
|
53 - DISC SPRING
BSD-2600550008.A50
2600550008
|
£1.75
|
£2.10
|
|
|
59 - TRANSMISSION
BSD-1600A00MM2.A39
1600A00MM2
|
£37.72
|
£45.27
|
|
|
61 - SHIM 0.3 MM
BSD-2600100607.A559
2600100607
|
£1.75
|
£2.10
|
|
|
63 - HEADLESS SCREW
BSD-2603435085.A64
2603435085
|
£1.75
|
£2.10
|
|
|
65 - STRAIGHT PIN
BSD-2603105200.A2
2603105200
|
£1.75
|
£2.10
|
|
|
66 - ADJUSTING SLIDE
BSD-1618B00807.A2
1618B00807
|
£1.75
|
£2.10
|
|
|
68 - COMPRESSION SPRING
BSD-2604616014.A50
2604616014
|
£1.75
|
£2.10
|
|
|
69 - ROTARY KNOB
BSD-2602026157.A12
2602026157
|
£2.16
|
£2.59
|
|
|
71 - RATCHET CAP
BSD-2600590006.A657
2600590006
|
£1.75
|
£2.10
|
|
|
72 - TORX OVAL-HEAD SCREW 4x40
BSD-2603490027.A29
2603490027
|
£1.75
|
£2.10
|
|
|
73 - SCREW 4x16
BSD-2603490022.A3068
2603490022
|
£1.75
|
£2.10
|
|
|
74 - SWITCH CONTACT
BSD-2601324062.A40
2601324062
|
£1.75
|
£2.10
|
|
|
75 - CONTACT
BSD-2601099259.A7
2601099259
|
£1.75
|
£2.10
|
|
|
76 - CONTACT
BSD-2601099260.A12
2601099260
|
£2.16
|
£2.59
|
|
|
78 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A55
2916660014
|
£1.75
|
£2.10
|
|
|
85 - KEYLESS CHUCK
BSD-2608572142.A15
2608572142
|
£52.15
|
£62.58
|
|
|
86 - CONNECTING CABLE
BSD-2604448331.A8
2604448331
|
£1.75
|
£2.10
|
|
|
87 - CONNECTING CABLE 48 mm
BSD-2604448334.A6
2604448334
|
£2.16
|
£2.59
|
|
|
88 - HOLDING PLATE
BSD-1618B00808.A12
1618B00808
|
£2.16
|
£2.59
|
|
|
89 - BULB SHIELD
BSD-1618B00A06.A2
1618B00A06
|
£5.30
|
£6.36
|
|
|
90 - BULB SHIELD
BSD-2605510269.A7
2605510269
|
£3.72
|
£4.47
|
|
|
93 - THREAD-FORMING TAP. SCREW
BSD-2914491411.A16
2914491411
|
£1.75
|
£2.10
|
|
|
95 - CLIP
BSD-2601329118.A13
2601329118
|
£1.75
|
£2.10
|
|
|
653 - AUXILIARY HANDLE
BSD-2602025175.A22
2602025175
|
£16.41
|
£19.69
|
|
|
653/30/1 - HANDLE
BSD-2602025180.A2
2602025180
|
-
|
|
|
|
653/30/2 - HEX SCREW M8x45
BSD-2911061252.A18
2911061252
|
£1.32
|
£1.58
|
|
|
655 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001009.A418
1613001009
|
£3.72
|
£4.47
|
|
|
803 - ARMATURE 110-120V
BSD-2604011918.A1
2604011918
|
£54.42
|
£65.30
|
|
|
804 - ON-OFF SWITCH
BSD-2607200922.A2
2607200922
|
£23.86
|
£28.63
|
|
|
810 - CARBON-BRUSH SET
BSD-1617000525.A109
1617000525
|
£11.30
|
£13.56
|
|
|
810 - CARBON-BRUSH SET 10 x 1 617 000 525
BSD-1607000485.A130
1607000485
|
£72.18
|
£86.62
|
|
|
816 - BRUSH PLATE
BSD-1614336061.A108
1614336061
|
£18.96
|
£22.75
|
|
|
825 - GEAR HOUSING
BSD-2605806884.A13
2605806884
|
£37.27
|
£44.72
|
|
|
843 - BEARING BRACKET
BSD-1600A0018A.A9
1600A0018A
|
£33.74
|
£40.49
|
|
|
845 - AIR GUIDE PLATE
BSD-2600148012.A12
2600148012
|
£7.36
|
£8.83
|
|
|
867 - LINK GUIDE
BSD-2602033900.A2
2602033900
|
£5.30
|
£6.36
|
|
|
890 - FASTENING PARTS KIT
BSD-2607001305.A354
2607001305
|
£4.26
|
£5.11
|
|
|
891 - CROSS RECESSED-HEAD SCREW M3x5
BSD-2603410046.A2
2603410046
|
£2.16
|
£2.59
|
|
|
895 - GREASE TUBE Albida
BSD-3605430003.A91
3605430003
|
£27.23
|
£32.68
|
|
