Bosch GSB 18 VE-2 / 0601952355 / EU 18 Volt Spare Parts

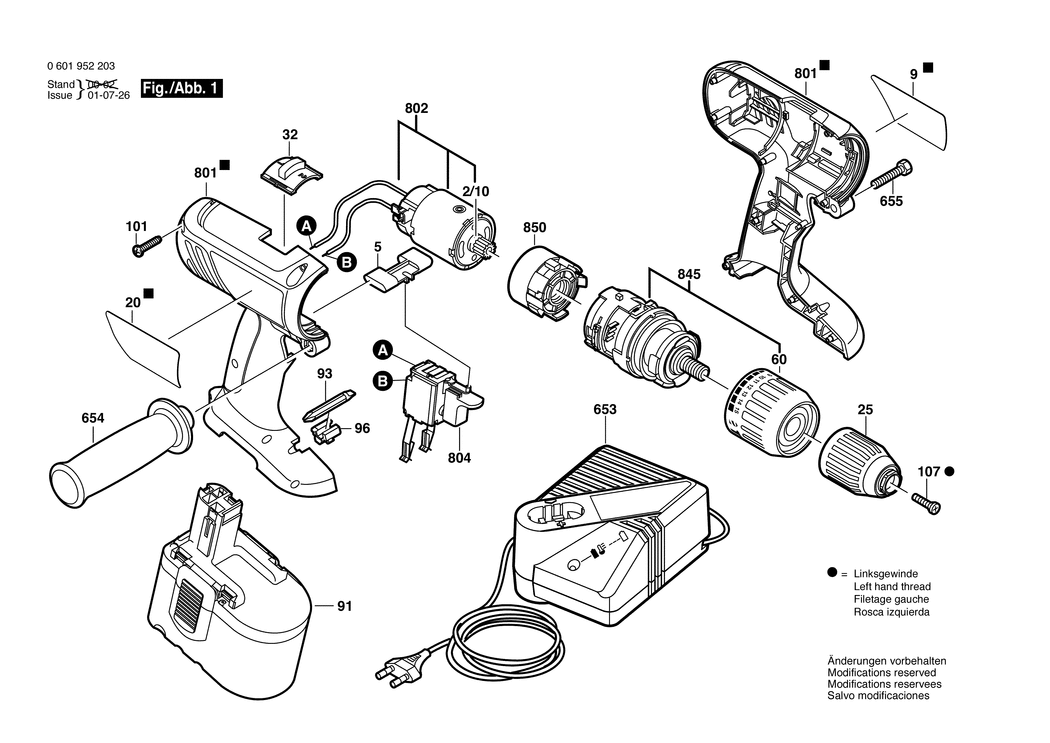

An exploded drawing and listing for the Bosch GSB 18 VE-2 / 0601952355 / EU 18 Volt

	Ex VAT	Inc VAT
2/10 - PINION BSD-2606316201.A6 2606316201	-
5 - ADJUSTING SLIDE BSD-2601099085.A73 2601099085	-
9 - MANUFACTURER'S NAMEPLATE BSD-2601117038.A3 2601117038	-
20 - REFERENCE PLATE BSD-2601117039.A0 2601117039	-
25 - KEYLESS CHUCK dia 2-13 MM.1/2 BSD-2608572088.A31 2608572088	£41.62	£49.95
32 - ADJUSTING SLIDE BSD-2601099086.A2 2601099086	£2.16	£2.59
60 - SETTING RING BSD-2605190277.A1 2605190277	£14.75	£17.70
91 - SLIDE-IN ACCU PACKAGE 18V.2.0Ah.NiCd BSD-2607335265.A1 2607335265	-
93 - SCREWDRIVER BLADE BSD-2608521018.A29 2608521018	£5.01	£6.01
96 - SUPPORT BSD-2608040131.A78 2608040131	£1.95	£2.34
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A560 2603490018	£1.75	£2.10
107 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A338 2603421229	£1.75	£2.10
653 - FAST CHARGER EU 230/7.2-24V. 1h BSD-2607224425.A225 2607224425	£88.07	£105.68
653 - FAST CHARGER EU 230/7.2-24V. 30 MIN. BSD-2607225027.A84 2607225027	£120.11	£144.13
654 - AUXILIARY HANDLE BSD-2602025108.A9 2602025108	£19.45	£23.34
655 - HEX SCREW M 6x35 DIN 933-8.8 BSD-2911061207.A9 2911061207	£1.75	£2.10
801 - HOUSING SECTION BSD-2605105904.A1 2605105904	-
802 - DC MOTOR 18V BSD-2607022974.A1 2607022974	-
804 - ON-OFF SWITCH BSD-2607200413.A6 2607200413	£41.62	£49.95
845 - PLANETARY GEAR TRAIN BSD-2606200929.A0 2606200929	-
850 - INTERMEDIATE FLANGE BSD-2605719901.A34 2605719901	-
