Bosch GSB 18-2 E / 0601185732 / CH 230 Volt Spare Parts

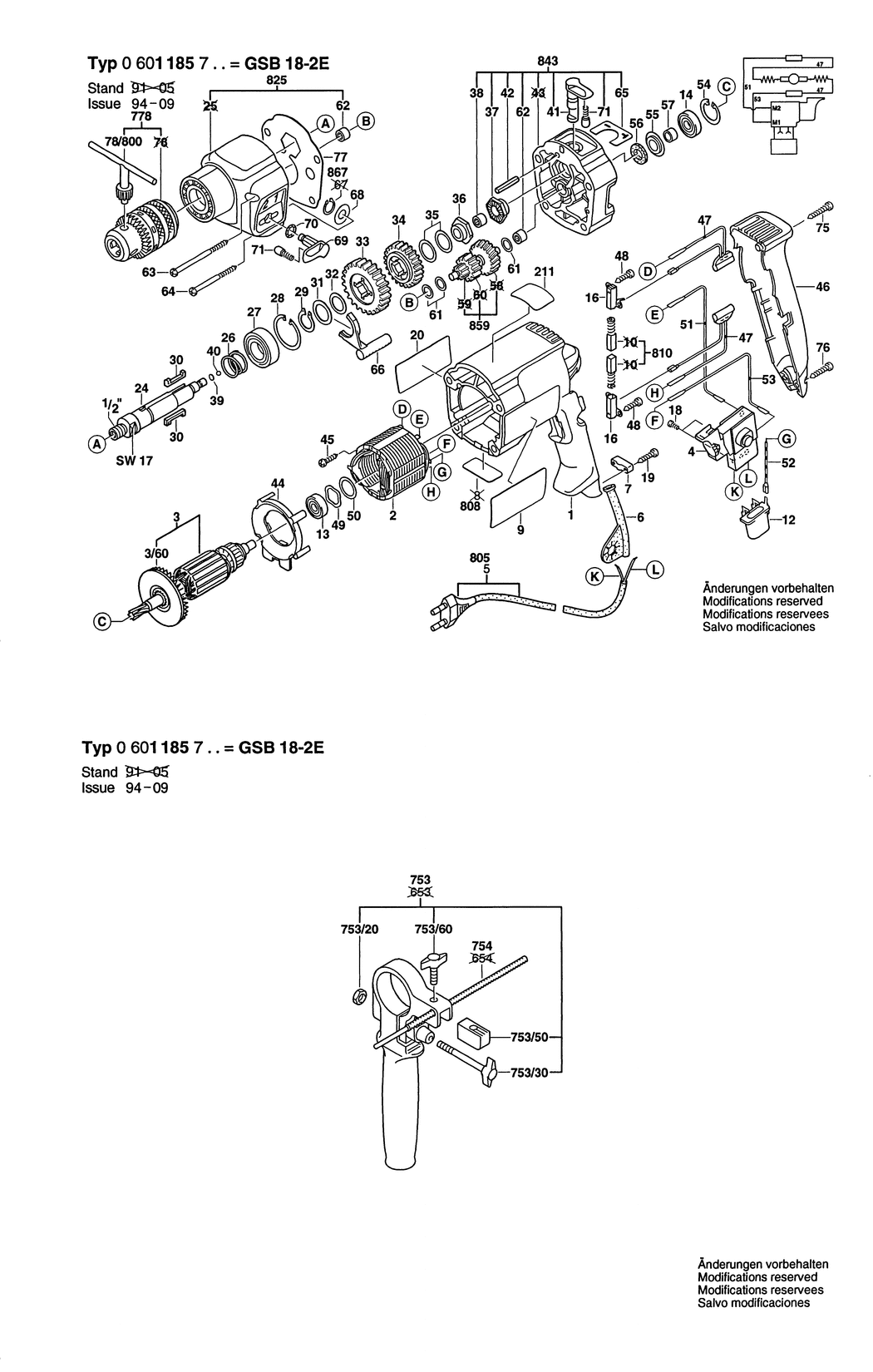

An exploded drawing and listing for the Bosch GSB 18-2 E / 0601185732 / CH 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2605104309.A22 2605104309	£23.86	£28.63
2 - FIELD 220-240V BSD-1604220254.A92 1604220254	£22.76	£27.31
3 - ARMATURE 230-240V BSD-2604010744.A8 2604010744	-
3/60 - FAN BSD-2606610029.A413 2606610029	£2.74	£3.29
4 - SWITCH BSD-2607200184.A21 2607200184	-
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1604460432.A46 1604460432	£11.87	£14.24
6 - GROMMET dia6.9 MM BSD-2600707059.A138 2600707059	£3.91	£4.69
6 - GROMMET dia8.8 MM BSD-2600707061.A72 2600707061	£2.80	£3.36
7 - CABLE CLIP BSD-2601035001.A2451 2601035001	£1.75	£2.10
9 - STICKER BSD-2601118173.A0 2601118173	-
12 - SUPPRESSION FILTER BSD-2607329114.A430 2607329114	-
13 - BALL BEARING 7x22x7 BSD-1900905018.A480 1900905018	£19.91	£23.89
14 - GROOVE BALL BEARING 9x24x7 BSD-2600905039.A243 2600905039	£12.64	£15.17
16 - BRUSH HOLDER BSD-2604337003.A79 2604337003	£2.16	£2.59
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2430 2603410001	£1.84	£2.21
19 - SCREW 4x16 BSD-2603490022.A2253 2603490022	£1.84	£2.21
20 - STICKER BSD-2601118171.A7 2601118171	-
24 - DRILLING SPINDLE 1/2 BSD-2606135013.A33 2606135013	£21.42	£25.71
26 - COMPRESSION SPRING BSD-2604616002.A213 2604616002	£1.84	£2.21
27 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A27 1900905163	£11.30	£13.56
28 - SPRING RETAINING RING DIN 472 35x1.5 MM BSD-2916660014.A134 2916660014	£1.75	£2.10
29 - SPRING RETAINING RING DIN 471 17x1 MM BSD-2916650008.A55 2916650008	£1.84	£2.21
30 - FLAT KEY BSD-2602300028.A162 2602300028	-
31 - RETAINING WASHER BSD-2600101671.A67 2600101671	£1.84	£2.21
32 - SHIM 1.0 MM BSD-2600101515.A240 2600101515	£2.05	£2.46
33 - CYLINDRICAL GEAR Z=48 BSD-2606317045.A131 2606317045	£14.72	£17.67
34 - CYLINDRICAL GEAR Z=36 BSD-2606317037.A52 2606317037	-
35 - SHIM 0.5 MM BSD-2600101616.A15 2600101616	-
35 - SHIM 0.3 MM BSD-2600101617.A306 2600101617	£1.84	£2.21
36 - CATCH DISK BSD-2600190052.A132 2600190052	£8.17	£9.80
37 - CATCH DISK BSD-2600190057.A48 2600190057	-
38 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A60 2600917003	£2.94	£3.53
39 - SHIM WASHER 0.5 MM BSD-2600000014.A160 2600000014	£1.75	£2.10
39 - SHIM WASHER 0.5 MM BSD-2600000014.A161 2600000014	£1.75	£2.10
40 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A320 1903230010	£1.84	£2.21
41 - ROTARY KNOB BSD-2602026017.A147 2602026017	£7.36	£8.83
42 - SLOTTED SPRING PIN 4x30 MM DIN 7346 BSD-2917780105.A20 2917780105	£1.75	£2.10
44 - COVER DISC BSD-2601328033.A209 2601328033	-
45 - TAPPING SCREW BSD-2603435086.A143 2603435086	£1.84	£2.21
46 - HOUSING COVER BSD-2605132049.A56 2605132049	£7.36	£8.83
47 - SUPPRESSION FILTER BSD-2604465068.A52 2604465068	-
48 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A461 2603490017	£2.27	£2.72
49 - SHIM BSD-2600150004.A500 2600150004	£2.27	£2.72
50 - SHIM WASHER 0.5 MM BSD-2600101667.A17 2600101667	£1.84	£2.21
50 - SHIM WASHER 0.3 MM BSD-2600101027.A326 2600101027	£1.75	£2.10
51 - CABLE L=130 MM BSD-2604448005.A57 2604448005	£1.84	£2.21
52 - EARTH CONDUCTOR BSD-2604448097.A35 2604448097	£1.84	£2.21
53 - CONNECTING CABLE L=110 MM BSD-2604448146.A11 2604448146	£1.84	£2.21
54 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A96 2916660008	£2.16	£2.59
55 - CUPPED WASHER BSD-2600500002.A480 2600500002	£1.75	£2.10
56 - FELT WASHER BSD-2600108077.A348 2600108077	£1.84	£2.21
57 - RECEPTACLE BSD-2600400008.A699 2600400008	£1.75	£2.10
61 - SHIM 0.3 MM BSD-2600100607.A461 2600100607	£1.75	£2.10
62 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A203 2600914010	£2.94	£3.53
63 - HEADLESS SCREW BSD-2603435070.A71 2603435070	£2.16	£2.59
64 - HEADLESS SCREW 65 MM BSD-2603435071.A24 2603435071	-
65 - STICKER BSD-2601110076.A195 2601110076	-
66 - ADJUSTING SLIDE BSD-2602033006.A70 2602033006	£2.80	£3.36
68 - SHIM WASHER BSD-2600100618.A128 2600100618	£1.84	£2.21
69 - ROTARY KNOB BSD-2602026038.A22 2602026038	-
70 - PARTS SET BSD-2607010226.A53 2607010226	£2.33	£2.80
71 - RATCHET CAP BSD-2600590006.A359 2600590006	£1.75	£2.10
75 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A823 2603490024	£1.75	£2.10
77 - GASKET BSD-2601073012.A69 2601073012	£1.75	£2.10
78/800 - CHUCK WRENCH SG2 BSD-2607950007.A693 2607950007	£6.85	£8.22
753 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A9 1619P10682	£12.49	£14.99
753/20 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A80 2915011007	-
753/30 - WING SCREW M6x(15)55 BSD-1613480007.A10 1613480007	£1.75	£2.10
753/50 - CLAMPING PLATE M6 BSD-2608040014.A68 2608040014	-
753/60 - WING SCREW M6x20 MM BSD-1613480008.A453 1613480008	£1.84	£2.21
754 - DEPTH-GAUGE SW 6x210 MM BSD-1613001005.A293 1613001005	-
778 - KEY CHUCK dia1.5-13 MM BSD-1608571080.A31 1608571080	£28.59	£34.31
808 - NAMEPLATE BSD-160111A3H3.A4078 160111A3H3	£2.74	£3.29
810 - CARBON-BRUSH SET BSD-2604321905.A279 2604321905	£11.87	£14.24
825 - GEAR HOUSING BSD-2605806990.A33 2605806990	-
843 - INTERMEDIATE FLANGE BSD-2605700936.A105 2605700936	£46.82	£56.18
859 - TOOTHED SHAFT Z= 10/22/29 BSD-2606100903.A75 2606100903	-
867 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A627 2916080007	£2.74	£3.29
