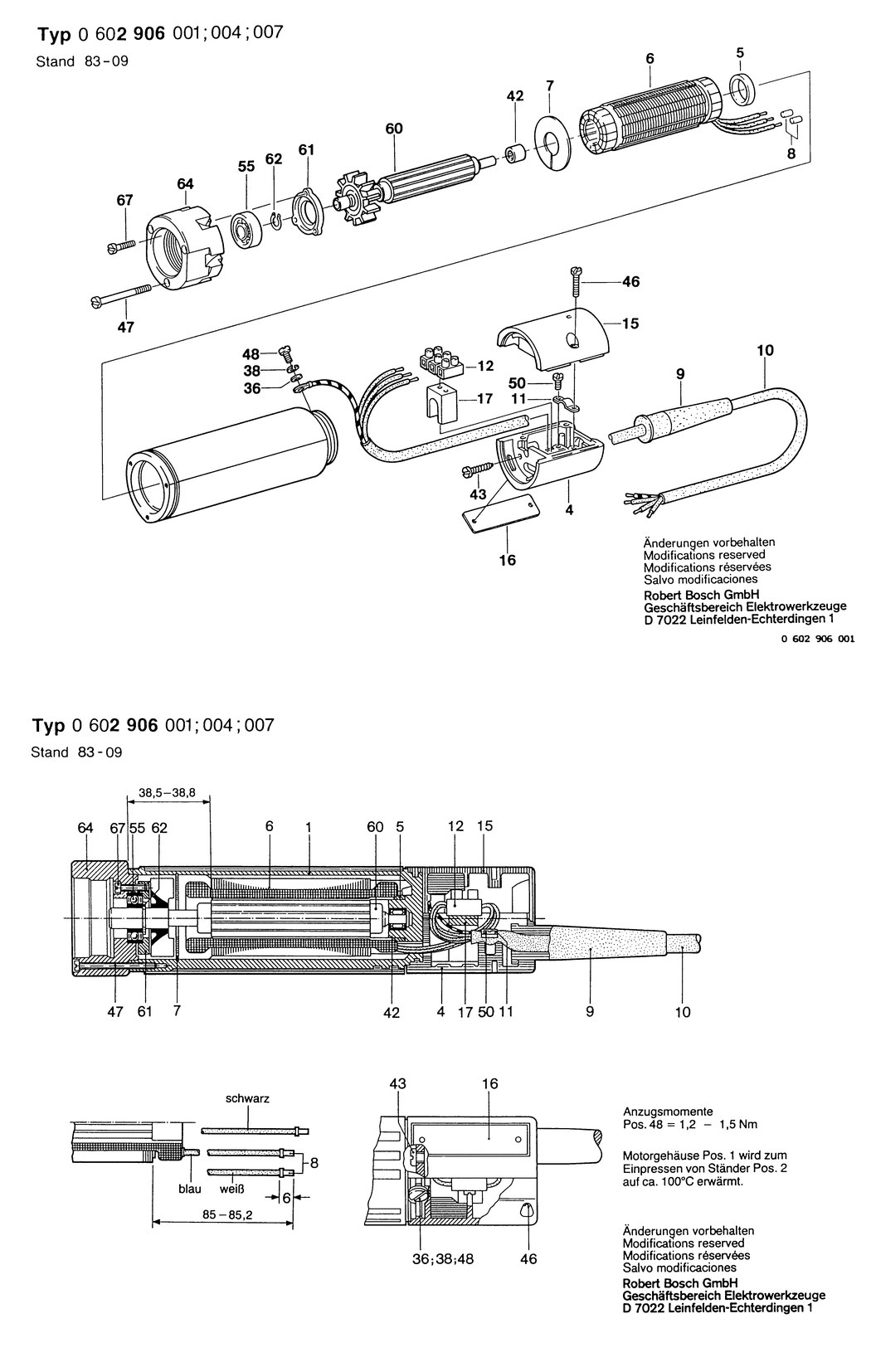

1 - MOTOR HOUSING
BSD-3605102051.A15
3605102051
|
£142.02
|
£170.42
|
|
|
4 - SWITCH HOUSING
BSD-3605130031.A17
3605130031
|
£13.41
|
£16.09
|
|
|
5 - FELT WASHER
BSD-1600205026.A162
1600205026
|
£2.74
|
£3.29
|
|
|
7 - AIR-DEFLECTOR RING
BSD-1600117001.A15
1600117001
|
£2.16
|
£2.59
|
|
|
8 - END SPLICE A 0.5-6 DIN 46 228
BSD-1900452000.A34
1900452000
|
-
|
|
|
|
9 - GROMMET dia5.5-dia8.3x75 MM
BSD-1600703012.A92
1600703012
|
£2.52
|
£3.02
|
|
|
10 - ELEC. CABLE W/CONNECTION
BSD-3604462060.A0
3604462060
|
-
|
|
|
|
11 - FASTENING CLAMP
BSD-1601302001.A122
1601302001
|
£1.75
|
£2.10
|
|
|
12 - STRIP TERMINAL
BSD-1901091014.A10
1901091014
|
-
|
|
|
|
15 - HOUSING COVER
BSD-3605130033.A11
3605130033
|
-
|
|
|
|
16 - NAMEPLATE
BSD-3601106054.A18
3601106054
|
£5.30
|
£6.36
|
|
|
17 - CONNECTION PLATE
BSD-3602305008.A3
3602305008
|
-
|
|
|
|
36 - CLAMPING SADDLE
BSD-3601321002.A94
3601321002
|
£2.64
|
£3.17
|
|
|
38 - SPRING WASHER
BSD-3600150009.A21
3600150009
|
£2.80
|
£3.36
|
|
|
42 - NEEDLE-ROLLER BEARING
BSD-3600910002.A27
3600910002
|
£27.23
|
£32.68
|
|
|
43 - TAPPING SCREW DIN 7971-BZ4.2x13
BSD-2910211025.A130
2910211025
|
£1.84
|
£2.21
|
|
|
46 - SOCKET HEAD CAP SCREW DIN 84-AM3x12-8.8
BSD-2910021054.A10
2910021054
|
£1.75
|
£2.10
|
|
|
47 - SOCKET HEAD CAP SCREW DIN 84-AM3x20-8.8
BSD-2910021062.A14
2910021062
|
£1.75
|
£2.10
|
|
|
48 - PAN HEAD SCREW DIN 85-AM3x8-MS
BSD-2910110050.A50
2910110050
|
£1.84
|
£2.21
|
|
|
50 - SOCKET HEAD CAP SCREW DIN 84-AM3x6-5.8
BSD-2910011048.A120
2910011048
|
£1.75
|
£2.10
|
|
|
55 - GROOVE BALL BEARING 9x24x7
BSD-1900905017.A255
1900905017
|
£23.86
|
£28.63
|
|
|
60 - ROTOR WITHOUT WINDING
BSD-3604080012.A12
3604080012
|
-
|
|
|
|
61 - CONICAL SPRING WASHER
BSD-3600190004.A12
3600190004
|
-
|
|
|
|
62 - SPRING RETAINING RING DIN 471 9x1MM
BSD-2916640006.A20
2916640006
|
£1.84
|
£2.21
|
|
|
64 - INTERMEDIATE BEARING
BSD-3605700098.A0
3605700098
|
-
|
|
|
|
67 - SOCKET HEAD CAP SCREW DIN 84-AM3x10-4.8
BSD-2910001052.A230
2910001052
|
£2.27
|
£2.72
|
|
|
75 - SET SCREW DIN 915-M4x6-45H
BSD-2912081116.A389
2912081116
|
£2.61
|
£3.13
|
|
|
810 - STATOR 72V/200HZ
BSD-3604229002.A9
3604229002
|
-
|
|
|
