Bosch GRL 400 H / 3601K61804 / EU Spare Parts

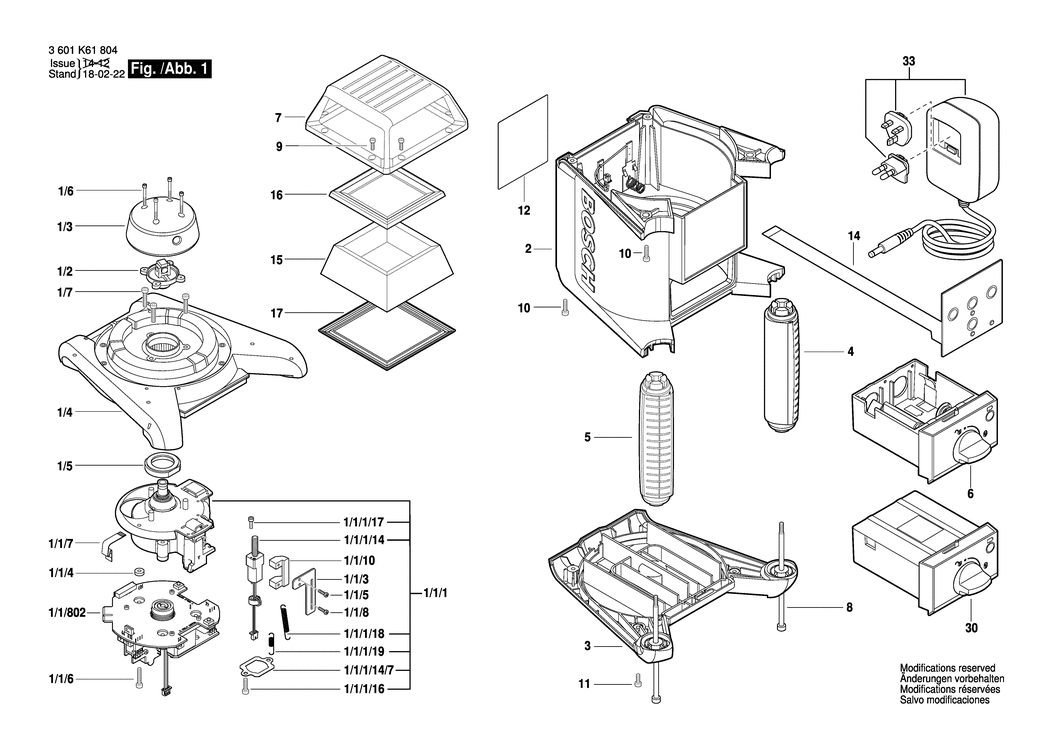

An exploded drawing and listing for the Bosch GRL 400 H / 3601K61804 / EU

	Ex VAT	Inc VAT
1/2 - LENS MOUNT BSD-2610A12298.A1 2610A12298	£63.50	£76.20
1/3 - ROTATING BEACON BSD-2610A14598.A0 2610A14598	£31.64	£37.97
1/4 - ASSEMBLY BSD-2610A13908.A1 2610A13908	£72.18	£86.62
1/5 - BALL SLEEVE BSD-2610A15789.A0 2610A15789	£2.16	£2.59
1/6 - HEX SOCKET HEAD CAP SCREW BSD-2610A12362.A4 2610A12362	£1.75	£2.10
1/7 - HEX SOCKET HEAD CAP SCREW BSD-2610A12284.A26 2610A12284	£1.75	£2.10
1/1/1 - MOTOR HOUSING BSD-2610A14673.A2 2610A14673	£306.81	£368.17
1/1/1/14 - MOTOR-GEARBOX ASSEMBLY BSD-2610A13249.A10 2610A13249	£33.74	£40.49
1/1/1/14/7 - MOTOR PLATE BSD-2610A12302.A6 2610A12302	-
1/1/1/16 - TAPPING SCREW BSD-2610A12301.A17 2610A12301	£1.75	£2.10
1/1/1/17 - HEX SOCKET HEAD CAP SCREW BSD-2610A12275.A12 2610A12275	£1.75	£2.10
1/1/1/18 - EXTENSION SPRING BSD-2610A12283.A3 2610A12283	£1.75	£2.10
1/1/1/19 - EXTENSION SPRING BSD-2610A13065.A4 2610A13065	£1.75	£2.10
1/1/3 - LIMIT SWITCH BSD-2610A13397.A0 2610A13397	£1.75	£2.10
1/1/4 - SPECIAL WASHER BSD-2610A12269.A8 2610A12269	£2.61	£3.13
1/1/5 - HEX SOCKET HEAD CAP SCREW BSD-2610A12272.A3 2610A12272	£1.75	£2.10
1/1/6 - HEX SOCKET HEAD CAP SCREW BSD-2610A12284.A24 2610A12284	£1.75	£2.10
1/1/7 - FLEXIBLE PCB BSD-2610A12359.A6 2610A12359	£3.34	£4.01
1/1/8 - TAPPING SCREW BSD-2610A12301.A18 2610A12301	£1.75	£2.10
1/1/10 - LIMIT SWITCH BSD-2610A13399.A15 2610A13399	£1.75	£2.10
1/1/802 - ASSEMBLY BSD-1600A01NM3.A0 1600A01NM3	-
2 - HOUSING BSD-2610A14450.A0 2610A14450	£37.27	£44.72
3 - HOUSING BSD-2610A12957.A2 2610A12957	£27.23	£32.68
4 - HANDLE BSD-2610A12464.A4 2610A12464	£21.68	£26.01
5 - HANDLE BSD-2610A12309.A4 2610A12309	£21.68	£26.01
6 - BATTERY BOX ASSEMBLY BSD-2610A12327.A6 2610A12327	£14.91	£17.89
7 - CAGE BSD-2610A13906.A0 2610A13906	£37.27	£44.72
8 - THREADED BOLT BSD-2610A12310.A2 2610A12310	£2.80	£3.36
9 - HEX SOCKET HEAD CAP SCREW BSD-2610A12348.A1 2610A12348	£2.16	£2.59
10 - HEX SOCKET HEAD CAP SCREW BSD-2610A12459.A4 2610A12459	£1.75	£2.10
11 - HEX SOCKET HEAD CAP SCREW BSD-2610A12460.A2 2610A12460	£1.75	£2.10
12 - NAMEPLATE BSD-2609135943.A0 2609135943	-
14 - KEYBOARD BSD-2610A13405.A0 2610A13405	£33.74	£40.49
15 - WINDOW BSD-2610A06622.A10 2610A06622	£68.42	£82.10
16 - RUBBER GASKET BSD-2610A13364.A0 2610A13364	£11.30	£13.56
17 - RUBBER GASKET BSD-2610A13365.A5 2610A13365	£11.30	£13.56
30 - BATTERY PACK BSD-2610A15308.A5 2610A15308	-
33 - BATTERY CHARGER BSD-2610A15290.A4 2610A15290	£23.86	£28.63
