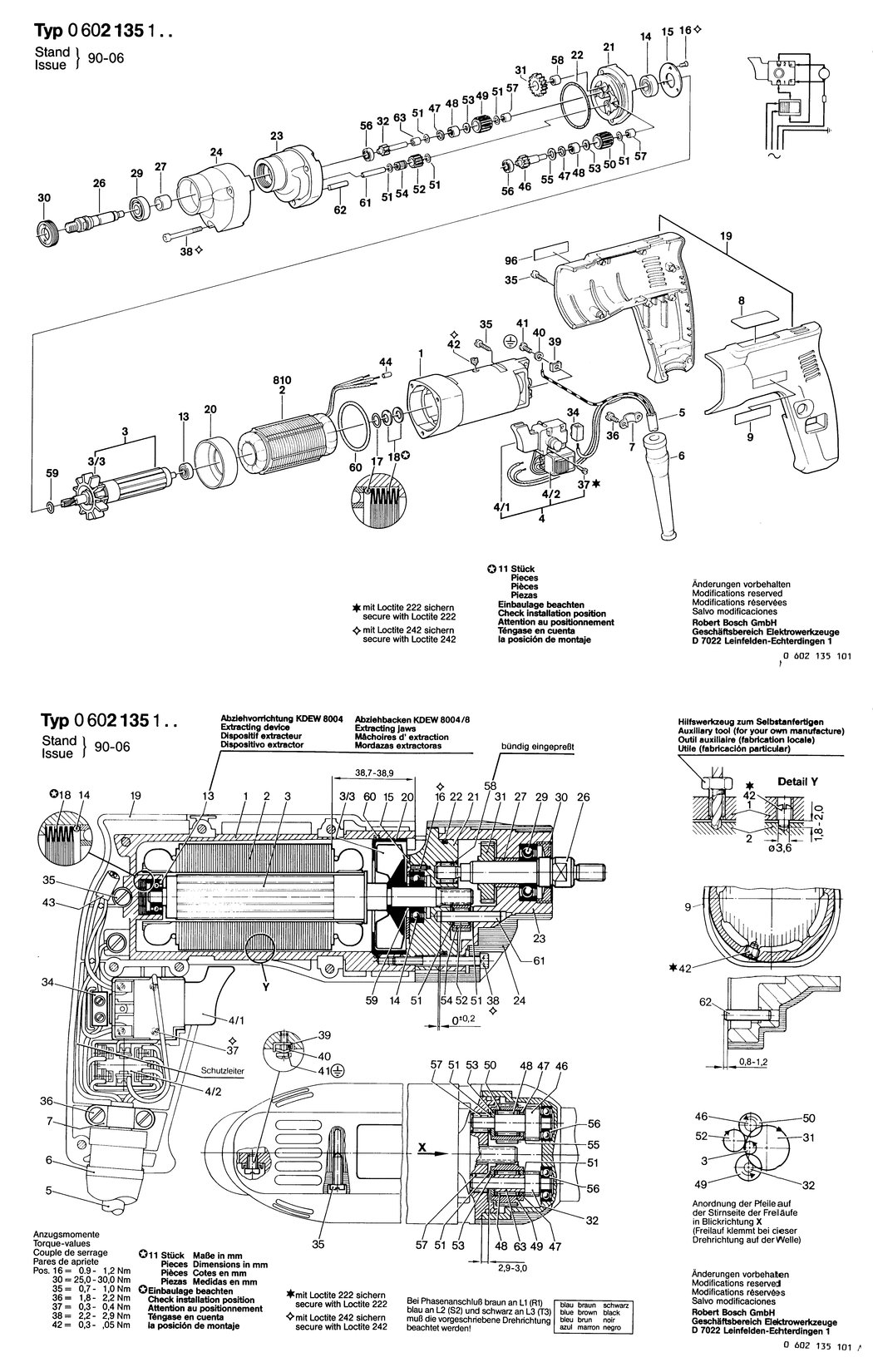

1 - MOTOR HOUSING
BSD-3605102034.A34
3605102034
|
£218.41
|
£262.09
|
|
|
3 - ROTOR
BSD-3604080021.A28
3604080021
|
£218.41
|
£262.09
|
|
|
3/3 - FAN
BSD-1606610105.A171
1606610105
|
£14.91
|
£17.89
|
|
|
4 - SWITCH
BSD-3607200020.A4
3607200020
|
-
|
|
|
|
4/1 - SWITCH
BSD-3607200003.A25
3607200003
|
£28.59
|
£34.31
|
|
|
4/2 - SWITCH
BSD-3607200019.A3
3607200019
|
£19.91
|
£23.89
|
|
|
5 - ELEC. CABLE W/CONNECTION
BSD-3604462050.A31
3604462050
|
£28.59
|
£34.31
|
|
|
6 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A339
3600703011
|
£2.94
|
£3.53
|
|
|
7 - FASTENING CLAMP
BSD-1601302014.A103
1601302014
|
£2.74
|
£3.29
|
|
|
8 - NAMEPLATE
BSD-3601106053.A838
3601106053
|
£5.57
|
£6.68
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110483.A15
1601110483
|
£2.74
|
£3.29
|
|
|
13 - GROOVE BALL BEARING 625-2Z DIN 625
BSD-1900905015.A90
1900905015
|
£30.42
|
£36.51
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-1610905011.A109
1610905011
|
£14.91
|
£17.89
|
|
|
15 - RETAINING WASHER
BSD-3600190012.A95
3600190012
|
-
|
|
|
|
16 - COUNTERSUNK-HEAD SCREW DIN 963-M3x8-8.8
BSD-2910780050.A47
2910780050
|
-
|
|
|
|
17 - O-RING 12.0x2.25 MM
BSD-3600210039.A22
3600210039
|
£7.36
|
£8.83
|
|
|
18 - DISC SPRING
BSD-3600150013.A156
3600150013
|
£3.72
|
£4.47
|
|
|
19 - HANDLE
BSD-3605132036.A6
3605132036
|
£22.76
|
£27.31
|
|
|
20 - AIR-DEFLECTOR RING
BSD-1600502005.A68
1600502005
|
£2.61
|
£3.13
|
|
|
21 - BEARING HOUSING
BSD-3605820016.A2
3605820016
|
-
|
|
|
|
22 - O-RING 48.0x2.0 MM
BSD-1610210022.A47
1610210022
|
£1.74
|
£2.09
|
|
|
23 - GEAR HOUSING
BSD-3605106039.A6
3605106039
|
-
|
|
|
|
24 - INSULATING HOUSING
BSD-3605108096.A22
3605108096
|
£11.78
|
£14.13
|
|
|
26 - DRILLING SPINDLE
BSD-3603124012.A28
3603124012
|
-
|
|
|
|
27 - SPACER BUSHING
BSD-3600290015.A5
3600290015
|
-
|
|
|
|
29 - GROOVE BALL BEARING
BSD-1600900042.A14
1600900042
|
£5.58
|
£6.70
|
|
|
30 - THREADED RING M 28x1 MM
BSD-3603344013.A2
3603344013
|
£11.78
|
£14.13
|
|
|
31 - CYLINDRICAL GEAR Z=37
BSD-3606319011.A2
3606319011
|
-
|
|
|
|
32 - SPINDLE WITH GEAR Z=11
BSD-3606311002.A1
3606311002
|
-
|
|
|
|
34 - SOCKET-TERMINAL STRIP 1x1.5 MM/2
BSD-1901091012.A16
1901091012
|
£5.57
|
£6.68
|
|
|
35 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A331
2603490023
|
£1.84
|
£2.21
|
|
|
36 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A664
2910021116
|
£2.27
|
£2.72
|
|
|
37 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2350
2603410001
|
£1.84
|
£2.21
|
|
|
38 - HEX SOCKET HEAD CAP SCREW M 4x40 DIN 912-8.8
BSD-2910141138.A4
2910141138
|
£1.84
|
£2.21
|
|
|
39 - CLAMPING SADDLE
BSD-3601321001.A296
3601321001
|
£3.72
|
£4.47
|
|
|
40 - SPRING WASHER dia4.2 MM
BSD-3600150006.A231
3600150006
|
£2.74
|
£3.29
|
|
|
41 - PAN HEAD SCREW DIN 85-AM4x10-MS
BSD-2910110120.A280
2910110120
|
£1.84
|
£2.21
|
|
|
42 - SET SCREW
BSD-3603402000.A338
3603402000
|
£1.75
|
£2.10
|
|
|
43 - SHRINKABLE TUBE
BSD-3600707032.A13
3600707032
|
£2.52
|
£3.02
|
|
|
44 - END SPLICE
BSD-3604477008.A438
3604477008
|
£1.75
|
£2.10
|
|
|
46 - SPINDLE WITH GEAR Z=14
BSD-3606311003.A2
3606311003
|
-
|
|
|
|
47 - SUPPORT DISC
BSD-3600100024.A3
3600100024
|
-
|
|
|
|
48 - CLUTCH SHELL
BSD-3600929009.A3
3600929009
|
-
|
|
|
|
49 - CYLINDRICAL GEAR Z=27
BSD-3606319009.A3
3606319009
|
-
|
|
|
|
50 - CYLINDRICAL GEAR Z=24
BSD-3606319008.A4
3606319008
|
-
|
|
|
|
51 - PLAIN WASHER
BSD-3600100003.A12
3600100003
|
£1.75
|
£2.10
|
|
|
52 - CYLINDRICAL GEAR Z=17
BSD-3606319010.A4
3606319010
|
-
|
|
|
|
53 - SUPPORT DISC
BSD-3600100023.A4
3600100023
|
-
|
|
|
|
54 - NEEDLE-ROLLER ASSEMBLY
BSD-3600910000.A67
3600910000
|
£4.26
|
£5.11
|
|
|
55 - PLAIN WASHER 8X14X0.5
BSD-3600100025.A3
3600100025
|
-
|
|
|
|
56 - GROOVE BALL BEARING 5x16x5
BSD-1900900232.A54
1900900232
|
£16.74
|
£20.09
|
|
|
57 - NEEDLE BEARING
BSD-1600910012.A15
1600910012
|
£2.80
|
£3.36
|
|
|
58 - NEEDLE BEARING
BSD-1610910064.A48
1610910064
|
£2.64
|
£3.17
|
|
|
59 - O-RING 8.0x1.0 MM
BSD-1600210045.A132
1600210045
|
£1.84
|
£2.21
|
|
|
60 - O-RING 53.0x2.0 MM
BSD-3600210017.A4
3600210017
|
£3.72
|
£4.47
|
|
|
61 - NEEDLE ROLLER
BSD-3603201045.A6
3603201045
|
-
|
|
|
|
62 - STRAIGHT PIN 4H 8x20 DIN 7
BSD-2917500122.A84
2917500122
|
£1.75
|
£2.10
|
|
|
63 - INNER RING
BSD-3600300017.A0
3600300017
|
-
|
|
|
|
650 - CHUCK dia 33.3x50 MM
BSD-3608571001.A3
3608571001
|
-
|
|
|
|
810 - STATOR 265V/200HZ
BSD-3604229005.A11
3604229005
|
£306.65
|
£367.98
|
|
