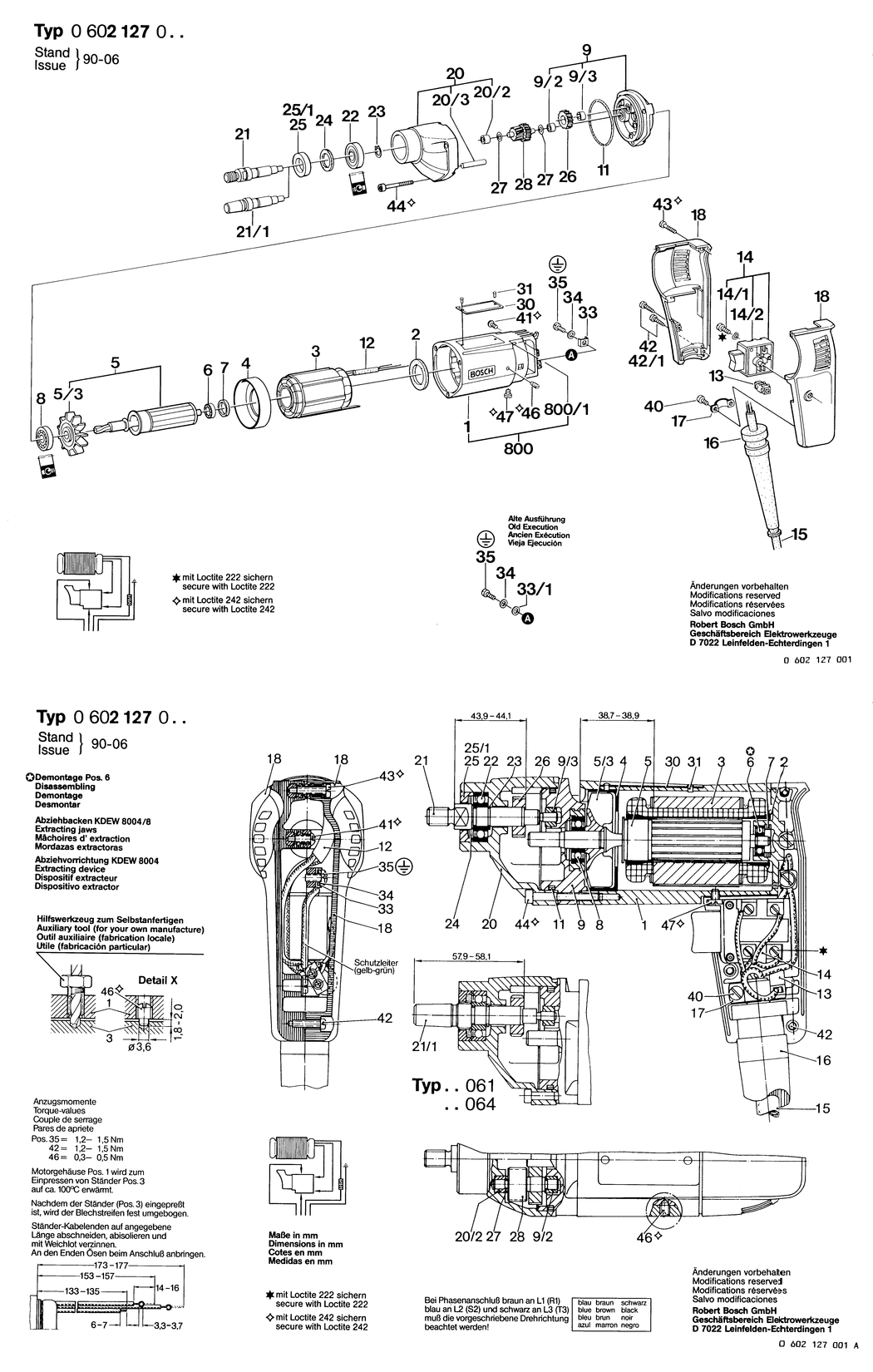

An exploded drawing and listing for the Bosch GR.55 / 0602127004 / --- 135 Volt
Ex VAT Inc VAT
2 - SEAL RING BSD-1600209011.A319 1600209011 £2.80 £3.36
3 - STATOR 200V/300HZ.135V/200HZ BSD-1604229201.A13 1604229201 £410.78 £492.94
4 - AIR-DEFLECTOR RING BSD-1600502005.A14 1600502005 £2.61 £3.13
5 - ROTOR BSD-3604080020.A142 3604080020 -
5/3 - FAN BSD-1606610105.A107 1606610105 £14.91 £17.89
6 - GROOVE BALL BEARING 5x16x5 BSD-1900900232.A81 1900900232 £16.74 £20.09
7 - RUBBER RING 6MM.dia12xdia16.4x3MM BSD-3600206002.A122 3600206002 -
8 - GROOVE BALL BEARING 609 RSY/C3 DIN 625 BSD-1900905036.A7 1900905036 -
9 - BEARING HOUSING BSD-3605820006.A13 3605820006 -
9/2 - BUSHING BSD-3600300008.A61 3600300008 -
9/3 - BUSHING BSD-3600300002.A23 3600300002 -
11 - O-RING 45x3MM BSD-1900210146.A259 1900210146 £4.26 £5.11
13 - SOCKET-TERMINAL STRIP 1x1.5 MM/2 BSD-1901091012.A134 1901091012 £5.30 £6.36
14 - ON-OFF SWITCH BSD-1607200040.A83 1607200040 -
14/1 - PAN HEAD SCREW DIN 85-M3.5x6-4.8 BSD-2910091082.A4 2910091082 £1.75 £2.10
14/2 - SPRING WASHER A 3.5 DIN 137-ST BSD-2916060004.A20 2916060004 -
15 - POWER SUPPLY CORD BSD-3604462058.A40 3604462058 -
16 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A220 3600703011 £2.80 £3.36
17 - FASTENING CLAMP BSD-1601302014.A423 1601302014 £2.61 £3.13
18 - HANDLE BSD-3605132072.A31 3605132072 -
20 - SPINDLE BEARING BSD-3605806034.A18 3605806034 -
20/2 - BUSHING BSD-3600300008.A63 3600300008 -
20/3 - STRAIGHT PIN 4H 8x20 DIN 7 BSD-2917500122.A52 2917500122 £1.75 £2.10
21 - DRILLING SPINDLE 3/8-24 UNF-2 BSD-3603124002.A12 3603124002 -
22 - GROOVE BALL BEARING 6000 Z DIN 625 BSD-1900905100.A48 1900905100 -
23 - SPRING RETAINING RING DIN 471-10x1MM-FSt BSD-2916650001.A59 2916650001 £2.61 £3.13
24 - SEALING DISK BSD-2600108031.A57 2600108031 -
25 - THREADED RING M 28x1 MM BSD-3603344013.A64 3603344013 £11.78 £14.13
26 - CYLINDRICAL GEAR Z=21 BSD-1606319018.A3 1606319018 -
27 - SHIM 0.50 MM BSD-2600100613.A27 2600100613 £1.75 £2.10
28 - CYLINDRICAL GEAR Z=27/27 BSD-1606311003.A4 1606311003 -
30 - NAMEPLATE BSD-3601106053.A982 3601106053 £5.30 £6.36
31 - GROOVED NAIL BSD-3603133000.A532 3603133000 £2.61 £3.13
33 - CLAMPING SADDLE BSD-3601321001.A157 3601321001 £3.72 £4.47
33/1 - PLAIN WASHER DIN 46 255-DPG 9 BSD-2916010409.A192 2916010409 -
34 - SPRING WASHER dia4.2 MM BSD-3600150006.A132 3600150006 £2.61 £3.13
35 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A499 2910110120 £1.75 £2.10
40 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A556 2910021116 £2.16 £2.59
41 - PAN HEAD SCREW DIN 85-AM4x8-4.8 BSD-2910091118.A181 2910091118 £1.75 £2.10
42 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1116 2910211019 £1.75 £2.10
42/1 - TAPPING SCREW DIN 7971-A4x16 BSD-1613435001.A6 1613435001 -
43 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8 BSD-2910011128.A127 2910011128 £1.75 £2.10
44 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x35-8.8 BSD-2910141136.A108 2910141136 £2.80 £3.36
46 - SET SCREW BSD-3603402000.A284 3603402000 £1.75 £2.10
47 - SOCKET HEAD CAP SCREW DIN 84-AM4x5-5.8 BSD-2910011115.A54 2910011115 £1.75 £2.10
650 - KEY CHUCK dia1-10 MM. 3/8 BSD-1608571020.A81 1608571020 -
650/800 - CHUCK WRENCH SG2 BSD-2607950007.A213 2607950007 £6.52 £7.83
800 - MOTOR HOUSING BSD-3605102022.A30 3605102022 -
