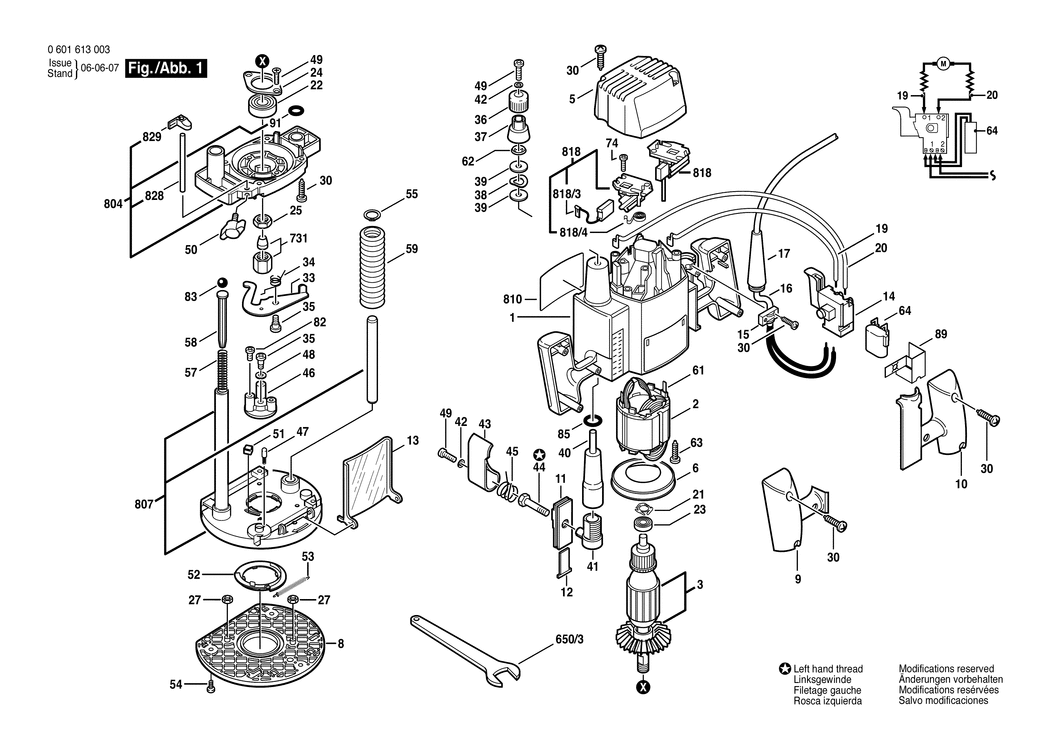

1 - MOTOR HOUSING
BSD-3605108583.A4
3605108583
|
£31.64
|
£37.97
|
|
|
2 - FIELD 230 V
BSD-2610934200.A1
2610934200
|
-
|
|
|
|
3 - ARMATURE 230 V
BSD-2610934198.A4
2610934198
|
-
|
|
|
|
5 - HOUSING COVER
BSD-3605500597.A1
3605500597
|
-
|
|
|
|
6 - AIR-DEFLECTOR RING
BSD-3600590508.A18
3600590508
|
£3.34
|
£4.01
|
|
|
8 - INTERMEDIATE PLATE
BSD-3600190521.A6
3600190521
|
-
|
|
|
|
9 - HANDLE COVER LT
BSD-3605133531.A1
3605133531
|
£10.10
|
£12.12
|
|
|
10 - HANDLE COVER RT
BSD-3605133530.A14
3605133530
|
£10.10
|
£12.12
|
|
|
11 - INSERT
BSD-3601010519.A14
3601010519
|
£2.52
|
£3.02
|
|
|
12 - INSERT
BSD-3601010521.A8
3601010521
|
£3.34
|
£4.01
|
|
|
13 - CHIP DEFLECTOR
BSD-2610912599.A44
2610912599
|
-
|
|
|
|
14 - ON-OFF SWITCH
BSD-1607000231.A43
1607000231
|
£18.96
|
£22.75
|
|
|
15 - CABLE CLIP
BSD-2601035001.A1367
2601035001
|
£1.75
|
£2.10
|
|
|
16 - POWER SUPPLY CORD CH 4.25m 2 x 1.0mm H07 RN-F
BSD-3604460541.A9
3604460541
|
-
|
|
|
|
17 - GROMMET dia 9.4 MM
BSD-3600703508.A12
3600703508
|
£3.34
|
£4.01
|
|
|
19 - CONNECTING CABLE
BSD-3604445518.A1
3604445518
|
£3.72
|
£4.47
|
|
|
20 - CONNECTING CABLE
BSD-3604445519.A9
3604445519
|
£3.72
|
£4.47
|
|
|
21 - SPRING LOCK WASHER
BSD-3600150501.A17
3600150501
|
£2.33
|
£2.80
|
|
|
22 - BALL BEARING
BSD-1600900088.A22
1600900088
|
-
|
|
|
|
23 - BALL GUIDE
BSD-3600905513.A18
3600905513
|
£12.04
|
£14.45
|
|
|
24 - RETAINING PLATE
BSD-3600034506.A10
3600034506
|
£5.87
|
£7.04
|
|
|
25 - HEX NUT
BSD-3603300502.A17
3603300502
|
£4.75
|
£5.70
|
|
|
27 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A390
2915011005
|
£1.75
|
£2.10
|
|
|
30 - TAPPING SCREW
BSD-2610910566.A25
2610910566
|
£1.32
|
£1.58
|
|
|
33 - SWING-PLATE
BSD-3601021510.A11
3601021510
|
£6.61
|
£7.93
|
|
|
34 - TORSION SPRING
BSD-3604651502.A2
3604651502
|
£2.33
|
£2.80
|
|
|
35 - SHOULDER SCREW M4
BSD-3603415556.A37
3603415556
|
£2.33
|
£2.80
|
|
|
36 - KNOB
BSD-3603231539.A10
3603231539
|
£2.33
|
£2.80
|
|
|
37 - INDICATOR RING
BSD-3600209500.A28
3600209500
|
£3.80
|
£4.56
|
|
|
38 - SPRING WASHER
BSD-3600100528.A31
3600100528
|
£1.95
|
£2.34
|
|
|
39 - WASHER
BSD-3600100527.A8
3600100527
|
£2.52
|
£3.02
|
|
|
40 - ADJUSTING SLEEVE
BSD-3600360507.A14
3600360507
|
-
|
|
|
|
41 - LOCKING PIECE
BSD-3600400507.A5
3600400507
|
£2.80
|
£3.36
|
|
|
42 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A571
2916690003
|
£1.75
|
£2.10
|
|
|
43 - LOCKING LEVER
BSD-3602000510.A1
3602000510
|
£2.61
|
£3.13
|
|
|
44 - LOCK BOLT
BSD-3603450504.A14
3603450504
|
£5.30
|
£6.36
|
|
|
45 - LOCK SPRING
BSD-3604651503.A43
3604651503
|
£2.33
|
£2.80
|
|
|
46 - DEPTH-GAUGE
BSD-2610997191.A8
2610997191
|
£13.41
|
£16.09
|
|
|
47 - RATCHET CAP
BSD-2600590006.A1411
2600590006
|
£1.75
|
£2.10
|
|
|
48 - SPRING WASHER
BSD-3916060500.A38
3916060500
|
£1.75
|
£2.10
|
|
|
49 - OVAL-HEAD SCREW DIN 7985-M4X12-4.8-H
BSD-2910641122.A1
2910641122
|
£2.16
|
£2.59
|
|
|
50 - WING SCREW M6x25 MM
BSD-1613480009.A106
1613480009
|
£1.88
|
£2.25
|
|
|
51 - KNOB
BSD-3603211501.A17
3603211501
|
£2.61
|
£3.13
|
|
|
52 - LOCKING RING
BSD-3600240500.A15
3600240500
|
£5.58
|
£6.70
|
|
|
53 - EXTENSION SPRING
BSD-3604648504.A5
3604648504
|
-
|
|
|
|
54 - SCREW
BSD-2610915161.A76
2610915161
|
-
|
|
|
|
55 - SPRING RETAINING RING DIN 471-12x1-FSt
BSD-2916650003.A283
2916650003
|
£1.75
|
£2.10
|
|
|
57 - COMPRESSION SPRING
BSD-3604613508.A22
3604613508
|
£2.33
|
£2.80
|
|
|
58 - GUIDE PIECE
BSD-3603120502.A2
3603120502
|
£2.52
|
£3.02
|
|
|
59 - BELLOWS
BSD-3605510548.A8
3605510548
|
£5.58
|
£6.70
|
|
|
61 - BLADE TERMINAL
BSD-1604477005.A127
1604477005
|
£2.61
|
£3.13
|
|
|
62 - RETAINING SNAP RING
BSD-3604680502.A15
3604680502
|
£2.33
|
£2.80
|
|
|
63 - TAPPING SCREW
BSD-2610991306.A32
2610991306
|
£1.75
|
£2.10
|
|
|
64 - SUPPRESSION FILTER
BSD-1617328025.A60
1617328025
|
£5.58
|
£6.70
|
|
|
74 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1380
2603490017
|
£2.16
|
£2.59
|
|
|
82 - SOCKET HEAD CAP SCREW
BSD-3603410504.A33
3603410504
|
£2.52
|
£3.02
|
|
|
83 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A53
1903230007
|
£1.75
|
£2.10
|
|
|
85 - O-RING
BSD-3600210507.A27
3600210507
|
£2.33
|
£2.80
|
|
|
89 - SET RING
BSD-2610996090.A24
2610996090
|
-
|
|
|
|
91 - O-RING 12.0x2.0 MM
BSD-1610210233.A12
1610210233
|
£2.80
|
£3.36
|
|
|
650/3 - SINGLE-HEAD ENG. WRENCH DIN 894 SW27
BSD-1907950514.A12
1907950514
|
-
|
|
|
|
731 - COLLET 12 MM
BSD-2608570107.A18
2608570107
|
£27.12
|
£32.54
|
|
|
731 - COLLET 3/8
BSD-2608570106.A18
2608570106
|
£27.99
|
£33.59
|
|
|
731 - COLLET 8 MM
BSD-2608570105.A14
2608570105
|
£27.12
|
£32.54
|
|
|
731 - COLLET 1/4
BSD-2608570104.A18
2608570104
|
£24.49
|
£29.39
|
|
|
731 - COLLET 6 MM
BSD-2608570103.A18
2608570103
|
£25.82
|
£30.99
|
|
|
731 - COLLET 10 MM
BSD-2608570125.A27
2608570125
|
-
|
|
|
|
804 - FAN HOUSING
BSD-2610907863.A9
2610907863
|
£36.63
|
£43.96
|
|
|
807 - BASE PLATE
BSD-3605702598.A1
3605702598
|
-
|
|
|
|
818 - BRUSH HOLDER
BSD-3604336506.A8
3604336506
|
-
|
|
|
|
818/3 - CARBON-BRUSH SET
BSD-2610007957.A8
2610007957
|
£11.30
|
£13.56
|
|
|
818/4 - SPRING
BSD-3604652501.A0
3604652501
|
£3.72
|
£4.47
|
|
|
828 - ROD
BSD-2610907864.A0
2610907864
|
£11.30
|
£13.56
|
|
|
829 - POINTER
BSD-2610907865.A23
2610907865
|
£10.10
|
£12.12
|
|
