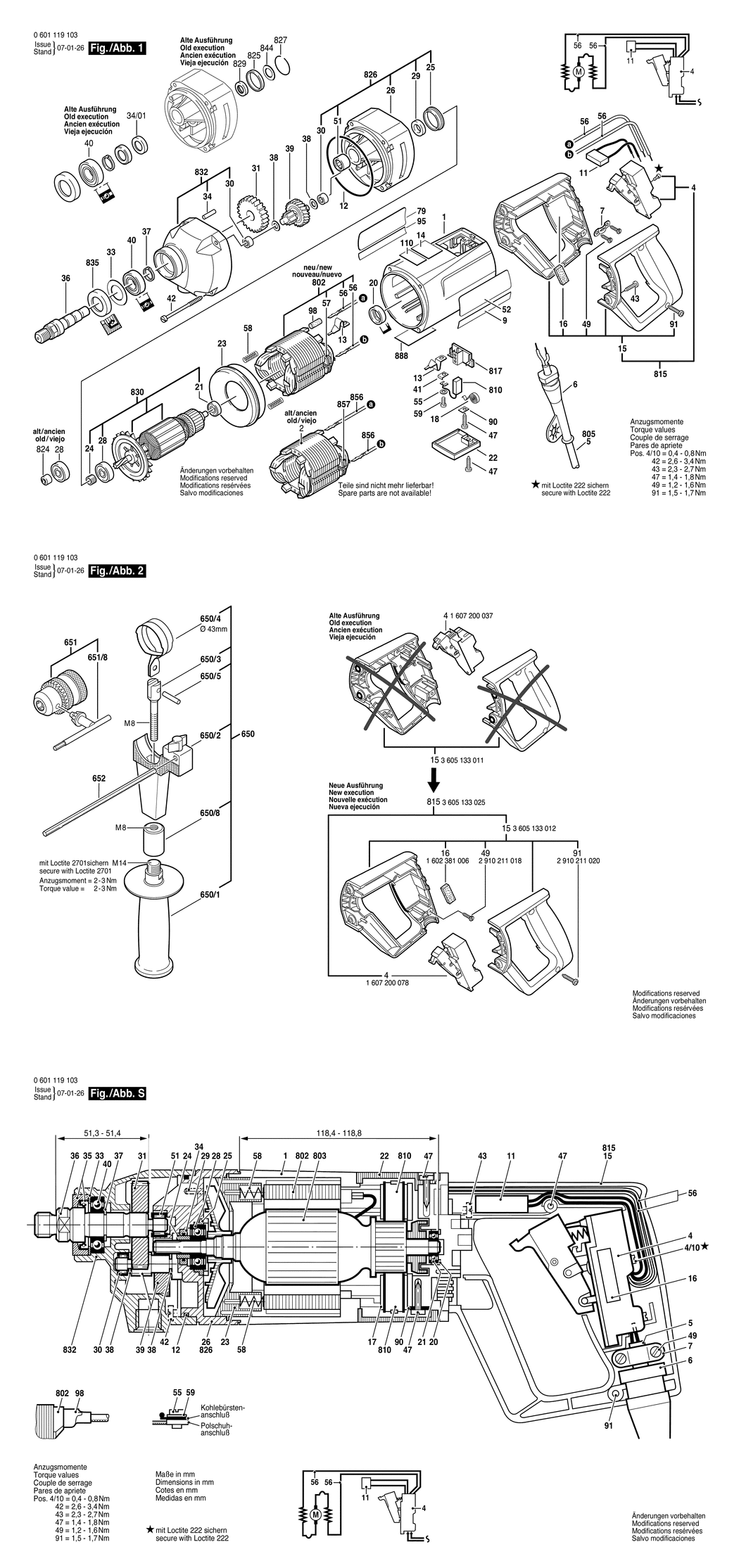

1 - MOTOR HOUSING
BSD-3605108145.A74
3605108145
|
£27.23
|
£32.68
|
|
|
4 - SWITCH
BSD-1607200078.A59
1607200078
|
£42.84
|
£51.41
|
|
|
4 - SWITCH
BSD-1607200037.A64
1607200037
|
£47.95
|
£57.54
|
|
|
5 - POWER SUPPLY CORD GB 110V 2.65m H07RN-F2x1.5
BSD-3604460070.A3
3604460070
|
£28.59
|
£34.31
|
|
|
6 - GROMMET dia7.9-dia12.0x120 MM
BSD-1600703022.A54
1600703022
|
£2.94
|
£3.53
|
|
|
7 - FASTENING CLAMP
BSD-1601302014.A1026
1601302014
|
£2.74
|
£3.29
|
|
|
11 - SUPPRESSION FILTER
BSD-1607328028.A527
1607328028
|
£5.57
|
£6.68
|
|
|
12 - O-RING 66.0x3.0 MM
BSD-1600210005.A215
1600210005
|
£2.80
|
£3.36
|
|
|
13 - BLADE TERMINAL
BSD-1604477001.A171
1604477001
|
£1.75
|
£2.10
|
|
|
15 - HANDLE
BSD-3605133012.A151
3605133012
|
-
|
|
|
|
16 - INSULATING PLATE 20x20x50 MM
BSD-1602381006.A63
1602381006
|
£1.75
|
£2.10
|
|
|
18 - SPIRAL SPRING
BSD-1604652006.A215
1604652006
|
£1.84
|
£2.21
|
|
|
20 - INTERMEDIATE RING
BSD-1600502011.A68
1600502011
|
£2.74
|
£3.29
|
|
|
21 - BALL BEARING 7x19x6
BSD-2600905032.A214
2600905032
|
£5.57
|
£6.68
|
|
|
22 - SEALING CAP
BSD-3605500063.A76
3605500063
|
£4.48
|
£5.37
|
|
|
23 - AIR-DEFLECTOR RING
BSD-1600502019.A80
1600502019
|
£3.72
|
£4.47
|
|
|
24 - INTERMEDIATE RING
BSD-1600300090.A152
1600300090
|
£3.72
|
£4.47
|
|
|
25 - INTERMEDIATE RING
BSD-1600221003.A45
1600221003
|
£2.74
|
£3.29
|
|
|
26 - INTERMEDIATE HOUSING
BSD-3607031162.A6
3607031162
|
£81.81
|
£98.17
|
|
|
28 - GROOVE BALL BEARING 9x26x8
BSD-3600905131.A130
3600905131
|
£11.87
|
£14.24
|
|
|
29 - ROTARY SHAFT LIP SEAL
BSD-1600290016.A432
1600290016
|
£2.74
|
£3.29
|
|
|
30 - NEEDLE BEARING
BSD-1600910013.A121
1600910013
|
£5.58
|
£6.70
|
|
|
31 - CYLINDRICAL GEAR Z=50
BSD-1606317078.A10
1606317078
|
£33.22
|
£39.87
|
|
|
33 - SHIM 0.5 MM
BSD-1600102003.A74
1600102003
|
£1.75
|
£2.10
|
|
|
34 - STRAIGHT PIN 5 H 8x18 DIN 7
BSD-2917500121.A100
2917500121
|
£1.75
|
£2.10
|
|
|
36 - DRILLING SPINDLE
BSD-3603523053.A28
3603523053
|
£40.80
|
£48.96
|
|
|
37 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A576
2916650006
|
£1.75
|
£2.10
|
|
|
38 - SHIM 0.5 MM
BSD-1600100631.A442
1600100631
|
£1.75
|
£2.10
|
|
|
39 - SPINDLE WITH GEAR Z=9/33
BSD-1606328103.A28
1606328103
|
£48.38
|
£58.06
|
|
|
40 - GROOVE BALL BEARING 15x32x9
BSD-1900905162.A10
1900905162
|
£18.96
|
£22.75
|
|
|
42 - TAPPING SCREW ST-4.8x57.5-TORX.T20
BSD-1613435009.A392
1613435009
|
£1.75
|
£2.10
|
|
|
43 - TORX OVAL-HEAD SCREW
BSD-2914201527.A42
2914201527
|
£2.27
|
£2.72
|
|
|
47 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2301
2910211019
|
£1.84
|
£2.21
|
|
|
49 - TAPPING SCREW DIN 7971-ST3.9x13-F
BSD-2910211018.A117
2910211018
|
£1.75
|
£2.10
|
|
|
51 - NEEDLE BEARING
BSD-1600910013.A225
1600910013
|
£5.58
|
£6.70
|
|
|
52 - STICKER
BSD-3601110359.A21
3601110359
|
£2.94
|
£3.53
|
|
|
56 - CONNECTING CABLE L=360 MM
BSD-3604460027.A18
3604460027
|
£6.52
|
£7.83
|
|
|
57 - WIRE GUIDE
BSD-3601025003.A113
3601025003
|
£1.75
|
£2.10
|
|
|
58 - COMPRESSION SPRING
BSD-1604613006.A166
1604613006
|
£1.75
|
£2.10
|
|
|
59 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1613
2910021118
|
£1.84
|
£2.21
|
|
|
79 - STICKER
BSD-3601110359.A14
3601110359
|
£2.94
|
£3.53
|
|
|
90 - TAB WASHER
BSD-1601030022.A17
1601030022
|
£1.84
|
£2.21
|
|
|
91 - TORX OVAL-HEAD SCREW
BSD-2914201507.A14
2914201507
|
£1.75
|
£2.10
|
|
|
95 - STICKER
BSD-3601110072.A7
3601110072
|
-
|
|
|
|
650 - AUXILIARY HANDLE dia43 MM
BSD-3602025021.A43
3602025021
|
£40.80
|
£48.96
|
|
|
650/1 - AUXILIARY HANDLE M14
BSD-1602025022.A835
1602025022
|
£13.41
|
£16.09
|
|
|
650/1 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A27
1602025030
|
£19.91
|
£23.89
|
|
|
650/2 - SUPPORT CLAMP
BSD-1618040077.A180
1618040077
|
-
|
|
|
|
650/3 - STUD BOLT M8
BSD-1613521001.A126
1613521001
|
£5.58
|
£6.70
|
|
|
650/4 - CLAMPING BAND dia43 MM
BSD-3601038048.A26
3601038048
|
£19.91
|
£23.89
|
|
|
650/5 - STRAIGHT PIN
BSD-1613100012.A203
1613100012
|
£2.61
|
£3.13
|
|
|
650/8 - HANDLE BAR
BSD-3602025022.A8
3602025022
|
£19.91
|
£23.89
|
|
|
651 - KEY CHUCK dia1.5-13 MM. 1/2
BSD-1608571022.A6
1608571022
|
-
|
|
|
|
651/8 - CHUCK WRENCH SG2
BSD-2607950007.A1115
2607950007
|
£6.85
|
£8.22
|
|
|
652 - DEPTH-GAUGE SW 6x330 MM
BSD-1613001008.A35
1613001008
|
£9.11
|
£10.93
|
|
|
802 - FIELD 110-115V
BSD-3604220114.A0
3604220114
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014126.A12
1607014126
|
£17.22
|
£20.67
|
|
|
815 - HANDLE
BSD-3605133025.A3
3605133025
|
-
|
|
|
|
817 - BRUSH HOLDER
BSD-1604336017.A116
1604336017
|
£7.36
|
£8.83
|
|
|
824 - INTERMEDIATE RING
BSD-1600300089.A8
1600300089
|
£5.30
|
£6.36
|
|
|
825 - INTERMEDIATE RING
BSD-1600206026.A10
1600206026
|
£1.84
|
£2.21
|
|
|
826 - INTERMEDIATE HOUSING
BSD-3607031162.A11
3607031162
|
£81.81
|
£98.17
|
|
|
827 - RETAINING RING DIN 9045 - dia 30MM
BSD-2916600016.A12
2916600016
|
£1.75
|
£2.10
|
|
|
829 - ROTARY SHAFT LIP SEAL
BSD-1600290012.A0
1600290012
|
-
|
|
|
|
830 - ARMATURE 110-115V
BSD-1604010273.A0
1604010273
|
-
|
|
|
|
832 - SPINDLE HOUSING
BSD-3605806146.A24
3605806146
|
£66.68
|
£80.01
|
|
|
835 - RETAINING SNAP RING
BSD-3607030355.A99
3607030355
|
£19.91
|
£23.89
|
|
|
844 - SUPPORTING DISC
BSD-1600102680.A0
1600102680
|
£1.84
|
£2.21
|
|
|
856 - CONNECTING CABLE L=330 MM
BSD-1604438012.A24
1604438012
|
£7.36
|
£8.83
|
|
|
857 - WIRE GUIDE
BSD-1601025001.A66
1601025001
|
£1.75
|
£2.10
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2164
160111A3H3
|
£2.74
|
£3.29
|
|
