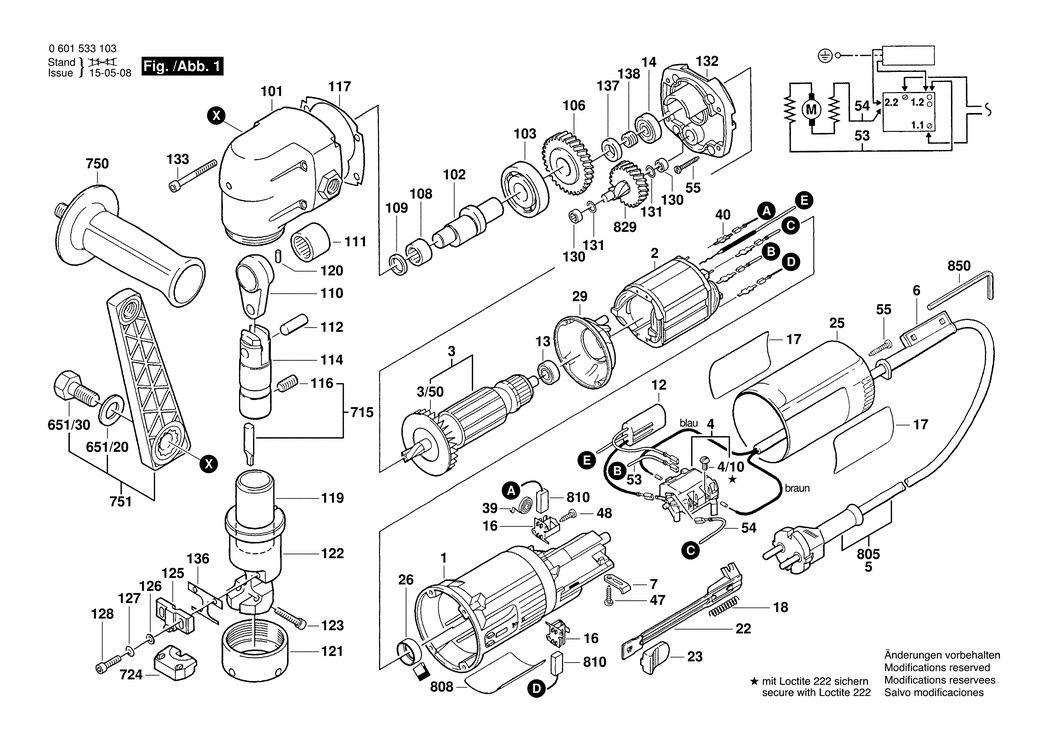

1 - MOTOR HOUSING
BSD-16051082CC.A67
16051082CC
|
£13.12
|
£15.75
|
|
|
2 - FIELD 100-120V
BSD-1614220105.A2
1614220105
|
£31.64
|
£37.97
|
|
|
3 - ARMATURE 110-115V
BSD-1604010185.A0
1604010185
|
-
|
|
|
|
3/50 - FAN
BSD-2606610049.A283
2606610049
|
£2.27
|
£2.72
|
|
|
4 - ON-OFF SWITCH
BSD-1607200086.A339
1607200086
|
£11.30
|
£13.56
|
|
|
4/10 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A575
2910110048
|
£1.84
|
£2.21
|
|
|
5 - POWER SUPPLY CORD GB 240V 2.65m 2 x 1.0mm H07RN-F
BSD-3604460051.A1
3604460051
|
-
|
|
|
|
6 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A74
2600703011
|
£2.80
|
£3.36
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A850
1601302017
|
£1.84
|
£2.21
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329124.A14
2607329124
|
£10.10
|
£12.12
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A1042
2600905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A669
2600905021
|
£8.67
|
£10.41
|
|
|
16 - BRUSH HOLDER
BSD-1601323019.A18
1601323019
|
£1.75
|
£2.10
|
|
|
17 - COMPANY LOGO
BSD-3601110345.A2
3601110345
|
£3.72
|
£4.47
|
|
|
18 - COMPRESSION SPRING
BSD-1604611026.A539
1604611026
|
£1.84
|
£2.21
|
|
|
22 - ADJUSTING SLIDE
BSD-1602319002.A20
1602319002
|
£2.61
|
£3.13
|
|
|
23 - SWITCH HANDLE
BSD-1602026057.A480
1602026057
|
£2.07
|
£2.48
|
|
|
25 - HOUSING COVER
BSD-1600508010.A76
1600508010
|
£7.36
|
£8.83
|
|
|
26 - RUBBER BUSHING
BSD-1600502020.A131
1600502020
|
£2.74
|
£3.29
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1601328005.A174
1601328005
|
£2.74
|
£3.29
|
|
|
39 - SPIRAL SPRING
BSD-1604652013.A796
1604652013
|
£1.84
|
£2.21
|
|
|
40 - BLADE TERMINAL
BSD-1604477011.A1
1604477011
|
£2.16
|
£2.59
|
|
|
47 - TAPPING SCREW DIN 7971-ST3.9x13-F
BSD-2910211018.A39
2910211018
|
£1.75
|
£2.10
|
|
|
48 - LENS HEAD SCREW 3x10 ST
BSD-1613435034.A441
1613435034
|
£1.84
|
£2.21
|
|
|
53 - CONNECTING CABLE L=95 MM
BSD-1604448005.A76
1604448005
|
£2.80
|
£3.36
|
|
|
54 - CONNECTING CABLE L=40 MM
BSD-1604448006.A42
1604448006
|
£2.74
|
£3.29
|
|
|
55 - TORX OVAL-HEAD SCREW
BSD-2914201508.A94
2914201508
|
£1.84
|
£2.21
|
|
|
101 - GEAR HOUSING
BSD-3605806176.A0
3605806176
|
£205.02
|
£246.03
|
|
|
102 - ECCENTRIC SHAFT
BSD-3606110007.A4
3606110007
|
£45.67
|
£54.80
|
|
|
103 - GROOVE BALL BEARING 6303-2 Z DIN 625
BSD-1900905326.A12
1900905326
|
£28.59
|
£34.31
|
|
|
104 - INSULATING PLATE
BSD-1601008003.A9
1601008003
|
£1.95
|
£2.34
|
|
|
106 - CYLINDRICAL GEAR Z=37
BSD-3606316086.A2
3606316086
|
£47.95
|
£57.54
|
|
|
108 - NEEDLE BEARING
BSD-3600917019.A53
3600917019
|
£11.87
|
£14.24
|
|
|
109 - FELT WASHER
BSD-3600200041.A1
3600200041
|
£2.27
|
£2.72
|
|
|
110 - CONNECTING ROD
BSD-3602001006.A2
3602001006
|
£102.57
|
£123.08
|
|
|
111 - NEEDLE BEARING
BSD-3600917042.A1
3600917042
|
£8.67
|
£10.41
|
|
|
112 - STRAIGHT PIN DIN 6325-10m6x24
BSD-2917530199.A8
2917530199
|
£6.52
|
£7.83
|
|
|
114 - TAPPET
BSD-3603070002.A2
3603070002
|
£37.27
|
£44.72
|
|
|
116 - SET SCREW DIN 913-M8x16-45H
BSD-2912080238.A3
2912080238
|
£1.75
|
£2.10
|
|
|
117 - SEAL
BSD-3601006010.A3
3601006010
|
£2.80
|
£3.36
|
|
|
119 - GUIDE SLEEVE
BSD-3600400018.A3
3600400018
|
£27.23
|
£32.68
|
|
|
120 - STRAIGHT PIN DIN 7-4 M6x10-ST
BSD-2917510094.A1
2917510094
|
£1.75
|
£2.10
|
|
|
121 - ROUND NUT
BSD-3603301016.A2
3603301016
|
£37.27
|
£44.72
|
|
|
122 - LOWER DIE RING
BSD-3607031358.A1
3607031358
|
£431.32
|
£517.59
|
|
|
123 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x22-8.8
BSD-2910141163.A16
2910141163
|
£1.75
|
£2.10
|
|
|
125 - GUIDE PIECE
BSD-3602380009.A2
3602380009
|
£40.80
|
£48.96
|
|
|
126 - PLAIN WASHER DIN 433-5.3-ST
BSD-2916011011.A188
2916011011
|
£1.75
|
£2.10
|
|
|
127 - SPRING WASHER
BSD-2916069159.A3
2916069159
|
£3.91
|
£4.69
|
|
|
128 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x18-8.8
BSD-2910141160.A39
2910141160
|
£2.27
|
£2.72
|
|
|
130 - NEEDLE BEARING dia7 MM
BSD-2600910006.A25
2600910006
|
£3.72
|
£4.47
|
|
|
131 - SHIM 0.5 MM
BSD-1600100631.A236
1600100631
|
£1.75
|
£2.10
|
|
|
132 - BEARING FLANGE
BSD-3605805026.A4
3605805026
|
£75.79
|
£90.95
|
|
|
133 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x45-8.8
BSD-2910141172.A2
2910141172
|
£1.75
|
£2.10
|
|
|
136 - STOP PLATE
BSD-3601181039.A2
3601181039
|
£4.26
|
£5.11
|
|
|
137 - ROTARY SHAFT LIP SEAL
BSD-1600290016.A184
1600290016
|
£2.61
|
£3.13
|
|
|
138 - INTERMEDIATE RING
BSD-1600300090.A107
1600300090
|
£3.72
|
£4.47
|
|
|
651/20 - PLAIN WASHER DIN 125-A15-ST
BSD-2916011022.A164
2916011022
|
£1.84
|
£2.21
|
|
|
651/30 - HEX SCREW
BSD-2603450009.A2
2603450009
|
-
|
|
|
|
715 - NIBBLING PUNCH
BSD-2608639025.A3
2608639025
|
£51.48
|
£61.77
|
|
|
724 - LOWER DIE
BSD-2608639026.A1
2608639026
|
£74.58
|
£89.50
|
|
|
750 - AUXILIARY HANDLE M14x1.5 MM
BSD-2602025075.A78
2602025075
|
£10.82
|
£12.98
|
|
|
751 - PARTS SET
BSD-2607001190.A2
2607001190
|
-
|
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A1747
160111A3H3
|
£2.74
|
£3.29
|
|
|
810 - CARBON BRUSH
BSD-3604321019.A2
3604321019
|
£14.91
|
£17.89
|
|
|
829 - SPINDLE WITH GEAR Z=8/26
BSD-3606328017.A2
3606328017
|
£71.84
|
£86.21
|
|
|
850 - OFFSET SCREWDRIVER DIN 911-4
BSD-2607950004.A212
2607950004
|
£1.84
|
£2.21
|
|
