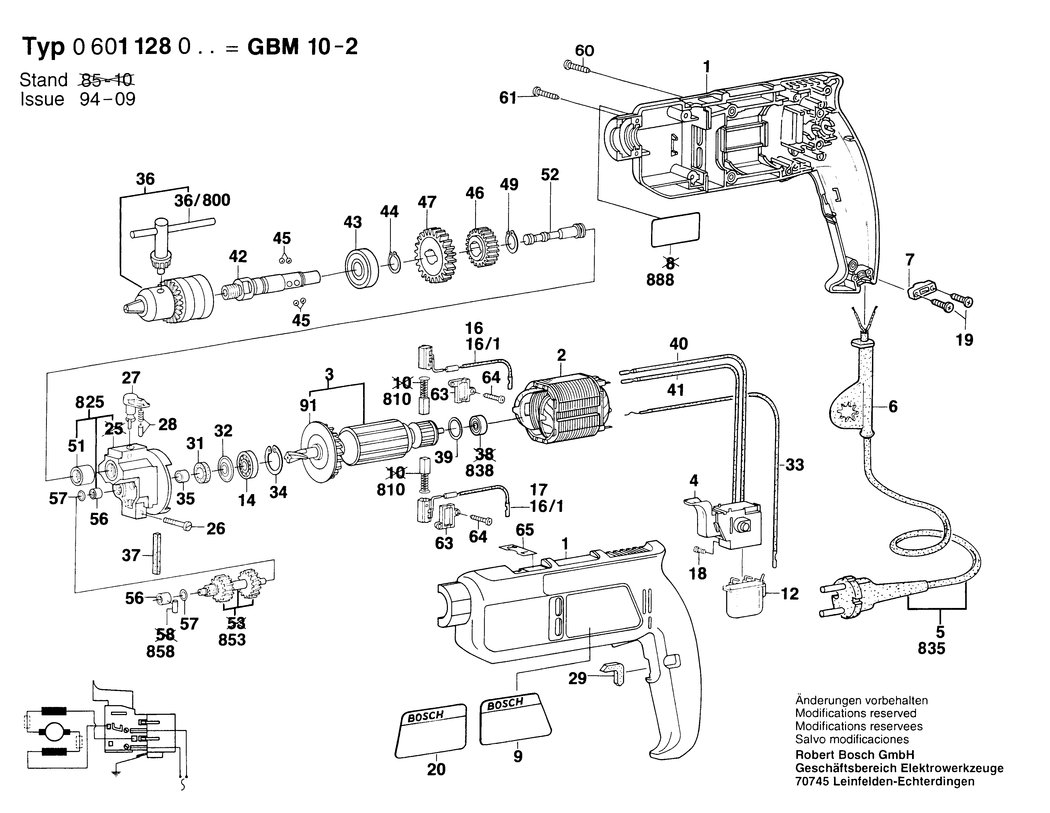

1 - HOUSING SECTION
BSD-2605104212.A2
2605104212
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220423.A65
2604220423
|
£25.68
|
£30.81
|
|
|
3 - ARMATURE 230-240V
BSD-2604010553.A13
2604010553
|
-
|
|
|
|
4 - SWITCH
BSD-2607200260.A21
2607200260
|
£11.87
|
£14.24
|
|
|
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H07 RN-F
BSD-3604460138.A17
3604460138
|
-
|
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A379
2600707059
|
£3.91
|
£4.69
|
|
|
6 - GROMMET dia11.6-dia12.5x84 MM
BSD-2600707060.A112
2600707060
|
£2.61
|
£3.13
|
|
|
6 - GROMMET dia8.8 MM
BSD-2600707061.A190
2600707061
|
£2.80
|
£3.36
|
|
|
7 - CABLE CLIP
BSD-2601035001.A147
2601035001
|
£1.84
|
£2.21
|
|
|
9 - STICKER
BSD-2601110439.A2
2601110439
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329114.A157
2607329114
|
-
|
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A415
2600905021
|
£8.67
|
£10.41
|
|
|
16/1 - BRUSH HOLDER
BSD-2604449026.A66
2604449026
|
£1.84
|
£2.21
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A306
2603410001
|
£1.84
|
£2.21
|
|
|
19 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A353
2910611019
|
£2.94
|
£3.53
|
|
|
20 - REFERENCE PLATE
BSD-2601110440.A3
2601110440
|
-
|
|
|
|
26 - CYL HEAD TAPPING SCREW
BSD-2603435005.A6
2603435005
|
-
|
|
|
|
27 - ROTARY KNOB
BSD-2602026042.A11
2602026042
|
-
|
|
|
|
28 - RATCHET CAP
BSD-2600590006.A755
2600590006
|
£1.84
|
£2.21
|
|
|
29 - DAMPING PLATE
BSD-2601022000.A437
2601022000
|
£1.75
|
£2.10
|
|
|
31 - FELT WASHER
BSD-2600108002.A34
2600108002
|
£2.27
|
£2.72
|
|
|
32 - CUPPED WASHER
BSD-2600500002.A317
2600500002
|
£1.75
|
£2.10
|
|
|
33 - EARTH CONDUCTOR
BSD-2604448097.A141
2604448097
|
£1.84
|
£2.21
|
|
|
34 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A515
2916660008
|
£2.16
|
£2.59
|
|
|
35 - RECEPTACLE
BSD-2600400008.A97
2600400008
|
£1.75
|
£2.10
|
|
|
36 - KEY CHUCK dia1-10 MM. 1/2-24UNF
BSD-1608571054.A31
1608571054
|
-
|
|
|
|
36/800 - CHUCK WRENCH SG2
BSD-2607950007.A1324
2607950007
|
£6.85
|
£8.22
|
|
|
37 - FELT STRIP
BSD-2601005009.A6
2601005009
|
-
|
|
|
|
39 - O-RING 15x2 MM
BSD-1900210012.A89
1900210012
|
£1.84
|
£2.21
|
|
|
40 - CONNECTING CABLE L=154 MM
BSD-2604448000.A89
2604448000
|
-
|
|
|
|
41 - CONNECTING CABLE L=124 MM
BSD-2604448018.A5
2604448018
|
£2.33
|
£2.80
|
|
|
42 - DRILLING SPINDLE 1/2-20 UNF
BSD-2606135017.A4
2606135017
|
-
|
|
|
|
43 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A577
1900905163
|
£11.30
|
£13.56
|
|
|
44 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A335
2916650008
|
£1.84
|
£2.21
|
|
|
45 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A322
1903230006
|
£2.27
|
£2.72
|
|
|
46 - CYLINDRICAL GEAR Z=35
BSD-2606317051.A9
2606317051
|
-
|
|
|
|
47 - CYLINDRICAL GEAR Z=48
BSD-2606317050.A5
2606317050
|
-
|
|
|
|
49 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A601
2916650006
|
£1.75
|
£2.10
|
|
|
51 - NEEDLE BEARING
BSD-2600910000.A10
2600910000
|
-
|
|
|
|
52 - CONTROL SHAFT
BSD-2603105035.A5
2603105035
|
-
|
|
|
|
56 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A591
2600914010
|
£2.94
|
£3.53
|
|
|
57 - SHIM 0.3 MM
BSD-2600100607.A581
2600100607
|
£1.75
|
£2.10
|
|
|
60 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A803
2912401020
|
£2.16
|
£2.59
|
|
|
61 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A176
2603490018
|
£1.75
|
£2.10
|
|
|
63 - BRUSH PLATE
BSD-2601015054.A17
2601015054
|
-
|
|
|
|
64 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1265
2603490017
|
£2.27
|
£2.72
|
|
|
65 - STICKER
BSD-2601110445.A10
2601110445
|
-
|
|
|
|
91 - FAN
BSD-2606610022.A132
2606610022
|
£4.26
|
£5.11
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321905.A539
2604321905
|
£11.87
|
£14.24
|
|
|
825 - BEARING BRACKET
BSD-2605807911.A2
2605807911
|
-
|
|
|
|
838 - BUSHING
BSD-2600420900.A0
2600420900
|
-
|
|
|
|
853 - SPINDLE WITH GEAR Z= 9/22/21
BSD-2606100912.A4
2606100912
|
-
|
|
|
|
858 - O-RING 28x3 MM
BSD-1900210129.A2
1900210129
|
£2.74
|
£3.29
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A490
160111A3H3
|
£2.74
|
£3.29
|
|
