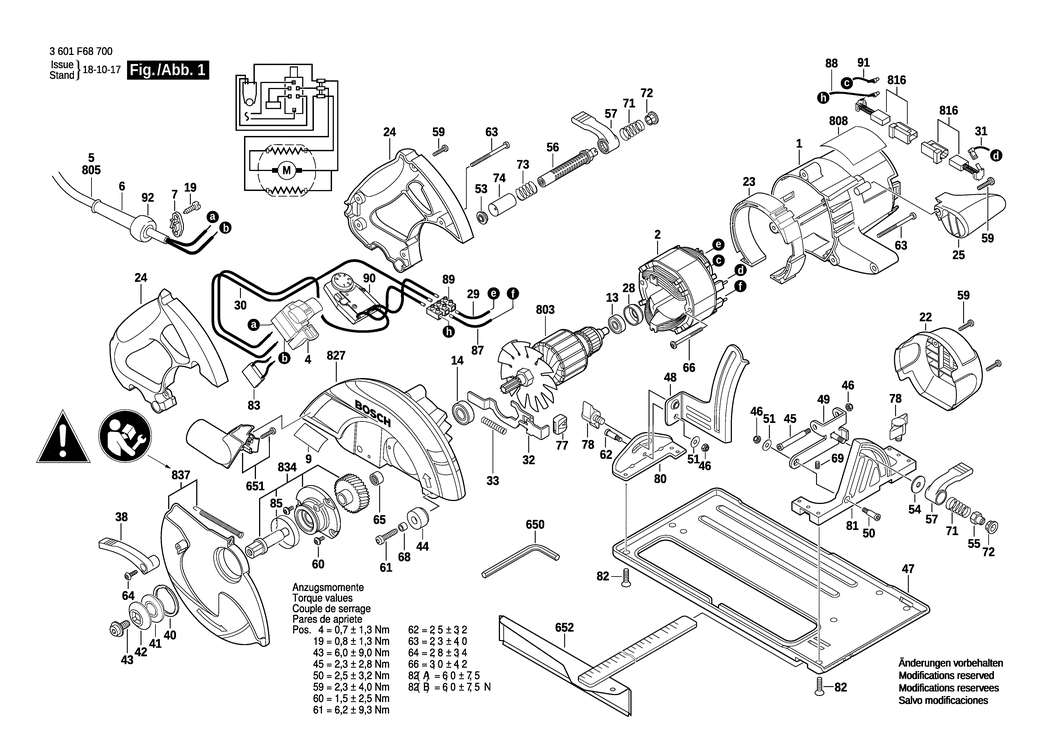

1 - MOTOR HOUSING
BSD-2610917049.A5
2610917049
|
-
|
|
|
|
2 - FIELD 230V
BSD-1619P01571.A10
1619P01571
|
£30.28
|
£36.33
|
|
|
4 - SWITCH
BSD-2610925421.A0
2610925421
|
£11.87
|
£14.24
|
|
|
5 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A206
1607000386
|
£22.60
|
£27.12
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A851
2600703012
|
£2.94
|
£3.53
|
|
|
7 - CABLE CLIP
BSD-2610993191.A0
2610993191
|
£1.84
|
£2.21
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2610925213.A5
2610925213
|
£4.26
|
£5.11
|
|
|
13 - GROOVE BALL BEARING
BSD-2610017348.A46
2610017348
|
£11.30
|
£13.56
|
|
|
14 - GROOVE BALL BEARING
BSD-2610350311.A8
2610350311
|
£12.04
|
£14.45
|
|
|
19 - SCREW
BSD-1619X00504.A20
1619X00504
|
£1.84
|
£2.21
|
|
|
22 - SEALING CAP
BSD-2610917052.A3
2610917052
|
£5.30
|
£6.36
|
|
|
23 - BAFFLE
BSD-2610924448.A12
2610924448
|
£5.58
|
£6.70
|
|
|
24 - HANDLE
BSD-2610933955.A4
2610933955
|
£14.91
|
£17.89
|
|
|
25 - AUXILIARY HANDLE
BSD-2610924143.A12
2610924143
|
£5.57
|
£6.68
|
|
|
28 - RUBBER RING
BSD-1619P01127.A19
1619P01127
|
£1.75
|
£2.10
|
|
|
29 - CABLE
BSD-2610921019.A8
2610921019
|
£1.75
|
£2.10
|
|
|
30 - CABLE
BSD-2610921020.A1
2610921020
|
£1.84
|
£2.21
|
|
|
31 - CABLE
BSD-2610918148.A16
2610918148
|
£2.27
|
£2.72
|
|
|
32 - LOCKING BOLT
BSD-2610937399.A8
2610937399
|
£3.91
|
£4.69
|
|
|
33 - COMPRESSION SPRING
BSD-1619P01642.A27
1619P01642
|
£1.75
|
£2.10
|
|
|
38 - LEVER
BSD-2610919868.A10
2610919868
|
£2.27
|
£2.72
|
|
|
40 - RETAINING SNAP RING
BSD-2610921144.A4
2610921144
|
£1.84
|
£2.21
|
|
|
41 - WASHER
BSD-2610924449.A6
2610924449
|
£6.16
|
£7.39
|
|
|
42 - CONICAL SPRING WASHER
BSD-1605703107.A50
1605703107
|
£3.91
|
£4.69
|
|
|
43 - HEX SOCKET HEAD CAP SCREW M6x14 MM
BSD-1603414007.A342
1603414007
|
£2.29
|
£2.75
|
|
|
44 - BUMPER
BSD-2610918151.A10
2610918151
|
£1.75
|
£2.10
|
|
|
45 - SHOULDER SCREW
BSD-2610924636.A13
2610924636
|
£2.74
|
£3.29
|
|
|
46 - HEX NUT DIN 985-M 5-8-A
BSD-2915061003.A63
2915061003
|
£2.27
|
£2.72
|
|
|
47 - BASE PLATE
BSD-2610922569.A12
2610922569
|
£42.84
|
£51.41
|
|
|
48 - SUPPORT BRACKET
BSD-2610922572.A12
2610922572
|
£9.11
|
£10.93
|
|
|
49 - HINGE
BSD-2610924540.A6
2610924540
|
£5.57
|
£6.68
|
|
|
50 - SHOULDER SCREW
BSD-2610924635.A0
2610924635
|
£1.75
|
£2.10
|
|
|
51 - WASHER
BSD-2610917048.A2
2610917048
|
£2.27
|
£2.72
|
|
|
53 - WASHER
BSD-1619P01535.A6
1619P01535
|
£1.75
|
£2.10
|
|
|
54 - WASHER
BSD-1619X00942.A61
1619X00942
|
£1.75
|
£2.10
|
|
|
55 - NUT
BSD-2610917206.A1
2610917206
|
-
|
|
|
|
56 - ROD
BSD-2610917191.A15
2610917191
|
£2.61
|
£3.13
|
|
|
57 - LEVER
BSD-2610924368.A6
2610924368
|
£3.03
|
£3.64
|
|
|
59 - SCREW
BSD-1619P01505.A20
1619P01505
|
£1.75
|
£2.10
|
|
|
60 - CONTACT SCREW
BSD-1619X07057.A8
1619X07057
|
£1.84
|
£2.21
|
|
|
61 - SCREW
BSD-2610920385.A8
2610920385
|
£1.84
|
£2.21
|
|
|
62 - SHOULDER SCREW
BSD-2610923224.A12
2610923224
|
£1.75
|
£2.10
|
|
|
63 - SCREW
BSD-2610925864.A15
2610925864
|
£1.75
|
£2.10
|
|
|
64 - SCREW
BSD-2610328924.A47
2610328924
|
-
|
|
|
|
65 - NEEDLE-ROLLER BEARING
BSD-2610020639.A8
2610020639
|
£3.72
|
£4.47
|
|
|
66 - SCREW
BSD-2610931997.A22
2610931997
|
£2.61
|
£3.13
|
|
|
68 - SPACER TUBE
BSD-2610918985.A8
2610918985
|
£1.84
|
£2.21
|
|
|
69 - ADJUSTING SCREW
BSD-2610924685.A0
2610924685
|
£1.75
|
£2.10
|
|
|
71 - SPRING
BSD-1619X01792.A3
1619X01792
|
£1.84
|
£2.21
|
|
|
72 - COVER
BSD-1619P17212.A10
1619P17212
|
£2.74
|
£3.29
|
|
|
73 - SPRING
BSD-2610919467.A8
2610919467
|
£1.84
|
£2.21
|
|
|
74 - COVER SLEEVE
BSD-2610919327.A10
2610919327
|
£1.75
|
£2.10
|
|
|
77 - COVER
BSD-2610921530.A14
2610921530
|
£1.84
|
£2.21
|
|
|
78 - ADJUSTMENT KNOB
BSD-2610990806.A18
2610990806
|
£2.52
|
£3.03
|
|
|
80 - HINGE BRACKET
BSD-2610922570.A1
2610922570
|
£9.11
|
£10.93
|
|
|
81 - HINGE BRACKET
BSD-2610922568.A1
2610922568
|
£16.41
|
£19.69
|
|
|
82 - COUNTERSUNK-HEAD SCREW
BSD-2610924687.A24
2610924687
|
£1.75
|
£2.10
|
|
|
83 - SUPPRESSION FILTER
BSD-2610916645.A16
2610916645
|
£3.72
|
£4.47
|
|
|
85 - COVER SLEEVE
BSD-2610920799.A10
2610920799
|
£1.75
|
£2.10
|
|
|
87 - CABLE
BSD-2610921021.A8
2610921021
|
£1.84
|
£2.21
|
|
|
88 - CABLE
BSD-2610921023.A5
2610921023
|
£1.84
|
£2.21
|
|
|
89 - TERMINAL BLOCK
BSD-2610925211.A0
2610925211
|
£2.74
|
£3.29
|
|
|
90 - SPEED GOVERNOR
BSD-2610921905.A4
2610921905
|
£45.67
|
£54.80
|
|
|
91 - CABLE
BSD-2610921017.A1
2610921017
|
£2.27
|
£2.72
|
|
|
92 - LOCKING ELEMENT
BSD-1603231014.A31
1603231014
|
£2.16
|
£2.59
|
|
|
650 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A597
1907950006
|
£4.48
|
£5.37
|
|
|
651 - VACUUM ADAPTER
BSD-2610925244.A3
2610925244
|
£4.48
|
£5.38
|
|
|
652 - MITRE FENCE
BSD-1619X01612.A16
1619X01612
|
£11.30
|
£13.56
|
|
|
803 - ARMATURE 230V
BSD-1619X01696.A3
1619X01696
|
£59.53
|
£71.44
|
|
|
808 - NAMEPLATE
BSD-1619X02767.A0
1619X02767
|
-
|
|
|
|
816 - CARBON-BRUSH SET
BSD-2610925372.A13
2610925372
|
£21.52
|
£25.83
|
|
|
827 - UPPER GUARD
BSD-2610925374.A13
2610925374
|
£54.42
|
£65.30
|
|
|
834 - GEAR SHAFT
BSD-2610925373.A4
2610925373
|
£33.22
|
£39.87
|
|
|
837 - LOWER GUARD
BSD-1619P14440.A11
1619P14440
|
£22.76
|
£27.31
|
|
