Bosch GHP 5-75 X / 3600J10800 / EU 230 Volt Spare Parts

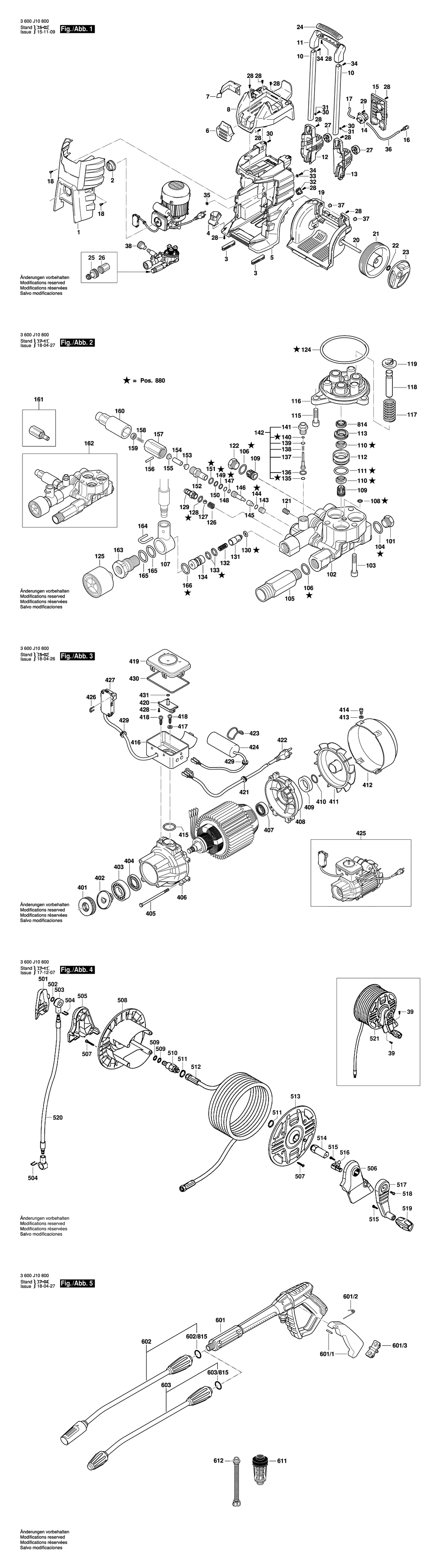

An exploded drawing and listing for the Bosch GHP 5-75 X / 3600J10800 / EU 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-F016L73329.A0 F016L73329	£21.68	£26.01
2 - KNOB BSD-F016L72008.A15 F016L72008	£5.30	£6.36
3 - RUBBER BASE BSD-F016L73028.A9 F016L73028	£8.67	£10.41
4 - ACCESSORY DEPOSIT BSD-F016L73029.A2 F016L73029	£7.36	£8.83
5 - HOUSING BSD-F016L73284.A3 F016L73284	£45.67	£54.80
6 - COVER BSD-F016L73031.A5 F016L73031	£7.36	£8.83
7 - ACCESSORY DEPOSIT BSD-F016L73032.A6 F016L73032	£5.30	£6.36
8 - HOUSING PART BSD-F016L73033.A5 F016L73033	£21.68	£26.01
10 - ROD BSD-F016L73356.A3 F016L73356	£16.41	£19.69
11 - HANDLE BSD-F016L73036.A2 F016L73036	£14.91	£17.89
12 - ACCESSORY DEPOSIT BSD-F016L73037.A9 F016L73037	£13.12	£15.75
13 - ACCESSORY DEPOSIT BSD-F016L73038.A2 F016L73038	£12.04	£14.45
14 - ADJUSTMENT KNOB BSD-F016L73039.A9 F016L73039	£8.67	£10.41
15 - COVER PLATE BSD-F016L73040.A2 F016L73040	£12.04	£14.45
16 - WATER FILTER BSD-F016L73041.A9 F016L73041	£8.67	£10.41
17 - SUCTION PIPE BSD-F016L73239.A5 F016L73239	£3.72	£4.47
18 - SCREW BSD-F016L73053.A4 F016L73053	£1.75	£2.10
19 - HOUSING BSD-F016L73044.A2 F016L73044	£21.68	£26.01
20 - WHEEL SHAFT BSD-F016L73045.A9 F016L73045	£12.04	£14.45
21 - WHEEL BSD-F016L73046.A2 F016L73046	£21.52	£25.83
22 - PLAIN WASHER BSD-F016L73047.A9 F016L73047	£2.80	£3.36
23 - COVER BSD-F016L73048.A2 F016L73048	£12.04	£14.45
24 - SAFETY COVER BSD-F016L72122.A11 F016L72122	£11.30	£13.56
25 - ADAPTER BSD-F016L72010.A12 F016L72010	£2.80	£3.36
26 - FILTER BSD-F016L73591.A15 F016L73591	£2.16	£2.59
27 - RUBBER BASE BSD-F016L72119.A11 F016L72119	£7.36	£8.83
28 - SCREW BSD-F016L72012.A17 F016L72012	£1.75	£2.10
29 - SCREW BSD-F016L72187.A10 F016L72187	£1.75	£2.10
30 - PLASTIC-CUTTING SCREW BSD-F016L73337.A9 F016L73337	£1.75	£2.10
31 - PLAIN WASHER BSD-F016L73051.A8 F016L73051	£3.72	£4.47
32 - GROMMET BSD-F016L72109.A11 F016L72109	£1.75	£2.10
33 - PLAIN WASHER BSD-F016L72120.A3 F016L72120	£2.61	£3.13
34 - SCREW BSD-F016L73711.A0 F016L73711	£1.75	£2.10
35 - VIBRATION DAMPER BSD-F016L73100.A7 F016L73100	£2.61	£3.13
36 - SUCTION PIPE BSD-F016L73338.A2 F016L73338	£5.30	£6.36
37 - PLUG BSD-F016L73278.A7 F016L73278	£1.75	£2.10
38 - ROTARY KNOB BSD-F016L72169.A5 F016L72169	£13.12	£15.75
39 - SCREW BSD-F016L73710.A5 F016L73710	£1.75	£2.10
101 - PLUG BSD-F016L72124.A12 F016L72124	£6.52	£7.83
102 - PUMP HEAD BSD-F016L72170.A0 F016L72170	£120.11	£144.13
103 - SCREW BSD-F016L72126.A11 F016L72126	£2.16	£2.59
104 - O-RING BSD-F016L72035.A9 F016L72035	£1.75	£2.10
105 - ADAPTER BSD-F016F04381.A8 F016F04381	£18.96	£22.75
106 - O-RING BSD-F016L72014.A2 F016L72014	£1.75	£2.10
107 - ADAPTER BSD-F016L73357.A2 F016L73357	£21.52	£25.83
108 - O-RING BSD-F016L72074.A5 F016L72074	£1.75	£2.10
109 - VALVE BSD-F016L72129.A3 F016L72129	£8.67	£10.41
110 - SEAL BSD-F016L72130.A11 F016L72130	£4.26	£5.11
111 - O-RING BSD-F016L72131.A3 F016L72131	£1.75	£2.10
112 - BUSHING BSD-F016L72132.A11 F016L72132	£12.04	£14.45
113 - BUSHING BSD-F016L72133.A3 F016L72133	£7.36	£8.83
115 - SCREW BSD-F016L72134.A11 F016L72134	£2.80	£3.36
116 - PISTON GUIDE BSD-F016L72135.A1 F016L72135	£18.96	£22.75
117 - SPRING BSD-F016L72136.A11 F016L72136	£5.30	£6.36
118 - PISTON 3 StÃ¼ck BSD-F016F04323.A13 F016F04323	£18.96	£22.75
119 - WOBBLE PLATE BSD-F016L72137.A3 F016L72137	£2.61	£3.13
121 - SCREW BSD-F016L72139.A2 F016L72139	£8.67	£10.41
122 - PLUG BSD-F016L72138.A11 F016L72138	£7.36	£8.83
124 - O-RING BSD-F016L72141.A6 F016L72141	£1.75	£2.10
125 - PRESSURE GAUGE BSD-F016L72045.A4 F016L72045	£16.41	£19.69
126 - SPRING BSD-F016L72072.A3 F016L72072	£1.75	£2.10
127 - BALL BSD-F016L72073.A14 F016L72073	£1.75	£2.10
128 - O-RING BSD-F016L72074.A6 F016L72074	£1.75	£2.10
129 - NIPPLE BSD-F016L72143.A5 F016L72143	£6.52	£7.83
130 - O-RING BSD-F016L72019.A8 F016L72019	£1.75	£2.10
131 - VALVE INSERT BSD-F016L72018.A1 F016L72018	£10.10	£12.12
132 - SPRING BSD-F016L72017.A15 F016L72017	£2.16	£2.59
133 - O-RING BSD-F016L72016.A1 F016L72016	£1.75	£2.10
134 - INJECTOR BSD-F016L73332.A0 F016L73332	£12.04	£14.45
135 - O-RING BSD-F016L72065.A13 F016L72065	£1.75	£2.10
136 - O-RING BSD-F016L72030.A9 F016L72030	£2.16	£2.59
137 - PIN BSD-F016L72066.A2 F016L72066	£11.30	£13.56
138 - SPRING BSD-F016L72067.A4 F016L72067	£2.80	£3.36
139 - PLAIN WASHER BSD-F016L72068.A2 F016L72068	£1.75	£2.10
140 - O-RING BSD-F016L72069.A5 F016L72069	£1.75	£2.10
141 - ADAPTER BSD-F016L72070.A2 F016L72070	£10.10	£12.12
142 - ADAPTER BSD-F016L72071.A4 F016L72071	£12.04	£14.45
143 - THREADED BUSHING BSD-F016L72174.A2 F016L72174	£16.41	£19.69
144 - O-RING BSD-F016L72030.A10 F016L72030	£2.16	£2.59
145 - PISTON BSD-F016L72031.A3 F016L72031	£16.41	£19.69
146 - PISTON BSD-F016L72032.A3 F016L72032	£16.41	£19.69
147 - O-RING BSD-F016L72033.A3 F016L72033	£2.16	£2.59
148 - O-RING BSD-F016L72030.A11 F016L72030	£2.16	£2.59
149 - SPACER RING BSD-F016L72034.A4 F016L72034	£1.75	£2.10
150 - O-RING BSD-F016L72035.A8 F016L72035	£1.75	£2.10
151 - O-RING BSD-F016L72014.A1 F016L72014	£1.75	£2.10
152 - PISTON GUIDE BSD-F016L72036.A3 F016L72036	£18.96	£22.75
153 - WOBBLE PLATE BSD-F016L72037.A3 F016L72037	£4.26	£5.11
154 - SPRING BSD-F016L72038.A3 F016L72038	£5.30	£6.36
155 - WOBBLE PLATE BSD-F016L72039.A3 F016L72039	£2.16	£2.59
156 - PIN BSD-F016L72040.A4 F016L72040	£1.75	£2.10
157 - INSERT BSD-F016L72041.A3 F016L72041	£16.41	£19.69
158 - PLUG BSD-F016L72042.A4 F016L72042	£1.75	£2.10
159 - NUT BSD-F016L72043.A3 F016L72043	£1.75	£2.10
160 - KNOB BSD-F016L73290.A1 F016L73290	£7.36	£8.83
161 - VALVE BSD-F016F04355.A3 F016F04355	£54.42	£65.30
162 - PUMP HEAD BSD-F016L73333.A1 F016L73333	£218.41	£262.09
163 - PLUG BSD-F016L73362.A0 F016L73362	£18.96	£22.75
164 - CLAMP BSD-F016L73360.A2 F016L73360	£5.58	£6.70
165 - O-RING BSD-F016L72219.A3 F016L72219	£1.75	£2.10
166 - O-RING BSD-F016L73709.A0 F016L73709	£1.75	£2.10
401 - BALL BEARING BSD-F016L72144.A9 F016L72144	£16.41	£19.69
402 - WOBBLE PLATE BSD-F016L72176.A3 F016L72176	£11.30	£13.56
403 - BALL BEARING BSD-F016L72146.A10 F016L72146	£18.96	£22.75
404 - ROTARY SHAFT LIP SEAL BSD-F016L73063.A5 F016L73063	£5.58	£6.70
405 - SCREW BSD-F016L72177.A1 F016L72177	£2.80	£3.36
406 - PUMP BSD-F016L72149.A2 F016L72149	£21.68	£26.01
407 - BALL BEARING BSD-F016L72150.A11 F016L72150	£12.04	£14.45
408 - COVER BSD-F016L72151.A3 F016L72151	£18.96	£22.75
409 - SEAL BSD-F016L72152.A11 F016L72152	£2.16	£2.59
410 - O-RING BSD-F016L72153.A3 F016L72153	£1.75	£2.10
411 - FAN BSD-F016L72154.A11 F016L72154	£10.10	£12.12
412 - AIR DUCT BSD-F016L73065.A6 F016L73065	£12.04	£14.45
413 - PLAIN WASHER BSD-F016L72156.A11 F016L72156	£1.75	£2.10
414 - SCREW BSD-F016L72157.A3 F016L72157	£1.75	£2.10
415 - O-RING BSD-F016L72158.A11 F016L72158	£1.75	£2.10
416 - HOUSING BSD-F016L72159.A3 F016L72159	£8.67	£10.41
417 - PLAIN WASHER BSD-F016L72160.A11 F016L72160	£1.75	£2.10
418 - SCREW BSD-F016L72161.A3 F016L72161	£1.75	£2.10
419 - COVER BSD-F016L73339.A10 F016L73339	£7.36	£8.83
420 - SWITCH BSD-F016L72087.A3 F016L72087	£16.41	£19.69
421 - GROMMET BSD-F016L72092.A20 F016L72092	£5.30	£6.36
422 - POWER SUPPLY CORD BSD-F016L73340.A1 F016L73340	£27.23	£32.68
423 - O-RING BSD-F016L72163.A11 F016L72163	£1.75	£2.10
424 - CONDENSER BSD-F016L72178.A3 F016L72178	£18.96	£22.75
425 - MOTOR BSD-F016L73324.A1 F016L73324	£218.41	£262.09
426 - CLAMP BSD-F016L72094.A14 F016L72094	£8.67	£10.41
427 - ELECTRONIC MODULE BSD-F016L72093.A2 F016L72093	£21.52	£25.83
428 - SCREW BSD-F016L72086.A13 F016L72086	£1.75	£2.10
429 - GROMMET BSD-F016L72096.A2 F016L72096	£5.30	£6.36
430 - O-RING BSD-F016L72260.A9 F016L72260	£5.58	£6.70
431 - O-RING BSD-F016L73343.A9 F016L73343	£1.75	£2.10
501 - COVER BSD-F016L73367.A3 F016L73367	£5.30	£6.36
502 - RING BSD-F016L73368.A2 F016L73368	£1.75	£2.10
503 - ADAPTER BSD-F016L73369.A3 F016L73369	£21.52	£25.83
504 - CLAMP BSD-F016L73370.A2 F016L73370	£5.58	£6.70
505 - COVER BSD-F016L73371.A3 F016L73371	£11.30	£13.56
506 - COVER BSD-F016L73372.A2 F016L73372	£11.30	£13.56
507 - SCREW BSD-F016L73373.A3 F016L73373	£1.75	£2.10
508 - COVER BSD-F016L73374.A2 F016L73374	£16.41	£19.69
509 - O-RING BSD-F016L72101.A1 F016L72101	£1.75	£2.10
510 - ADAPTER BSD-F016L73375.A3 F016L73375	£21.52	£25.83
511 - RING BSD-F016L72286.A5 F016L72286	£1.75	£2.10
512 - HIGH-PRESSURE HOSE BSD-F016L73376.A2 F016L73376	£72.18	£86.62
513 - COVER BSD-F016L73377.A3 F016L73377	£14.91	£17.89
514 - HUB BSD-F016L73378.A2 F016L73378	£23.86	£28.63
515 - SCREW BSD-F016L73053.A6 F016L73053	£1.75	£2.10
516 - HOOK BSD-F016L72282.A3 F016L72282	£6.52	£7.83
517 - LEVER BSD-F016L73379.A3 F016L73379	£11.30	£13.56
518 - SCREW BSD-F016L72203.A6 F016L72203	£1.75	£2.10
519 - KNOB BSD-F016L73380.A2 F016L73380	£3.72	£4.47
520 - HIGH-PRESSURE HOSE BSD-F016L73381.A3 F016L73381	£21.52	£25.83
521 - HOSE REEL CARRIER BSD-F016L73382.A2 F016L73382	£195.26	£234.31
601 - HANDLE BSD-F016L73068.A7 F016L73068	£37.27	£44.72
601/1 - TRIGGER BSD-1619PA9742.A8 1619PA9742	£18.96	£22.75
601/2 - SPRING BSD-1619PA9743.A3 1619PA9743	£8.67	£10.41
601/3 - LOCK BSD-1619PA9744.A8 1619PA9744	£11.30	£13.56
602 - JET PIPE BSD-F016L73327.A0 F016L73327	£37.27	£44.72
602/815 - O-RING 9.5x1.5 BSD-1619PB2119.A14 1619PB2119	£2.16	£2.59
603 - JET PIPE BSD-F016L73384.A3 F016L73384	£63.50	£76.20
603/815 - O-RING 9.5x1.5 BSD-1619PB2119.A15 1619PB2119	£2.16	£2.59
611 - FILTER BSD-F016L73351.A2 F016L73351	£21.68	£26.01
612 - FILTER BSD-F016L73352.A9 F016L73352	£21.68	£26.01
814 - SEAL BSD-F016F04324.A1 F016F04324	£14.91	£17.89
880 - WEAR AND TEAR PART SET BSD-F016L73319.A1 F016L73319	£18.96	£22.75
