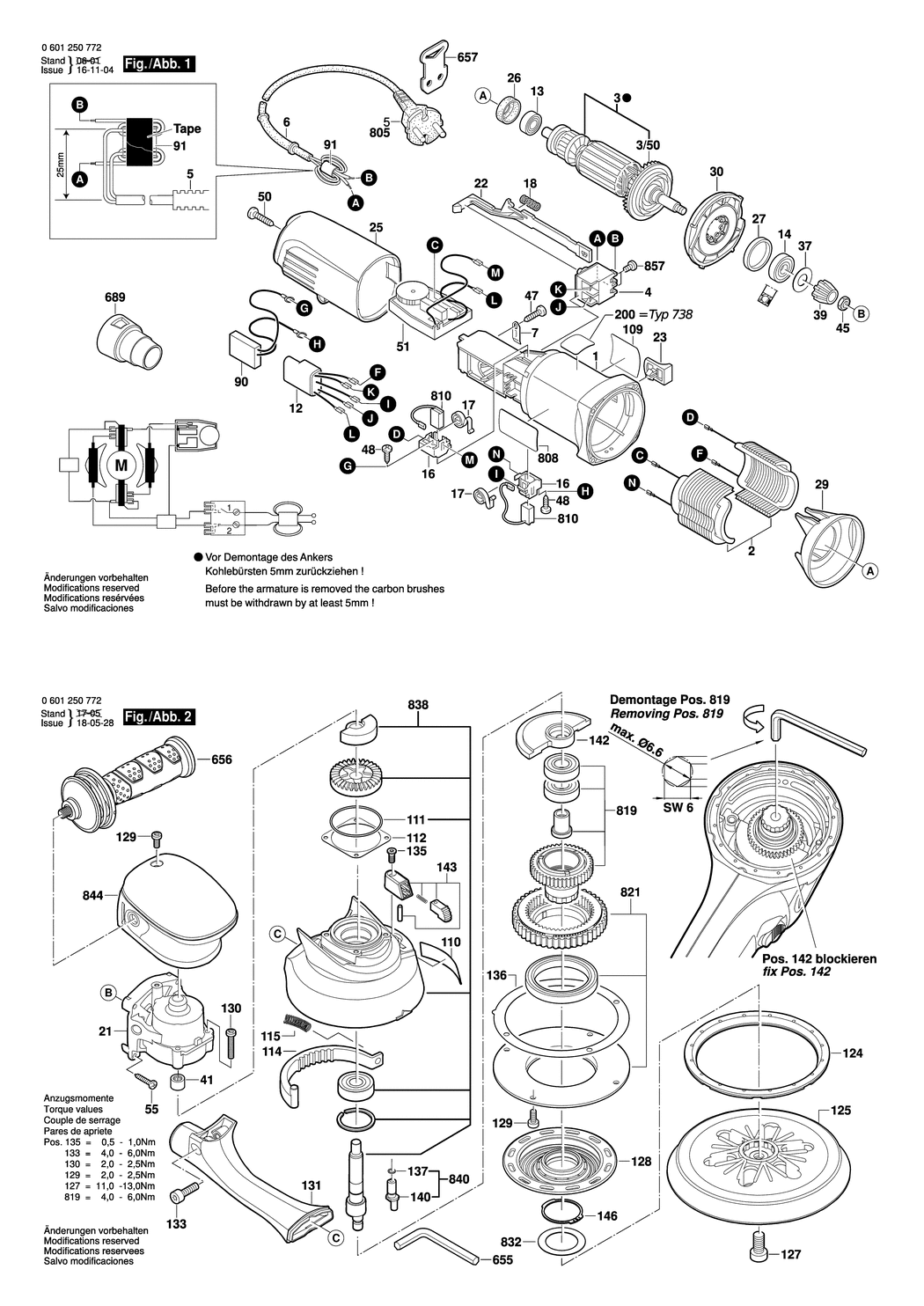

1 - MOTOR HOUSING
BSD-1619P09772.A25
1619P09772
|
£13.78
|
£16.54
|
|
|
2 - FIELD 220-240V
BSD-1604220328.A0
1604220328
|
£21.52
|
£25.83
|
|
|
3 - ARMATURE 220-240V
BSD-1604010626.A32
1604010626
|
£31.64
|
£37.97
|
|
|
3/50 - FAN
BSD-1606610141.A89
1606610141
|
£4.26
|
£5.11
|
|
|
4 - ON-OFF SWITCH
BSD-1607200179.A65
1607200179
|
£11.12
|
£13.35
|
|
|
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1604460196.A7
1604460196
|
£21.52
|
£25.83
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A288
2600703012
|
£2.94
|
£3.53
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A331
1601302017
|
£1.84
|
£2.21
|
|
|
12 - SUPPRESSION FILTER
BSD-2609120008.A2
2609120008
|
£15.65
|
£18.78
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A2115
2600905032
|
£5.57
|
£6.68
|
|
|
14 - GROOVE BALL BEARING
BSD-1619P11240.A0
1619P11240
|
£3.94
|
£4.73
|
|
|
16 - BRUSH HOLDER
BSD-1619P01811.A148
1619P01811
|
£2.80
|
£3.36
|
|
|
17 - SPIRAL SPRING
BSD-1604652013.A111
1604652013
|
£1.84
|
£2.21
|
|
|
18 - COMPRESSION SPRING
BSD-1604611031.A223
1604611031
|
£2.94
|
£3.53
|
|
|
21 - GEAR HOUSING
BSD-2605806438.A0
2605806438
|
£28.59
|
£34.31
|
|
|
22 - ADJUSTING SLIDE
BSD-1602319009.A122
1602319009
|
£2.94
|
£3.53
|
|
|
23 - SWITCH HANDLE
BSD-1602026068.A28
1602026068
|
£2.74
|
£3.29
|
|
|
25 - HOUSING COVER
BSD-2605500167.A10
2605500167
|
£10.10
|
£12.12
|
|
|
26 - INTERMEDIATE RING
BSD-1600502024.A33
1600502024
|
£2.16
|
£2.59
|
|
|
27 - RUBBER RING
BSD-1600206025.A142
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600591023.A99
1600591023
|
£2.74
|
£3.29
|
|
|
30 - AIR-DEFLECTOR RING
BSD-2601328071.A11
2601328071
|
£2.45
|
£2.94
|
|
|
37 - COVER DISC
BSD-1600100033.A127
1600100033
|
£2.74
|
£3.29
|
|
|
39 - PINION
BSD-2609110149.A12
2609110149
|
£4.48
|
£5.37
|
|
|
41 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A309
2600917003
|
£2.94
|
£3.53
|
|
|
45 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A629
2915011007
|
-
|
|
|
|
47 - SPECIAL SCREW
BSD-2609110052.A44
2609110052
|
£1.84
|
£2.21
|
|
|
48 - SCREW AND WASHER ASSEMBLY
BSD-1619P02537.A2
1619P02537
|
£1.75
|
£2.10
|
|
|
50 - TAPPING SCREW DIN 7981-ST3.9x19-C-H
BSD-2910611020.A222
2910611020
|
£1.84
|
£2.21
|
|
|
51 - SPEED GOVERNOR 230-240V
BSD-1607233167.A2
1607233167
|
£40.80
|
£48.96
|
|
|
55 - TAPPING SCREW DIN 7981-ST3.9x25-C-H
BSD-2910611022.A16
2910611022
|
-
|
|
|
|
90 - SUPPRESSION FILTER
BSD-2607329147.A8
2607329147
|
£9.11
|
£10.93
|
|
|
109 - MANUFACTURER'S NAMEPLATE
BSD-3601110612.A0
3601110612
|
£2.74
|
£3.29
|
|
|
110 - REFERENCE PLATE
BSD-2601119008.A9
2601119008
|
£3.34
|
£4.01
|
|
|
111 - O-RING 42.0x1.0 MM
BSD-3600210136.A3
3600210136
|
-
|
|
|
|
112 - SHIM 0.1 MM
BSD-1600136016.A111
1600136016
|
£2.74
|
£3.29
|
|
|
112 - SHIM 0.2 MM
BSD-1600136017.A1
1600136017
|
£2.74
|
£3.29
|
|
|
114 - CHANGEOVER LEVER
BSD-2601990030.A11
2601990030
|
£7.36
|
£8.83
|
|
|
115 - COMPRESSION SPRING
BSD-2604601089.A8
2604601089
|
£1.75
|
£2.10
|
|
|
124 - FRICTION RING
BSD-2600206019.A8
2600206019
|
£5.87
|
£7.04
|
|
|
125 - BACKING PAD dia150
BSD-2608601106.A8
2608601106
|
£35.42
|
£42.51
|
|
|
127 - HEX SOCKET HEAD CAP SCREW DIN 7984-M8x18-8.8
BSD-2910130240.A5
2910130240
|
£1.84
|
£2.21
|
|
|
128 - SEAL
BSD-2601015087.A5
2601015087
|
£21.68
|
£26.01
|
|
|
129 - THREAD-FORMING TAP. SCREW
BSD-2603435042.A10
2603435042
|
£1.75
|
£2.10
|
|
|
130 - THREAD-FORMING TAP. SCREW
BSD-2603435083.A2
2603435083
|
£1.75
|
£2.10
|
|
|
131 - SUCTION TUBE
BSD-2601328072.A0
2601328072
|
£19.91
|
£23.89
|
|
|
133 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x25-8.8
BSD-2910141203.A24
2910141203
|
£1.75
|
£2.10
|
|
|
135 - TORX FLAT-HEAD SCREW
BSD-2604421013.A11
2604421013
|
£2.16
|
£2.59
|
|
|
136 - SEAL RING
BSD-2600015008.A4
2600015008
|
£2.74
|
£3.29
|
|
|
137 - O-RING 5.0x1.0 MM
BSD-3600210101.A9
3600210101
|
£1.84
|
£2.21
|
|
|
140 - CRANK ROD
BSD-2603102010.A11
2603102010
|
£12.64
|
£15.17
|
|
|
142 - COUNTERWEIGHT
BSD-2608012010.A11
2608012010
|
£8.67
|
£10.41
|
|
|
143 - CONTROL LEVER
BSD-2602026115.A1
2602026115
|
£5.87
|
£7.04
|
|
|
146 - SPRING RETAINING RING
BSD-2916650026.A4
2916650026
|
£4.26
|
£5.11
|
|
|
655 - HEXAGON SOCKET SCREW KEY 5 MM
BSD-2610364015.A122
2610364015
|
£3.91
|
£4.69
|
|
|
656 - AUXILIARY HANDLE
BSD-3602025026.A1
3602025026
|
£18.96
|
£22.75
|
|
|
657 - KEY HOLDER
BSD-3602311050.A67
3602311050
|
£2.16
|
£2.59
|
|
|
689 - ADAPTER
BSD-1600A00B8V.A11
1600A00B8V
|
£8.54
|
£10.25
|
|
|
808 - NAMEPLATE
BSD-3601119422.A0
3601119422
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014145.A1
1607014145
|
£10.61
|
£12.73
|
|
|
819 - PINION
BSD-2606316902.A1
2606316902
|
£72.18
|
£86.62
|
|
|
821 - TOOTHED BELT WHEEL
BSD-2606319903.A11
2606319903
|
£120.11
|
£144.13
|
|
|
832 - COVER DISC
BSD-3607031724.A9
3607031724
|
£8.67
|
£10.41
|
|
|
838 - GEAR HOUSING
BSD-2605806890.A11
2605806890
|
£126.12
|
£151.34
|
|
|
840 - CRANK ROD
BSD-2603102012.A1
2603102012
|
£14.91
|
£17.89
|
|
|
844 - CAP-HANDLE
BSD-2602026106.A10
2602026106
|
£18.96
|
£22.75
|
|
|
857 - OVAL-HEAD SCREW DIN7985-M3.5x5-4.8-H
BSD-2910641081.A147
2910641081
|
-
|
|
|
