Bosch GDS 30 / 0601435142 / --- 240 Volt Spare Parts

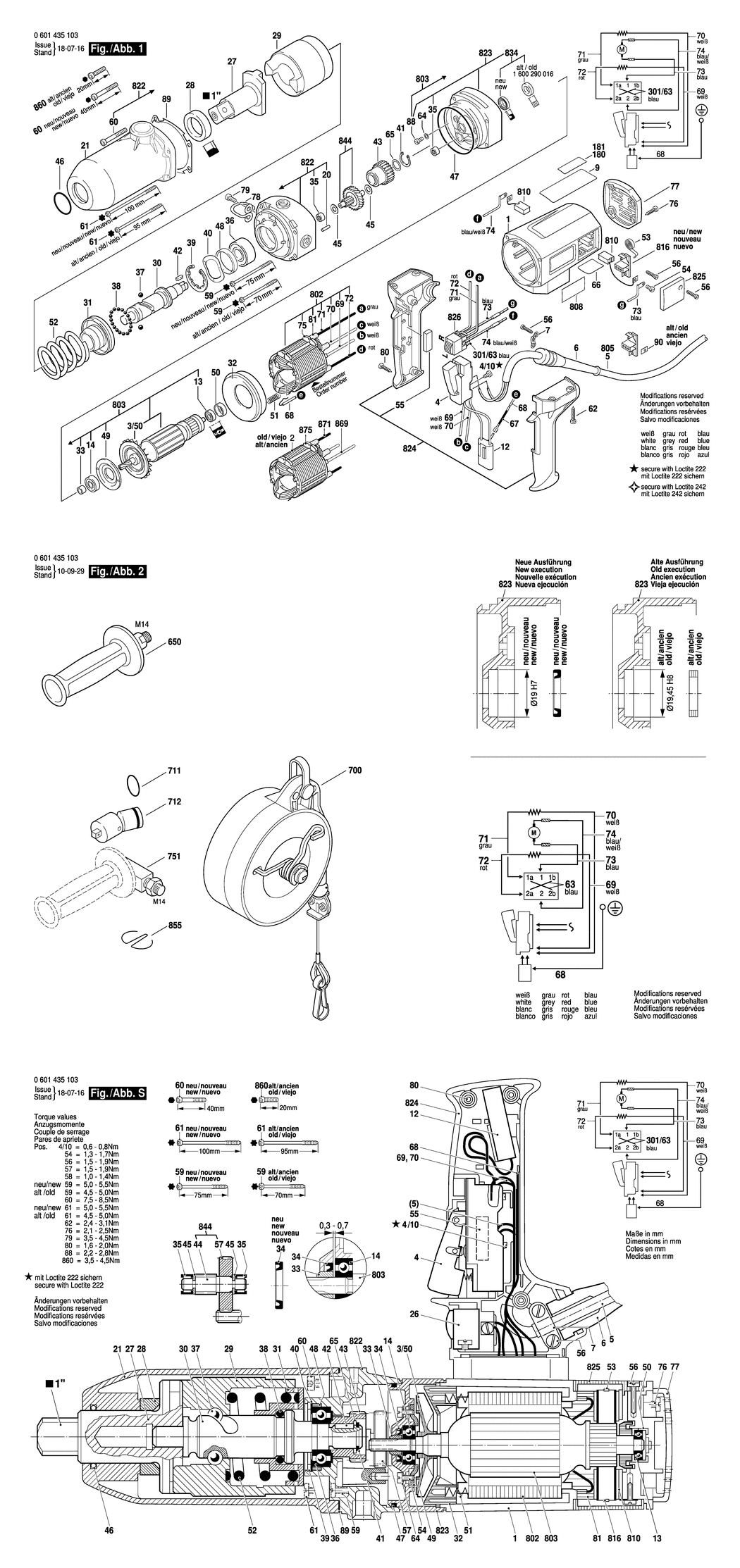

An exploded drawing and listing for the Bosch GDS 30 / 0601435142 / --- 240 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605108091.A19 3605108091	£35.42	£42.51
3/50 - FAN BSD-1606610122.A144 1606610122	£2.80	£3.36
4 - SWITCH BSD-1607200079.A12 1607200079	£35.42	£42.51
4/10 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x6-5.8 BSD-2910011082.A20 2910011082	£1.75	£2.10
5 - POWER SUPPLY CORD GB 2.65m 2 x 1.00mm H07 RN-F BSD-3604460073.A0 3604460073	-
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A489 3600703011	£2.94	£3.53
7 - FASTENING CLAMP BSD-1601302014.A234 1601302014	£2.74	£3.29
9 - STICKER BSD-3601110614.A4 3601110614	£2.61	£3.13
12 - SUPPRESSION FILTER BSD-2607329096.A181 2607329096	£7.72	£9.27
13 - BALL BEARING 7x19x6 BSD-2600905032.A1409 2600905032	£5.57	£6.68
14 - GROOVE BALL BEARING 9x26x8 BSD-3600905131.A71 3600905131	£11.87	£14.24
20 - STRAIGHT PIN DIN 7-5H8x14 BSD-2917500119.A11 2917500119	£1.75	£2.10
21 - SPINDLE BEARING BSD-3605806222.A5 3605806222	£63.50	£76.20
27 - COUPLING HALF BSD-1606455054.A18 1606455054	£195.26	£234.31
28 - SPACER RING BSD-3600202019.A4 3600202019	£23.86	£28.63
29 - STRIKER BSD-1608710028.A6 1608710028	£251.67	£302.00
30 - DRIVE SHAFT BSD-1603124106.A8 1603124106	£142.02	£170.42
31 - BACKUP RING BSD-3600220019.A0 3600220019	£102.57	£123.08
32 - AIR-DEFLECTOR RING BSD-1600502019.A5 1600502019	£3.72	£4.47
33 - INTERMEDIATE RING BSD-3600300042.A5 3600300042	£10.10	£12.12
35 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A15 1600910018	£5.30	£6.36
36 - GROOVE BALL BEARING 17x40x12 BSD-1900905281.A76 1900905281	£33.22	£39.87
37 - BALL DIN 5401-9 MM III-ST BSD-1903230015.A27 1903230015	£2.74	£3.29
38 - BALL DIN 5401-5 G28 BSD-1903230009.A465 1903230009	£1.84	£2.21
39 - SPRING RETAINING RING BSD-1600119004.A109 1600119004	£2.80	£3.36
40 - SPRING WASHER dia32.3xdia43.5x0.6 MM BSD-1600150009.A62 1600150009	£2.80	£3.36
41 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A83 2916650006	£1.75	£2.10
42 - PARALLEL KEY DIN 6885-A6X4X14 BSD-1902300083.A6 1902300083	£1.84	£2.21
43 - CYLINDRICAL GEAR Z=25 BSD-3606301006.A3 3606301006	£63.50	£76.20
45 - SHIM 0.5 MM BSD-1600100617.A20 1600100617	£1.75	£2.10
46 - O-RING 35.0x3.0 MM BSD-3600210131.A36 3600210131	£3.91	£4.69
47 - O-RING 66.0x3.0 MM BSD-1600210005.A0 1600210005	£2.80	£3.36
48 - RUBBER RING BSD-1600206022.A18 1600206022	£2.16	£2.59
49 - BEARING COVER BSD-3605500043.A12 3605500043	£4.26	£5.11
50 - INTERMEDIATE RING BSD-1600502011.A562 1600502011	£2.74	£3.29
51 - COMPRESSION SPRING BSD-1604613006.A6 1604613006	£1.75	£2.10
52 - COMPRESSION SPRING BSD-3604610059.A6 3604610059	£21.52	£25.83
53 - SPIRAL SPRING BSD-160465202C.A6 160465202C	-
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A199 2910021118	£1.84	£2.21
55 - INSULATING STRIP BSD-3602317025.A12 3602317025	£2.61	£3.13
56 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A329 2910211019	£1.84	£2.21
59 - LENS HEAD SCREW BSD-3603435040.A9 3603435040	£1.75	£2.10
60 - HEX SOCKET HEAD CAP SCREW DIN 912-BM 5x40-10.9 BSD-2910151170.A8 2910151170	£1.75	£2.10
61 - LENS HEAD SCREW BSD-3603435041.A11 3603435041	£1.75	£2.10
62 - TAPPING SCREW 5x30 BSD-3603435027.A44 3603435027	£1.84	£2.21
64 - PLAIN WASHER DIN 7603-A4x8 BSD-3600120013.A7 3600120013	£1.84	£2.21
65 - SHIM WASHER 0.4 MM BSD-1600101600.A58 1600101600	£1.75	£2.10
66 - STICKER BSD-3601110370.A5 3601110370	£3.91	£4.69
67 - SHRINKABLE TUBE BSD-1600712027.A14 1600712027	£1.75	£2.10
68 - ELEC. CABLE W/CONNECTION L=250 MM BSD-3604448044.A6 3604448044	£3.72	£4.47
69 - CONNECTING CABLE L=470 MM BSD-3604438025.A32 3604438025	£7.36	£8.83
70 - CONNECTING CABLE L=330 MM BSD-1604438012.A67 1604438012	£7.36	£8.83
71 - CONNECTING CABLE L=330 MM BSD-3604460135.A8 3604460135	£8.67	£10.41
72 - CONNECTING CABLE L=160 MM BSD-3604438008.A10 3604438008	£8.67	£10.41
73 - SUPPRESSION FILTER L=300 MM BSD-3604503036.A7 3604503036	£5.30	£6.36
74 - SUPPRESSION FILTER L=150 MM BSD-3604503037.A6 3604503037	£5.30	£6.36
75 - WIRE GUIDE BSD-3601025003.A50 3601025003	£1.75	£2.10
76 - TORX OVAL-HEAD SCREW BSD-2914201527.A72 2914201527	£2.27	£2.72
77 - SEALING CAP BSD-3605500062.A1 3605500062	£13.12	£15.75
78 - SUSPENSION LOOP BSD-3601310013.A1 3601310013	£21.68	£26.01
79 - HEX SOCKET HEAD CAP SCREW BSD-2910131193.A13 2910131193	£1.75	£2.10
80 - TORX OVAL-HEAD SCREW BSD-2914201508.A42 2914201508	£1.84	£2.21
81 - SHRINKABLE TUBE BSD-3600707022.A103 3600707022	£3.72	£4.47
88 - SOCKET HEAD CAP SCREW BSD-3603435045.A3 3603435045	£1.75	£2.10
89 - SEAL BSD-3601023010.A6 3601023010	£6.85	£8.22
90 - TAB WASHER BSD-1601030022.A376 1601030022	£1.84	£2.21
301/63 - CONNECTING CABLE L=60 MM BSD-3604412002.A11 3604412002	£7.36	£8.83
650 - AUXILIARY HANDLE M14 BSD-1602025022.A1442 1602025022	£13.41	£16.09
650 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A1339 1602025030	£18.96	£22.75
700 - SPRING PULL 8-10 KG BSD-0607950926.A6 0607950926	-
712 - BALL JOINT 1. 100 MM BSD-1608500009.A6 1608500009	-
751 - THREADED FITTING M14. L=70 MM BSD-1603527017.A34 1603527017	-
802 - FIELD 240V BSD-3604220140.A2 3604220140	£59.53	£71.44
803 - ARMATURE 240V BSD-3604010074.A2 3604010074	£134.16	£160.99
808 - NAMEPLATE BSD-160111A3H3.A810 160111A3H3	£2.74	£3.29
810 - CARBON-BRUSH SET BSD-3607014012.A21 3607014012	£25.05	£30.06
816 - BRUSH HOLDER BSD-3604336012.A43 3604336012	£5.58	£6.70
822 - GEAR HOUSING BSD-3607031648.A2 3607031648	£120.11	£144.13
823 - INTERMEDIATE FLANGE BSD-3605806168.A14 3605806168	£72.18	£86.62
824 - HANDLE BSD-3605132064.A12 3605132064	£23.86	£28.63
825 - SEALING CAP BSD-3605500060.A0 3605500060	-
826 - SWITCH BSD-3607200000.A50 3607200000	£21.52	£25.83
834 - ROTARY SHAFT LIP SEAL BSD-3600290070.A16 3600290070	£12.04	£14.45
844 - GEAR SHAFT BSD-1607000C6N.A13 1607000C6N	£81.81	£98.17
860 - HEX SOCKET HEAD CAP SCREW BSD-3603414028.A6 3603414028	£1.75	£2.10
869 - CONNECTING CABLE L=450 MM BSD-3604460009.A8 3604460009	£6.52	£7.83
871 - CONNECTING CABLE L=345 MM BSD-1604438013.A54 1604438013	£7.36	£8.83
875 - WIRE GUIDE BSD-1601025001.A23 1601025001	£1.75	£2.10
