Bosch GDR 120-LI / 3601JF0080 / --- 12 Volt Spare Parts

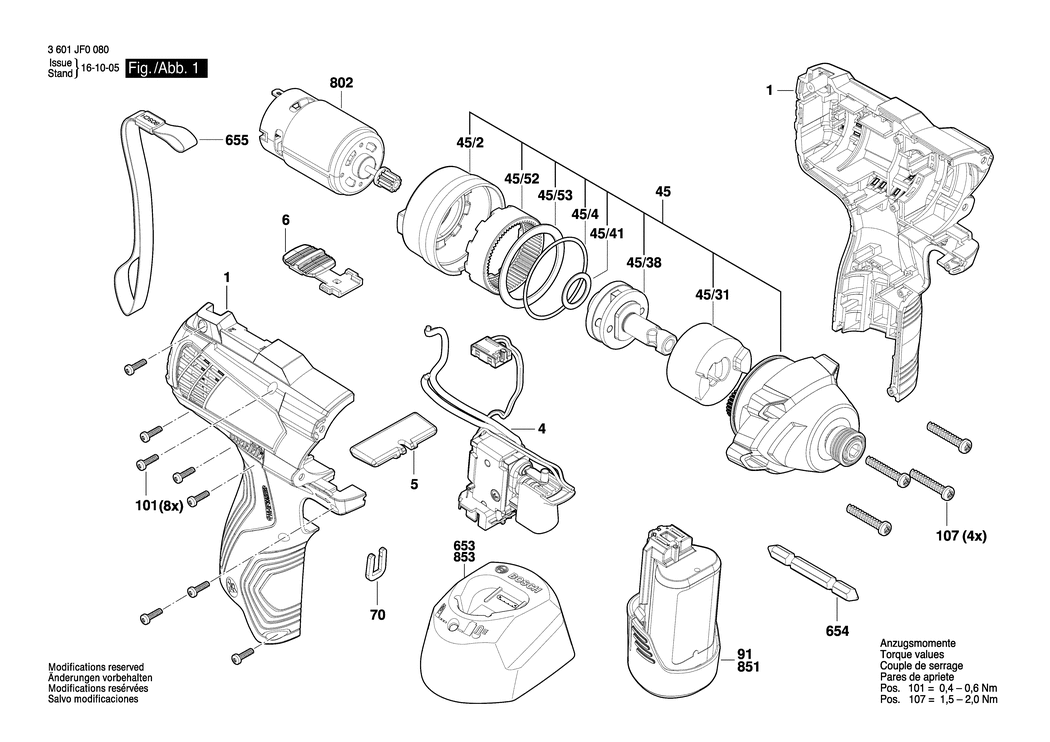

An exploded drawing and listing for the Bosch GDR 120-LI / 3601JF0080 / --- 12 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609101534.A1 2609101534	£8.67	£10.41
4 - ELECTRONICS MODULE BSD-2607202312.A1 2607202312	£27.23	£32.68
5 - BUTTON BSD-2609100698.A33 2609100698	£2.80	£3.36
6 - SWITCHOVER UNIT BSD-2609101661.A1 2609101661	£1.75	£2.10
45 - GEAR BOX BSD-2609199824.A1 2609199824	£54.42	£65.30
45/2 - FLANGE HOUSING BSD-2609101512.A0 2609101512	£1.75	£2.10
45/31 - STRIKER BSD-2609111531.A0 2609111531	£16.41	£19.69
45/38 - JACK SHAFT BSD-2609199865.A0 2609199865	£12.04	£14.45
45/4 - SEAL BSD-2609170267.A0 2609170267	£2.16	£2.59
45/41 - WASHER BSD-2609112071.A0 2609112071	£1.75	£2.10
45/52 - RING GEAR BSD-2609111997.A0 2609111997	£8.67	£10.41
45/53 - WASHER BSD-2609112051.A0 2609112051	£1.75	£2.10
70 - CLIP BSD-2609110537.A55 2609110537	£1.75	£2.10
101 - SCREW BSD-2609110883.A41 2609110883	£2.16	£2.59
107 - SCREW BSD-2609110327.A7 2609110327	£1.75	£2.10
654 - SCREWDRIVER BLADE BSD-2609110342.A0 2609110342	£2.61	£3.13
655 - CARRYING LOOP BSD-2609170129.A0 2609170129	£2.61	£3.13
802 - MOTOR ASSEMBLY BSD-1600A00PE3.A0 1600A00PE3	£21.52	£25.83
851 - BATTERY PACK GBA 12V 2.0Ah Li SCM BSD-1607A350C5.A17 1607A350C5	-
853 - FAST CHARGER GAL 12V-20 220V/12V/2A BSD-2607226203.A0 2607226203	-
