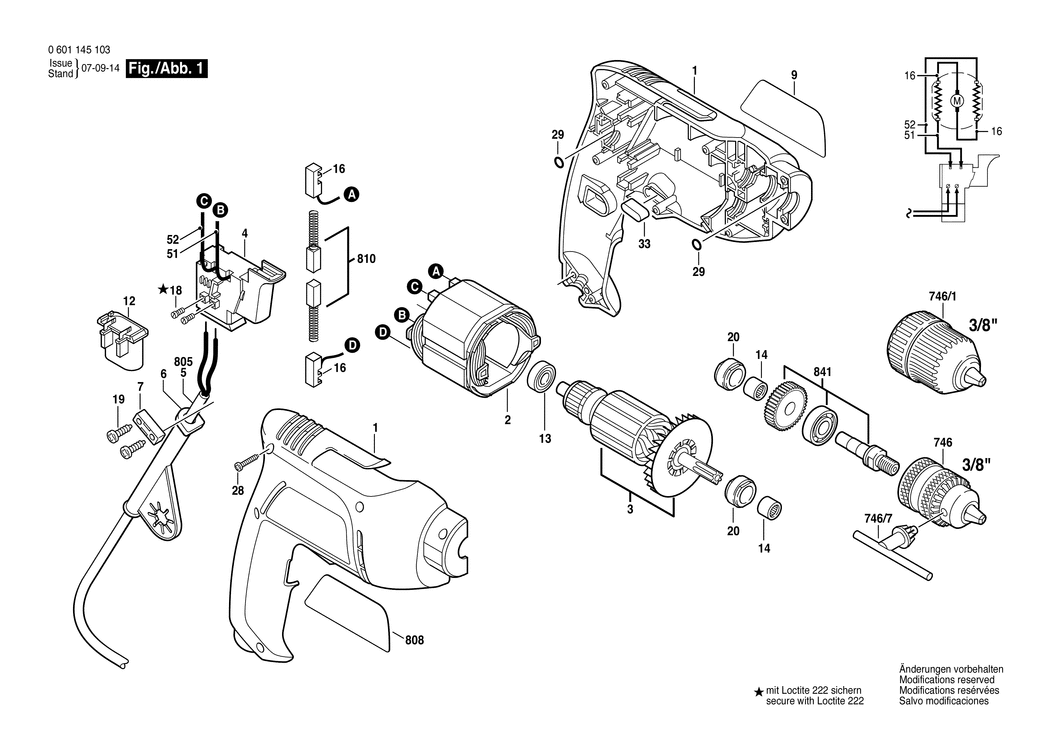

1 - HOUSING SECTION
BSD-2605104638.A5
2605104638
|
-
|
|
|
|
2 - FIELD 230-240V
BSD-2604220640.A2
2604220640
|
-
|
|
|
|
3 - ARMATURE 220-240V
BSD-1604010692.A1
1604010692
|
£27.31
|
£32.77
|
|
|
4 - SWITCH
BSD-2607200397.A7
2607200397
|
£6.16
|
£7.39
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A284
2600707059
|
£3.91
|
£4.69
|
|
|
7 - CABLE CLIP
BSD-2601035001.A1616
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2609913642.A3
2609913642
|
-
|
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-2607329138.A52
2607329138
|
-
|
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A2178
2600905032
|
£5.30
|
£6.36
|
|
|
14 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A243
2600917003
|
£2.94
|
£3.53
|
|
|
16 - BRUSH HOLDER
BSD-1604449002.A51
1604449002
|
£1.75
|
£2.10
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1963
2603410001
|
£1.84
|
£2.21
|
|
|
19 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A411
2910611019
|
£2.94
|
£3.53
|
|
|
20 - BEARING PIECE
BSD-2609110018.A16
2609110018
|
-
|
|
|
|
28 - TAPPING SCREW
BSD-2603435065.A21
2603435065
|
£1.38
|
£1.66
|
|
|
29 - O-RING 5.0x1.5 MM
BSD-1900210000.A190
1900210000
|
£1.84
|
£2.21
|
|
|
33 - PROTECTION COVER
BSD-2609100005.A14
2609100005
|
£1.75
|
£2.10
|
|
|
51 - CABLE L=98 MM
BSD-2604448045.A179
2604448045
|
-
|
|
|
|
52 - CONNECTING CABLE L=124 MM
BSD-2604448018.A85
2604448018
|
£2.33
|
£2.80
|
|
|
746 - KEY CHUCK dia1.5-10 MM. 3/8
BSD-1608571053.A14
1608571053
|
£20.99
|
£25.19
|
|
|
746/7 - CHUCK WRENCH SG2
BSD-2607950007.A19
2607950007
|
£6.85
|
£8.22
|
|
|
805 - POWER SUPPLY CORD EU 2.6m 2 x 1.0 mm
BSD-1607000385.A105
1607000385
|
£15.65
|
£18.78
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A5096
160111A3H3
|
£2.74
|
£3.29
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321904.A164
2604321904
|
£10.61
|
£12.73
|
|
|
841 - DRILLING SPINDLE
BSD-2609110159.A1
2609110159
|
£35.12
|
£42.15
|
|
