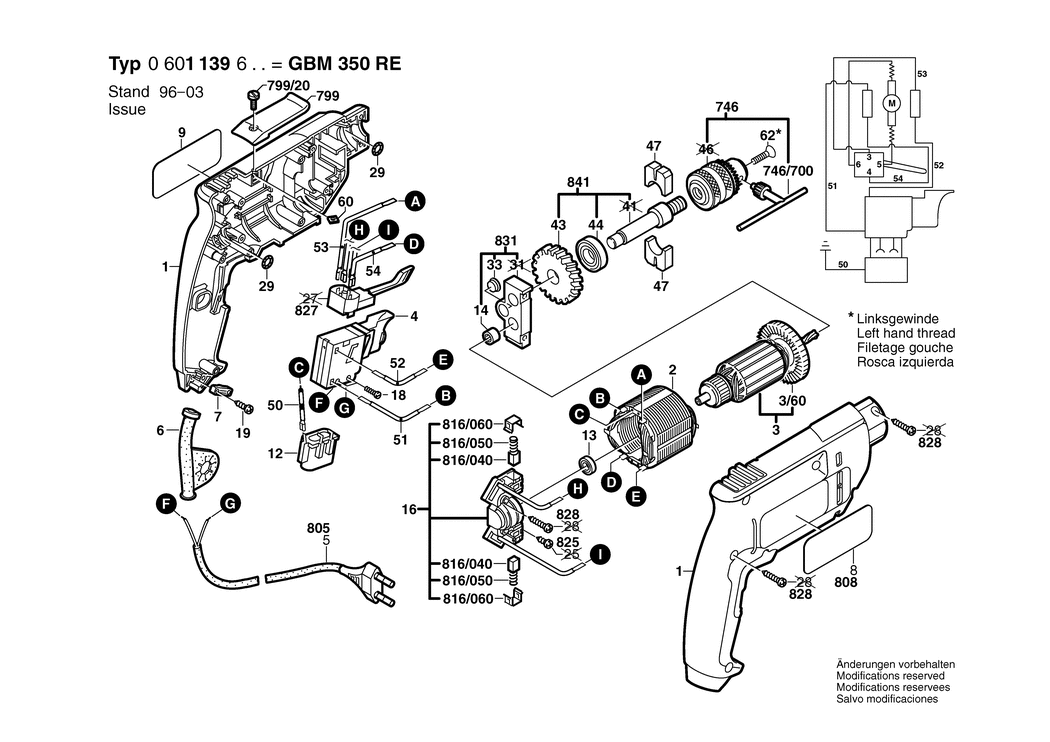

1 - HOUSING SECTION
BSD-2605104316.A50
2605104316
|
-
|
|
|
|
2 - FIELD 230-240V
BSD-2604220522.A13
2604220522
|
-
|
|
|
|
3 - ARMATURE 220-240V
BSD-2604011143.A0
2604011143
|
£33.45
|
£40.14
|
|
|
3/60 - FAN
BSD-1606610116.A115
1606610116
|
£2.64
|
£3.17
|
|
|
4 - SWITCH
BSD-2607200357.A31
2607200357
|
-
|
|
|
|
5 - POWER SUPPLY CORD GB 2.65m 2 x 1.0mm H05 VV-F
BSD-2604420032.A11
2604420032
|
-
|
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A100
2600707059
|
£3.91
|
£4.69
|
|
|
6 - GROMMET dia8.8 MM
BSD-2600707061.A44
2600707061
|
£2.80
|
£3.36
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2472
2601035001
|
£1.84
|
£2.21
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118408.A1
2601118408
|
£3.51
|
£4.21
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329114.A394
2607329114
|
-
|
|
|
|
13 - GROOVE BALL BEARING 8x19x6
BSD-2600905046.A46
2600905046
|
£11.30
|
£13.56
|
|
|
14 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A119
2600917003
|
£2.94
|
£3.53
|
|
|
16 - BRUSH PLATE
BSD-2605807060.A12
2605807060
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2464
2603410001
|
£1.84
|
£2.21
|
|
|
19 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A674
2910611019
|
£2.94
|
£3.53
|
|
|
29 - O-RING 5.0x1.75 MM
BSD-2600210036.A0
2600210036
|
-
|
|
|
|
33 - SEALING CAP
BSD-2605500111.A32
2605500111
|
-
|
|
|
|
43 - CYLINDRICAL GEAR Z=45
BSD-2606320059.A0
2606320059
|
-
|
|
|
|
44 - GROOVE BALL BEARING 6200-2Z DIN 625
BSD-1900905232.A121
1900905232
|
£21.68
|
£26.01
|
|
|
47 - FELT SHEET
BSD-2600005005.A12
2600005005
|
-
|
|
|
|
50 - EARTH CONDUCTOR
BSD-2604448170.A126
2604448170
|
-
|
|
|
|
51 - CABLE L=173 MM
BSD-2604448060.A225
2604448060
|
-
|
|
|
|
52 - CABLE L=98 MM
BSD-2604448045.A224
2604448045
|
-
|
|
|
|
53 - CONNECTING CABLE L=103 MM
BSD-2604448132.A1
2604448132
|
£1.84
|
£2.21
|
|
|
54 - CONNECTING CABLE L=88 MM
BSD-2604448034.A24
2604448034
|
£1.75
|
£2.10
|
|
|
60 - SQUARE NUT DIN 562-M4-04
BSD-2915121004.A7
2915121004
|
-
|
|
|
|
62 - COUNTERSUNK-HEAD SCREW M6x20 MM
BSD-2603421211.A47
2603421211
|
£1.95
|
£2.34
|
|
|
746 - KEY CHUCK 1/2-20 UNF
BSD-1608571061.A46
1608571061
|
£19.24
|
£23.09
|
|
|
746/700 - CHUCK WRENCH SG2
BSD-2607950007.A746
2607950007
|
£6.85
|
£8.22
|
|
|
799 - CHANNEL END-PLATE
BSD-2608040050.A11
2608040050
|
-
|
|
|
|
799/20 - PAN HEAD SCREW DIN 85-M4x10-4.8
BSD-2910091120.A77
2910091120
|
£1.84
|
£2.21
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A4221
160111A3H3
|
£2.74
|
£3.29
|
|
|
816/040 - CARBON-BRUSH SET
BSD-2604321915.A8
2604321915
|
-
|
|
|
|
816/060 - RATCHET CAP
BSD-2601329051.A90
2601329051
|
£2.33
|
£2.80
|
|
|
816/060 - RATCHET CAP
BSD-2601322013.A290
2601322013
|
£1.84
|
£2.21
|
|
|
825 - TAPPING SCREW DIN 7981-B2.9x16-C-H
BSD-2910611007.A24
2910611007
|
£1.84
|
£2.21
|
|
|
827 - CHANGE-OVER SWITCH
BSD-2607200231.A128
2607200231
|
£17.22
|
£20.67
|
|
|
828 - TAPPING SCREW DIN 7981-ST3.9x19-C-H
BSD-2910611020.A30
2910611020
|
£1.84
|
£2.21
|
|
|
831 - BEARING BRACKET
BSD-2605807927.A16
2605807927
|
-
|
|
|
|
841 - DRILLING SPINDLE 1/2
BSD-2609110017.A1
2609110017
|
-
|
|
|
