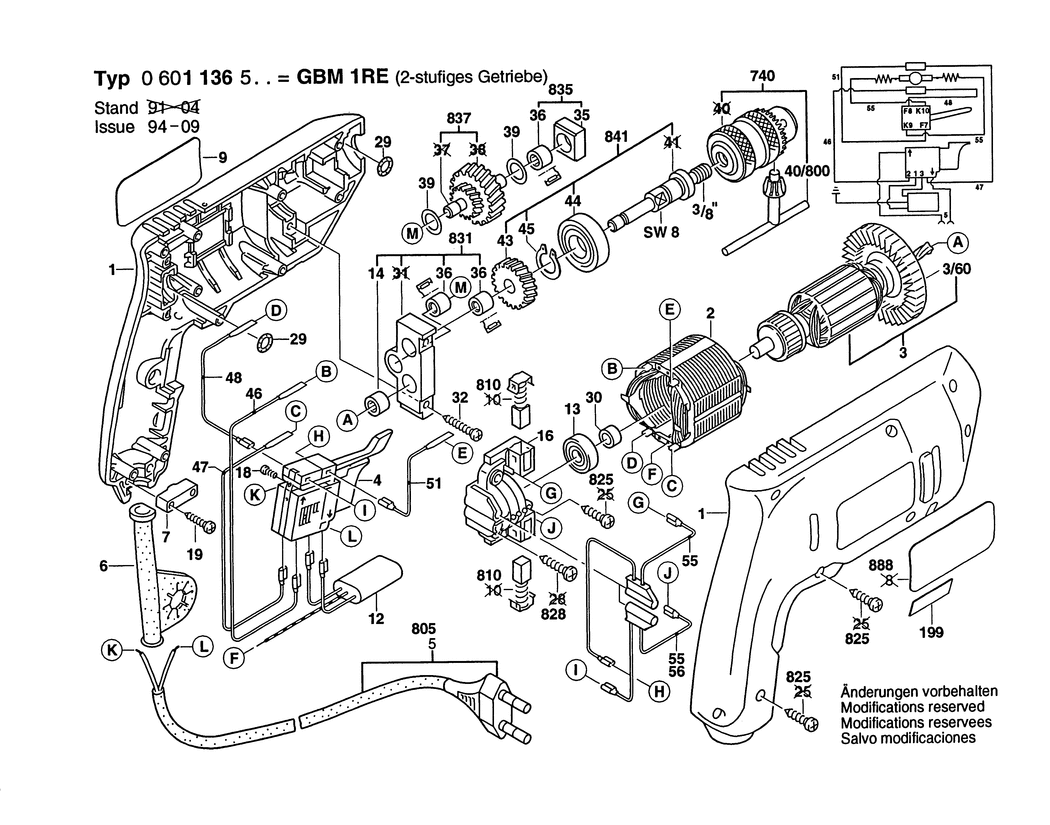

1 - HOUSING SECTION
BSD-2605104342.A17
2605104342
|
£13.41
|
£16.09
|
|
|
2 - FIELD 220-230V
BSD-2604220506.A3
2604220506
|
-
|
|
|
|
3 - ARMATURE 230-240V
BSD-2604010834.A1
2604010834
|
-
|
|
|
|
3/60 - FAN
BSD-2606610027.A200
2606610027
|
£2.80
|
£3.36
|
|
|
4 - SWITCH
BSD-2607200278.A2
2607200278
|
£30.28
|
£36.33
|
|
|
5 - POWER SUPPLY CORD I / BR 4.15m 2 x 1.0mm H05VV-F
BSD-2604460278.A10
2604460278
|
£7.36
|
£8.83
|
|
|
6 - GROMMET dia7x8.4 MM
BSD-2600707062.A4
2600707062
|
£1.84
|
£2.21
|
|
|
6 - GROMMET dia8.2x84 MM
BSD-2600707063.A5
2600707063
|
£1.75
|
£2.10
|
|
|
7 - CABLE CLIP
BSD-2601035001.A1173
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118581.A2
2601118581
|
£3.72
|
£4.47
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-2607329127.A11
2607329127
|
£6.94
|
£8.33
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A735
2600905032
|
£5.30
|
£6.36
|
|
|
14 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A509
2600917003
|
£2.94
|
£3.53
|
|
|
16 - BRUSH PLATE
BSD-2605807039.A9
2605807039
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1056
2603410001
|
£1.84
|
£2.21
|
|
|
19 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A57
2910611019
|
£2.94
|
£3.53
|
|
|
29 - O-RING 5.0x1.5 MM
BSD-1900210000.A594
1900210000
|
£1.84
|
£2.21
|
|
|
30 - SPACER RING
BSD-2600209004.A37
2600209004
|
-
|
|
|
|
32 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A126
2603490024
|
£1.75
|
£2.10
|
|
|
35 - BEARING PIECE
BSD-2602305003.A6
2602305003
|
-
|
|
|
|
36 - NEEDLE BEARING
BSD-2600917004.A13
2600917004
|
£3.91
|
£4.69
|
|
|
39 - SHIM 0.3 MM
BSD-2600100627.A250
2600100627
|
-
|
|
|
|
40/800 - CHUCK WRENCH DIN 6349-S1
BSD-1607950028.A2
1607950028
|
-
|
|
|
|
43 - CYLINDRICAL GEAR Z=29
BSD-2606319039.A4
2606319039
|
-
|
|
|
|
44 - GROOVE BALL BEARING 6200-2Z DIN 625
BSD-1900905232.A58
1900905232
|
£21.68
|
£26.01
|
|
|
45 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A407
2916650001
|
£2.74
|
£3.29
|
|
|
46 - CONNECTING CABLE
BSD-2604448152.A6
2604448152
|
-
|
|
|
|
47 - CONNECTING CABLE
BSD-2604448153.A14
2604448153
|
-
|
|
|
|
48 - CONNECTING CABLE L=83 MM
BSD-2604448154.A1
2604448154
|
£1.75
|
£2.10
|
|
|
51 - CONNECTING CABLE
BSD-2604448155.A6
2604448155
|
-
|
|
|
|
55 - BRUSH PLATE
BSD-2604465104.A3
2604465104
|
-
|
|
|
|
740 - KEY CHUCK dia 1-10 MM. 3/8
BSD-1608571047.A31
1608571047
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-2607014004.A12
2607014004
|
-
|
|
|
|
825 - TAPPING SCREW DIN 7981-ST2.9x13-C-H
BSD-2910611006.A187
2910611006
|
£1.75
|
£2.10
|
|
|
828 - TAPPING SCREW DIN 7981-ST3.9x19-C-H
BSD-2910611020.A478
2910611020
|
£1.84
|
£2.21
|
|
|
831 - BEARING BRACKET
BSD-2605807922.A10
2605807922
|
-
|
|
|
|
837 - TOOTHED SHAFT Z=15/55
BSD-2606311908.A5
2606311908
|
-
|
|
|
|
841 - DRILLING SPINDLE 3/8. SW 8
BSD-2606135914.A5
2606135914
|
£31.64
|
£37.97
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2342
160111A3H3
|
£2.74
|
£3.29
|
|
