Bosch GBH 8-45 DV / 3611B65070 / GB 230 Volt Spare Parts

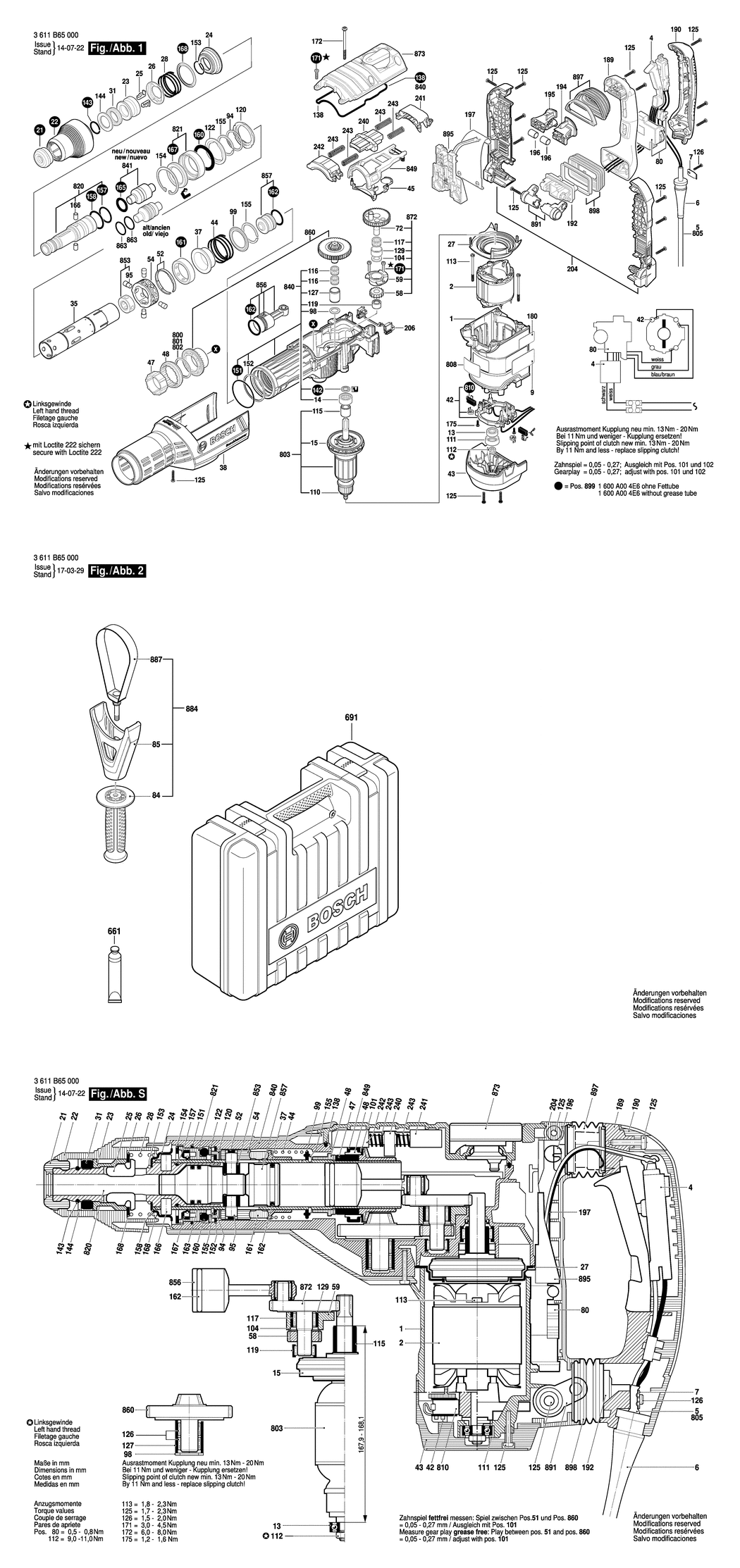

An exploded drawing and listing for the Bosch GBH 8-45 DV / 3611B65070 / GB 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615108165.A13 1615108165	£31.64	£37.97
2 - FIELD 220-240V BSD-1614220124.A3 1614220124	£33.22	£39.87
4 - SWITCH BSD-1617200130.A1 1617200130	£39.17	£47.00
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.5mm H07 RN-F BSD-1604460348.A8 1604460348	£28.59	£34.31
6 - GROMMET dia9.7-dia12x89 MM BSD-1610703053.A32 1610703053	£2.74	£3.29
7 - FASTENING CLAMP BSD-1601302018.A136 1601302018	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-160111C0U7.A1 160111C0U7	£3.91	£4.69
13 - GROOVE BALL BEARING 8x24x8 BSD-1610900026.A78 1610900026	£12.64	£15.17
14 - NEEDLE-ROLLER BEARING BSD-1610910089.A4 1610910089	-
15 - FAN BSD-1616610109.A13 1616610109	£17.22	£20.67
21 - PROTECTIVE CAP BSD-1610508038.A51 1610508038	£8.54	£10.25
22 - PROTECTION SLEEVE BSD-1610591051.A14 1610591051	£12.04	£14.45
23 - STOP SLEEVE BSD-1610520006.A14 1610520006	£18.96	£22.75
24 - HEADED BUSH BSD-1610500025.A15 1610500025	£10.10	£12.12
25 - STOPPING DEVICE BSD-1612300027.A4 1612300027	£11.87	£14.24
26 - INDEXING DISK BSD-1600A019WL.A3 1600A019WL	£5.01	£6.01
27 - AIR-DEFLECTOR RING BSD-160059105C.A5 160059105C	£2.61	£3.13
28 - COMPRESSION SPRING BSD-1614621010.A10 1614621010	£4.48	£5.37
31 - DAMPING RING BSD-1610290129.A4 1610290129	£6.52	£7.83
35 - HAMMER PIPE BSD-1615806249.A16 1615806249	£98.11	£117.73
37 - CONTROL BUSHING BSD-1610322018.A10 1610322018	£7.72	£9.27
38 - COVERING HOOD BSD-1615190177.A9 1615190177	£33.22	£39.87
42 - BRUSH HOLDER BSD-1614336090.A7 1614336090	£45.67	£54.80
43 - BRUSH-COVER BSD-1615500435.A13 1615500435	£11.30	£13.56
44 - COMPRESSION SPRING BSD-1614621020.A4 1614621020	£2.74	£3.29
45 - HOLDING-DOWN-APPLIANCE BSD-1610591052.A2 1610591052	£2.27	£2.72
47 - GEAR SLEEVE BSD-1610300076.A5 1610300076	£9.11	£10.93
48 - CLUTCH SLEEVE BSD-1619990177.A6 1619990177	£10.10	£12.12
52 - RETAINING SNAP RING BSD-1610224015.A10 1610224015	£1.84	£2.21
54 - SPACER TUBE BSD-1610190071.A12 1610190071	£5.87	£7.04
58 - CYLINDRICAL GEAR BSD-1616317620.A1 1616317620	£13.78	£16.54
59 - BEARING PEDESTAL BSD-1615805074.A11 1615805074	£10.10	£12.12
72 - ECCENTRIC COG WHEEL BSD-1616317090.A15 1616317090	£68.42	£82.10
80 - SPEED GOVERNOR BSD-1607233459.A1 1607233459	£57.02	£68.42
84 - AUXILIARY HANDLE BSD-160202507H.A435 160202507H	£11.87	£14.24
85 - SUPPORT CLAMP BSD-1618040095.A6 1618040095	£5.87	£7.04
94 - SUPPORTING DISC BSD-1610290111.A13 1610290111	£2.16	£2.59
95 - DRIVING PIN BSD-1613120023.A3 1613120023	£4.26	£5.11
98 - SHIM RING 1.0 MM BSD-1610101015.A39 1610101015	£1.84	£2.21
99 - BACKUP RING BSD-1600220029.A5 1600220029	£2.94	£3.53
104 - STOP DISC BSD-1610190027.A24 1610190027	£5.87	£7.04
110 - SEAL RING BSD-1610190073.A3 1610190073	£1.84	£2.21
111 - BUSHING BSD-1610290046.A13 1610290046	£2.80	£3.36
112 - HEX NUT BSD-1613300007.A8 1613300007	£1.84	£2.21
113 - TAPPING SCREW B 4.8x68 MM BSD-1613412001.A108 1613412001	£1.75	£2.10
115 - BUSHING BSD-1610300086.A5 1610300086	£5.87	£7.04
116 - NEEDLE-ROLLER ASSEMBLY BSD-1610913029.A10 1610913029	£4.48	£5.37
117 - NEEDLE-ROLLER ASSEMBLY BSD-1610913023.A14 1610913023	£18.96	£22.75
119 - NEEDLE-ROLLER BEARING BSD-1610910081.A6 1610910081	£15.65	£18.78
120 - SPACER TUBE BSD-1610190080.A5 1610190080	£12.64	£15.17
122 - SPACER RING BSD-1610290128.A11 1610290128	£7.36	£8.83
125 - TORX OVAL-HEAD SCREW BSD-1613435040.A16 1613435040	£2.27	£2.72
126 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1016 2603490023	£1.84	£2.21
127 - BUSHING BSD-1610300079.A2 1610300079	£4.48	£5.37
129 - BUSHING BSD-1610300080.A6 1610300080	£4.26	£5.11
138 - SEALING FRAME BSD-1611015064.A14 1611015064	£6.52	£7.83
142 - ROTARY SHAFT LIP SEAL BSD-1610290112.A3 1610290112	£4.48	£5.37
143 - RETAINING RING BSD-1614601072.A13 1614601072	£2.74	£3.29
144 - SUPPORTING DISC BSD-1610103025.A5 1610103025	£3.91	£4.69
151 - O-RING BSD-1610210222.A11 1610210222	£1.84	£2.21
152 - RETAINING RING BSD-1614601073.A3 1614601073	£1.75	£2.10
153 - RETAINING RING DIN 7993 A 30 BSD-2916540017.A14 2916540017	£2.27	£2.72
154 - SPRING RETAINING RING DIN 472 62x2 MM BSD-2916660027.A14 2916660027	£4.26	£5.11
155 - RETAINING RING BSD-1614601074.A13 1614601074	£1.84	£2.21
157 - O-RING 33.0x2.0 MM BSD-1610210103.A46 1610210103	£2.74	£3.29
158 - O-RING BSD-1610210224.A5 1610210224	£1.84	£2.21
160 - O-RING BSD-1610210246.A14 1610210246	£1.84	£2.21
161 - DAMPING RING BSD-1610210227.A11 1610210227	£9.11	£10.93
162 - O-RING BSD-1600210080.A13 1600210080	£2.74	£3.29
165 - SEAL RING BSD-1610290125.A5 1610290125	£11.30	£13.56
166 - CYLINDRICAL ROLLER BSD-1613200020.A4 1613200020	£2.94	£3.53
167 - ROTARY SHAFT LIP SEAL BSD-161029012A.A11 161029012A	£4.26	£5.11
168 - PACKING WASHER BSD-1610206027.A5 1610206027	£2.74	£3.29
171 - TORX SOCKET BUTTON SCREW BSD-1613414026.A19 1613414026	£2.74	£3.29
172 - TORX OVAL-HEAD SCREW BSD-1613435041.A13 1613435041	£1.75	£2.10
175 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A357 2603490021	£1.84	£2.21
189 - HANDLE BSD-1615133038.A11 1615133038	£15.65	£18.78
190 - HANDLE COVER BSD-1615500438.A4 1615500438	£17.22	£20.67
192 - ROCKER FOOT BSD-1614611028.A20 1614611028	£5.87	£7.04
194 - SCREW PLATE BSD-1610099018.A4 1610099018	£2.27	£2.72
195 - SCREW PLATE BSD-1610099019.A8 1610099019	£2.27	£2.72
196 - DAMPING RUBBER BSD-1610026004.A0 1610026004	£1.84	£2.21
197 - LEAF SPRING BSD-1616232000.A8 1616232000	£11.87	£14.24
204 - REAR HOUSING SECTION BSD-1615102162.A3 1615102162	£21.52	£25.83
206 - HOLDING STRIP BSD-1612386006.A4 1612386006	£1.75	£2.10
240 - COUNTERWEIGHT BSD-1600A000K3.A1 1600A000K3	£10.10	£12.12
241 - GUIDE PIECE BSD-1615190181.A1 1615190181	£2.61	£3.13
242 - GUIDE PIECE BSD-1615190182.A3 1615190182	£2.74	£3.29
243 - COMPRESSION SPRING BSD-1614621013.A4 1614621013	£2.74	£3.29
661 - GREASE TUBE 30 ML BSD-1615430010.A248 1615430010	£6.85	£8.22
691 - CARRYING CASE BSD-161543851A.A12 161543851A	£47.95	£57.54
800 - SHIM 0.2 MM BSD-1600A0037C.A5 1600A0037C	-
801 - SHIM 0.45 MM BSD-1610102096.A3 1610102096	£1.84	£2.21
802 - SHIM 0.30 MM BSD-1610102095.A5 1610102095	£1.84	£2.21
803 - ARMATURE 230V BSD-1614010267.A3 1614010267	£188.33	£226.00
808 - NAMEPLATE BSD-160111A3H5.A407 160111A3H5	£2.74	£3.29
810 - CARBON-BRUSH SET BSD-1617014145.A1 1617014145	£19.91	£23.89
820 - TOOLHOLDER BSD-1618597102.A7 1618597102	£120.11	£144.13
821 - PLAIN BEARING BSD-1610508058.A3 1610508058	£27.23	£32.68
840 - IMPACT MECHANISM HOUSING BSD-1617000A29.A7 1617000A29	£188.33	£226.00
841 - STRIKER PIN BSD-1617000A4R.A7 1617000A4R	£54.42	£65.30
849 - CONTROL FORK BSD-1617000A31.A1 1617000A31	£7.36	£8.83
853 - GUIDE BUSHING BSD-1610231004.A7 1610231004	£28.59	£34.31
856 - HAMMER PISTON BSD-1617000A32.A15 1617000A32	£48.38	£58.06
857 - STRIKER BSD-1617000A33.A1 1617000A33	£27.23	£32.68
860 - SPUR WHEEL CLUTCH BSD-1607000C3S.A0 1607000C3S	£180.14	£216.17
863 - O-RING BSD-1610210229.A1 1610210229	£2.16	£2.59
872 - ECCENTRIC BSD-1617000A35.A15 1617000A35	£108.30	£129.96
873 - HOUSING COVER BSD-1617000A36.A1 1617000A36	£50.80	£60.96
884 - AUXILIARY HANDLE BSD-1612025004.A5 1612025004	£45.67	£54.80
887 - CLAMPING BAND dia87 MM BSD-1617000807.A15 1617000807	£18.96	£22.75
891 - ROCKER ARM BSD-1612099005.A3 1612099005	£11.87	£14.24
895 - DIAPHRAGM BSD-1613120024.A7 1613120024	£33.22	£39.87
897 - BELLOWS BSD-1610415005.A0 1610415005	£10.61	£12.73
898 - BELLOWS BSD-1610415004.A12 1610415004	£10.10	£12.12
899 - SERVICE PACKAGE BSD-1600A004E6.A3 1600A004E6	£59.53	£71.44
