Bosch GBH 4-32 DFR / 3611C32100 / EU 230 Volt Spare Parts

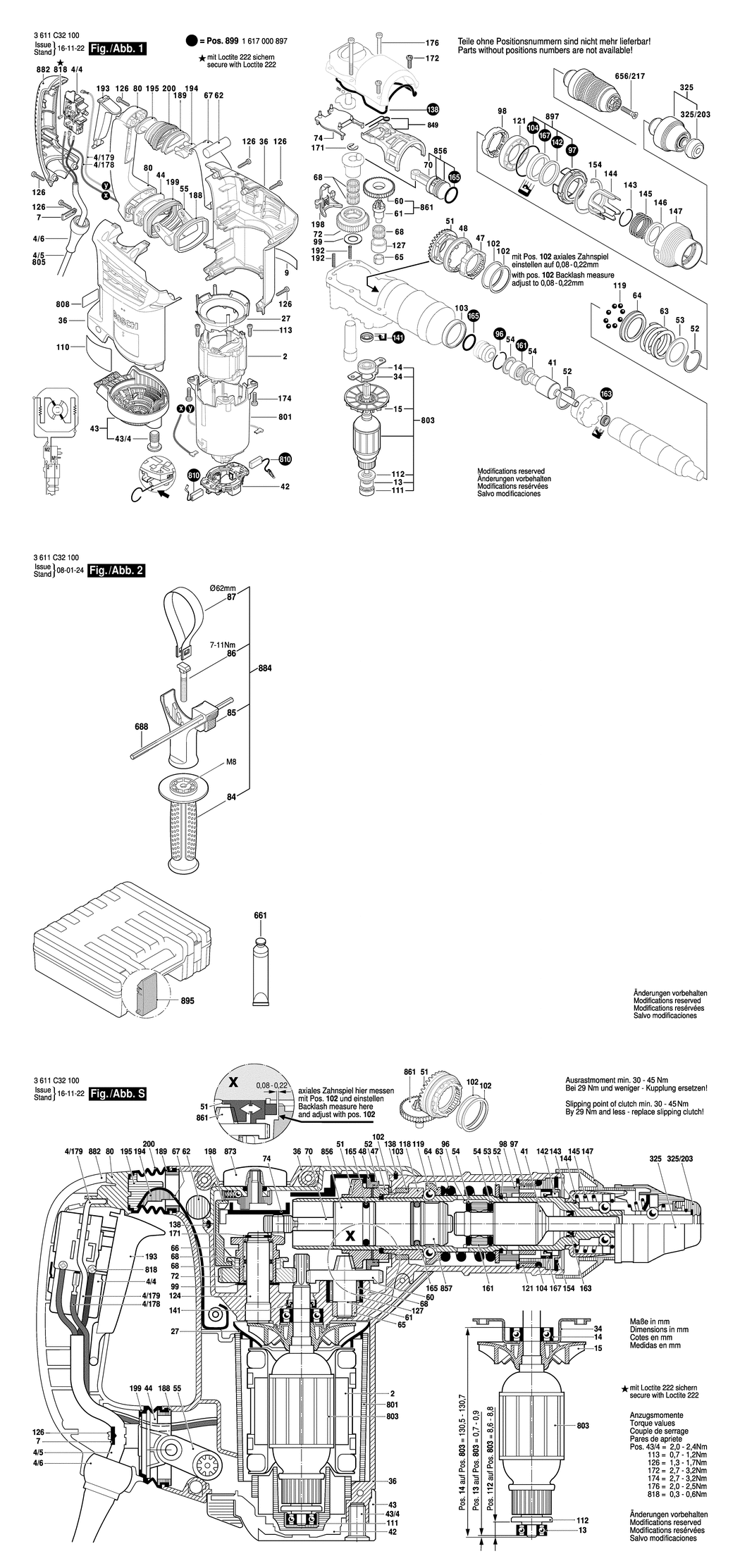

An exploded drawing and listing for the Bosch GBH 4-32 DFR / 3611C32100 / EU 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 230V BSD-1619P08340.A0 1619P08340	£31.64	£37.97
4/4 - SWITCH BSD-1617200127.A0 1617200127	£27.23	£32.68
4/6 - GROMMET dia7.3-dia8.6x66 MM BSD-1600703034.A140 1600703034	£2.61	£3.13
4/178 - CONNECTING CABLE BSD-1614412055.A0 1614412055	£2.80	£3.36
4/179 - CONNECTING CABLE BSD-1614412056.A11 1614412056	£2.80	£3.36
7 - FASTENING CLAMP BSD-1601302017.A831 1601302017	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-160111C1CA.A0 160111C1CA	£2.61	£3.13
13 - BALL BEARING 7x19x6 BSD-2600905032.A712 2600905032	£5.30	£6.36
14 - GROOVE BALL BEARING 10x26x8 BSD-1610905036.A0 1610905036	£7.36	£8.83
15 - FAN BSD-1616610100.A0 1616610100	£3.72	£4.47
27 - AIR-DEFLECTOR RING BSD-1610591043.A0 1610591043	£3.72	£4.47
34 - FIXING PLATE BSD-1611322004.A0 1611322004	£2.80	£3.36
36 - HOUSING SECTION BSD-1615104049.A0 1615104049	£27.23	£32.68
41 - STRIKER PIN BSD-1613124088.A11 1613124088	£27.23	£32.68
42 - BRUSH HOLDER BSD-1614336072.A11 1614336072	£27.23	£32.68
43 - FAN COVER BSD-1615500384.A8 1615500384	£10.10	£12.12
43/4 - CLAMP SCREW BSD-1613490007.A23 1613490007	£2.80	£3.36
44 - ROCKER FOOT BSD-1614611025.A0 1614611025	£2.80	£3.36
47 - GEAR SLEEVE BSD-1616328049.A0 1616328049	£13.12	£15.75
48 - CLUTCH SLEEVE BSD-1610290085.A0 1610290085	£21.52	£25.83
51 - CROWN GEAR BSD-1616333044.A11 1616333044	£27.31	£32.77
52 - SPRING RETAINING RING BSD-1614601061.A11 1614601061	£2.61	£3.13
53 - SUPPORTING DISC BSD-1610102634.A11 1610102634	£2.61	£3.13
54 - STOP DISC BSD-1610101020.A0 1610101020	£4.26	£5.11
55 - ROCKER ARM BSD-1612099001.A0 1612099001	£2.61	£3.13
60 - CYLINDRICAL GEAR BSD-1616317076.A11 1616317076	£13.12	£15.75
61 - PINION BSD-1616333046.A0 1616333046	£21.68	£26.01
62 - DAMPING RUBBER BSD-1610026002.A0 1610026002	£2.61	£3.13
63 - COMPRESSION SPRING BSD-1614611026.A11 1614611026	£6.52	£7.83
64 - CLUTCH RING BSD-1616409024.A0 1616409024	£16.41	£19.69
65 - PLAIN BEARING BSD-1610301007.A0 1610301007	£5.30	£6.36
67 - LEAF SPRING BSD-1616232006.A0 1616232006	£2.16	£2.59
68 - NEEDLE-ROLLER ASSEMBLY BSD-1610913021.A0 1610913021	£2.61	£3.13
70 - CONNECTING ROD BSD-1612001041.A0 1612001041	£14.91	£17.89
72 - ECCENTRIC COG WHEEL BSD-1616317077.A0 1616317077	£31.64	£37.97
74 - SUPPORT PLATE BSD-1614336075.A0 1614336075	£1.75	£2.10
80 - HANDLE BSD-1615133033.A33 1615133033	£11.30	£13.56
84 - AUXILIARY HANDLE BSD-160202507H.A336 160202507H	£11.30	£13.56
85 - SUPPORT CLAMP BSD-1618040087.A0 1618040087	£7.36	£8.83
86 - T-HEAD BOLT M8x40 MM BSD-1613490002.A52 1613490002	£4.26	£5.11
87 - CLAMPING BAND dia62 MM BSD-1611316019.A47 1611316019	£4.26	£5.11
96 - RETAINING RING BSD-1614601060.A0 1614601060	£1.75	£2.10
97 - SEALING SLEEVE BSD-1610314005.A11 1610314005	£2.61	£3.13
98 - SPACER SLEEVE BSD-1610211019.A0 1610211019	£2.61	£3.13
99 - SUPPORTING DISC 1.0 MM BSD-1610101626.A19 1610101626	£1.75	£2.10
102 - SHIM 0.8 MM BSD-1610102079.A0 1610102079	£2.16	£2.59
102 - SHIM 0.9 MM BSD-1610102080.A11 1610102080	£1.75	£2.10
102 - SHIM 1.0 MM BSD-1610102081.A0 1610102081	£2.16	£2.59
103 - PLAIN BEARING BSD-1610200027.A0 1610200027	£3.72	£4.47
104 - O-RING 46.0x3.5 MM BSD-1610210196.A0 1610210196	£1.75	£2.10
110 - REFERENCE PLATE BSD-1611110Y97.A0 1611110Y97	£2.61	£3.13
111 - INTERMEDIATE RING BSD-1600502023.A241 1600502023	£2.16	£2.59
112 - SEALING WASHER BSD-1610190038.A0 1610190038	£1.75	£2.10
113 - LENS HEAD SCREW BSD-1613435038.A37 1613435038	£1.75	£2.10
118 - CLUTCH SLEEVE BSD-1616455007.A11 1616455007	£33.74	£40.49
119 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A248 1903230013	£2.16	£2.59
121 - PLAIN BEARING BSD-1610200028.A11 1610200028	£7.36	£8.83
126 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1466 2603490023	£1.75	£2.10
127 - BUSHING BSD-1610422021.A0 1610422021	£5.30	£6.36
138 - SEALING FRAME BSD-1611015058.A0 1611015058	£5.58	£6.70
141 - ROTARY SHAFT LIP SEAL BSD-1600A0089A.A0 1600A0089A	£6.52	£7.83
142 - FELT WASHER BSD-1610205012.A11 1610205012	£1.75	£2.10
143 - RETAINING RING DIN 7993-28 BSD-2916540015.A0 2916540015	£1.75	£2.10
144 - COLLAR BSD-1610241001.A0 1610241001	£2.61	£3.13
145 - COMPRESSION SPRING BSD-1614611023.A11 1614611023	£1.75	£2.10
146 - BACKUP RING BSD-1610200029.A0 1610200029	£6.52	£7.83
147 - GUIDE SLEEVE BSD-1610390056.A0 1610390056	£2.61	£3.13
154 - SPRING RETAINING RING BSD-1614601062.A0 1614601062	£2.16	£2.59
161 - DAMPING RING BSD-1610290092.A11 1610290092	£4.26	£5.11
163 - SHAFT SEAL BSD-1600A009VC.A95 1600A009VC	£2.80	£3.36
165 - O-RING 21.0x3.5 MM BSD-1610210199.A11 1610210199	£2.16	£2.59
167 - ROTARY SHAFT LIP SEAL DIN 3760-A .dia32x42x7x6 MM BSD-1610283030.A0 1610283030	£10.82	£12.99
171 - LOCKING WASHER BSD-2916080911.A11 2916080911	£2.16	£2.59
172 - THREAD-FORMING TAP. SCREW BSD-1613490013.A0 1613490013	£1.75	£2.10
174 - THREAD-FORMING TAP. SCREW BSD-1613490014.A11 1613490014	£1.75	£2.10
176 - SOCKET HEAD CAP SCREW BSD-2912738178.A0 2912738178	£1.75	£2.10
188 - GRIP-SPRING TENSIONING E BSD-1610209008.A37 1610209008	£3.72	£4.47
189 - CLAMPING PIECE BSD-1610209009.A11 1610209009	£2.80	£3.36
192 - COMPRESSION SPRING BSD-1614611016.A22 1614611016	£1.75	£2.10
193 - SWITCH-PAWL BSD-1612026126.A8 1612026126	£2.61	£3.13
194 - SCREW PLATE BSD-1610099008.A0 1610099008	£2.16	£2.59
195 - CLAMPING PIECE BSD-1610099009.A11 1610099009	£2.61	£3.13
198 - SWITCH SLIDE BSD-1612099000.A11 1612099000	£3.72	£4.47
199 - BELLOWS BSD-1610284002.A10 1610284002	£5.58	£6.70
200 - BELLOWS BSD-1610284001.A0 1610284001	£5.58	£6.70
325 - TOOL HOLDING FIXTURE BSD-1617000895.A44 1617000895	£46.82	£56.18
325/203 - PROTECTIVE CAP BSD-1610508047.A205 1610508047	£2.29	£2.75
656/217 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A210 2603421229	£1.75	£2.10
661 - GREASE TUBE 30 ML BSD-1615430010.A198 1615430010	£6.52	£7.83
688 - DEPTH-GAUGE SW 6x330 MM BSD-1613001008.A53 1613001008	£8.67	£10.41
801 - MOTOR HOUSING BSD-1615108150.A11 1615108150	£18.96	£22.75
803 - ARMATURE WITH FAN 230V BSD-1614010252.A0 1614010252	£80.61	£96.73
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1614460026.A129 1614460026	£18.96	£22.75
808 - NAMEPLATE BSD-160111A3H5.A298 160111A3H5	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1614321079.A0 1614321079	£16.41	£19.69
818 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A710 2603410001	£1.75	£2.10
849 - CONTROL FORK BSD-1611329030.A11 1611329030	£10.10	£12.12
856 - HAMMER PISTON BSD-1618700093.A0 1618700093	£14.91	£17.89
861 - PINION BSD-1616333048.A11 1616333048	£24.45	£29.34
882 - HANDLE COVER BSD-16170006AE.A9 16170006AE	£12.04	£14.45
884 - AUXILIARY HANDLE BSD-1612025079.A0 1612025079	£16.41	£19.69
895 - LOCK BSD-1615438426.A27 1615438426	£5.87	£7.04
897 - SEALING SLEEVE BSD-1610314006.A9 1610314006	£13.12	£15.75
899 - WEAR AND TEAR PART SET BSD-1617000897.A11 1617000897	£33.74	£40.49
