Bosch GBH 3-28 DRE / 3611B3A0K1 / --- 230 Volt Spare Parts

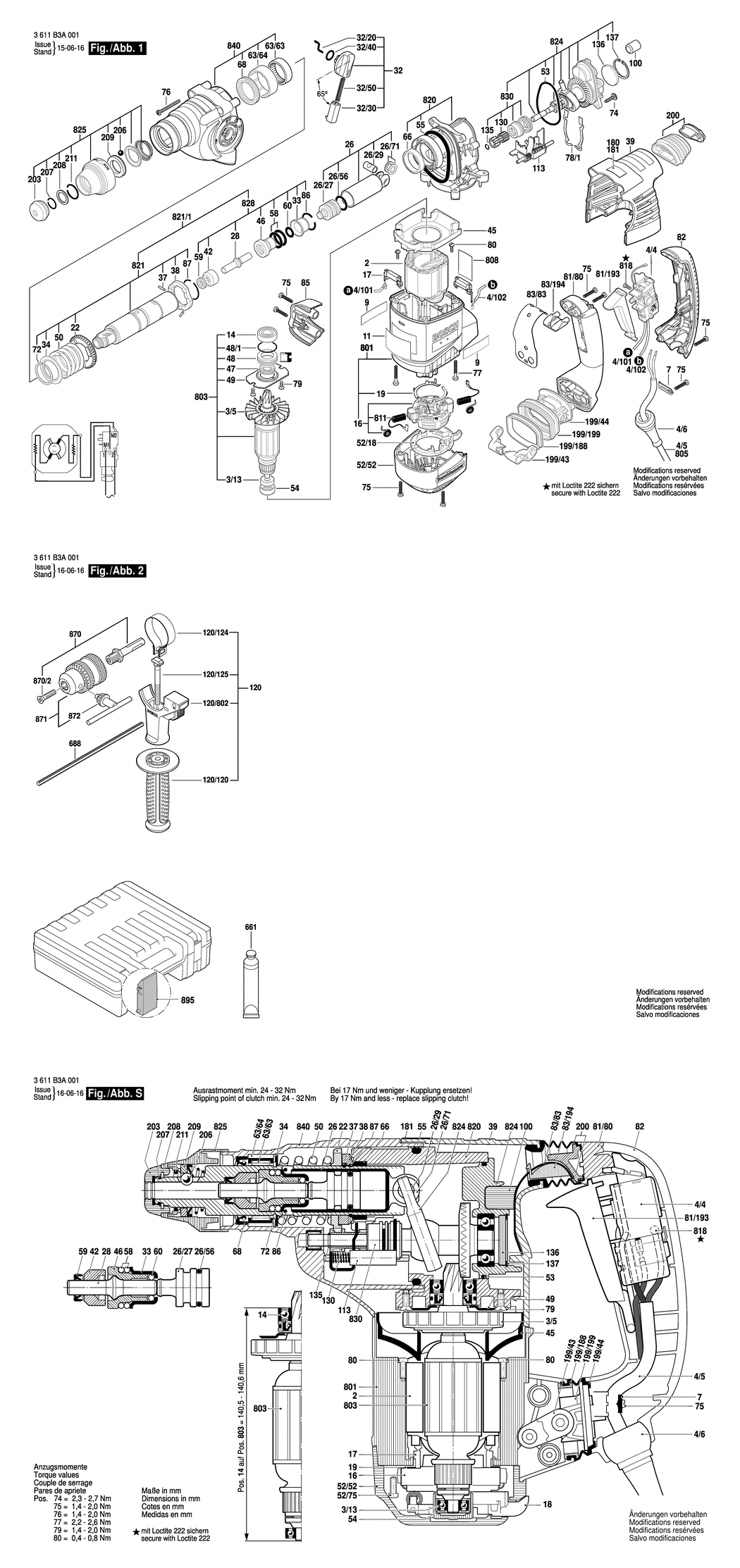

An exploded drawing and listing for the Bosch GBH 3-28 DRE / 3611B3A0K1 / --- 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 230V BSD-1614220117.A24 1614220117	£16.41	£19.69
3/5 - FAN BSD-1616610104.A23 1616610104	£8.67	£10.41
3/13 - GROOVE BALL BEARING 7x19x6 BSD-1610905032.A34 1610905032	£5.30	£6.36
4/4 - SWITCH BSD-1617200127.A30 1617200127	£27.23	£32.68
4/6 - GROMMET dia7.3-dia8.6x66 MM BSD-1600703034.A103 1600703034	£2.61	£3.13
4/101 - CONNECTING CABLE BSD-1614490015.A25 1614490015	£2.80	£3.36
4/102 - CONNECTING CABLE BSD-1614490016.A11 1614490016	£2.80	£3.36
7 - FASTENING CLAMP BSD-1601302017.A813 1601302017	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-160111C0UT.A11 160111C0UT	£2.61	£3.13
11 - REFERENCE PLATE BSD-1611110Z43.A13 1611110Z43	£2.61	£3.13
14 - GROOVE BALL BEARING BSD-1610905044.A29 1610905044	£8.67	£10.41
16 - BRUSH PLATE BSD-1614336064.A32 1614336064	£21.52	£25.83
17 - ADAPTER MODULE BSD-1600A0032J.A25 1600A0032J	£1.75	£2.10
19 - SWITCH CONTACT BSD-1611329024.A117 1611329024	£1.75	£2.10
22 - CYLINDRICAL GEAR BSD-1616312004.A37 1616312004	£12.04	£14.45
26 - HAMMER PISTON BSD-16170006A5.A11 16170006A5	£41.62	£49.95
26/27 - STRIKER BSD-1610311019.A28 1610311019	£21.52	£25.83
26/29 - PISTON PIN BSD-1613105020.A21 1613105020	£5.30	£6.36
26/56 - O-RING 17.0x3.0 MM BSD-1610210121.A80 1610210121	£2.61	£3.13
26/71 - GUIDE DISC BSD-1610100016.A84 1610100016	£1.75	£2.10
28 - STRIKER PIN BSD-1613124098.A5 1613124098	£21.52	£25.83
32 - CLAMP HANDLE BSD-1612026151.A20 1612026151	£14.91	£17.89
32/20 - DRIVER PIN BSD-1614690009.A14 1614690009	£3.72	£4.47
32/30 - SWITCH BUTTON BSD-1612026035.A269 1612026035	£1.75	£2.10
32/40 - O-RING 10.5x2.7 MM BSD-1610210046.A333 1610210046	£2.16	£2.59
32/50 - COMPRESSION SPRING BSD-1614611006.A113 1614611006	£3.72	£4.47
33 - HOLDING JACKET BSD-1610590020.A72 1610590020	£6.52	£7.83
34 - SUPPORTING DISC BSD-1610190067.A100 1610190067	£2.16	£2.59
37 - STRAIGHT PIN DIN6325-2.5x12-RIKO BSD-1613100019.A144 1613100019	£1.75	£2.10
38 - CATCH DISK BSD-1600A008AG.A59 1600A008AG	£3.72	£4.47
39 - GEAR COVER BSD-1615808102.A19 1615808102	£13.12	£15.75
42 - THRUST RING BSD-1610102084.A29 1610102084	£8.67	£10.41
45 - AIR-DEFLECTOR RING BSD-1610591046.A14 1610591046	£1.75	£2.10
46 - GUIDE BUSHING BSD-1610390068.A23 1610390068	£16.41	£19.69
47 - ROTARY SHAFT LIP SEAL BSD-1610283047.A8 1610283047	£12.04	£14.45
48 - BEARING RING BSD-1610290102.A32 1610290102	£6.52	£7.83
48/1 - O-RING 24.0x2.0 MM BSD-1610210208.A20 1610210208	£1.75	£2.10
49 - END SHIELD BSD-1615700044.A146 1615700044	£2.16	£2.59
50 - COMPRESSION SPRING BSD-1614615008.A62 1614615008	£5.58	£6.70
52/18 - CLUTCH SLEEVE BSD-1610290098.A26 1610290098	£4.26	£5.11
52/52 - COVER BSD-1615108154.A18 1615108154	£10.10	£12.12
53 - O-RING BSD-1610210245.A23 1610210245	£2.80	£3.36
54 - INTERMEDIATE RING BSD-1600502023.A111 1600502023	£2.16	£2.59
55 - SEAL RING 63.0x5.0 MM BSD-1610210206.A28 1610210206	£5.58	£6.70
58 - O-RING 18.0x3.5 MM BSD-1610210105.A189 1610210105	£4.26	£5.11
59 - SHAFT SEAL BSD-1600A009VC.A61 1600A009VC	£2.80	£3.36
60 - O-RING 9.5x3.5 MM BSD-1610210209.A68 1610210209	£1.75	£2.10
63/63 - NEEDLE BEARING dia30xdia37x12 MM BSD-1610910063.A181 1610910063	£5.58	£6.70
63/64 - BUSHING BSD-1610390069.A61 1610390069	£2.16	£2.59
66 - PLAIN BEARING BSD-1610202021.A31 1610202021	£2.61	£3.13
68 - ROTARY SHAFT LIP SEAL BSD-1610283036.A130 1610283036	£7.36	£8.83
72 - RETAINING RING BSD-1604601027.A62 1604601027	£1.75	£2.10
74 - TORX OVAL-HEAD SCREW BSD-160343000V.A34 160343000V	£1.75	£2.10
75 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A979 2603490023	£1.75	£2.10
76 - TORX OVAL-HEAD SCREW 4x40 BSD-2603490027.A147 2603490027	£1.75	£2.10
77 - THREAD-FORMING TAP. SCREW M4x30 DIN7500-1 T-20 BSD-1613490017.A17 1613490017	£2.61	£3.13
78/1 - SHIM 0.3 MM BSD-1600A003TA.A11 1600A003TA	£1.75	£2.10
78/1 - SHIM 0.15 MM BSD-1600A004FU.A23 1600A004FU	£1.75	£2.10
78/1 - SHIM 0.45 MM BSD-1600A004FV.A11 1600A004FV	£1.75	£2.10
79 - THREAD-FORMING TAP. SCREW BSD-1613435023.A44 1613435023	£1.75	£2.10
80 - LENS HEAD SCREW BSD-1613435038.A2 1613435038	£1.75	£2.10
81/80 - HANDLE BSD-1615133033.A25 1615133033	£11.30	£13.56
81/193 - SWITCH-PAWL BSD-1612026126.A36 1612026126	£2.61	£3.13
82 - HANDLE COVER BSD-16170006AE.A20 16170006AE	£12.04	£14.45
83/83 - LEAF SPRING BSD-1614690008.A22 1614690008	£5.30	£6.36
83/194 - SCREW PLATE BSD-1610099013.A15 1610099013	£2.16	£2.59
85 - COVER BSD-1615500404.A19 1615500404	£2.80	£3.36
86 - RETAINING RING BSD-1614601034.A104 1614601034	£2.16	£2.59
87 - RETAINING RING A22 DIN 7993 BSD-1604601028.A235 1604601028	£1.75	£2.10
100 - DAMPING RUBBER BSD-1610026003.A21 1610026003	£1.75	£2.10
113 - SWITCHING PANEL BSD-1616325002.A21 1616325002	£12.04	£14.45
120 - AUXILIARY HANDLE BSD-160202508Y.A23 160202508Y	£21.68	£26.01
120/120 - AUXILIARY HANDLE BSD-160202507H.A487 160202507H	£11.30	£13.56
120/124 - CLAMPING BAND dia50 MM BSD-1611316021.A146 1611316021	£2.80	£3.36
120/125 - T-HEAD BOLT M8x80 MM BSD-1613490001.A78 1613490001	£8.67	£10.41
120/802 - SUPPORT CLAMP BSD-1617000685.A18 1617000685	£5.30	£6.36
130 - GEAR SLEEVE BSD-1616333049.A38 1616333049	£18.96	£22.75
135 - RETAINING RING BSD-1614601067.A22 1614601067	£1.75	£2.10
136 - FELT DISC BSD-1610205017.A4 1610205017	£1.75	£2.10
137 - SPRING RETAINING RING 30x1.2MM. DIN 472 BSD-2916660012.A98 2916660012	£1.75	£2.10
180 - WARNING PLATE BSD-1611110W08.A8 1611110W08	£2.33	£2.80
199/43 - ROCKER ARM BSD-1612099002.A30 1612099002	£2.61	£3.13
199/44 - ROCKER FOOT BSD-1614611025.A34 1614611025	£2.80	£3.36
199/188 - GRIP-SPRING TENSIONING E BSD-1610209008.A29 1610209008	£3.72	£4.47
199/199 - BELLOWS BSD-1610284002.A38 1610284002	£5.58	£6.70
200 - BELLOWS BSD-1610284007.A21 1610284007	£5.58	£6.70
203 - PROTECTIVE CAP BSD-1610508047.A172 1610508047	£2.29	£2.75
206 - BALL dia7.3 MM BSD-1613230003.A30 1613230003	£1.75	£2.10
207 - RETAINING RING BSD-1614601027.A56 1614601027	£1.75	£2.10
208 - RETAINING WASHER BSD-1610101629.A104 1610101629	£1.75	£2.10
209 - FRICTION WASHER BSD-1610102089.A11 1610102089	£2.80	£3.36
211 - RETAINING RING DIN 7993-A22 BSD-2916540012.A74 2916540012	-
661 - GREASE TUBE 30 ML BSD-1615430010.A287 1615430010	£6.52	£7.83
688 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A605 1613001009	£3.72	£4.47
801 - MOTOR HOUSING BSD-1617000689.A14 1617000689	£48.38	£58.06
803 - ARMATURE 230V BSD-16170006AT.A1 16170006AT	£93.88	£112.65
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000392.A142 1607000392	£21.52	£25.83
808 - NAMEPLATE BSD-160111A3H5.A463 160111A3H5	£2.61	£3.13
811 - CARBON-BRUSH SET BSD-1617000525.A186 1617000525	£11.30	£13.56
818 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A82 2603410001	£1.75	£2.10
820 - INTERMEDIATE FLANGE BSD-1617000A5J.A34 1617000A5J	£31.64	£37.97
821 - TOOL HOLDING FIXTURE BSD-1617000692.A1 1617000692	£72.18	£86.62
821/1 - TOOL HOLDING FIXTURE BSD-1617000693.A14 1617000693	£93.88	£112.65
824 - JACK SHAFT BSD-1617000A5K.A0 1617000A5K	£59.53	£71.44
825 - TOOL HOLDING FIXTURE BSD-1617000695.A1 1617000695	£16.41	£19.69
828 - STRIKER PIN BSD-1617000697.A14 1617000697	£48.38	£58.06
830 - GEAR SLEEVE BSD-1617000698.A10 1617000698	£31.64	£37.97
840 - IMPACT MECHANISM HOUSING BSD-1617000699.A31 1617000699	£54.42	£65.30
870 - DRILL CHUCK SHANK 1/2. SDS-Plus BSD-1613523011.A30 1613523011	-
870/2 - COUNTERSUNK-HEAD SCREW M6x27-Kdia11 BSD-2603421207.A54 2603421207	£1.75	£2.10
871 - CHUCK dia1.5-13 MM. 1/2 BSD-1608571069.A123 1608571069	£23.86	£28.63
872 - CHUCK WRENCH SG2 BSD-2607950007.A1689 2607950007	£6.52	£7.83
895 - LOCK BSD-1615438426.A55 1615438426	£5.87	£7.04
