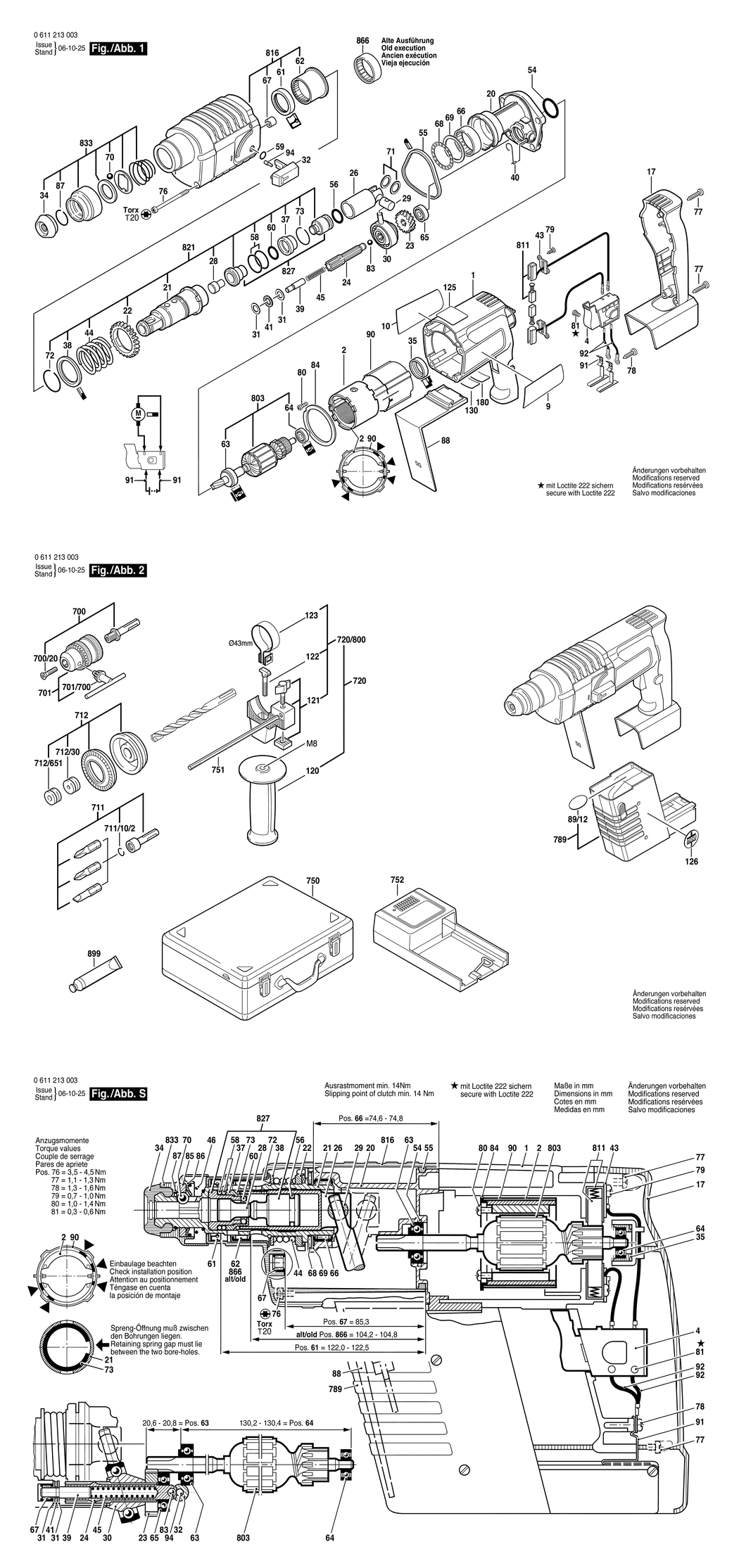

1 - MOTOR HOUSING
BSD-1615108046.A12
1615108046
|
-
|
|
|
|
2 - POLE HOUSING 24V
BSD-1615100007.A3
1615100007
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200134.A5
2607200134
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1611110255.A3
1611110255
|
-
|
|
|
|
10 - MANUFACTURER'S NAMEPLATE
BSD-1611110730.A5
1611110730
|
£5.01
|
£6.01
|
|
|
17 - HOUSING COVER
BSD-1615132041.A14
1615132041
|
-
|
|
|
|
20 - INTERMEDIATE FLANGE
BSD-1615700037.A47
1615700037
|
£40.80
|
£48.96
|
|
|
21 - RATCHET SLEEVE SDS-PLUS
BSD-1616490058.A90
1616490058
|
£218.41
|
£262.09
|
|
|
22 - CYLINDRICAL GEAR Z=46
BSD-1616320007.A82
1616320007
|
£7.36
|
£8.83
|
|
|
23 - CYLINDRICAL GEAR Z=6/21
BSD-1616320002.A95
1616320002
|
£24.45
|
£29.34
|
|
|
24 - TOOTHED SHAFT Z=6/10
BSD-1613060010.A50
1613060010
|
£54.42
|
£65.30
|
|
|
26 - HAMMER PISTON
BSD-1618700052.A33
1618700052
|
£13.12
|
£15.75
|
|
|
28 - STRIKER PIN
BSD-1613124026.A13
1613124026
|
£2.80
|
£3.36
|
|
|
29 - PISTON PIN
BSD-1613105012.A122
1613105012
|
£3.72
|
£4.47
|
|
|
30 - DRIVE BEARING
BSD-1615819005.A85
1615819005
|
£31.64
|
£37.97
|
|
|
31 - SUPPORT DISC 0.8 MM
BSD-1610100003.A118
1610100003
|
£1.75
|
£2.10
|
|
|
32 - CLAMP HANDLE
BSD-1612026023.A96
1612026023
|
£2.61
|
£3.13
|
|
|
34 - PROTECTIVE CAP L=17 MM. SDS-PLUS
BSD-1610508008.A89
1610508008
|
£2.16
|
£2.59
|
|
|
35 - RUBBER RING
BSD-1610206021.A21
1610206021
|
£1.75
|
£2.10
|
|
|
37 - DAMPING BUSHING
BSD-1610390011.A53
1610390011
|
£3.72
|
£4.47
|
|
|
38 - SUPPORTING DISC
BSD-1610102022.A46
1610102022
|
£2.16
|
£2.59
|
|
|
39 - STRAIGHT PIN
BSD-1613100013.A77
1613100013
|
£2.16
|
£2.59
|
|
|
40 - HOLDING SPRING
BSD-1614690001.A99
1614690001
|
£1.75
|
£2.10
|
|
|
41 - ROLLER-CAGE ASSEMBLY
BSD-1610920003.A131
1610920003
|
£4.26
|
£5.11
|
|
|
43 - BRUSH PLATE
BSD-2601015047.A61
2601015047
|
-
|
|
|
|
44 - COMPRESSION SPRING
BSD-1614633001.A65
1614633001
|
£2.52
|
£3.02
|
|
|
45 - COMPRESSION SPRING
BSD-1614614001.A98
1614614001
|
£1.75
|
£2.10
|
|
|
54 - O-RING 24.0x2.5 MM
BSD-1610210068.A18
1610210068
|
£1.75
|
£2.10
|
|
|
55 - SEAL RING
BSD-1610206023.A151
1610206023
|
£2.80
|
£3.36
|
|
|
56 - O-RING 14.0x3.0 MM
BSD-1610210070.A18
1610210070
|
£2.61
|
£3.13
|
|
|
58 - O-RING 18.0x3.0 MM
BSD-1610210058.A119
1610210058
|
£2.61
|
£3.13
|
|
|
59 - O-RING 6.0x2.5 MM
BSD-1610210069.A155
1610210069
|
£1.75
|
£2.10
|
|
|
60 - O-RING 10.0x3.5 MM
BSD-1610210073.A130
1610210073
|
£2.16
|
£2.59
|
|
|
61 - ROTARY SHAFT LIP SEAL
BSD-1610283017.A85
1610283017
|
£7.36
|
£8.83
|
|
|
62 - PLAIN BEARING
BSD-1610202026.A136
1610202026
|
£5.30
|
£6.36
|
|
|
63 - GROOVE BALL BEARING
BSD-1610905012.A41
1610905012
|
-
|
|
|
|
64 - BALL BEARING 7x19x6
BSD-2600905032.A1757
2600905032
|
£5.30
|
£6.36
|
|
|
65 - GROOVE BALL BEARING 8x22x7
BSD-1900900228.A100
1900900228
|
£6.61
|
£7.93
|
|
|
66 - NEEDLE BEARING dia30xdia37x12 MM
BSD-1610910063.A54
1610910063
|
£5.58
|
£6.70
|
|
|
67 - NEEDLE BEARING
BSD-1610910064.A266
1610910064
|
£2.52
|
£3.02
|
|
|
68 - ROLLER-CAGE ASSEMBLY
BSD-1610920004.A40
1610920004
|
£3.80
|
£4.56
|
|
|
69 - SUPPORT DISC 1.0 MM
BSD-1610102618.A63
1610102618
|
-
|
|
|
|
70 - BALL DIN 5401-dia7MM-III-ST
BSD-1903230013.A440
1903230013
|
£2.16
|
£2.59
|
|
|
71 - SHIM WASHER 1.2 MM
BSD-1610101011.A112
1610101011
|
£1.75
|
£2.10
|
|
|
72 - RETAINING RING DIN 7993-A32
BSD-2916540018.A63
2916540018
|
£3.72
|
£4.47
|
|
|
73 - RETAINING RING DIN 9045-24
BSD-1614601009.A123
1614601009
|
£1.95
|
£2.34
|
|
|
76 - TAPPING SCREW ST-4.8x57.5-TORX.T20
BSD-1613435009.A72
1613435009
|
£1.75
|
£2.10
|
|
|
77 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A201
2910211021
|
£1.75
|
£2.10
|
|
|
78 - TAPPING SCREW DIN 7971-B3.9x9.5
BSD-2910211217.A5
2910211217
|
-
|
|
|
|
79 - TAPPING SCREW DIN 7971-B 2.9x13
BSD-2910211206.A66
2910211206
|
£1.32
|
£1.58
|
|
|
80 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F
BSD-2603435015.A376
2603435015
|
£2.16
|
£2.59
|
|
|
81 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2663
2603410001
|
£1.75
|
£2.10
|
|
|
83 - BALL 5 MM V DIN 5401
BSD-1903230309.A116
1903230309
|
£1.75
|
£2.10
|
|
|
84 - FASTENING FLANGE
BSD-1610120024.A2
1610120024
|
-
|
|
|
|
87 - RETAINING RING DIN 7993-A22
BSD-2916540012.A360
2916540012
|
-
|
|
|
|
88 - CONSOLE
BSD-1615719016.A39
1615719016
|
-
|
|
|
|
89/12 - STICKER
BSD-2601110999.A27
2601110999
|
£1.75
|
£2.10
|
|
|
90 - INSULATING SLEEVE
BSD-1610499010.A3
1610499010
|
-
|
|
|
|
91 - CONTACT SPRING
BSD-1611329006.A42
1611329006
|
-
|
|
|
|
92 - CONNECTING CABLE
BSD-1614435011.A22
1614435011
|
-
|
|
|
|
94 - DETENT PIN
BSD-1613120017.A134
1613120017
|
£1.75
|
£2.10
|
|
|
120 - AUXILIARY HANDLE M8
BSD-1612025019.A378
1612025019
|
£6.52
|
£7.83
|
|
|
121 - SUPPORT CLAMP dia43 MM
BSD-1618040048.A31
1618040048
|
£8.67
|
£10.41
|
|
|
122 - T-HEAD BOLT M8x40 MM
BSD-1613490002.A515
1613490002
|
£4.26
|
£5.11
|
|
|
123 - CLAMPING BAND dia43 MM
BSD-1611316006.A260
1611316006
|
£2.61
|
£3.13
|
|
|
125 - STICKER
BSD-2601110325.A4
2601110325
|
-
|
|
|
|
126 - STICKER
BSD-1611110274.A3
1611110274
|
-
|
|
|
|
700 - DRILL CHUCK SHANK
BSD-1617000132.A58
1617000132
|
£16.84
|
£20.21
|
|
|
700/20 - COUNTERSUNK-HEAD SCREW M6x27
BSD-2603421226.A222
2603421226
|
£1.75
|
£2.10
|
|
|
701 - CHUCK
BSD-1608571088.A84
1608571088
|
£27.23
|
£32.68
|
|
|
701/700 - CHUCK WRENCH SG2
BSD-2607950007.A477
2607950007
|
£6.52
|
£7.83
|
|
|
711 - PARTS SET
BSD-1617000133.A144
1617000133
|
-
|
|
|
|
711/10/2 - RETAINING RING
BSD-2604601004.A121
2604601004
|
£1.75
|
£2.10
|
|
|
712 - DUST TRAY
BSD-1615439003.A88
1615439003
|
-
|
|
|
|
712/30 - RUBBER BUSHING dia5-7 MM
BSD-1610312001.A50
1610312001
|
-
|
|
|
|
712/651 - RUBBER BUSHING dia8-10 MM
BSD-1610312002.A89
1610312002
|
-
|
|
|
|
720 - AUXILIARY HANDLE dia43 MM
BSD-2602025070.A45
2602025070
|
£14.91
|
£17.89
|
|
|
720/800 - PARTS SET
BSD-1617000925.A84
1617000925
|
£16.41
|
£19.69
|
|
|
750 - CARRYING CASE
BSD-1615438149.A19
1615438149
|
-
|
|
|
|
751 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001009.A330
1613001009
|
£3.72
|
£4.47
|
|
|
752 - BATTERY CHARGER EU 220V
BSD-1617224007.A8
1617224007
|
-
|
|
|
|
789 - CADMIUM-NICKEL BATTERY 24V. 1.4AH. NiCd
BSD-1617334003.A25
1617334003
|
-
|
|
|
|
803 - ARMATURE 24V
BSD-1614010114.A1
1614010114
|
-
|
|
|
|
811 - CARBON BRUSH
BSD-1617014116.A5
1617014116
|
-
|
|
|
|
816 - GEAR HOUSING
BSD-1615806077.A38
1615806077
|
£45.67
|
£54.80
|
|
|
821 - RATCHET SLEEVE
BSD-1617000931.A20
1617000931
|
£283.50
|
£340.20
|
|
|
827 - STRIKER
BSD-1617000338.A84
1617000338
|
£27.23
|
£32.68
|
|
|
833 - PROTECTION SLEEVE
BSD-1617000163.A95
1617000163
|
£7.36
|
£8.83
|
|
|
866 - NEEDLE BEARING dia30xdia37x12 MM
BSD-1610910063.A56
1610910063
|
£5.58
|
£6.70
|
|
|
899 - GREASE TUBE 225 ML
BSD-3605430009.A8
3605430009
|
£45.67
|
£54.80
|
|
