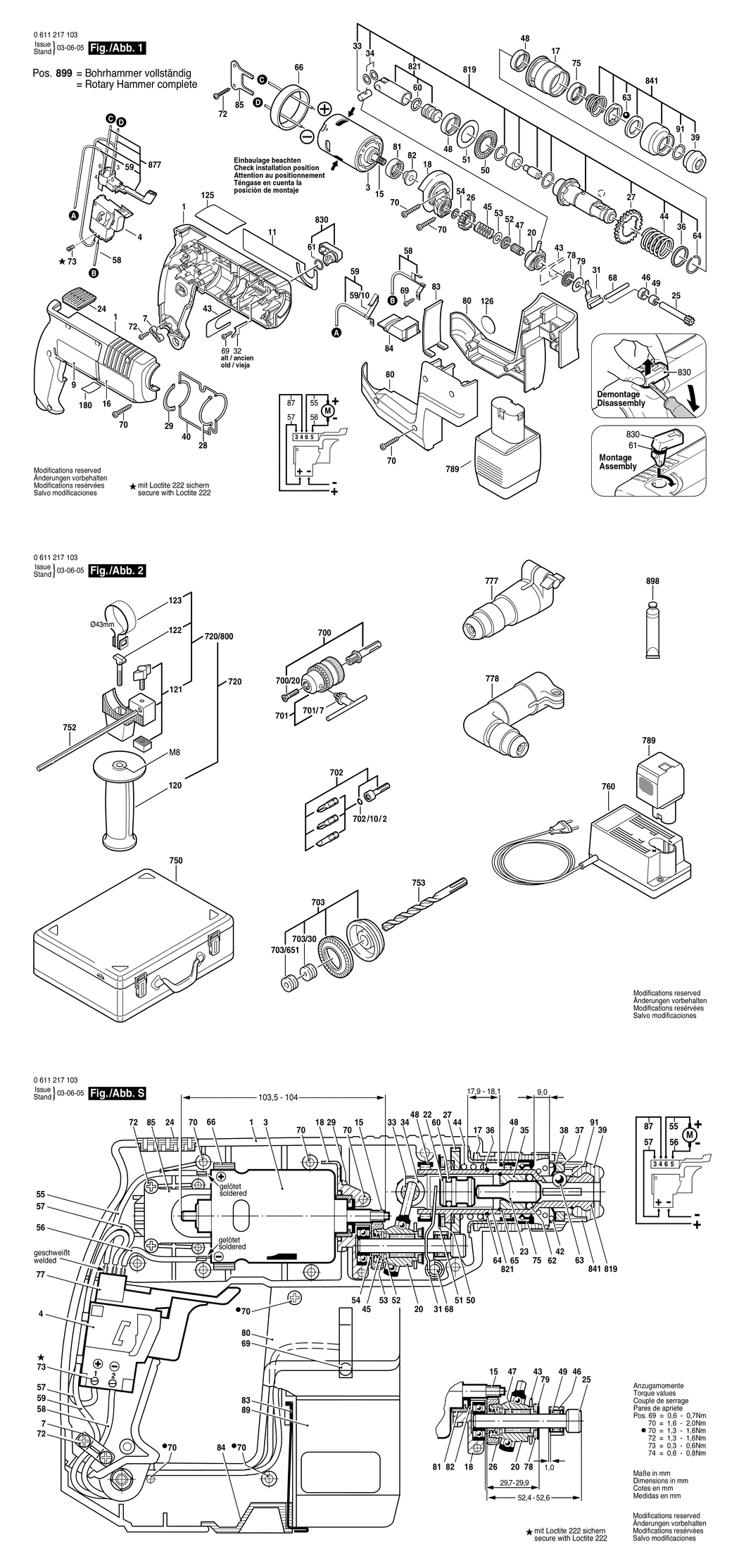

1 - HOUSING SECTION
BSD-1615104005.A2
1615104005
|
-
|
|
|
|
3 - DC MOTOR 230V
BSD-1617220011.A3
1617220011
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200268.A0
2607200268
|
-
|
|
|
|
7 - CABLE CLIP
BSD-1611035005.A126
1611035005
|
£2.16
|
£2.59
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1611110540.A4
1611110540
|
-
|
|
|
|
11 - MANUFACTURER'S NAMEPLATE
BSD-1611110541.A0
1611110541
|
-
|
|
|
|
15 - DRIVE PINION Z=8
BSD-1616333024.A1
1616333024
|
-
|
|
|
|
16 - REFERENCE PLATE
BSD-1611110537.A2
1611110537
|
-
|
|
|
|
17 - GUIDE SLEEVE
BSD-1615819013.A47
1615819013
|
£6.61
|
£7.93
|
|
|
18 - FLANGED BEARING
BSD-1615700027.A32
1615700027
|
-
|
|
|
|
20 - DRIVE BEARING
BSD-1615819012.A1
1615819012
|
-
|
|
|
|
24 - PROTECTIVE GRILLE
BSD-1612388019.A29
1612388019
|
-
|
|
|
|
25 - TOOTHED SHAFT Z=9
BSD-1613160008.A3
1613160008
|
-
|
|
|
|
26 - CYLINDRICAL GEAR Z=31
BSD-1616317600.A32
1616317600
|
£2.64
|
£3.17
|
|
|
27 - CYLINDRICAL GEAR Z=48
BSD-1616317034.A1
1616317034
|
-
|
|
|
|
28 - SEAL RING
BSD-1611015034.A45
1611015034
|
-
|
|
|
|
29 - SEAL RING
BSD-1611015035.A8
1611015035
|
-
|
|
|
|
31 - PRESSURE LEVER
BSD-1611329009.A0
1611329009
|
-
|
|
|
|
33 - PISTON PIN
BSD-1613103006.A40
1613103006
|
-
|
|
|
|
34 - SHIM WASHER 1.2 MM
BSD-1610100608.A27
1610100608
|
£1.84
|
£2.21
|
|
|
36 - SUPPORTING DISC
BSD-1610102024.A32
1610102024
|
-
|
|
|
|
39 - PROTECTIVE CAP L=17 MM. SDS-PLUS
BSD-1610508008.A141
1610508008
|
£2.16
|
£2.59
|
|
|
40 - SEALING FRAME
BSD-1611015033.A7
1611015033
|
-
|
|
|
|
43 - HOLDING PLATE
BSD-1611031005.A25
1611031005
|
-
|
|
|
|
44 - COMPRESSION SPRING
BSD-1614634002.A14
1614634002
|
-
|
|
|
|
45 - COMPRESSION SPRING
BSD-1614610005.A48
1614610005
|
-
|
|
|
|
46 - RETAINING SNAP RING
BSD-1610200014.A26
1610200014
|
-
|
|
|
|
47 - NEEDLE-ROLLER ASSEMBLY
BSD-1610913008.A1
1610913008
|
-
|
|
|
|
48 - NEEDLE BEARING
BSD-1610910071.A27
1610910071
|
£6.85
|
£8.22
|
|
|
49 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A129
2600917003
|
£2.94
|
£3.53
|
|
|
50 - ROLLER-CAGE ASSEMBLY
BSD-1610920002.A13
1610920002
|
£3.91
|
£4.69
|
|
|
51 - SUPPORT DISC 1.0 MM
BSD-1610102617.A17
1610102617
|
£2.27
|
£2.72
|
|
|
52 - THRUST NEEDLE RIM
BSD-1610920005.A45
1610920005
|
-
|
|
|
|
53 - SUPPORT DISC
BSD-1610100602.A25
1610100602
|
-
|
|
|
|
54 - SHIM 0.6 MM
BSD-1610100604.A28
1610100604
|
-
|
|
|
|
54 - SHIM 0.8 MM
BSD-1610100605.A31
1610100605
|
-
|
|
|
|
54 - SHIM 1.0 MM
BSD-1610100606.A28
1610100606
|
-
|
|
|
|
54 - SHIM 1.2 MM
BSD-1610100607.A25
1610100607
|
-
|
|
|
|
58 - CONTACT SPRING 2.5 MM
BSD-1614449007.A6
1614449007
|
-
|
|
|
|
59 - CONTACT SPRING
BSD-1614449008.A1
1614449008
|
-
|
|
|
|
59/10 - CONTACT SPRING
BSD-1611290002.A13
1611290002
|
-
|
|
|
|
60 - O-RING 13.0x2.5 MM
BSD-1610210086.A48
1610210086
|
-
|
|
|
|
61 - O-RING 10.5x2.7 MM
BSD-1610210046.A49
1610210046
|
£2.16
|
£2.59
|
|
|
63 - BALL DIN 5401-dia7MM-III-ST
BSD-1903230013.A758
1903230013
|
£2.16
|
£2.59
|
|
|
64 - RETAINING RING
BSD-1614601007.A6
1614601007
|
-
|
|
|
|
66 - RUBBER RING
BSD-1610206025.A1
1610206025
|
-
|
|
|
|
68 - STRAIGHT PIN DIN 6325-5M6x45
BSD-2917550133.A5
2917550133
|
£2.33
|
£2.80
|
|
|
69 - TAPPING SCREW DIN7981-ST2.9x9.5C-Z
BSD-2912401005.A210
2912401005
|
£1.84
|
£2.21
|
|
|
70 - TAPPING SCREW DIN 7981-ST3.9x25-C-Z
BSD-2912401022.A4
2912401022
|
£1.84
|
£2.21
|
|
|
72 - TAPPING SCREW DIN7981-ST3.9x16-C-Z
BSD-2912401019.A263
2912401019
|
£1.75
|
£2.10
|
|
|
73 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2802
2603410001
|
£1.84
|
£2.21
|
|
|
75 - ROTARY SHAFT LIP SEAL
BSD-1610283021.A1
1610283021
|
-
|
|
|
|
78 - ROLLER-CAGE ASSEMBLY
BSD-1610920006.A8
1610920006
|
£2.52
|
£3.02
|
|
|
79 - SUPPORT DISC
BSD-1610100609.A26
1610100609
|
-
|
|
|
|
80 - ADDITIONAL HOUSING
BSD-1615190031.A2
1615190031
|
-
|
|
|
|
81 - LOCATING RING
BSD-1610290017.A1
1610290017
|
-
|
|
|
|
82 - COVER DISC
BSD-1610516011.A4
1610516011
|
-
|
|
|
|
83 - HOLDING SPRING
BSD-1611290003.A1
1611290003
|
-
|
|
|
|
84 - PUSH-BUTTON
BSD-1612026034.A1
1612026034
|
-
|
|
|
|
85 - GUIDING PLATE
BSD-1611098003.A5
1611098003
|
-
|
|
|
|
91 - RETAINING RING DIN 7993-A22
BSD-2916540012.A184
2916540012
|
-
|
|
|
|
120 - AUXILIARY HANDLE M8
BSD-1612025019.A263
1612025019
|
£6.85
|
£8.22
|
|
|
120 - AUXILIARY HANDLE
BSD-160202507H.A193
160202507H
|
£11.87
|
£14.24
|
|
|
121 - SUPPORT CLAMP dia43 MM
BSD-1618040048.A144
1618040048
|
£8.67
|
£10.41
|
|
|
122 - T-HEAD BOLT M8x40 MM
BSD-1613490002.A413
1613490002
|
£4.48
|
£5.37
|
|
|
123 - CLAMPING BAND dia43 MM
BSD-1611316006.A121
1611316006
|
£2.61
|
£3.13
|
|
|
125 - MANUFACTURER'S NAMEPLATE
BSD-1611110437.A3
1611110437
|
-
|
|
|
|
126 - STICKER
BSD-2601110461.A59
2601110461
|
-
|
|
|
|
700 - DRILL CHUCK SHANK
BSD-1617000132.A6
1617000132
|
£17.68
|
£21.22
|
|
|
700/20 - COUNTERSUNK-HEAD SCREW M6x27
BSD-2603421226.A315
2603421226
|
£1.84
|
£2.21
|
|
|
701 - KEY CHUCK R/L dia13 MM. 1/2-20 UNF
BSD-1608571062.A36
1608571062
|
£18.37
|
£22.04
|
|
|
701/7 - CHUCK WRENCH SG2
BSD-2607950007.A575
2607950007
|
£6.85
|
£8.22
|
|
|
702 - PARTS SET
BSD-1617000133.A275
1617000133
|
-
|
|
|
|
702/10/2 - RETAINING RING
BSD-2604601004.A255
2604601004
|
£1.75
|
£2.10
|
|
|
703 - DUST TRAY
BSD-1615439003.A57
1615439003
|
-
|
|
|
|
703/30 - RUBBER BUSHING dia5-7 MM
BSD-1610312001.A2
1610312001
|
-
|
|
|
|
703/651 - RUBBER BUSHING dia8-10 MM
BSD-1610312002.A137
1610312002
|
-
|
|
|
|
720 - AUXILIARY HANDLE dia43 MM
BSD-1612025032.A1
1612025032
|
£10.18
|
£12.22
|
|
|
720/800 - PARTS SET
BSD-1617000925.A103
1617000925
|
£16.41
|
£19.69
|
|
|
750 - CARRYING CASE
BSD-1615438188.A0
1615438188
|
-
|
|
|
|
752 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001009.A204
1613001009
|
£3.91
|
£4.69
|
|
|
753 - ROTARY HAMMER BIT dia6x50 MM
BSD-1618596166.A6
1618596166
|
-
|
|
|
|
760 - FAST CHARGER J 100/7.2-14.4V. 30 MIN.
BSD-2607224711.A10
2607224711
|
-
|
|
|
|
760 - FAST CHARGER J 100/7.2-24V. 1h
BSD-2607224435.A116
2607224435
|
£120.11
|
£144.13
|
|
|
760 - FAST CHARGER USA 120/7.2-14.4V. 30 MIN.
BSD-2607224708.A3
2607224708
|
-
|
|
|
|
760 - FAST CHARGER USA 120/7.2-24V. 1h
BSD-2607224431.A63
2607224431
|
£135.25
|
£162.30
|
|
|
760 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN.
BSD-2607224701.A175
2607224701
|
£92.47
|
£110.96
|
|
|
760 - FAST CHARGER EU 230/7.2-24V. 1h
BSD-2607224425.A6
2607224425
|
£88.07
|
£105.68
|
|
|
760 - FAST CHARGER GB 230/7.2-14.4V. 30 MIN.
BSD-2607224703.A119
2607224703
|
£121.96
|
£146.35
|
|
|
760 - FAST CHARGER GB 230/7.2-24V. 1h
BSD-2607224427.A255
2607224427
|
£103.14
|
£123.77
|
|
|
760 - FAST CHARGER AUS 240/7.2-14.4V. 30 MIN.
BSD-2607224705.A21
2607224705
|
£142.02
|
£170.42
|
|
|
760 - FAST CHARGER AUS 240/7.2-14.4V. 1h
BSD-2607224443.A66
2607224443
|
-
|
|
|
|
777 - CHISEL ATTACHMENT
BSD-2607018296.A17
2607018296
|
£52.49
|
£62.99
|
|
|
778 - ANGLE DRILL HEAD
BSD-1618580000.A63
1618580000
|
£239.08
|
£286.90
|
|
|
789 - ACCUMULATOR BATTERY 12V. 1.2Ah. NiCd
BSD-2607335010.A6
2607335010
|
-
|
|
|
|
789 - SLIDE-IN ACCU PACKAGE 12V. 1.4Ah. NiCd
BSD-2607335021.A31
2607335021
|
-
|
|
|
|
819 - RATCHET SLEEVE
BSD-1617000940.A6
1617000940
|
-
|
|
|
|
821 - PARTS SET
BSD-1617000230.A0
1617000230
|
-
|
|
|
|
830 - CLAMP HANDLE
BSD-1617000177.A7
1617000177
|
-
|
|
|
|
841 - PROTECTION SLEEVE
BSD-1617000163.A108
1617000163
|
£7.72
|
£9.27
|
|
|
877 - CHANGE-OVER SWITCH
BSD-2607200231.A157
2607200231
|
£17.22
|
£20.67
|
|
|
898 - GREASE TUBE 225 ML
BSD-3605430009.A50
3605430009
|
£47.95
|
£57.54
|
|
|
899 - CORDLESS ROTARY HAMMER
BSD-0611217120.A1
0611217120
|
-
|
|
|
