Bosch GAH 500 DSE / 0611221503 / EU 230 Volt Spare Parts

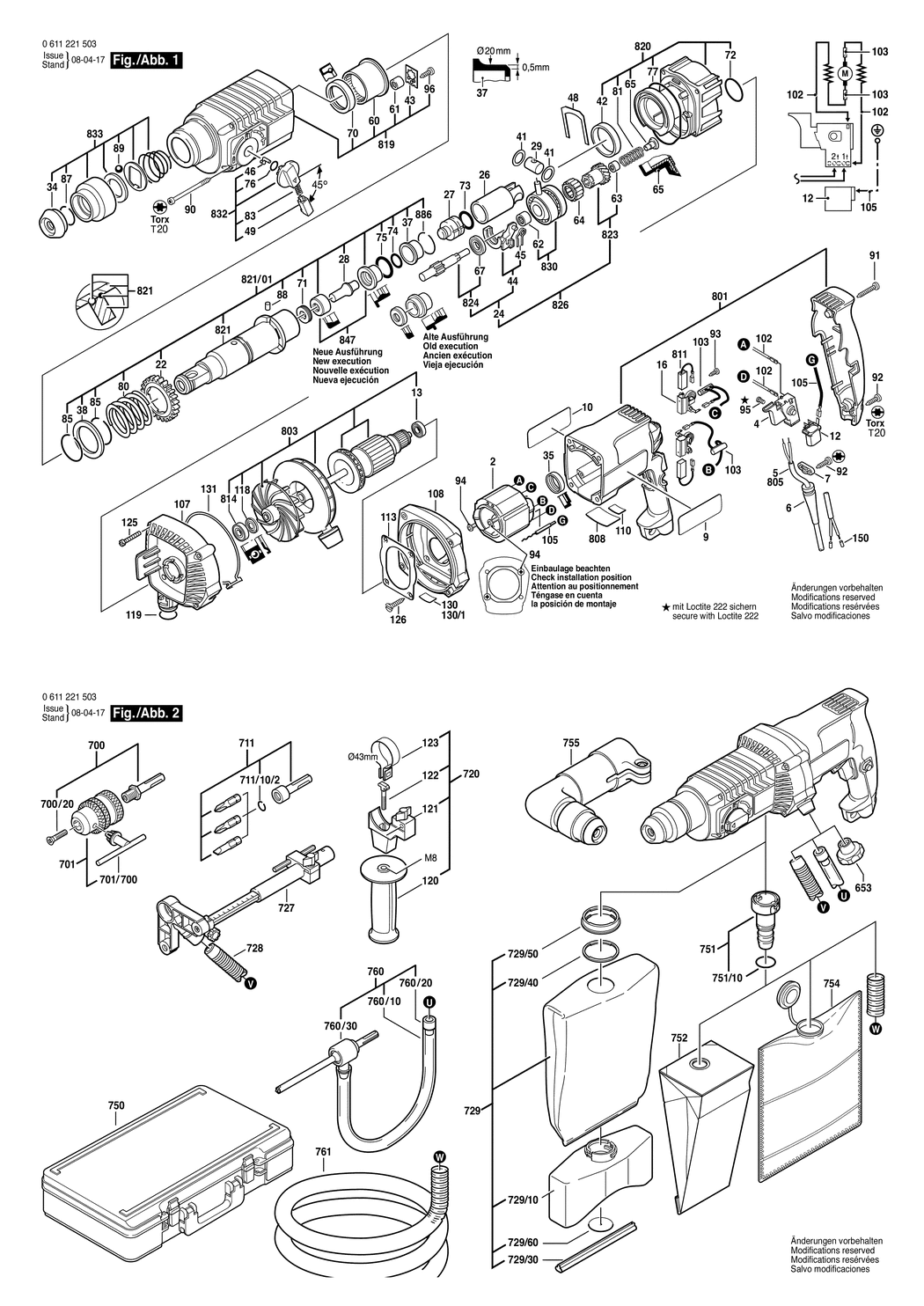

An exploded drawing and listing for the Bosch GAH 500 DSE / 0611221503 / EU 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 220-230V BSD-2604220491.A66 2604220491	£21.68	£26.01
4 - SWITCH BSD-2607200204.A15 2607200204	-
6 - GROMMET dia7.3-dia8.6x76 MM BSD-2600703018.A294 2600703018	£2.61	£3.13
7 - CABLE CLIP BSD-1611035005.A146 1611035005	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-1611110651.A7 1611110651	-
10 - REFERENCE PLATE BSD-1611110652.A2 1611110652	-
12 - SUPPRESSION FILTER BSD-1607328040.A140 1607328040	£6.52	£7.83
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905032.A145 1610905032	£5.30	£6.36
16 - BRUSH HOLDER BSD-1614336022.A0 1614336022	£2.80	£3.36
22 - CYLINDRICAL GEAR Z=50 BSD-1616317602.A31 1616317602	£12.04	£14.45
24 - TOOTHED SHAFT Z=3/9 BSD-1617000518.A63 1617000518	£40.80	£48.96
26 - HAMMER PISTON BSD-1618700062.A40 1618700062	£14.91	£17.89
27 - STRIKER BSD-1618710057.A9 1618710057	£16.41	£19.69
28 - STRIKER PIN BSD-1613124040.A16 1613124040	£5.30	£6.36
29 - PISTON PIN BSD-1613105012.A260 1613105012	£3.72	£4.47
34 - PROTECTIVE CAP L=17 MM. SDS-PLUS BSD-1610508008.A155 1610508008	£2.16	£2.59
35 - RUBBER RING BSD-1610206021.A219 1610206021	£1.75	£2.10
37 - DAMPING BUSHING BSD-1610390017.A19 1610390017	£5.30	£6.36
38 - SUPPORTING DISC BSD-1610102026.A84 1610102026	£2.61	£3.13
41 - SHIM WASHER 1.2 MM BSD-1610101011.A213 1610101011	£1.75	£2.10
42 - PLAIN BEARING BSD-1610202015.A55 1610202015	£2.80	£3.36
43 - TAB WASHER BSD-1611098005.A23 1611098005	£2.80	£3.36
44 - SWITCHING ELEMENT BSD-1615820092.A20 1615820092	£2.61	£3.13
45 - SWITCH SPRING BSD-1614651014.A114 1614651014	£1.75	£2.10
46 - DRIVER PIN BSD-1614690002.A15 1614690002	£1.75	£2.10
48 - HOLDING PLATE BSD-1611016003.A251 1611016003	£2.16	£2.59
49 - SWITCH BUTTON BSD-1612026035.A30 1612026035	£1.75	£2.10
60 - NEEDLE-ROLLER BEARING BSD-1610910073.A28 1610910073	£11.30	£13.56
61 - NEEDLE BEARING BSD-1610910098.A146 1610910098	£3.72	£4.47
62 - NEEDLE BEARING BSD-1610910074.A97 1610910074	£3.72	£4.47
63 - NEEDLE BEARING BSD-1610910064.A220 1610910064	£2.52	£3.02
64 - NEEDLE-ROLLER ASSEMBLY BSD-1610913010.A121 1610913010	£4.26	£5.11
65 - PLAIN BEARING BSD-1610591016.A70 1610591016	£2.80	£3.36
67 - GROOVE BALL BEARING BSD-1610905016.A10 1610905016	£10.10	£12.12
70 - SHAFT SEAL BSD-1610283019.A51 1610283019	£7.36	£8.83
71 - SCRAPER BSD-1610290029.A131 1610290029	£3.72	£4.47
72 - O-RING 24.0x2.5 MM BSD-1610210068.A168 1610210068	£1.75	£2.10
73 - O-RING BSD-1610210187.A173 1610210187	£2.16	£2.59
74 - O-RING 11.0x3.5 MM BSD-1610210104.A131 1610210104	£2.61	£3.13
75 - O-RING 18.0x3.5 MM BSD-1610210105.A14 1610210105	£4.26	£5.11
76 - O-RING 10.5x2.7 MM BSD-1610210046.A5 1610210046	£2.16	£2.59
77 - O-RING 60.0x3.0 MM BSD-1610210106.A131 1610210106	£2.61	£3.13
80 - COMPRESSION SPRING BSD-1614634005.A32 1614634005	£1.75	£2.10
81 - COMPRESSION SPRING BSD-1614611009.A75 1614611009	£1.75	£2.10
83 - COMPRESSION SPRING BSD-1614611006.A310 1614611006	£3.72	£4.47
85 - RETAINING RING BSD-1614601011.A73 1614601011	£1.75	£2.10
87 - RETAINING RING DIN 7993-A22 BSD-2916540012.A198 2916540012	-
88 - ROLLER BSD-1613200007.A140 1613200007	£1.75	£2.10
89 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A720 1903230013	£2.16	£2.59
90 - SOCKET HEAD CAP SCREW DIN 84-M5x65-4.8 BSD-1613410004.A12 1613410004	-
91 - LENS HEAD SCREW 4x32 BSD-2603490026.A164 2603490026	£1.75	£2.10
92 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A118 2603490023	£1.75	£2.10
93 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A458 2910211005	£1.75	£2.10
94 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A531 2603435015	£2.16	£2.59
95 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2816 2603410001	£1.75	£2.10
96 - TAPPING SCREW DIN7981-ST3.9x13-C-Z BSD-2912401018.A161 2912401018	£1.75	£2.10
102 - CABLE L=130 MM BSD-2604448005.A80 2604448005	£1.75	£2.10
103 - SUPPRESSION FILTER L=55 MM BSD-1614465008.A9 1614465008	£7.36	£8.83
105 - EARTH CONDUCTOR BSD-1614449010.A13 1614449010	-
107 - BLOWER CASING BSD-1615190042.A14 1615190042	-
108 - FAN HOUSING BSD-1615190044.A0 1615190044	£27.31	£32.77
113 - PROFILE PLATE BSD-1611038017.A14 1611038017	-
118 - SEALING DISK 609 AV NILOS-RING BSD-2916130027.A21 2916130027	£5.01	£6.01
119 - O-RING 23.0x3.0 MM BSD-1610210045.A31 1610210045	£2.61	£3.13
120 - AUXILIARY HANDLE M8 BSD-1612025019.A256 1612025019	£6.52	£7.83
121 - SUPPORT CLAMP dia43 MM BSD-1618040048.A110 1618040048	£8.67	£10.41
122 - T-HEAD BOLT M8x40 MM BSD-1613490002.A435 1613490002	£4.26	£5.11
123 - CLAMPING BAND dia43 MM BSD-1611316006.A148 1611316006	£2.61	£3.13
125 - SOCKET HEAD CAP SCREW DIN 84-AM5x35-4.8 BSD-2910001168.A2 2910001168	£1.32	£1.58
126 - REC CT-SUNK TAPPING SCREW BSD-1613435005.A2 1613435005	£2.33	£2.80
130 - STICKER BSD-1601110265.A402 1601110265	-
130/1 - STICKER BSD-1611110640.A10 1611110640	-
131 - SEALING FRAME BSD-1611015039.A0 1611015039	£3.80	£4.56
653 - PLUG BSD-1610591008.A7 1610591008	£5.87	£7.04
700 - DRILL CHUCK SHANK BSD-1617000132.A17 1617000132	£16.84	£20.21
700/20 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A306 2603421226	£1.75	£2.10
701 - CHUCK BSD-1608571088.A201 1608571088	£27.23	£32.68
701/700 - CHUCK WRENCH SG2 BSD-2607950007.A610 2607950007	£6.52	£7.83
711 - PARTS SET BSD-1617000133.A242 1617000133	-
711/10/2 - RETAINING RING BSD-2604601004.A284 2604601004	£1.75	£2.10
720 - AUXILIARY HANDLE dia43 MM BSD-2602025070.A112 2602025070	£14.91	£17.89
727 - SUCTION DEVICE BSD-1607000263.A12 1607000263	-
728 - CORRUGATED HOSE dia 16.5x550 MM BSD-1610712042.A4 1610712042	-
729 - DUST BAG BSD-2605411044.A2 2605411044	-
729/10 - SUPPORTING FRAME BSD-1615190046.A10 1615190046	-
729/30 - SUPPORT CLAMP BSD-1612386001.A12 1612386001	£2.80	£3.36
729/40 - SLIDING DISC BSD-1619200408.A10 1619200408	-
729/50 - UNION NUT BSD-1619200409.A0 1619200409	£2.80	£3.36
729/60 - SEALING DISK BSD-1610121001.A9 1610121001	-
750 - CARRYING CASE BSD-2605438126.A2 2605438126	-
751 - HOSE FITTING BSD-2607000178.A4 2607000178	-
751/10 - O-RING 23.0x3.0 MM BSD-1610210045.A30 1610210045	£2.61	£3.13
752 - PAPER BAG BSD-1615411003.A6 1615411003	-
754 - DUST BAG BSD-2605411043.A8 2605411043	-
755 - ANGLE DRILL HEAD BSD-1618580000.A33 1618580000	£239.08	£286.90
760 - FLEXIBLE CONNECTION BSD-2607000176.A4 2607000176	-
760/10 - PVC HOSE BSD-2600712004.A6 2600712004	-
760/20 - HOSE FITTING BSD-2605702024.A4 2605702024	-
760/30 - FLUSHING JET BSD-2605702025.A5 2605702025	-
761 - AIR HOSE dia19 MM. L=5M. 3/4 BSD-1610793002.A19 1610793002	£34.99	£41.99
801 - MOTOR HOUSING BSD-1617000477.A11 1617000477	£18.96	£22.75
803 - ARMATURE WITH FAN 230V BSD-1614010193.A1 1614010193	-
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1614460026.A13 1614460026	£18.96	£22.75
808 - NAMEPLATE BSD-160111A3H5.A167 160111A3H5	£2.61	£3.13
811 - CARBON-BRUSH SET BSD-1617014134.A29 1617014134	£8.67	£10.41
814 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A258 1610905048	£8.67	£10.41
819 - GEAR HOUSING BSD-1615806093.A11 1615806093	£48.38	£58.06
820 - INTERMEDIATE FLANGE BSD-1617000981.A57 1617000981	£27.23	£32.68
821 - RATCHET SLEEVE SDS-PLUS BSD-1616490061.A80 1616490061	£59.53	£71.44
821/01 - RATCHET SLEEVE SDS-PLUS BSD-1616490060.A17 1616490060	£72.18	£86.62
823 - GEAR SLEEVE Z=26/6 BSD-1616328042.A12 1616328042	£40.80	£48.96
826 - TOOTHED SHAFT Z=3/9 BSD-1617000517.A61 1617000517	£72.18	£86.62
830 - DRIVE BEARING BSD-1615819018.A24 1615819018	£51.22	£61.47
832 - CLAMP HANDLE BSD-1612026037.A188 1612026037	£10.82	£12.99
833 - PROTECTION SLEEVE BSD-1617000163.A119 1617000163	£7.36	£8.83
847 - GUIDE RING BSD-1617000348.A84 1617000348	£14.91	£17.89
886 - RETAINING RING BSD-1614601024.A81 1614601024	£1.75	£2.10
