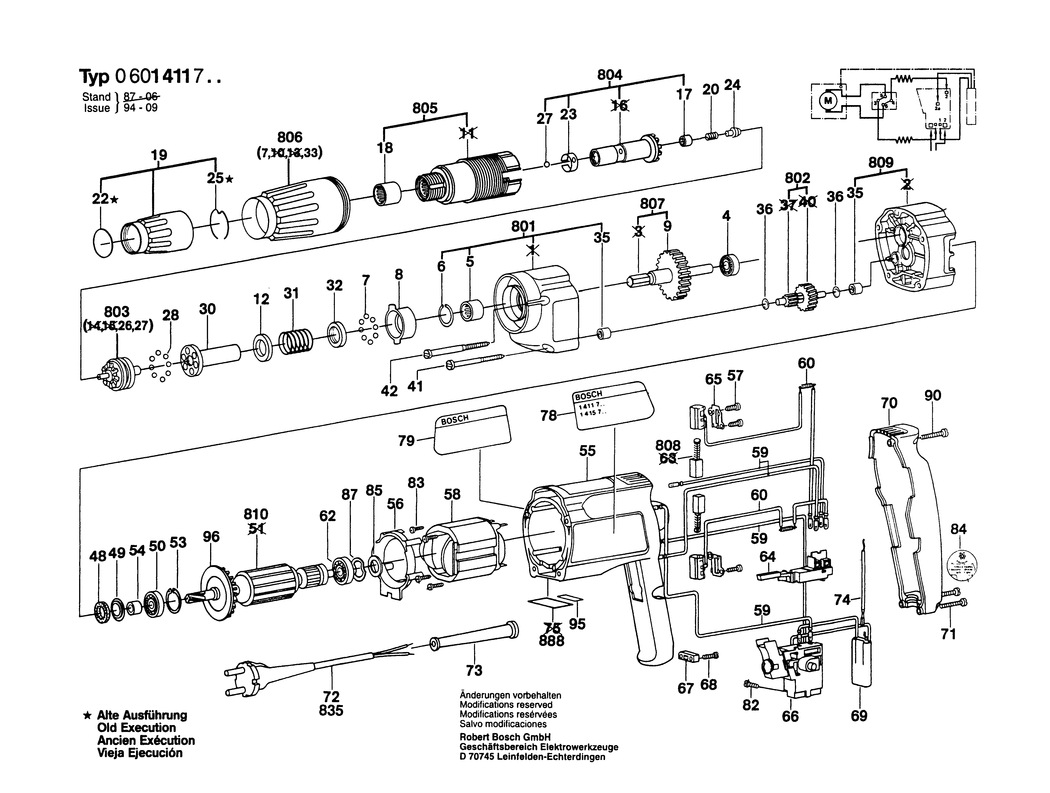

4 - GROOVE BALL BEARING dia 8 MM
BSD-2600900008.A29
2600900008
|
-
|
|
|
|
5 - NEEDLE BEARING
BSD-2600910000.A5
2600910000
|
-
|
|
|
|
6 - RETAINING RING
BSD-2600224010.A11
2600224010
|
-
|
|
|
|
7 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A310
1903230006
|
£2.27
|
£2.72
|
|
|
8 - CAPSULE
BSD-2600516010.A16
2600516010
|
-
|
|
|
|
12 - SUPPORTING DISC
BSD-2600103016.A0
2600103016
|
-
|
|
|
|
17 - NEEDLE BEARING dia7 MM
BSD-2600910006.A16
2600910006
|
£3.91
|
£4.69
|
|
|
18 - NEEDLE BEARING
BSD-2600910007.A11
2600910007
|
-
|
|
|
|
19 - DEPTH-GAUGE
BSD-2600460902.A11
2600460902
|
-
|
|
|
|
20 - COMPRESSION SPRING
BSD-2604611040.A4
2604611040
|
-
|
|
|
|
22 - O-RING 27.0x2.0 MM
BSD-2600210029.A11
2600210029
|
-
|
|
|
|
23 - HOLDING SPRING
BSD-2601310008.A5
2601310008
|
-
|
|
|
|
24 - PRESSURE SPINDLE
BSD-2603132002.A9
2603132002
|
-
|
|
|
|
25 - RATCHET SPRING
BSD-2604601014.A11
2604601014
|
-
|
|
|
|
26 - SPHERICAL WASHER
BSD-2600114028.A5
2600114028
|
-
|
|
|
|
27 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A246
1903230007
|
£1.84
|
£2.21
|
|
|
28 - BALL DIN 5401-6 G28
BSD-1903230011.A214
1903230011
|
£2.74
|
£3.29
|
|
|
30 - DRIVE BUSHING
BSD-2606445008.A5
2606445008
|
-
|
|
|
|
31 - COMPRESSION SPRING
BSD-2604619010.A0
2604619010
|
-
|
|
|
|
32 - RETAINING SNAP RING
BSD-2600501032.A5
2600501032
|
-
|
|
|
|
33 - SPRING RETAINING RING
BSD-2604601015.A0
2604601015
|
-
|
|
|
|
35 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A695
2600914010
|
£2.94
|
£3.53
|
|
|
36 - SHIM 0.3 MM
BSD-2600100607.A707
2600100607
|
£1.75
|
£2.10
|
|
|
41 - HEADLESS SCREW
BSD-2603435018.A62
2603435018
|
-
|
|
|
|
42 - HEADLESS SCREW
BSD-2603435017.A5
2603435017
|
£2.61
|
£3.13
|
|
|
48 - FELT WASHER
BSD-2600108077.A286
2600108077
|
£1.84
|
£2.21
|
|
|
49 - CUPPED WASHER
BSD-2600500002.A222
2600500002
|
£1.75
|
£2.10
|
|
|
50 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A513
2600905021
|
£8.67
|
£10.41
|
|
|
53 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A615
2916660008
|
£2.16
|
£2.59
|
|
|
54 - RECEPTACLE
BSD-2600400008.A2
2600400008
|
£1.75
|
£2.10
|
|
|
55 - MOTOR HOUSING
BSD-2605104116.A55
2605104116
|
-
|
|
|
|
56 - COVER DISC
BSD-2601328033.A65
2601328033
|
-
|
|
|
|
57 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1219
2603490017
|
£2.27
|
£2.72
|
|
|
58 - FIELD 220-230V
BSD-2604220445.A63
2604220445
|
£28.59
|
£34.31
|
|
|
59 - CABLE L=130 MM
BSD-2604448005.A368
2604448005
|
£1.84
|
£2.21
|
|
|
60 - SUPPRESSOR BOX L=93/85 MM
BSD-2604465071.A5
2604465071
|
-
|
|
|
|
62 - BALL BEARING 7x22x7
BSD-1900905018.A903
1900905018
|
£19.91
|
£23.89
|
|
|
64 - CHANGE-OVER SWITCH
BSD-2607200206.A49
2607200206
|
-
|
|
|
|
65 - BRUSH HOLDER
BSD-2604337003.A315
2604337003
|
£2.16
|
£2.59
|
|
|
66 - ON-OFF SWITCH
BSD-2607200137.A87
2607200137
|
-
|
|
|
|
67 - CABLE CLIP
BSD-2601035001.A383
2601035001
|
£1.84
|
£2.21
|
|
|
68 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1569
2910211019
|
£1.84
|
£2.21
|
|
|
70 - HOUSING COVER
BSD-2605132040.A99
2605132040
|
-
|
|
|
|
71 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A637
2910211021
|
£1.75
|
£2.10
|
|
|
72 - ELEC. CABLE W/CONNECTION CH 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460053.A30
2604460053
|
-
|
|
|
|
73 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1242
2600703012
|
£2.94
|
£3.53
|
|
|
74 - CABLE
BSD-2604448003.A212
2604448003
|
-
|
|
|
|
78 - STICKER
BSD-2601110244.A5
2601110244
|
-
|
|
|
|
79 - STICKER
BSD-2601110093.A114
2601110093
|
-
|
|
|
|
82 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A259
2603410001
|
£1.84
|
£2.21
|
|
|
83 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F
BSD-2603435015.A55
2603435015
|
£2.27
|
£2.72
|
|
|
84 - STICKER
BSD-2601110230.A98
2601110230
|
-
|
|
|
|
85 - SHIM 0.3 MM
BSD-2600101023.A157
2600101023
|
£1.84
|
£2.21
|
|
|
85 - SHIM 0.2 MM
BSD-2600101022.A462
2600101022
|
£1.84
|
£2.21
|
|
|
85 - SHIM 0.5 MM
BSD-2600101020.A187
2600101020
|
£1.84
|
£2.21
|
|
|
87 - SHIM
BSD-2600150004.A189
2600150004
|
£2.27
|
£2.72
|
|
|
90 - TAPPING SCREW DIN 7971-BZ3.9x25
BSD-2910211022.A66
2910211022
|
£1.84
|
£2.21
|
|
|
96 - FAN
BSD-2606610049.A554
2606610049
|
£2.27
|
£2.72
|
|
|
653 - GUIDE SLEEVE
BSD-2600327001.A0
2600327001
|
-
|
|
|
|
654 - GUIDE SLEEVE
BSD-2600327003.A11
2600327003
|
-
|
|
|
|
801 - GEAR HOUSING
BSD-2605806969.A5
2605806969
|
-
|
|
|
|
802 - TOOTHED SHAFT Z= 10
BSD-2606309905.A12
2606309905
|
-
|
|
|
|
803 - COUPLING HALF
BSD-2606490909.A11
2606490909
|
-
|
|
|
|
804 - COUPLING HALF
BSD-2606455903.A5
2606455903
|
-
|
|
|
|
805 - THREADED SLEEVE
BSD-2600390901.A5
2600390901
|
-
|
|
|
|
806 - ADJUSTING SLEEVE
BSD-2600499901.A5
2600499901
|
-
|
|
|
|
807 - DRIVE SHAFT Z= 48
BSD-2603124902.A0
2603124902
|
-
|
|
|
|
808 - CARBON-BRUSH SET
BSD-2604321905.A585
2604321905
|
£11.87
|
£14.24
|
|
|
809 - INTERMEDIATE FLANGE
BSD-2605700930.A0
2605700930
|
-
|
|
|
|
810 - ARMATURE 220V
BSD-2604010586.A3
2604010586
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A791
160111A3H3
|
£2.74
|
£3.29
|
|
