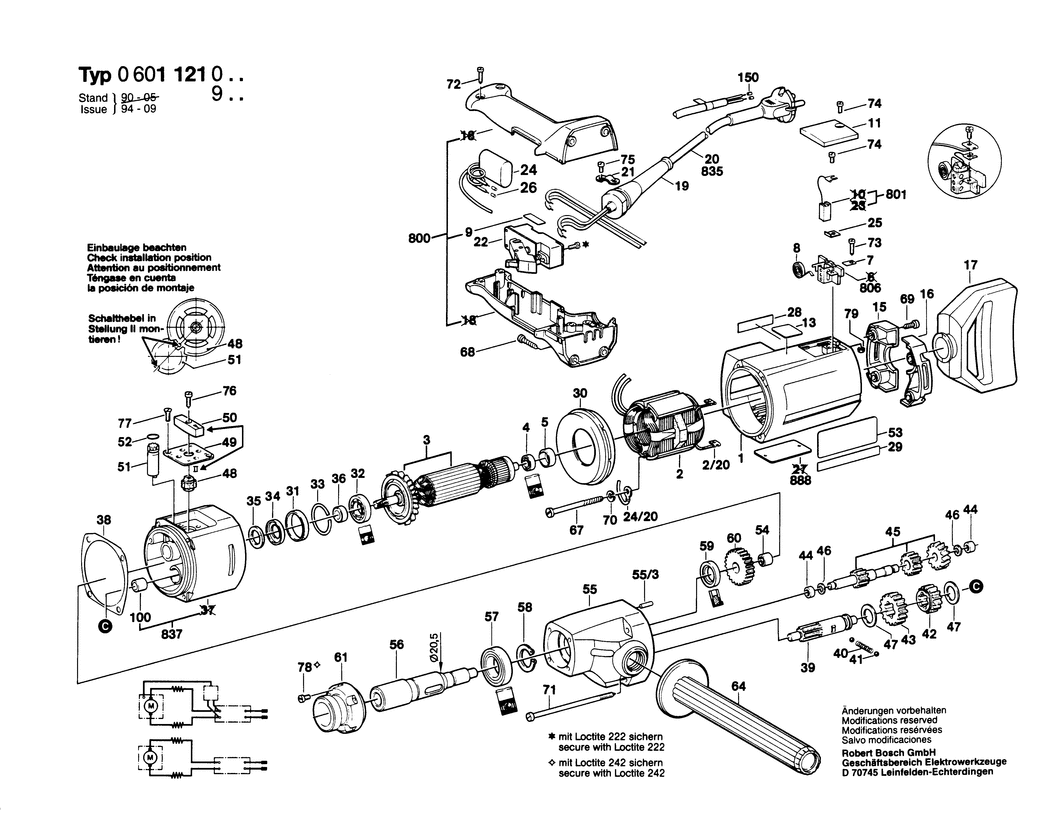

1 - MOTOR HOUSING
BSD-3605108113.A15
3605108113
|
-
|
|
|
|
2 - FIELD 220V
BSD-1604220175.A4
1604220175
|
-
|
|
|
|
2/20 - TERMINAL LUG 1.5-4x4
BSD-1901350003.A1
1901350003
|
£1.75
|
£2.10
|
|
|
3 - ARMATURE 220V
BSD-1604010187.A7
1604010187
|
-
|
|
|
|
4 - BALL BEARING 7x19x6
BSD-2600905032.A2186
2600905032
|
£5.30
|
£6.36
|
|
|
5 - INTERMEDIATE RING
BSD-1600502011.A375
1600502011
|
£2.61
|
£3.13
|
|
|
7 - TAB WASHER
BSD-1601030022.A560
1601030022
|
£1.75
|
£2.10
|
|
|
8 - SPIRAL SPRING
BSD-1604652006.A384
1604652006
|
£1.75
|
£2.10
|
|
|
9 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A80
1602381001
|
-
|
|
|
|
11 - SEALING CAP
BSD-3605500063.A134
3605500063
|
£4.26
|
£5.11
|
|
|
15 - SEALING CAP
BSD-3605500058.A72
3605500058
|
£13.12
|
£15.75
|
|
|
16 - SEALING CAP
BSD-3605500059.A30
3605500059
|
£14.91
|
£17.89
|
|
|
17 - HANDLE
BSD-3605133010.A4
3605133010
|
-
|
|
|
|
21 - FASTENING CLAMP
BSD-1601302014.A514
1601302014
|
£2.61
|
£3.13
|
|
|
22 - SWITCH
BSD-1607200078.A112
1607200078
|
£40.80
|
£48.96
|
|
|
24 - SUPPRESSION CAPACITOR
BSD-1607328024.A28
1607328024
|
-
|
|
|
|
26 - END SPLICE A 4-9 DIN 46 228
BSD-1900452004.A7
1900452004
|
-
|
|
|
|
28 - MANUFACTURER'S NAMEPLATE
BSD-1601110130.A15
1601110130
|
-
|
|
|
|
29 - MANUFACTURER'S NAMEPLATE
BSD-1601110005.A132
1601110005
|
-
|
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600502019.A58
1600502019
|
£3.72
|
£4.47
|
|
|
31 - INTERMEDIATE RING
BSD-1600206018.A99
1600206018
|
-
|
|
|
|
32 - GROOVE BALL BEARING 15x32x9
BSD-1600905004.A13
1600905004
|
-
|
|
|
|
33 - RETAINING RING 35 DIN 9045
BSD-2916600018.A58
2916600018
|
£1.75
|
£2.10
|
|
|
34 - COVER DISC
BSD-1600500023.A17
1600500023
|
-
|
|
|
|
35 - FELT DISC
BSD-1600108003.A243
1600108003
|
£1.32
|
£1.58
|
|
|
36 - INTERMEDIATE RING
BSD-1600202034.A0
1600202034
|
-
|
|
|
|
38 - SEALING PLATE
BSD-1601015013.A29
1601015013
|
£1.75
|
£2.10
|
|
|
39 - TOOTHED SHAFT Z=9
BSD-1606309066.A14
1606309066
|
£81.81
|
£98.17
|
|
|
40 - COMPRESSION SPRING
BSD-1604611022.A70
1604611022
|
£1.75
|
£2.10
|
|
|
41 - BALL DIN 5401-5 G28
BSD-1903230009.A795
1903230009
|
£1.75
|
£2.10
|
|
|
42 - CYLINDRICAL GEAR Z=32
BSD-1606317074.A106
1606317074
|
£31.64
|
£37.97
|
|
|
43 - CYLINDRICAL GEAR Z=43
BSD-1606317082.A37
1606317082
|
£37.27
|
£44.72
|
|
|
44 - NEEDLE BEARING
BSD-1600910013.A30
1600910013
|
£5.58
|
£6.70
|
|
|
45 - PINION SHAFT Z=14/24/33
BSD-1606309065.A29
1606309065
|
£81.81
|
£98.17
|
|
|
46 - SHIM 0.5 MM
BSD-1600100631.A74
1600100631
|
£1.75
|
£2.10
|
|
|
47 - SHIM 0.6 MM
BSD-1600101647.A93
1600101647
|
£2.16
|
£2.59
|
|
|
48 - CONTROL SHAFT Z=20
BSD-1606325025.A63
1606325025
|
£2.80
|
£3.36
|
|
|
49 - NOTCHED PLATE
BSD-1601038025.A29
1601038025
|
£1.75
|
£2.10
|
|
|
50 - CONTROL LEVER
BSD-1602026044.A109
1602026044
|
£7.36
|
£8.83
|
|
|
51 - CONTROL SHAFT Z=10
BSD-1606325027.A4
1606325027
|
£8.67
|
£10.41
|
|
|
52 - O-RING 8x2.5 MM
BSD-1900210105.A87
1900210105
|
£1.75
|
£2.10
|
|
|
53 - REFERENCE PLATE
BSD-1601110126.A4
1601110126
|
-
|
|
|
|
54 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A463
2600910001
|
£4.26
|
£5.11
|
|
|
55 - SPINDLE BEARING
BSD-1605806382.A27
1605806382
|
£135.25
|
£162.30
|
|
|
55/3 - STRAIGHT PIN 5 H 8x18 DIN 7
BSD-2917500121.A53
2917500121
|
£1.75
|
£2.10
|
|
|
56 - DRILLING SPINDLE
BSD-1606135017.A12
1606135017
|
-
|
|
|
|
57 - GROOVE BALL BEARING 25x47x12
BSD-1900905126.A29
1900905126
|
£33.74
|
£40.49
|
|
|
58 - SPRING RETAINING RING DIN 471 25x1.2
BSD-2916650014.A55
2916650014
|
£1.75
|
£2.10
|
|
|
59 - SEAL RING 20x31x7 MM
BSD-3600290035.A1
3600290035
|
£13.12
|
£15.75
|
|
|
60 - CYLINDRICAL GEAR
BSD-3606316108.A7
3606316108
|
£33.74
|
£40.49
|
|
|
61 - FASTENING FLANGE
BSD-1605703075.A29
1605703075
|
£48.38
|
£58.06
|
|
|
64 - HANDLE 400 MM
BSD-1600763010.A75
1600763010
|
£40.80
|
£48.96
|
|
|
67 - TAPPING SCREW 4.80x75 MM
BSD-3603435508.A3
3603435508
|
-
|
|
|
|
68 - TAPPING SCREW 5x30
BSD-3603435027.A5
3603435027
|
£1.75
|
£2.10
|
|
|
69 - TORX OVAL-HEAD SCREW
BSD-2914201529.A1
2914201529
|
£1.75
|
£2.10
|
|
|
70 - SPRING WASHER DIN 137-A5-FST
BSD-2916060006.A229
2916060006
|
£1.32
|
£1.58
|
|
|
71 - TAPPING SCREW B4.8x115 MM
BSD-1603435015.A37
1603435015
|
-
|
|
|
|
72 - TORX OVAL-HEAD SCREW
BSD-2914201508.A4
2914201508
|
£1.75
|
£2.10
|
|
|
73 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A384
2910211011
|
£1.75
|
£2.10
|
|
|
74 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A838
2910021118
|
£1.75
|
£2.10
|
|
|
75 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A514
2910021116
|
£2.16
|
£2.59
|
|
|
76 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A688
2910211019
|
£1.75
|
£2.10
|
|
|
77 - COUNTERSUNK-HEAD SCREW DIN 63-AM4x10-5.8
BSD-2910501120.A42
2910501120
|
£1.75
|
£2.10
|
|
|
78 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8
BSD-2910021154.A234
2910021154
|
£1.75
|
£2.10
|
|
|
79 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A370
2915011005
|
£1.75
|
£2.10
|
|
|
100 - BUSHING
BSD-3600328033.A19
3600328033
|
£8.49
|
£10.19
|
|
|
800 - HANDLE
BSD-3605132031.A23
3605132031
|
£31.64
|
£37.97
|
|
|
801 - CARBON-BRUSH SET
BSD-1607014126.A166
1607014126
|
£16.41
|
£19.69
|
|
|
806 - BRUSH HOLDER
BSD-1604336017.A44
1604336017
|
£7.36
|
£8.83
|
|
|
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A12
1607000228
|
£23.86
|
£28.63
|
|
|
837 - INTERMEDIATE BEARING
BSD-3605820035.A16
3605820035
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A5059
160111A3H3
|
£2.61
|
£3.13
|
|
