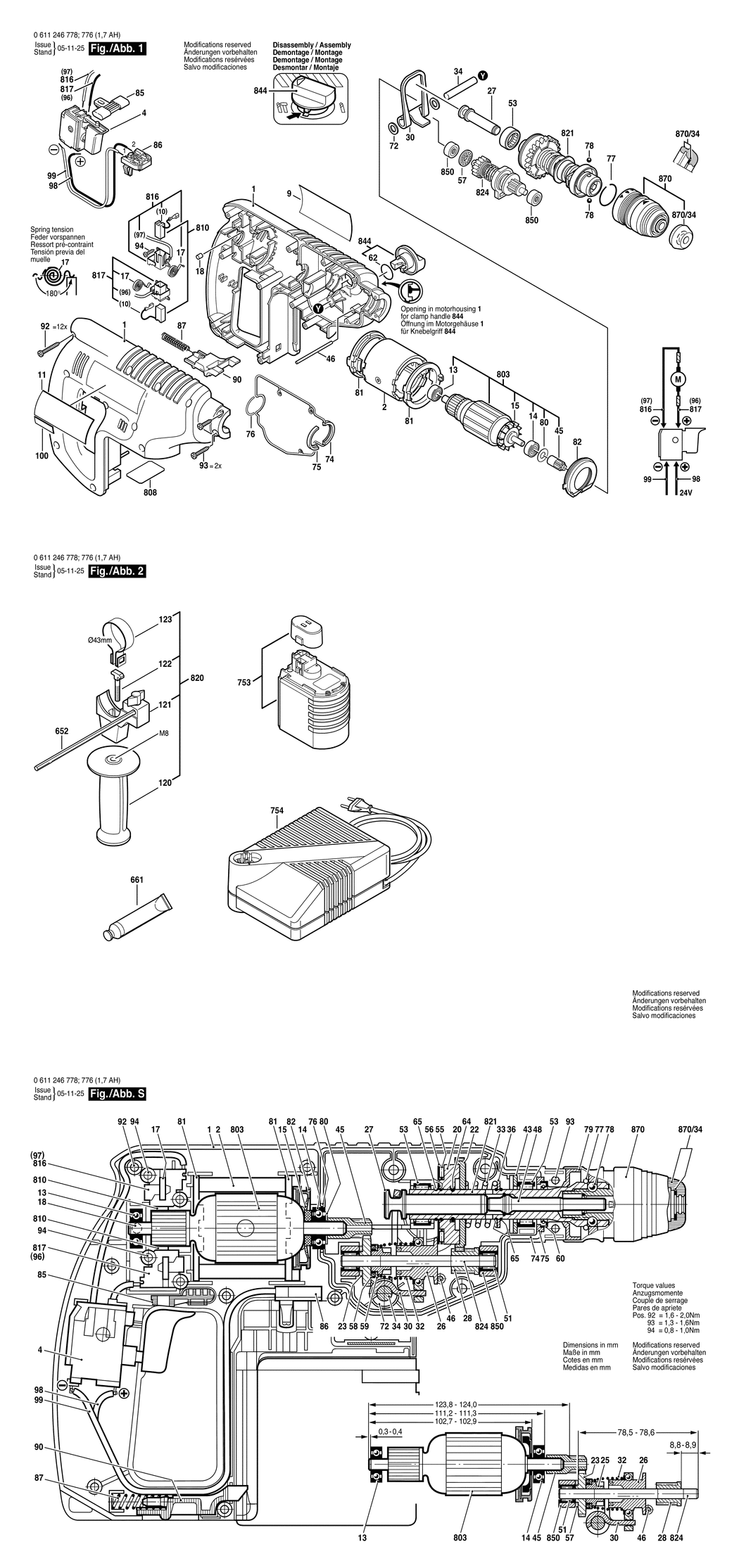

An exploded drawing and listing for the Bosch DD 524 / 0611246776 / EU 24 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-1615104012.A0 1615104012 £27.31 £32.77
2 - POLE HOUSING 14;4-24V BSD-2610942109.A53 2610942109 £21.68 £26.01
4 - ON-OFF SWITCH BSD-1617200067.A26 1617200067 £68.42 £82.10
9 - MANUFACTURER'S NAMEPLATE BSD-1611110C89.A0 1611110C89 -
11 - MANUFACTURER'S NAMEPLATE BSD-1611110C88.A0 1611110C88 -
13 - GROOVE BALL BEARING 8x22x7 BSD-1600905033.A0 1600905033 £7.36 £8.83
14 - GROOVE BALL BEARING 8x22x7 BSD-2600905052.A351 2600905052 £7.36 £8.83
15 - FAN BSD-1616610080.A26 1616610080 £7.78 £9.33
17 - SPIRAL SPRING BSD-1614652008.A4 1614652008 £2.16 £2.59
18 - DAMPING RUBBER BSD-2603100056.A99 2603100056 £1.75 £2.10
27 - STRIKER BSD-1618710076.A7 1618710076 £6.61 £7.93
30 - DRIVE LEVER BSD-1611911000.A49 1611911000 -
34 - BEARING PIN BSD-1613100021.A0 1613100021 £2.33 £2.80
45 - DRIVE PINION Z=9 BSD-1616316602.A0 1616316602 £14.75 £17.70
46 - STRAIGHT PIN BSD-1613160022.A55 1613160022 £1.75 £2.10
53 - NEEDLE BEARING BSD-1610910077.A55 1610910077 £4.26 £5.11
57 - ROLLER THRUST BEARING BSD-1610920009.A26 1610920009 £3.34 £4.01
62 - O-RING 18.0x2.5 MM BSD-1610210125.A49 1610210125 £1.95 £2.34
72 - SHIM WASHER 1.0 MM BSD-1610100007.A58 1610100007 £1.75 £2.10
74 - SEALING FRAME BSD-1611015045.A33 1611015045 £5.30 £6.36
75 - SEALING FRAME BSD-1611015041.A73 1611015041 £1.95 £2.34
76 - SEAL RING BSD-1610210138.A27 1610210138 £1.75 £2.10
77 - RETAINING RING BSD-1614601026.A17 1614601026 £1.75 £2.10
78 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A290 1903230010 £1.75 £2.10
80 - SEALING DISK BSD-1610100008.A27 1610100008 £1.75 £2.10
81 - LOCATING RING BSD-1610290043.A4 1610290043 £2.16 £2.59
82 - AIR-DEFLECTOR RING BSD-1610591017.A0 1610591017 -
85 - SWITCH SLIDE BSD-1613231009.A8 1613231009 £1.95 £2.34
86 - CONTACT RETAINER BSD-1609280157.A27 1609280157 -
87 - COMPRESSION SPRING BSD-1614611012.A26 1614611012 £8.49 £10.19
90 - CATCH SLIDE BSD-1613231007.A20 1613231007 £1.32 £1.58
92 - TAPPING SCREW DIN7981-ST3.9x22-C-Z BSD-2912401021.A224 2912401021 £1.75 £2.10
93 - TAPPING SCREW DIN7981-ST3.9x16-C-Z BSD-2912401019.A318 2912401019 £1.75 £2.10
94 - TAPPING SCREW DIN7981-ST2.9x9.5C-Z BSD-2912401005.A276 2912401005 £1.75 £2.10
98 - CONNECTING CABLE L=260 MM BSD-1614416012.A28 1614416012 £1.75 £2.10
99 - CONNECTING CABLE L=270 MM BSD-1614416011.A25 1614416011 £1.75 £2.10
100 - REFERENCE PLATE BSD-1611110C90.A0 1611110C90 -
120 - AUXILIARY HANDLE M8 BSD-1612025019.A286 1612025019 £6.52 £7.83
121 - SUPPORT CLAMP dia43 MM BSD-1618040067.A7 1618040067 £6.61 £7.93
122 - T-HEAD BOLT M8x40 MM BSD-1613490002.A296 1613490002 £4.26 £5.11
123 - CLAMPING BAND dia43 MM BSD-1611316006.A55 1611316006 £2.61 £3.13
652 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A38 1613001009 £3.72 £4.47
661 - GREASE TUBE 30 ML BSD-1615430010.A85 1615430010 £6.52 £7.83
753 - ACCUMULATOR BATTERY 24V. 1.7Ah. NiCd BSD-2607335188.A0 2607335188 -
753 - ACCUMULATOR BATTERY 24V. 3.0Ah. NiCd BSD-2607335232.A0 2607335232 -
754 - FAST CHARGER EU 230/7.2-24V. 15 MIN. BSD-2607224484.A5 2607224484 -
803 - ARMATURE WITH FAN 24V BSD-1617000319.A29 1617000319 £72.18 £86.62
808 - NAMEPLATE BSD-160111A3HD.A57 160111A3HD £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1617014131.A7 1617014131 -
816 - BRUSH HOLDER L=145 MM BSD-1617000379.A49 1617000379 -
817 - BRUSH HOLDER L=45 MM BSD-1617000380.A4 1617000380 -
820 - AUXILIARY HANDLE dia43 MM BSD-1612025049.A5 1612025049 £10.82 £12.99
821 - HAMMER PIPE BSD-1617000387.A3 1617000387 -
824 - JACK SHAFT Z=31/12 BSD-1617000314.A30 1617000314 £46.82 £56.18
844 - CLAMP HANDLE BSD-1617000322.A71 1617000322 £3.72 £4.47
850 - BUSHING BSD-1617000975.A53 1617000975 £6.61 £7.93
870 - QUICK-CHANGE COLLET CHUCK BSD-1617000327.A14 1617000327 £63.50 £76.20
870/34 - PROTECTIVE CAP BSD-1610508047.A18 1610508047 £2.29 £2.75
