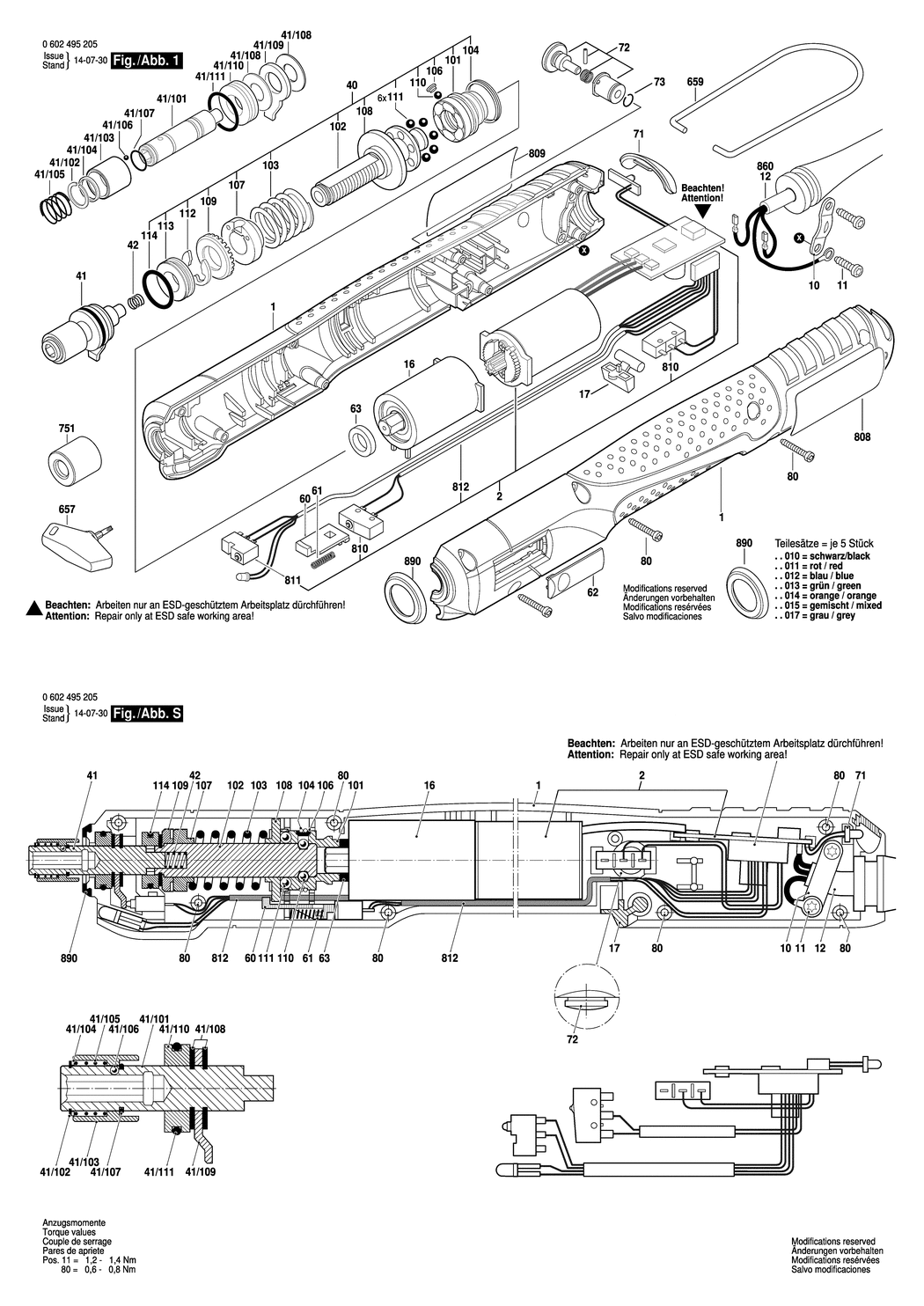

1 - HOUSING SECTION
BSD-3605105034.A3
3605105034
|
£68.42
|
£82.10
|
|
|
2 - ELECTRONIC ASSEMBLY
BSD-3607200117.A0
3607200117
|
£458.51
|
£550.21
|
|
|
10 - FASTENING CLAMP
BSD-1601302013.A341
1601302013
|
£1.84
|
£2.21
|
|
|
11 - LENS HEAD SCREW
BSD-3603435035.A4
3603435035
|
£1.75
|
£2.10
|
|
|
12 - CONNECTOR CABLE
BSD-3604462071.A2
3604462071
|
£156.22
|
£187.46
|
|
|
16 - PLANETARY GEAR TRAIN
BSD-3606200040.A2
3606200040
|
£283.50
|
£340.20
|
|
|
17 - SWITCH COVER
BSD-3605105036.A1
3605105036
|
£5.30
|
£6.36
|
|
|
40 - ASSEMBLY KIT
BSD-3607031614.A0
3607031614
|
£229.32
|
£275.19
|
|
|
41 - TOOLHOLDER
BSD-3607030439.A0
3607030439
|
£135.25
|
£162.30
|
|
|
41/101 - TOOL HOLDING FIXTURE
BSD-3608508006.A1
3608508006
|
£102.57
|
£123.08
|
|
|
41/102 - COMPRESSION SPRING
BSD-3604610011.A103
3604610011
|
£2.94
|
£3.53
|
|
|
41/103 - CLAMP BUSHING
BSD-3600499023.A34
3600499023
|
£19.91
|
£23.89
|
|
|
41/104 - BACKUP RING
BSD-3600202020.A122
3600202020
|
£9.11
|
£10.93
|
|
|
41/105 - RETAINING RING
BSD-3600224006.A75
3600224006
|
£2.80
|
£3.36
|
|
|
41/106 - BALL DIN 5401-2.5MM-III-ST
BSD-1903230003.A484
1903230003
|
£2.74
|
£3.29
|
|
|
41/107 - O-RING 9.0x1.2 MM
BSD-3600210038.A19
3600210038
|
£2.61
|
£3.13
|
|
|
41/108 - LOCKING WASHER DIN 6799-9-FSt
BSD-2916080012.A219
2916080012
|
£1.84
|
£2.21
|
|
|
41/109 - ACTUATING ELEMENT
BSD-3601902021.A0
3601902021
|
£2.16
|
£2.59
|
|
|
41/110 - PLAIN BEARING
BSD-3600921001.A55
3600921001
|
£10.10
|
£12.12
|
|
|
41/111 - O-RING
BSD-3600210116.A119
3600210116
|
£2.94
|
£3.53
|
|
|
42 - COMPRESSION SPRING
BSD-3604610060.A3
3604610060
|
£2.80
|
£3.36
|
|
|
60 - SWITCHING ELEMENT
BSD-3601902016.A1
3601902016
|
£3.91
|
£4.69
|
|
|
61 - COMPRESSION SPRING
BSD-3604611022.A144
3604611022
|
£3.72
|
£4.47
|
|
|
62 - PUSHER
BSD-3601923029.A121
3601923029
|
£5.30
|
£6.36
|
|
|
63 - SPACER RING
BSD-3600200053.A5
3600200053
|
£5.58
|
£6.70
|
|
|
71 - LIGHT CONDUCTOR
BSD-3605500178.A5
3605500178
|
£2.27
|
£2.72
|
|
|
72 - SWITCHOVER UNIT
BSD-3607030431.A6
3607030431
|
£45.67
|
£54.80
|
|
|
73 - SPRING RETAINING RING
BSD-3600224065.A2
3600224065
|
£1.84
|
£2.21
|
|
|
80 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1326
2603490017
|
£2.27
|
£2.72
|
|
|
101 - CLUTCH ELEMENT
BSD-3606445043.A84
3606445043
|
£102.57
|
£123.08
|
|
|
102 - OUTPUT SHAFT
BSD-3603124033.A0
3603124033
|
£63.50
|
£76.20
|
|
|
103 - COMPRESSION SPRING
BSD-3604619023.A1
3604619023
|
£6.52
|
£7.83
|
|
|
104 - RETAINING RING
BSD-3600224053.A161
3600224053
|
£1.84
|
£2.21
|
|
|
106 - COMPRESSION SPRING
BSD-3604610011.A104
3604610011
|
£2.94
|
£3.53
|
|
|
107 - SETTING RING
BSD-3600134014.A74
3600134014
|
£31.64
|
£37.97
|
|
|
108 - SUPPORT DISC
BSD-3600190036.A122
3600190036
|
£9.11
|
£10.93
|
|
|
109 - CATCH DISK
BSD-3603344047.A168
3603344047
|
£23.86
|
£28.63
|
|
|
110 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A466
1903230006
|
£2.27
|
£2.72
|
|
|
111 - BALL 4.5 MM III DIN 5401-ST
BSD-1903230008.A201
1903230008
|
£1.75
|
£2.10
|
|
|
112 - LOCKING WASHER DIN 6799-9-FSt
BSD-2916080012.A218
2916080012
|
£1.84
|
£2.21
|
|
|
113 - PLAIN BEARING
BSD-3600921001.A56
3600921001
|
£10.10
|
£12.12
|
|
|
114 - O-RING
BSD-3600210116.A112
3600210116
|
£2.94
|
£3.53
|
|
|
657 - SCREWDRIVER
BSD-3607950027.A86
3607950027
|
£14.91
|
£17.89
|
|
|
659 - SUSPENSION LOOP
BSD-3604720004.A111
3604720004
|
£2.94
|
£3.53
|
|
|
751 - PROTECTIVE CAP
BSD-3605500210.A8
3605500210
|
£16.74
|
£20.09
|
|
|
808 - NAMEPLATE
BSD-3601119444.A0
3601119444
|
-
|
|
|
|
809 - MANUFACTURER'S NAMEPLATE
BSD-3601110496.A1
3601110496
|
£5.57
|
£6.68
|
|
|
810 - MICROSWITCH
BSD-3607200105.A5
3607200105
|
£31.64
|
£37.97
|
|
|
811 - MICROSWITCH
BSD-3607200111.A1
3607200111
|
£39.13
|
£46.96
|
|
|
812 - WIRING HARNESS
BSD-3609202A17.A1
3609202A17
|
£251.67
|
£302.00
|
|
|
860 - CONNECTOR CABLE 5 m
BSD-3604462078.A3
3604462078
|
£179.37
|
£215.24
|
|
|
890 - PARTS SET
BSD-3600106010.A48
3600106010
|
£23.86
|
£28.63
|
|
|
890 - PARTS SET
BSD-3600106011.A41
3600106011
|
£21.52
|
£25.83
|
|
|
890 - PARTS SET
BSD-3600106012.A48
3600106012
|
£23.86
|
£28.63
|
|
|
890 - PARTS SET
BSD-3600106013.A41
3600106013
|
£21.52
|
£25.83
|
|
|
890 - PARTS SET
BSD-3600106014.A48
3600106014
|
£23.86
|
£28.63
|
|
|
890 - PARTS SET
BSD-3600106015.A41
3600106015
|
£27.23
|
£32.68
|
|
|
890 - PARTS SET
BSD-3600106017.A11
3600106017
|
£23.86
|
£28.63
|
|
