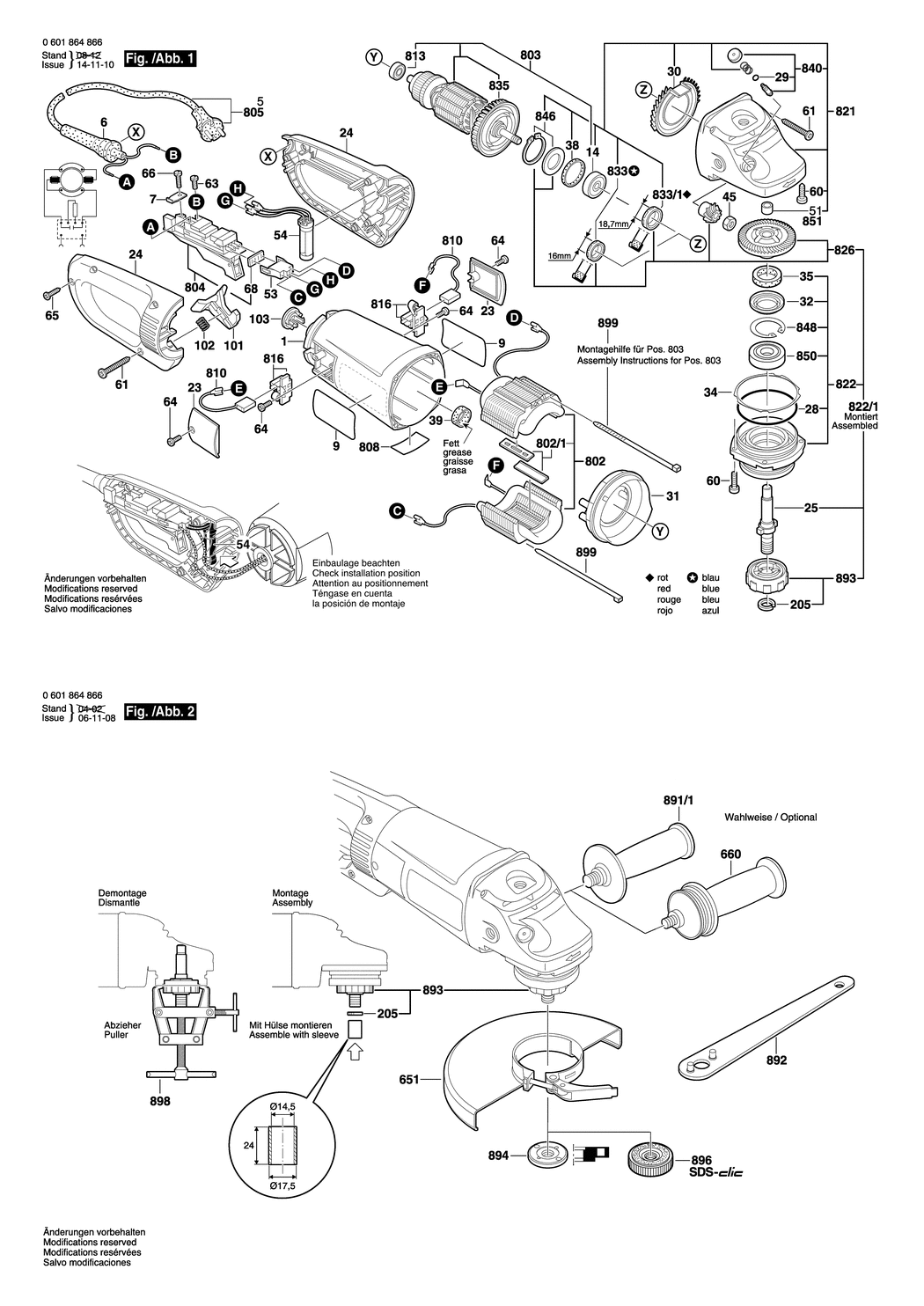

1 - MOTOR HOUSING
BSD-1605108246.A3
1605108246
|
-
|
|
|
|
6 - GROMMET dia 10.5-dia11.0x100 MM
BSD-1600703023.A383
1600703023
|
£2.74
|
£3.29
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A40
1601302018
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118G09.A1
1601118G09
|
£3.99
|
£4.79
|
|
|
14 - GROOVE BALL BEARING
BSD-1600905028.A304
1600905028
|
£12.64
|
£15.17
|
|
|
23 - SEALING CAP
BSD-1605500244.A2
1605500244
|
£3.91
|
£4.69
|
|
|
24 - HANDLE
BSD-1605132143.A1
1605132143
|
£12.37
|
£14.84
|
|
|
25 - GRINDING SPINDLE
BSD-160312305Z.A2
160312305Z
|
£35.12
|
£42.15
|
|
|
28 - O-RING 79.0x1.78 MM
BSD-1600210033.A128
1600210033
|
£1.75
|
£2.10
|
|
|
29 - O-RING 8.0x1.0 MM
BSD-1600210045.A145
1600210045
|
£1.84
|
£2.21
|
|
|
30 - AIR DISTRIBUTOR
BSD-1600591029.A4
1600591029
|
£2.61
|
£3.13
|
|
|
31 - AIR-DEFLECTOR RING
BSD-1600591028.A367
1600591028
|
£2.45
|
£2.94
|
|
|
32 - RETAINING SNAP RING
BSD-1600290019.A40
1600290019
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A784
1600190020
|
£1.84
|
£2.21
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A43
1600190021
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A784
1600190022
|
£1.84
|
£2.21
|
|
|
34 - SHIM 0.2 MM
BSD-1600190037.A322
1600190037
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.25 MM
BSD-1600190038.A65
1600190038
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.35 MM
BSD-1600190039.A322
1600190039
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.4 MM
BSD-1600190040.A65
1600190040
|
£1.75
|
£2.10
|
|
|
35 - FELT WASHER
BSD-1600205034.A605
1600205034
|
£1.75
|
£2.10
|
|
|
38 - RUBBER RING 7 MM
BSD-1600206020.A486
1600206020
|
£1.75
|
£2.10
|
|
|
39 - RUBBER RING
BSD-1600206030.A224
1600206030
|
£1.75
|
£2.10
|
|
|
45 - HEX NUT M10. SW14
BSD-1603300019.A617
1603300019
|
£1.75
|
£2.10
|
|
|
51 - PLAIN BEARING dia14 MM
BSD-1600200031.A399
1600200031
|
£2.80
|
£3.36
|
|
|
53 - SOCKET HOUSING
BSD-1605190068.A17
1605190068
|
£1.75
|
£2.10
|
|
|
54 - SUPPRESSION FILTER
BSD-1604503017.A3
1604503017
|
£10.82
|
£12.99
|
|
|
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM
BSD-1603435023.A250
1603435023
|
£2.16
|
£2.59
|
|
|
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST
BSD-2912401038.A599
2912401038
|
£1.84
|
£2.21
|
|
|
63 - PAN HEAD SCREW M4x10 MM
BSD-1603410014.A612
1603410014
|
£1.84
|
£2.21
|
|
|
64 - PLASTIC-CUTTING SCREW St3.9x12
BSD-1603435042.A414
1603435042
|
£1.84
|
£2.21
|
|
|
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A621
2912401020
|
£2.16
|
£2.59
|
|
|
66 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2057
2910211019
|
£1.84
|
£2.21
|
|
|
68 - SEALING PLATE
BSD-1601006011.A374
1601006011
|
£2.74
|
£3.29
|
|
|
101 - CATCH SLIDE
BSD-1601990004.A82
1601990004
|
£2.61
|
£3.13
|
|
|
102 - COMPRESSION SPRING
BSD-1604616022.A33
1604616022
|
£1.84
|
£2.21
|
|
|
103 - CABLE ROUTING
BSD-1602388035.A128
1602388035
|
£1.75
|
£2.10
|
|
|
205 - SPRING RETAINING RING
BSD-1600209015.A0
1600209015
|
£1.75
|
£2.10
|
|
|
651 - PROTECTIVE COVER
BSD-1600A00XM0.A50
1600A00XM0
|
£22.76
|
£27.31
|
|
|
660 - AUXILIARY HANDLE M 14
BSD-1602025059.A14
1602025059
|
£23.86
|
£28.63
|
|
|
802 - FIELD 230V
BSD-1607000C07.A3
1607000C07
|
£92.47
|
£110.96
|
|
|
802/1 - BRAKE SHOE
BSD-1607000363.A26
1607000363
|
£42.84
|
£51.41
|
|
|
803 - ARMATURE 230V
BSD-1604011257.A0
1604011257
|
£103.14
|
£123.77
|
|
|
804 - SWITCH
BSD-1607000970.A76
1607000970
|
£42.84
|
£51.41
|
|
|
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A306
1607000228
|
£23.86
|
£28.63
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A2767
160111A3H3
|
£2.74
|
£3.29
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014171.A75
1607014171
|
£14.91
|
£17.89
|
|
|
813 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A109
1600905011
|
£5.58
|
£6.70
|
|
|
816 - BRUSH HOLDER
BSD-1604336048.A358
1604336048
|
£7.72
|
£9.27
|
|
|
821 - GEAR HOUSING
BSD-1607000C09.A5
1607000C09
|
£71.84
|
£86.21
|
|
|
822 - BEARING FLANGE dia230 MM
BSD-1607000C05.A72
1607000C05
|
£28.68
|
£34.41
|
|
|
822/1 - BEARING FLANGE dia 230 MM
BSD-1607000735.A1
1607000735
|
£92.47
|
£110.96
|
|
|
826 - PARTS SET
BSD-1600A003FE.A50
1600A003FE
|
£37.27
|
£44.72
|
|
|
833 - ROTARY SHAFT LIP SEAL 16 MM
BSD-1600290064.A299
1600290064
|
£2.16
|
£2.59
|
|
|
833/1 - ROTARY SHAFT LIP SEAL 18.7 MM
BSD-1600290013.A506
1600290013
|
£2.74
|
£3.29
|
|
|
835 - FAN
BSD-1600A00J93.A94
1600A00J93
|
£2.80
|
£3.36
|
|
|
840 - PUSH-BUTTON
BSD-1607000C10.A2
1607000C10
|
£3.91
|
£4.69
|
|
|
846 - RETAINING WASHER
BSD-1607000C3E.A145
1607000C3E
|
£12.64
|
£15.17
|
|
|
848 - RETAINING CLIP
BSD-1600119010.A61
1600119010
|
£1.84
|
£2.21
|
|
|
850 - GROOVE BALL BEARING 17x40x12
BSD-1600905026.A3
1600905026
|
£9.11
|
£10.93
|
|
|
851 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A717
2600910001
|
£4.48
|
£5.37
|
|
|
891/1 - AUXILIARY HANDLE M14
BSD-1602025022.A749
1602025022
|
£13.41
|
£16.09
|
|
|
892 - PIN-TYPE FACE-WRENCH
BSD-1607950061.A430
1607950061
|
£5.69
|
£6.83
|
|
|
893 - CLAMPING-FLANGE
BSD-1607000368.A0
1607000368
|
£31.64
|
£37.97
|
|
|
894 - ROUND NUT M14
BSD-1603345043.A1275
1603345043
|
£9.11
|
£10.93
|
|
|
896 - FAST LOCKING FLANGE M14
BSD-1603340034.A6
1603340034
|
£36.63
|
£43.96
|
|
|
898 - PULLER
BSD-1609244A78.A1
1609244A78
|
-
|
|
|
|
899 - CABLE TIE 250x13.8x2
BSD-1609203H18.A25
1609203H18
|
£4.48
|
£5.37
|
|
