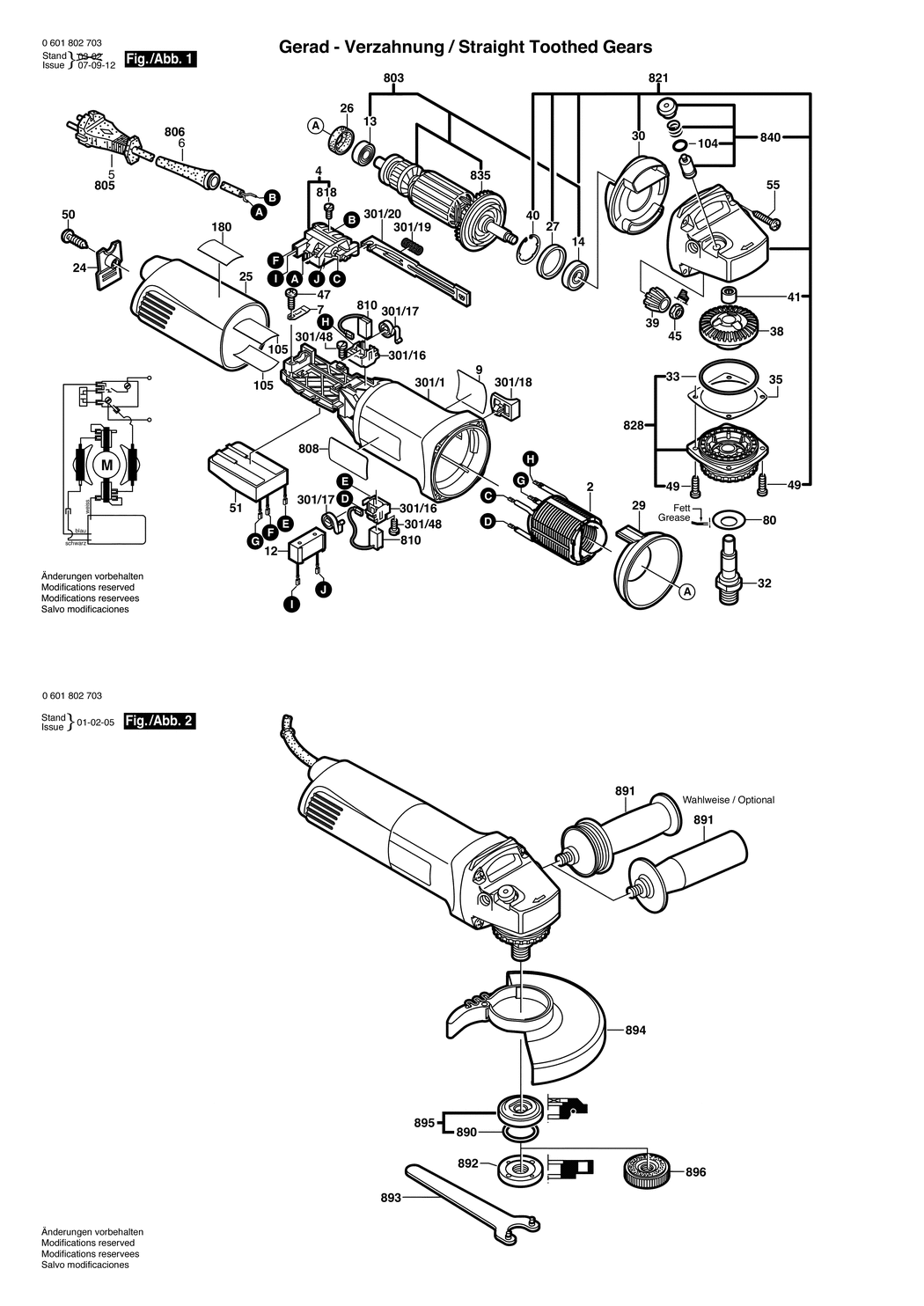

1 - MOTOR HOUSING
BSD-1605108252.A0
1605108252
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-1604220301.A54
1604220301
|
£30.28
|
£36.33
|
|
|
4 - ON-OFF SWITCH
BSD-1607200086.A259
1607200086
|
£11.30
|
£13.56
|
|
|
6 - GROMMET dia6.4-dia7.2x67 MM
BSD-1600703030.A130
1600703030
|
£2.61
|
£3.13
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A1030
1601302017
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118G28.A0
1601118G28
|
£3.34
|
£4.01
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328042.A115
1607328042
|
£6.52
|
£7.83
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A1070
2600905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1600905032.A478
1600905032
|
£5.58
|
£6.70
|
|
|
16 - BRUSH HOLDER
BSD-1601323025.A209
1601323025
|
£3.72
|
£4.47
|
|
|
17 - SPIRAL SPRING
BSD-1604652013.A983
1604652013
|
£1.75
|
£2.10
|
|
|
18 - SWITCH HANDLE
BSD-1602026090.A0
1602026090
|
£1.75
|
£2.10
|
|
|
19 - COMPRESSION SPRING
BSD-1604611026.A575
1604611026
|
£1.75
|
£2.10
|
|
|
20 - ADJUSTING SLIDE
BSD-1602319010.A130
1602319010
|
£1.75
|
£2.10
|
|
|
24 - COVER
BSD-1605500249.A2
1605500249
|
£3.72
|
£4.47
|
|
|
25 - HOUSING COVER
BSD-1600508033.A0
1600508033
|
£6.61
|
£7.93
|
|
|
26 - RUBBER RING
BSD-1600206036.A118
1600206036
|
£1.75
|
£2.10
|
|
|
27 - RUBBER RING
BSD-1600206025.A875
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600591025.A58
1600591025
|
£2.61
|
£3.13
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591014.A248
1600591014
|
£2.61
|
£3.13
|
|
|
32 - GRINDING SPINDLE
BSD-1607000D6A.A359
1607000D6A
|
£7.36
|
£8.83
|
|
|
33 - O-RING 46.0x1.1 MM
BSD-1600210035.A12
1600210035
|
£1.75
|
£2.10
|
|
|
35 - SHIM 0.1 MM
BSD-1600136013.A257
1600136013
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.15 MM
BSD-1600136020.A257
1600136020
|
£3.72
|
£4.47
|
|
|
35 - SHIM 0.2 MM
BSD-1600136014.A265
1600136014
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.3 MM
BSD-1600136015.A255
1600136015
|
£2.61
|
£3.13
|
|
|
38 - CROWN GEAR Z=38
BSD-1606333616.A68
1606333616
|
£9.49
|
£11.39
|
|
|
39 - BEVEL GEAR Z=11
BSD-1606333617.A52
1606333617
|
-
|
|
|
|
40 - RETAINING CLIP
BSD-1600119011.A504
1600119011
|
£2.16
|
£2.59
|
|
|
41 - PLAIN BEARING
BSD-1600200029.A71
1600200029
|
£4.26
|
£5.11
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A391
1603300016
|
£1.75
|
£2.10
|
|
|
47 - TAPPING SCREW DIN7981-ST3.9x13-C-Z
BSD-2912401018.A405
2912401018
|
£1.75
|
£2.10
|
|
|
48 - TAPPING SCREW DIN7981-ST2.9x9.5C-Z
BSD-2912401005.A41
2912401005
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW
BSD-1603435026.A72
1603435026
|
£2.16
|
£2.59
|
|
|
50 - TAPPING SCREW DIN7981-ST3.9x19-F-Z
BSD-2912401420.A86
2912401420
|
£1.75
|
£2.10
|
|
|
51 - SPEED GOVERNOR 220-240V
BSD-1607233116.A21
1607233116
|
£37.72
|
£45.27
|
|
|
55 - OVAL-HEAD SCREW
BSD-1603415005.A186
1603415005
|
£1.75
|
£2.10
|
|
|
80 - SEALING DISK
BSD-3600150021.A247
3600150021
|
£3.80
|
£4.56
|
|
|
104 - O-RING 4.5x1.0 MM
BSD-1600210044.A482
1600210044
|
£1.75
|
£2.10
|
|
|
105 - INSULATING PLATE
BSD-1601008005.A228
1601008005
|
£4.26
|
£5.11
|
|
|
803 - ARMATURE WITH FAN 220-240V
BSD-1604010640.A49
1604010640
|
£59.53
|
£71.44
|
|
|
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A429
1607000227
|
£23.86
|
£28.63
|
|
|
806 - GROMMET dia7.3-dia8.6x67 MM
BSD-1600703031.A47
1600703031
|
£2.80
|
£3.36
|
|
|
808 - NAMEPLATE
BSD-160111A3HC.A215
160111A3HC
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014176.A34
1607014176
|
£13.12
|
£15.75
|
|
|
818 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A73
2910110048
|
£1.75
|
£2.10
|
|
|
821 - GEAR HOUSING
BSD-1605806465.A69
1605806465
|
£40.80
|
£48.96
|
|
|
828 - BEARING FLANGE dia 110-125 MM
BSD-1607000347.A38
1607000347
|
£16.41
|
£19.69
|
|
|
835 - FAN
BSD-1606610129.A71
1606610129
|
£2.16
|
£2.59
|
|
|
840 - PUSH-BUTTON
BSD-1607000A45.A0
1607000A45
|
£2.52
|
£3.02
|
|
|
890 - O-RING 20.35x1.78 MM
BSD-1600210039.A1204
1600210039
|
£2.16
|
£2.59
|
|
|
891 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A89
160202509T
|
£3.72
|
£4.47
|
|
|
892 - ROUND NUT M14
BSD-1603345043.A31
1603345043
|
£8.67
|
£10.41
|
|
|
893 - PIN-TYPE FACE-WRENCH
BSD-1607950052.A587
1607950052
|
£3.72
|
£4.47
|
|
|
894 - PROTECTIVE COVER dia 125 MM
BSD-1605510313.A40
1605510313
|
-
|
|
|
|
895 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A12
2605703014
|
£7.36
|
£8.83
|
|
