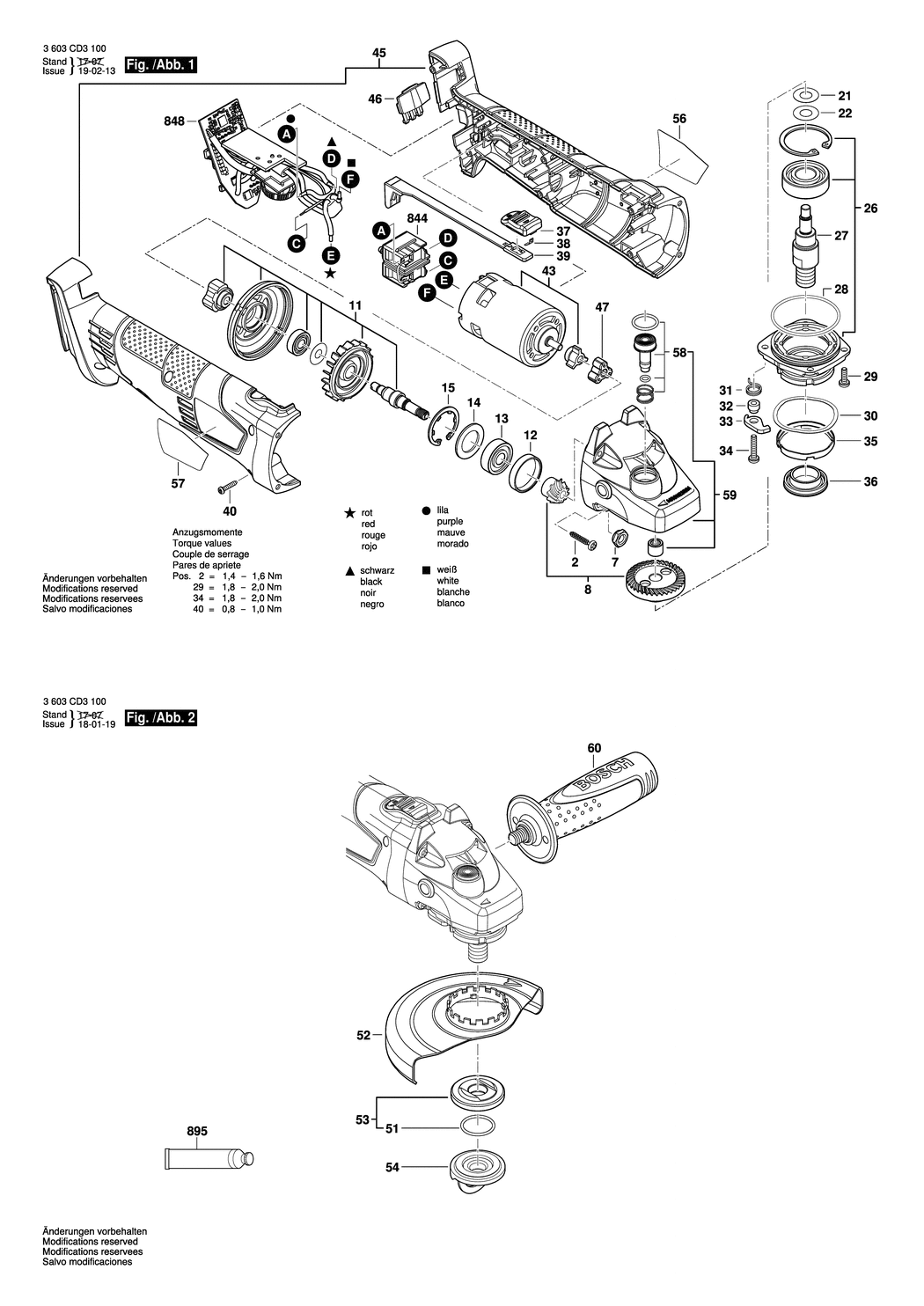

2 - TORX OVAL-HEAD SCREW
BSD-1603435089.A0
1603435089
|
£1.75
|
£2.10
|
|
|
7 - NUT
BSD-1600A00R58.A0
1600A00R58
|
£1.75
|
£2.10
|
|
|
8 - SET OF GEARWHEELS
BSD-1600A00R59.A0
1600A00R59
|
£23.86
|
£28.63
|
|
|
11 - BEVEL GEAR SHAFT
BSD-1600A00R99.A0
1600A00R99
|
£21.52
|
£25.83
|
|
|
12 - RUBBER RING
BSD-1600A00R5N.A0
1600A00R5N
|
£2.16
|
£2.59
|
|
|
13 - GROOVE BALL BEARING
BSD-160090006J.A0
160090006J
|
£5.58
|
£6.70
|
|
|
14 - SHIM WASHER
BSD-1600A00R5P.A0
1600A00R5P
|
£2.16
|
£2.59
|
|
|
15 - SPRING RETAINING RING
BSD-1600A00R5R.A0
1600A00R5R
|
£2.16
|
£2.59
|
|
|
21 - SHIM
BSD-1600A00R5Y.A0
1600A00R5Y
|
£1.75
|
£2.10
|
|
|
22 - SHIM
BSD-1600A00R5Z.A0
1600A00R5Z
|
£1.75
|
£2.10
|
|
|
26 - BEARING FLANGE
BSD-160580809T.A0
160580809T
|
£16.41
|
£19.69
|
|
|
27 - SPINDLE
BSD-1600A00R61.A0
1600A00R61
|
-
|
|
|
|
28 - O-RING
BSD-160021007C.A0
160021007C
|
£1.75
|
£2.10
|
|
|
29 - TORX OVAL-HEAD SCREW
BSD-160343508A.A0
160343508A
|
£1.75
|
£2.10
|
|
|
30 - SPRING
BSD-1600A00R62.A0
1600A00R62
|
£2.80
|
£3.36
|
|
|
31 - SPRING
BSD-1600A00R63.A0
1600A00R63
|
£2.16
|
£2.59
|
|
|
32 - BUSHING
BSD-1600300119.A0
1600300119
|
£2.80
|
£3.36
|
|
|
33 - INTERLOCK
BSD-1600A00R64.A0
1600A00R64
|
£3.72
|
£4.47
|
|
|
34 - TORX OVAL-HEAD SCREW
BSD-160343508B.A0
160343508B
|
£1.75
|
£2.10
|
|
|
35 - RING
BSD-1600A00R6H.A0
1600A00R6H
|
£2.16
|
£2.59
|
|
|
36 - SEALING CAP
BSD-1600A00R6J.A0
1600A00R6J
|
£3.72
|
£4.47
|
|
|
37 - SWITCH BUTTON
BSD-1600A00R6K.A0
1600A00R6K
|
£1.66
|
£1.99
|
|
|
38 - SPRING
BSD-1600A00R6L.A0
1600A00R6L
|
£1.32
|
£1.58
|
|
|
39 - ADJUSTING SLIDE
BSD-1600A00R6M.A0
1600A00R6M
|
£2.33
|
£2.80
|
|
|
40 - TORX OVAL-HEAD SCREW
BSD-160343508C.A0
160343508C
|
£1.75
|
£2.10
|
|
|
43 - DC MOTOR
BSD-160702266J.A0
160702266J
|
£58.76
|
£70.51
|
|
|
45 - HOUSING SECTION
BSD-16051082EK.A0
16051082EK
|
£45.67
|
£54.80
|
|
|
46 - LENS
BSD-1600A00R8S.A0
1600A00R8S
|
£4.26
|
£5.11
|
|
|
47 - RUBBER
BSD-1600A00R8T.A0
1600A00R8T
|
£3.72
|
£4.47
|
|
|
51 - O-RING
BSD-160021007D.A0
160021007D
|
-
|
|
|
|
52 - PROTECTIVE COVER
BSD-1600A00R8U.A0
1600A00R8U
|
£21.52
|
£25.83
|
|
|
53 - CLAMPING-FLANGE
BSD-1600A00R8W.A0
1600A00R8W
|
£14.72
|
£17.67
|
|
|
54 - PARTS SET
BSD-1600A00Z8B.A0
1600A00Z8B
|
-
|
|
|
|
56 - MANUFACTURER'S NAMEPLATE
BSD-160111A3YF.A0
160111A3YF
|
-
|
|
|
|
57 - NAMEPLATE
BSD-160111A3YE.A0
160111A3YE
|
£2.61
|
£3.13
|
|
|
58 - PUSH-BUTTON
BSD-1600A00S0L.A0
1600A00S0L
|
£3.34
|
£4.01
|
|
|
59 - GEAR HOUSING
BSD-16058065FR.A0
16058065FR
|
£24.45
|
£29.34
|
|
|
60 - HANDLE
BSD-160513216P.A0
160513216P
|
£8.67
|
£10.41
|
|
|
844 - SWITCH
BSD-1607000D6M.A0
1607000D6M
|
-
|
|
|
|
848 - ELECTRONICS MODULE
BSD-1600A014VZ.A0
1600A014VZ
|
-
|
|
|
|
895 - GREASE TUBE 225 ML
BSD-1605430003.A1
1605430003
|
£33.74
|
£40.49
|
|
