Bosch ART 30 D / 0600825036 / NL 230 Volt Spare Parts

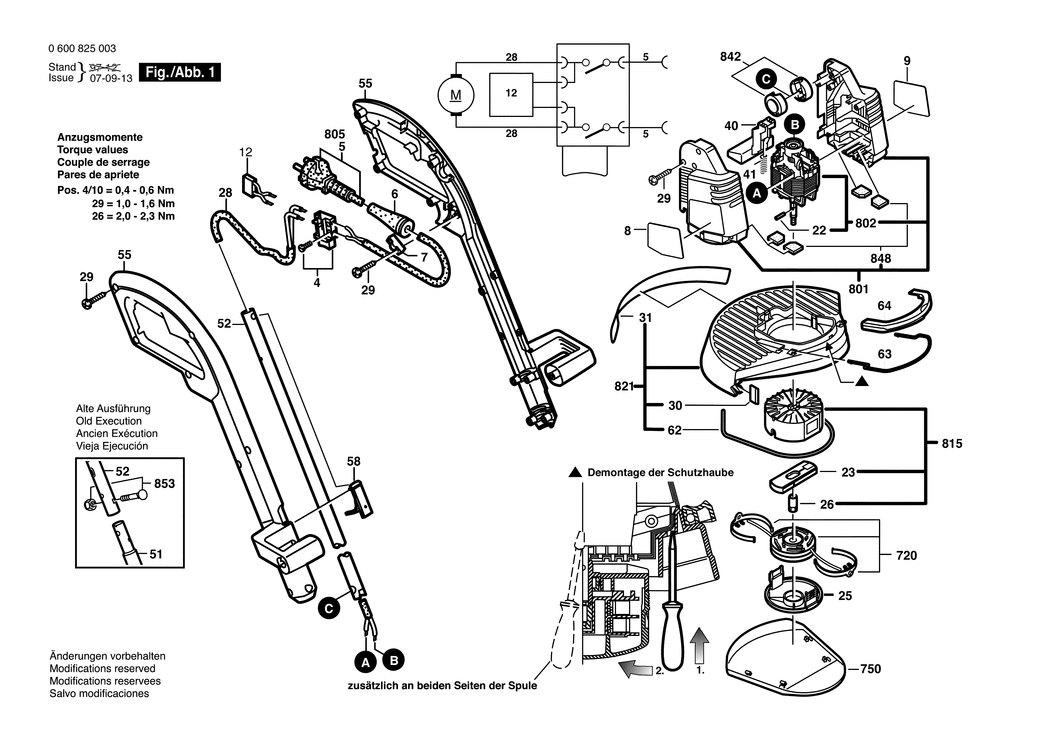

An exploded drawing and listing for the Bosch ART 30 D / 0600825036 / NL 230 Volt

	Ex VAT	Inc VAT
4 - SWITCH BSD-1607200116.A40 1607200116	-
6 - GROMMET dia7.2-dia9.5x81 MM BSD-1600703026.A16 1600703026	£2.16	£2.59
7 - CABLE CLIP BSD-2601035001.A165 2601035001	£1.75	£2.10
8 - NAMEPLATE BSD-1601118423.A1 1601118423	-
9 - MANUFACTURER'S NAMEPLATE BSD-1601118433.A1 1601118433	-
12 - SUPPRESSION FILTER BSD-1607328028.A567 1607328028	£5.30	£6.36
22 - SLOTTED SPRING PIN 3x16 DIN 1481 BSD-2917760079.A23 2917760079	-
23 - PUSHER BSD-1601099025.A2 1601099025	-
25 - SEALING CAP BSD-1605500191.A0 1605500191	£2.52	£3.02
26 - PLASTIC NUT M6 BSD-1603349020.A6 1603349020	-
28 - CONNECTING CABLE BSD-1604420025.A2 1604420025	-
29 - OVAL-HEAD SCREW 4x18 MM.TORX T20 BSD-2914201506.A115 2914201506	£1.75	£2.10
30 - CUTTER PLATE BSD-1608635042.A3 1608635042	-
31 - REFERENCE PLATE BSD-1601118435.A4 1601118435	£3.34	£4.01
40 - RELEASE LEVER BSD-1601990003.A3 1601990003	-
41 - COMPRESSION SPRING BSD-1604610017.A3 1604610017	-
52 - PIPE BSD-1600700025.A1 1600700025	-
55 - HANDLE COVER BSD-1605133040.A16 1605133040	-
58 - SUPPORT CLAMP BSD-1605500180.A9 1605500180	-
62 - GUIDE BRACKET BSD-1604690011.A3 1604690011	-
63 - SPACER BSD-1604690013.A3 1604690013	-
64 - SUPPORT CLAMP BSD-1608640080.A5 1608640080	-
720 - CUTTING LINE CARTRIDGE BSD-1608190020.A2 1608190020	-
750 - GUIDE BLOCK BSD-1608190023.A4 1608190023	-
801 - MOTOR HOUSING BSD-1607000325.A1 1607000325	-
805 - POWER SUPPLY CORD EU 2.6m 2 x 1.0 mm BSD-1607000385.A192 1607000385	£14.91	£17.89
815 - FAN BSD-1606610139.A1 1606610139	-
821 - PROTECTIVE COVER BSD-1605510247.A5 1605510247	£27.31	£32.77
842 - CATCH DISK BSD-1600190033.A2 1600190033	-
848 - RUBBER PLATE BSD-1601006009.A3 1601006009	-
853 - ROUND-HEAD BOLT BSD-1607000255.A12 1607000255	-
