Bosch ART 25 F / 0600822142 / GB 230 Volt Spare Parts

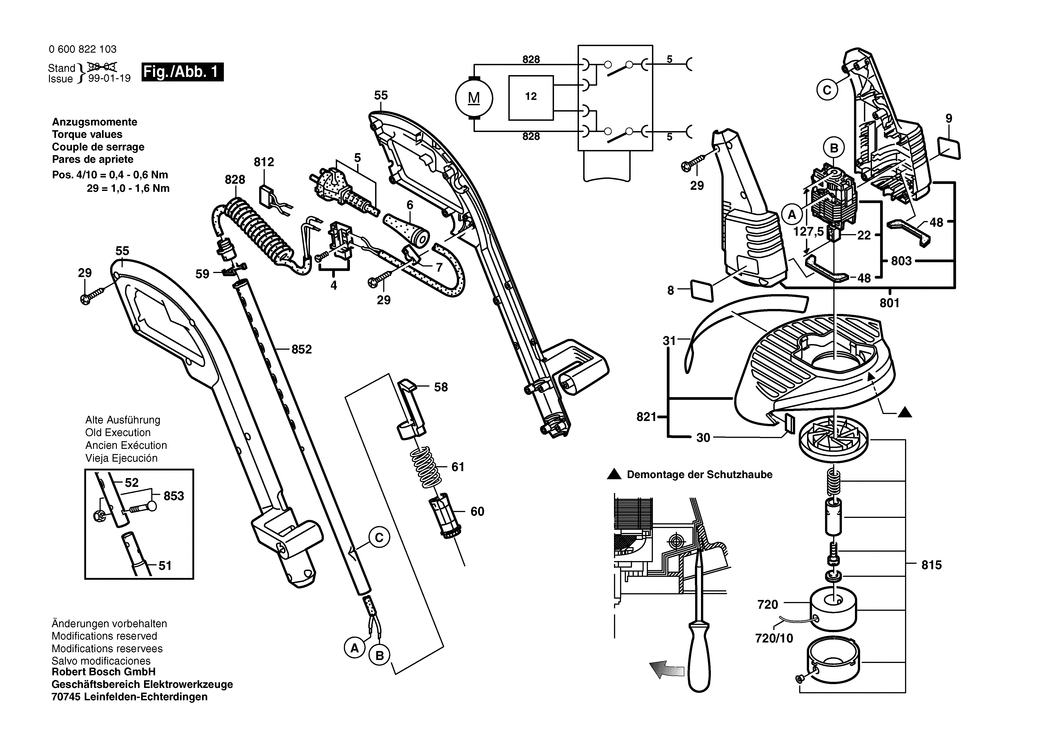

An exploded drawing and listing for the Bosch ART 25 F / 0600822142 / GB 230 Volt

	Ex VAT	Inc VAT
4 - SWITCH BSD-1607200116.A13 1607200116	-
5 - POWER SUPPLY CORD BSD-1604460165.A2 1604460165	-
6 - GROMMET dia7.2-dia9.5x81 MM BSD-1600703026.A37 1600703026	£2.16	£2.59
7 - CABLE CLIP BSD-2601035001.A210 2601035001	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601118035.A7 1601118035	-
22 - SUPPORT CLAMP BSD-1608040116.A0 1608040116	-
29 - OVAL-HEAD SCREW 4x18 MM.TORX T20 BSD-2914201506.A150 2914201506	£1.75	£2.10
30 - CUTTER PLATE BSD-1608635042.A14 1608635042	-
48 - RUBBER PLATE BSD-1601016012.A3 1601016012	-
55 - HANDLE COVER BSD-1605133040.A6 1605133040	-
58 - GUIDE SLEEVE BSD-1600499008.A2 1600499008	-
59 - STOP PLATE BSD-1602388032.A3 1602388032	-
60 - SPRING SLEEVE BSD-1600499009.A8 1600499009	-
61 - COMPRESSION SPRING BSD-1604615013.A8 1604615013	-
801 - ALTERNATING-CURRENT MOTOR BSD-1607220033.A0 1607220033	-
803 - ALTERNATING-CURRENT MOTOR BSD-1607220033.A1 1607220033	-
812 - SUPPRESSION FILTER BSD-1607328028.A548 1607328028	£5.57	£6.68
815 - CUTTING LINE CARTRIDGE BSD-F016102658.A19 F016102658	-
821 - PROTECTIVE COVER BSD-1607000954.A3 1607000954	-
828 - CONNECTING CABLE BSD-1604420024.A2 1604420024	-
852 - GUIDE TUBE BSD-1607000870.A1 1607000870	-
853 - ROUND-HEAD BOLT BSD-1607000255.A3 1607000255	-

Attribute Name	Value
Brand	Bosch
