Bosch ART 23 GFS / 0600827232 / CH 230 Volt Spare Parts

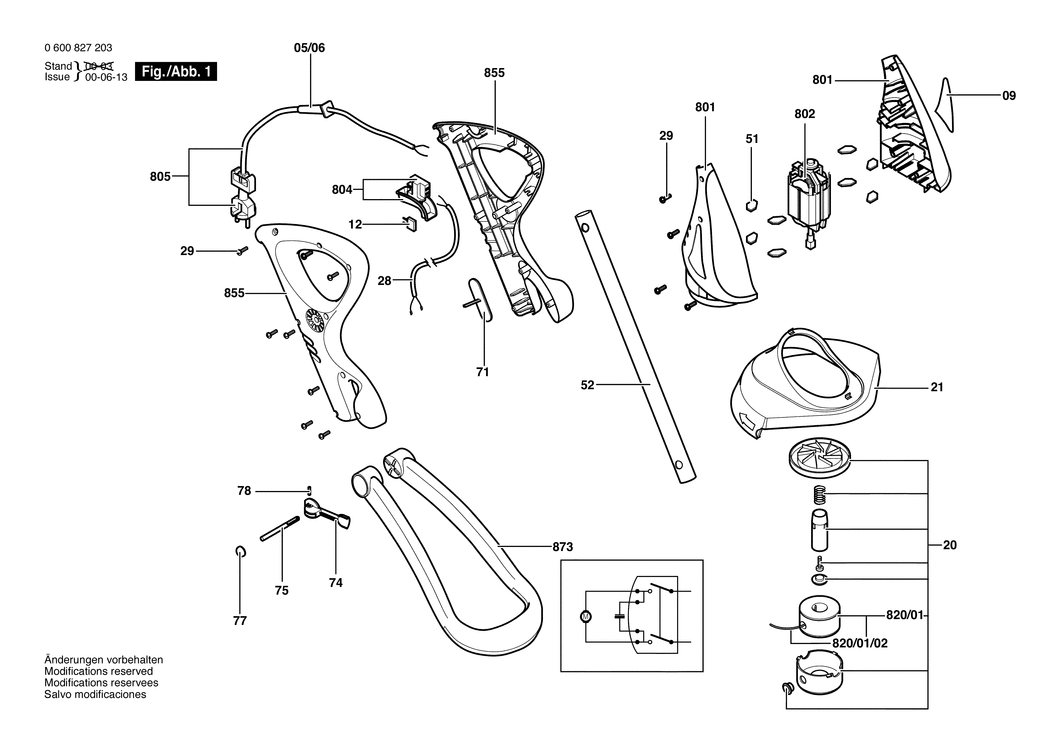

An exploded drawing and listing for the Bosch ART 23 GFS / 0600827232 / CH 230 Volt

	Ex VAT	Inc VAT
05/06 - GROMMET BSD-F016T44500.A44 F016T44500	£1.75	£2.10
09 - NAMEPLATE BSD-F016L62563.A2 F016L62563	-
12 - CONDENSER BSD-F016L36952.A5 F016L36952	£1.95	£2.34
20 - CUTTING LINE CARTRIDGE BSD-F016102658.A22 F016102658	-
21 - PROTECTIVE COVER BSD-F016102660.A41 F016102660	£5.87	£7.04
28 - CONNECTING CABLE BSD-F016L62877.A2 F016L62877	-
29 - SELF-CUTTING SCREW 4x19 MM BSD-F016L62029.A32 F016L62029	£1.75	£2.10
51 - RUBBER-INTER CALATION BSD-F016L62571.A6 F016L62571	£1.75	£2.10
52 - SLEEVE BSD-F016L62506.A1 F016L62506	-
71 - FILLER PIECE BSD-F016L62572.A8 F016L62572	£1.32	£1.58
74 - AUXILIARY HANDLE BSD-F016102842.A48 F016102842	-
75 - AUXILIARY HANDLE BSD-F016102842.A49 F016102842	-
77 - CAP BSD-F016L36262.A11 F016L36262	£1.75	£2.10
78 - STRAIGHT PIN BSD-F016T56145.A20 F016T56145	£1.75	£2.10
801 - HOUSING SET BSD-F016103127.A37 F016103127	£7.78	£9.33
802 - ALTERNATING-CURRENT MOTOR BSD-1607220045.A43 1607220045	£24.45	£29.34
804 - SWITCH BSD-F016102352.A21 F016102352	£6.61	£7.93
805 - POWER SUPPLY CORD CH BSD-F016104359.A46 F016104359	£21.52	£25.83
820/01 - CUTTING LINE CARTRIDGE BSD-F016102389.A24 F016102389	£13.41	£16.09
820/01/02 - STRING BSD-F016102387.A39 F016102387	£12.04	£14.45
855 - SWITCH HOUSING BSD-F016102747.A1 F016102747	-
873 - AUXILIARY HANDLE BSD-F016102842.A47 F016102842	-

Attribute Name	Value
Brand	Bosch
