Bosch ART 23 G / 06008275A3 / EU 230 Volt Spare Parts

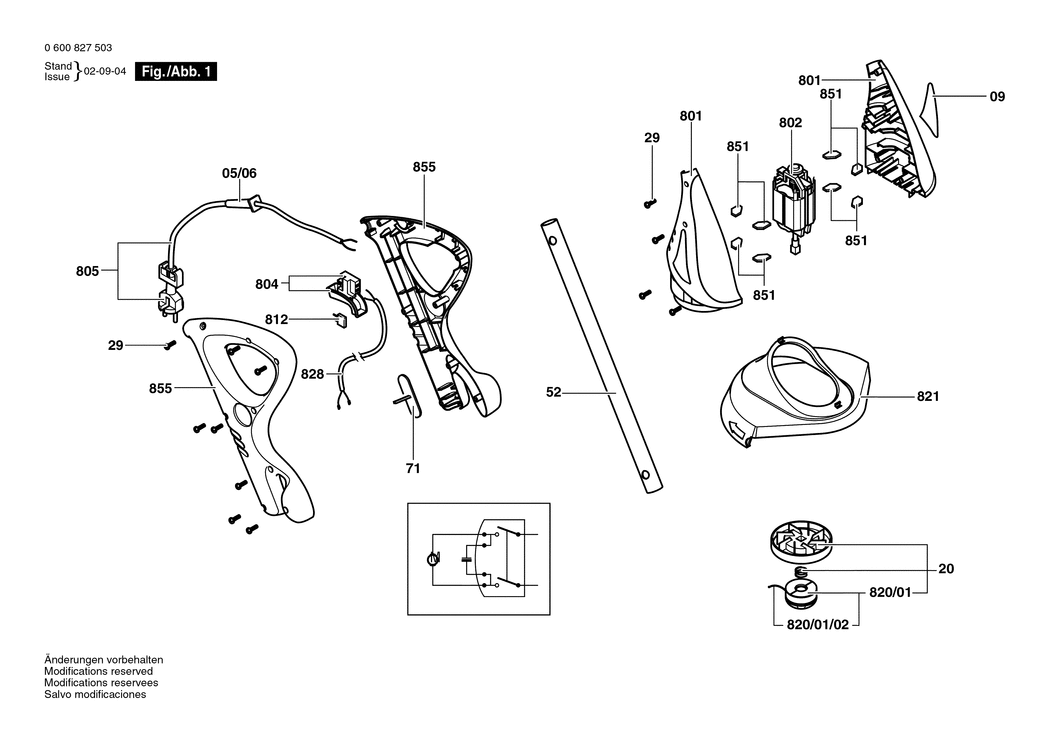

An exploded drawing and listing for the Bosch ART 23 G / 06008275A3 / EU 230 Volt

	Ex VAT	Inc VAT
05/06 - GROMMET BSD-F016T44500.A25 F016T44500	£1.75	£2.10
09 - NAMEPLATE BSD-F016L62539.A6 F016L62539	-
20 - CUTTING LINE CARTRIDGE BSD-1606610138.A4 1606610138	-
29 - SELF-CUTTING SCREW 4x19 MM BSD-F016T49429.A896 F016T49429	£1.75	£2.10
52 - GUIDE TUBE BSD-F016L64212.A16 F016L64212	-
71 - FILLER PIECE BSD-F016L63958.A25 F016L63958	£1.32	£1.58
801 - HOUSING SET BSD-F016103127.A10 F016103127	£7.78	£9.33
802 - ALTERNATING-CURRENT MOTOR BSD-1607220045.A10 1607220045	£24.45	£29.34
804 - ON-OFF SWITCH BSD-F016103157.A3 F016103157	£4.75	£5.70
805 - POWER SUPPLY CORD BSD-F016102997.A16 F016102997	£5.87	£7.04
812 - CONDENSER BSD-F016103155.A3 F016103155	£2.33	£2.80
820/01 - CUTTING LINE CARTRIDGE BSD-F016102388.A16 F016102388	-
820/01/02 - STRING BSD-F016102387.A9 F016102387	£12.04	£14.45
821 - PROTECTIVE COVER BSD-F016102660.A7 F016102660	£5.87	£7.04
828 - CONNECTING CABLE BSD-F016103156.A20 F016103156	£5.01	£6.01
851 - PARTS SET BSD-F016103139.A25 F016103139	£2.16	£2.59
855 - HOUSING SET BSD-F016103133.A11 F016103133	£6.61	£7.93

Attribute Name	Value
Brand	Bosch
