Bosch ART 23 F / 0600821903 / EU 230 Volt Spare Parts

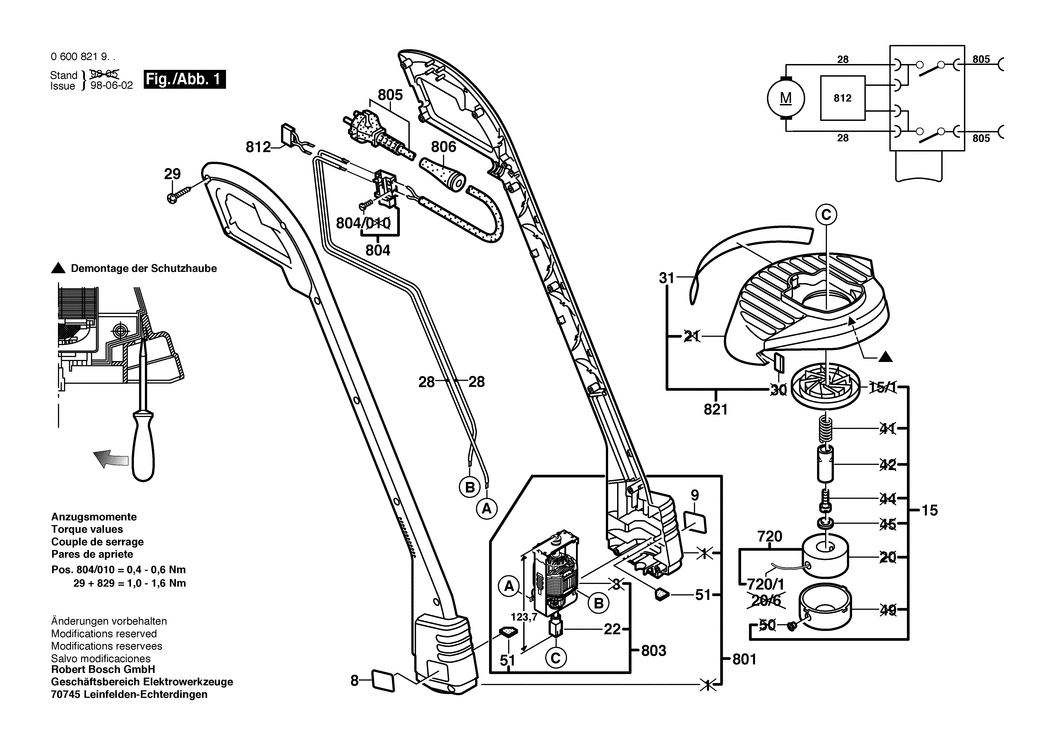

An exploded drawing and listing for the Bosch ART 23 F / 0600821903 / EU 230 Volt

	Ex VAT	Inc VAT
8 - NAMEPLATE BSD-1601118980.A0 1601118980	-
9 - MANUFACTURER'S NAMEPLATE BSD-1601118981.A0 1601118981	-
15 - CUTTING LINE CARTRIDGE BSD-F016102658.A0 F016102658	-
22 - SUPPORT CLAMP BSD-1608040113.A19 1608040113	£3.34	£4.01
28 - CONNECTING CABLE L=780 MM BSD-1604448014.A2 1604448014	-
29 - OVAL-HEAD SCREW 4x18 MM.TORX T20 BSD-2914201506.A129 2914201506	£1.75	£2.10
31 - REFERENCE PLATE BSD-1601118987.A1 1601118987	-
51 - RUBBER-INTER CALATION BSD-1601006012.A7 1601006012	-
720 - CUTTING LINE CARTRIDGE BSD-F016800002.A10 F016800002	-
720/1 - PLASTIC CABLE dia1.4 MM. L=24 M BSD-1604700004.A11 1604700004	-
801 - MOTOR HOUSING BSD-1607000864.A2 1607000864	-
803 - ALTERNATING-CURRENT MOTOR BSD-1607220045.A53 1607220045	£24.45	£29.34
804 - SWITCH BSD-1607200116.A6 1607200116	-
805 - POWER SUPPLY CORD EU 0.46m 2 x 1.0mm H05 VV-F BSD-2604460255.A116 2604460255	£8.67	£10.41
806 - GROMMET dia7.2-dia9.5x81 MM BSD-1600703026.A27 1600703026	£2.16	£2.59
812 - SUPPRESSION FILTER BSD-1607328028.A537 1607328028	£5.30	£6.36
821 - PROTECTIVE COVER BSD-1607000866.A5 1607000866	-

Attribute Name	Value
Brand	Bosch
