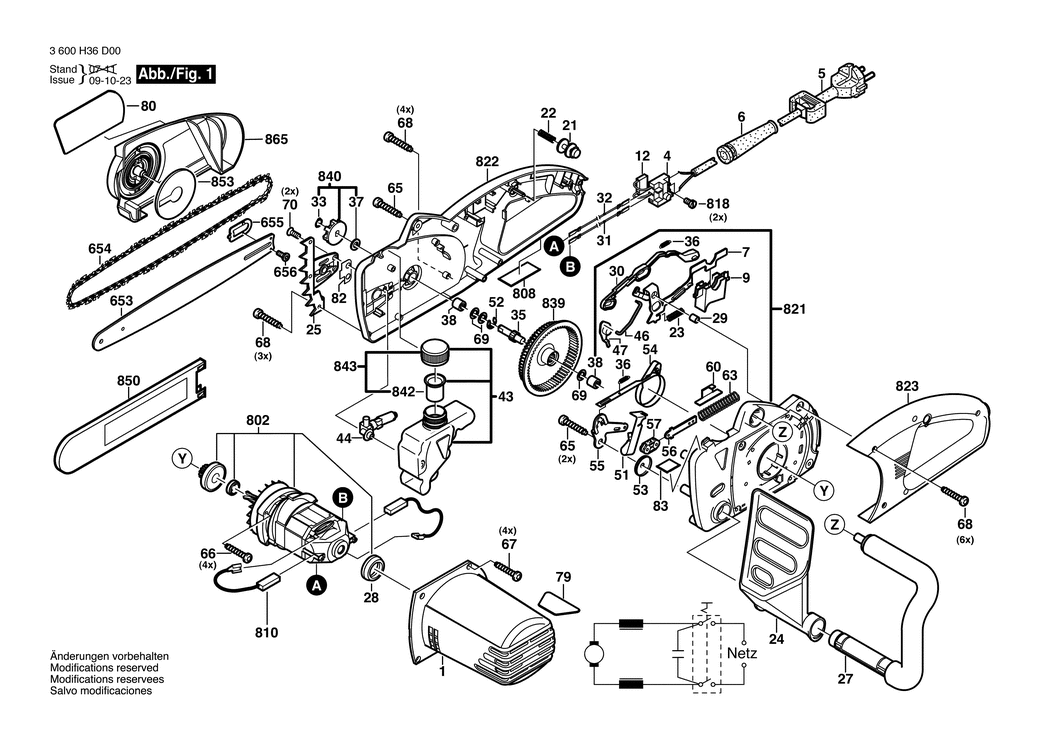

1 - MOTOR HOUSING
BSD-1605190228.A29
1605190228
|
£6.52
|
£7.83
|
|
|
4 - SWITCH
BSD-1607200193.A36
1607200193
|
£12.04
|
£14.45
|
|
|
5 - POWER SUPPLY CORD EU 230V 0.55m 2 x 1.0mm H07 RN-F
BSD-1604460242.A11
1604460242
|
£8.67
|
£10.41
|
|
|
6 - GROMMET
BSD-2609005766.A64
2609005766
|
£2.80
|
£3.36
|
|
|
7 - LEVER
BSD-1602002008.A20
1602002008
|
£6.52
|
£7.83
|
|
|
9 - PUSH-BUTTON
BSD-1603231020.A29
1603231020
|
£1.95
|
£2.34
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328028.A177
1607328028
|
£5.30
|
£6.36
|
|
|
21 - LOCKING BOLT
BSD-1600390019.A44
1600390019
|
£1.75
|
£2.10
|
|
|
22 - COMPRESSION SPRING
BSD-1604617008.A32
1604617008
|
£1.75
|
£2.10
|
|
|
23 - COMPRESSION SPRING
BSD-1604617015.A30
1604617015
|
£1.75
|
£2.10
|
|
|
24 - PROTECTIVE SHIELD
BSD-1605510315.A7
1605510315
|
£10.10
|
£12.12
|
|
|
25 - SPIKED BUMPER
BSD-1601098008.A25
1601098008
|
£5.58
|
£6.70
|
|
|
27 - HANDLE
BSD-1605133045.A6
1605133045
|
£14.91
|
£17.89
|
|
|
28 - INTERMEDIATE RING
BSD-1600206038.A27
1600206038
|
£1.75
|
£2.10
|
|
|
29 - BUSHING
BSD-1600300096.A1
1600300096
|
£1.75
|
£2.10
|
|
|
30 - PUSHER
BSD-1602319019.A22
1602319019
|
£2.80
|
£3.36
|
|
|
31 - CONNECTING CABLE
BSD-1604431003.A4
1604431003
|
£2.16
|
£2.59
|
|
|
32 - CONNECTING CABLE
BSD-1604431004.A33
1604431004
|
£2.61
|
£3.13
|
|
|
33 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A201
2916650001
|
£2.61
|
£3.13
|
|
|
35 - SHAFT
BSD-1606100039.A32
1606100039
|
£14.91
|
£17.89
|
|
|
36 - EXTENSION SPRING
BSD-1604650016.A34
1604650016
|
£1.75
|
£2.10
|
|
|
37 - FELT WASHER
BSD-1600205037.A26
1600205037
|
£1.75
|
£2.10
|
|
|
38 - NEEDLE BEARING
BSD-2600917006.A21
2600917006
|
£3.72
|
£4.47
|
|
|
43 - OIL RESERVOIR
BSD-1605405004.A36
1605405004
|
£16.41
|
£19.69
|
|
|
44 - OIL PUMP
BSD-1605437003.A9
1605437003
|
£16.41
|
£19.69
|
|
|
46 - ROD
BSD-1603023003.A21
1603023003
|
£5.30
|
£6.36
|
|
|
47 - SWIVELLING LEVER
BSD-1600590014.A3
1600590014
|
£5.58
|
£6.70
|
|
|
51 - CLAMP SPRING
BSD-1604651013.A11
1604651013
|
£2.80
|
£3.36
|
|
|
52 - LOCKING WASHER DIN 6799-9-FSt
BSD-2916080012.A116
2916080012
|
£1.75
|
£2.10
|
|
|
53 - COLLAR DISC
BSD-1600328030.A28
1600328030
|
£1.75
|
£2.10
|
|
|
54 - BRAKE BAND
BSD-1604652020.A34
1604652020
|
£5.30
|
£6.36
|
|
|
55 - LEVER ARM
BSD-1600590019.A20
1600590019
|
£2.80
|
£3.36
|
|
|
56 - SPRING GUIDE
BSD-1600590016.A34
1600590016
|
£2.16
|
£2.59
|
|
|
57 - LEVER CARRIER
BSD-1600390018.A17
1600390018
|
£2.80
|
£3.36
|
|
|
60 - PRESSURE PLATE
BSD-1600590012.A42
1600590012
|
£1.75
|
£2.10
|
|
|
63 - COMPRESSION SPRING
BSD-1604617017.A11
1604617017
|
£1.75
|
£2.10
|
|
|
65 - OVAL-HEAD SCREW 5x22
BSD-2914211528.A68
2914211528
|
£1.75
|
£2.10
|
|
|
66 - OVAL-HEAD SCREW 5x22
BSD-2914211528.A69
2914211528
|
£1.75
|
£2.10
|
|
|
67 - OVAL-HEAD SCREW 4x18 MM.TORX T20
BSD-2914201506.A29
2914201506
|
£1.75
|
£2.10
|
|
|
68 - OVAL-HEAD SCREW 4x18 MM.TORX T20
BSD-2914201506.A30
2914201506
|
£1.75
|
£2.10
|
|
|
69 - FRICTION WASHER
BSD-1600100038.A28
1600100038
|
£1.75
|
£2.10
|
|
|
70 - TAPPING SCREW 4.2x13
BSD-2910601325.A34
2910601325
|
£1.75
|
£2.10
|
|
|
79 - REFERENCE PLATE
BSD-1601118K69.A8
1601118K69
|
£2.33
|
£2.80
|
|
|
80 - MANUFACTURER'S NAMEPLATE AKE 35-19 S
BSD-1601118K62.A5
1601118K62
|
£2.80
|
£3.36
|
|
|
82 - SEAL STRIP
BSD-1601010009.A17
1601010009
|
£2.16
|
£2.59
|
|
|
83 - STICKER
BSD-1601118A64.A28
1601118A64
|
£3.72
|
£4.47
|
|
|
653 - GUIDE RAIL 350 MM
BSD-1600A015H6.A22
1600A015H6
|
£33.45
|
£40.14
|
|
|
654 - SAW CHAIN AKE 35
BSD-2609007364.A7
2609007364
|
£23.86
|
£28.63
|
|
|
655 - ADJUSTING PLATE
BSD-1601015035.A3
1601015035
|
£5.58
|
£6.70
|
|
|
656 - COUNTERSUNK-HEAD SCREW
BSD-1603421003.A3
1603421003
|
£1.75
|
£2.10
|
|
|
802 - ALTERNATING-CURRENT MOTOR
BSD-1607000A62.A10
1607000A62
|
£102.57
|
£123.08
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A2918
160111A3H3
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014170.A10
1607014170
|
£18.96
|
£22.75
|
|
|
818 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2945
2603410001
|
£1.75
|
£2.10
|
|
|
821 - HOUSING SECTION
BSD-1607000A88.A19
1607000A88
|
£21.68
|
£26.01
|
|
|
822 - HOUSING SECTION
BSD-1607000884.A27
1607000884
|
£48.38
|
£58.06
|
|
|
823 - HANDLE
BSD-1605133046.A27
1605133046
|
£27.23
|
£32.68
|
|
|
839 - RING GEAR
BSD-1607000A06.A35
1607000A06
|
£21.52
|
£25.83
|
|
|
840 - SPROCKET WHEEL
BSD-1607000885.A10
1607000885
|
£5.58
|
£6.70
|
|
|
842 - STRAINER
BSD-1607431000.A36
1607431000
|
£5.30
|
£6.36
|
|
|
843 - RESERVOIR CAP
BSD-1607000A47.A10
1607000A47
|
£6.52
|
£7.83
|
|
|
850 - CHAIN GUARD
BSD-1605510329.A27
1605510329
|
£10.10
|
£12.12
|
|
|
853 - DUST-PROTECTION COVER
BSD-1605190190.A35
1605190190
|
£2.80
|
£3.36
|
|
|
865 - PROTECTIVE COVER
BSD-1607000A89.A10
1607000A89
|
-
|
|
|
