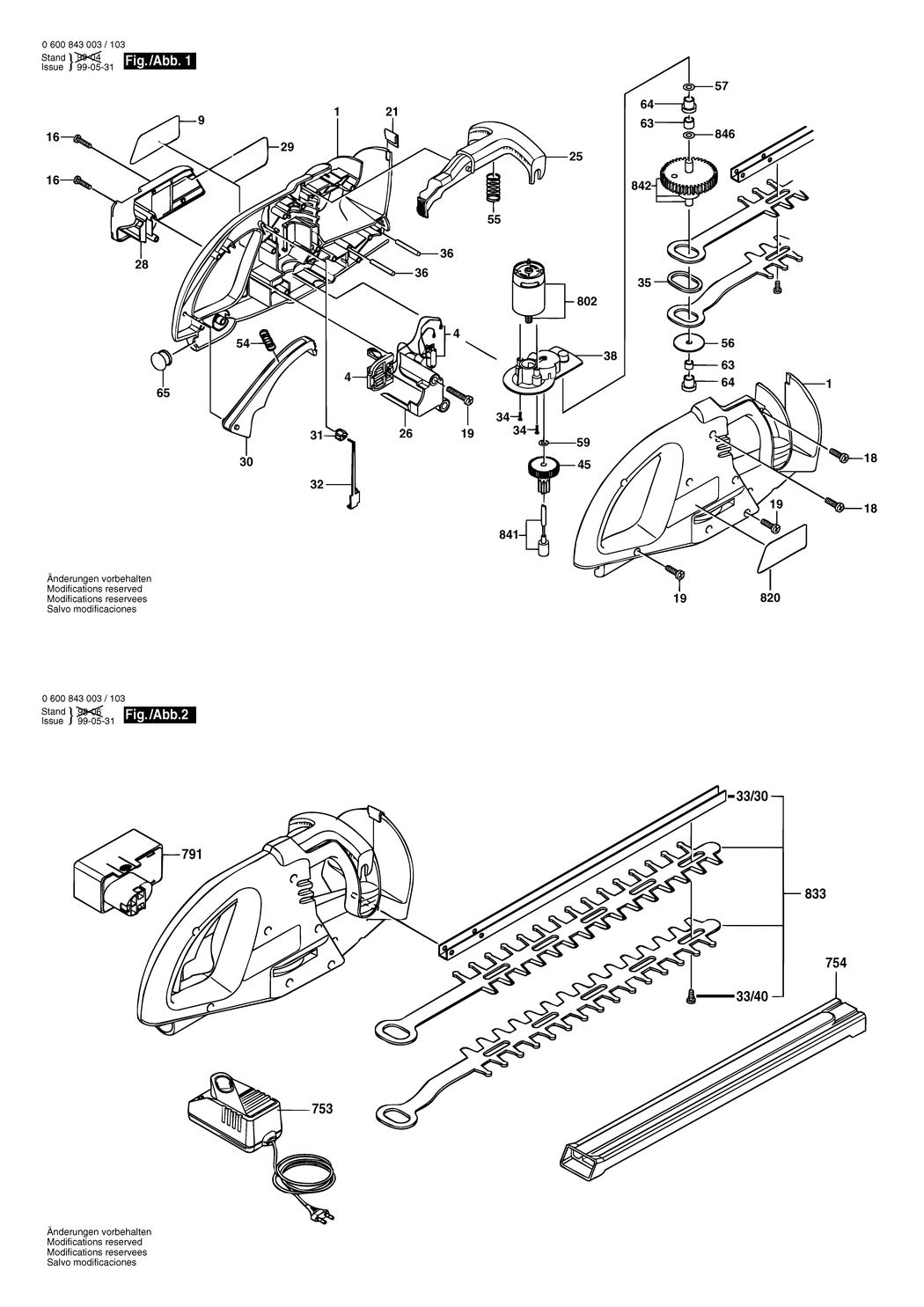

1 - HOUSING SECTION
BSD-2605104658.A2
2605104658
|
-
|
|
|
|
4 - CIRCUIT UNIT
BSD-2607235008.A2
2607235008
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601119395.A1
2601119395
|
-
|
|
|
|
16 - OVAL-HEAD SCREW
BSD-2603429008.A2
2603429008
|
-
|
|
|
|
18 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A681
2603490024
|
£1.75
|
£2.10
|
|
|
19 - SCREW 4x16
BSD-2603490022.A2053
2603490022
|
£1.84
|
£2.21
|
|
|
21 - SPRING CLIP
BSD-2601310010.A32
2601310010
|
-
|
|
|
|
25 - SWITCH SEGMENT
BSD-2605190219.A19
2605190219
|
-
|
|
|
|
26 - SWITCH HOUSING
BSD-2605190161.A6
2605190161
|
-
|
|
|
|
28 - INSERT PIECE
BSD-2605190162.A1
2605190162
|
-
|
|
|
|
29 - RETAINING BRACKET
BSD-2601329041.A242
2601329041
|
£2.33
|
£2.80
|
|
|
30 - SWITCH SEGMENT
BSD-1605190091.A32
1605190091
|
-
|
|
|
|
31 - SWITCH WHEEL
BSD-1606330021.A31
1606330021
|
£1.75
|
£2.10
|
|
|
32 - SHIFTER ROD
BSD-2608040144.A7
2608040144
|
-
|
|
|
|
33/30 - GUIDE
BSD-2601038070.A18
2601038070
|
-
|
|
|
|
33/40 - THREAD-FORMING TAP. SCREW
BSD-2603413033.A6
2603413033
|
-
|
|
|
|
34 - TORX SH CAP SCREW M3x5-8.8-Z
BSD-2603414048.A71
2603414048
|
£1.84
|
£2.21
|
|
|
35 - RETAINING SNAP RING
BSD-2600200044.A3
2600200044
|
-
|
|
|
|
36 - STRAIGHT PIN
BSD-2609002714.A205
2609002714
|
£1.84
|
£2.21
|
|
|
38 - GEAR HOUSING
BSD-2605806428.A4
2605806428
|
-
|
|
|
|
45 - CYLINDRICAL GEAR
BSD-2606316092.A3
2606316092
|
-
|
|
|
|
54 - COMPRESSION SPRING
BSD-2604610028.A138
2604610028
|
£1.84
|
£2.21
|
|
|
55 - COMPRESSION SPRING
BSD-2604610045.A97
2604610045
|
£1.84
|
£2.21
|
|
|
56 - SHIM
BSD-2600101096.A6
2600101096
|
-
|
|
|
|
57 - SHIM 0.5 MM
BSD-2600000028.A5
2600000028
|
£2.27
|
£2.72
|
|
|
59 - SHIM
BSD-2600100525.A5
2600100525
|
£1.84
|
£2.21
|
|
|
63 - NEEDLE BEARING
BSD-2600910005.A29
2600910005
|
-
|
|
|
|
64 - BEARING SLEEVE
BSD-2600400043.A6
2600400043
|
-
|
|
|
|
65 - PLUG
BSD-2608040145.A1
2608040145
|
-
|
|
|
|
753 - FAST CHARGER EU 230/7.2-24V. 1h
BSD-2607224425.A172
2607224425
|
£88.07
|
£105.68
|
|
|
754 - OIL RESERVOIR
BSD-2605411109.A5
2605411109
|
-
|
|
|
|
791 - SLIDE-IN ACCU PACKAGE 12V. 1.7Ah. NiCd
BSD-2607335039.A4
2607335039
|
-
|
|
|
|
802 - DC MOTOR 12V
BSD-2607022978.A2
2607022978
|
£27.31
|
£32.77
|
|
|
820 - REFERENCE PLATE
BSD-2601119397.A1
2601119397
|
-
|
|
|
|
833 - SET OF KNIVES
BSD-2607001326.A2
2607001326
|
-
|
|
|
|
841 - SHAFT
BSD-2603124906.A2
2603124906
|
-
|
|
|
|
842 - REFLECTOR AND DRIVE ASSY.
BSD-2607034003.A2
2607034003
|
-
|
|
|
|
846 - LOCKING WASHER DIN 6799-4-FSt
BSD-2916080007.A348
2916080007
|
£2.74
|
£3.29
|
|
