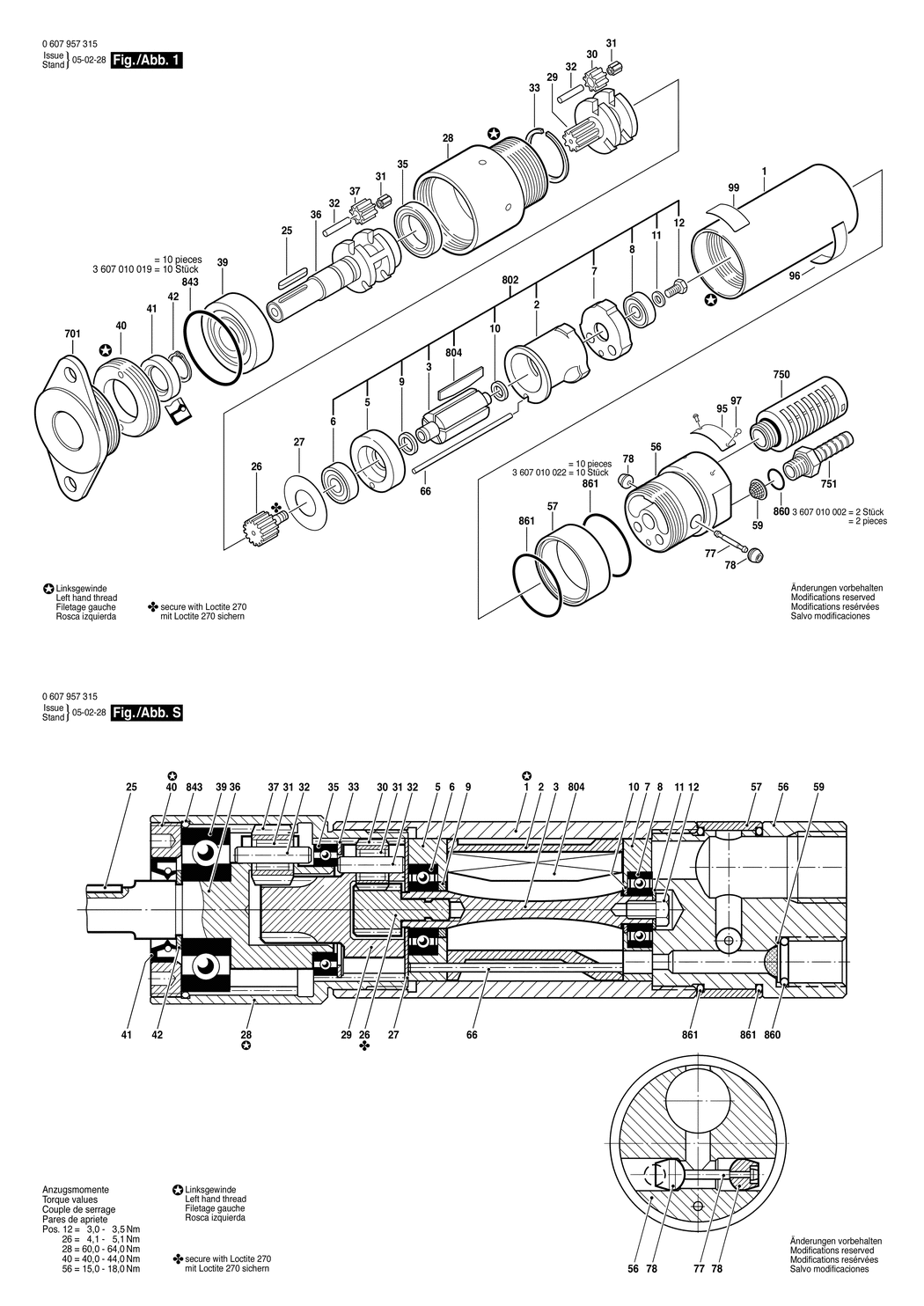

1 - MOTOR HOUSING
BSD-3600760013.A17
3600760013
|
£98.57
|
£118.28
|
|
|
2 - STATOR 740W
BSD-3604090023.A1
3604090023
|
£156.22
|
£187.46
|
|
|
3 - ROTOR
BSD-3604220021.A6
3604220021
|
£102.57
|
£123.08
|
|
|
5 - BEARING FLANGE
BSD-3605700014.A9
3605700014
|
£62.51
|
£75.01
|
|
|
6 - GROOVE BALL BEARING 10x26x8
BSD-1900905127.A96
1900905127
|
£27.23
|
£32.68
|
|
|
7 - BEARING FLANGE
BSD-3605700011.A10
3605700011
|
£71.84
|
£86.21
|
|
|
8 - BALL BEARING 8x22x7
BSD-1900905029.A43
1900905029
|
£22.60
|
£27.12
|
|
|
9 - SPACER RING
BSD-2600200007.A2
2600200007
|
£10.61
|
£12.73
|
|
|
10 - SPACER RING
BSD-3600202004.A19
3600202004
|
£11.30
|
£13.56
|
|
|
11 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A168
2916011012
|
£1.84
|
£2.21
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A0
2911061150
|
£2.74
|
£3.29
|
|
|
25 - PARALLEL KEY DIN 6885 A4x4x25-ST50K
BSD-1902300048.A3
1902300048
|
£2.74
|
£3.29
|
|
|
26 - PINION
BSD-3606300156.A2
3606300156
|
£33.22
|
£39.87
|
|
|
27 - STOP DISC
BSD-3600101004.A24
3600101004
|
£2.61
|
£3.13
|
|
|
28 - RING GEAR Z=46/35
BSD-3606334012.A3
3606334012
|
£195.26
|
£234.31
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337010.A1
3606337010
|
£93.88
|
£112.65
|
|
|
30 - CYLINDRICAL GEAR
BSD-3606316102.A31
3606316102
|
£31.64
|
£37.97
|
|
|
31 - NEEDLE-ROLLER ASSEMBLY
BSD-3600910000.A83
3600910000
|
£4.48
|
£5.37
|
|
|
32 - NEEDLE ROLLER
BSD-3603201005.A61
3603201005
|
£2.94
|
£3.53
|
|
|
33 - RETAINING RING
BSD-3600224004.A12
3600224004
|
£1.84
|
£2.21
|
|
|
35 - GROOVE BALL BEARING 25x37x7
BSD-3600905001.A70
3600905001
|
£31.64
|
£37.97
|
|
|
36 - PLANETARY-GEAR CARRIER
BSD-3606337180.A0
3606337180
|
-
|
|
|
|
37 - CYLINDRICAL GEAR Z=16
BSD-3606316091.A1
3606316091
|
£2.94
|
£3.53
|
|
|
39 - GROOVE BALL BEARING 17x47x14
BSD-1900900382.A9
1900900382
|
£33.74
|
£40.49
|
|
|
40 - THREADED RING
BSD-3603344060.A18
3603344060
|
£23.86
|
£28.63
|
|
|
41 - RADIAL SEAL
BSD-3600283010.A1
3600283010
|
£19.91
|
£23.89
|
|
|
42 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A70
2916650008
|
£1.84
|
£2.21
|
|
|
56 - CONNECTION HOUSING
BSD-3605190052.A0
3605190052
|
£205.02
|
£246.03
|
|
|
57 - PROTECTION SLEEVE
BSD-3600400003.A6
3600400003
|
£45.67
|
£54.80
|
|
|
59 - STRAINER
BSD-3600002000.A111
3600002000
|
£3.72
|
£4.47
|
|
|
66 - STRAIGHT PIN
BSD-3604710006.A15
3604710006
|
£9.11
|
£10.93
|
|
|
77 - HOLDING PIN
BSD-3603203006.A5
3603203006
|
£5.58
|
£6.70
|
|
|
78 - BALL
BSD-3603230012.A4
3603230012
|
£15.65
|
£18.78
|
|
|
95 - NAMEPLATE
BSD-3601100430.A2
3601100430
|
£3.91
|
£4.69
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601110331.A54
3601110331
|
£3.72
|
£4.47
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A606
3603133000
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A886
3601119236
|
£3.91
|
£4.69
|
|
|
701 - FASTENING FLANGE
BSD-3605700047.A9
3605700047
|
£107.69
|
£129.23
|
|
|
750 - SILENCER
BSD-3607000073.A25
3607000073
|
£19.91
|
£23.89
|
|
|
751 - HOSE FITTING
BSD-2603386002.A51
2603386002
|
£5.30
|
£6.36
|
|
|
802 - MOTOR SPARE PARTS SET
BSD-3607031098.A1
3607031098
|
£431.32
|
£517.59
|
|
|
804 - PARTS SET
BSD-3607030254.A21
3607030254
|
£27.23
|
£32.68
|
|
|
843 - PARTS SET
BSD-3607010019.A1
3607010019
|
£15.65
|
£18.78
|
|
|
860 - O-RING 10x2 MM
BSD-1900210306.A54
1900210306
|
£1.84
|
£2.21
|
|
|
861 - PARTS SET
BSD-3607010022.A1
3607010022
|
£17.22
|
£20.67
|
|
