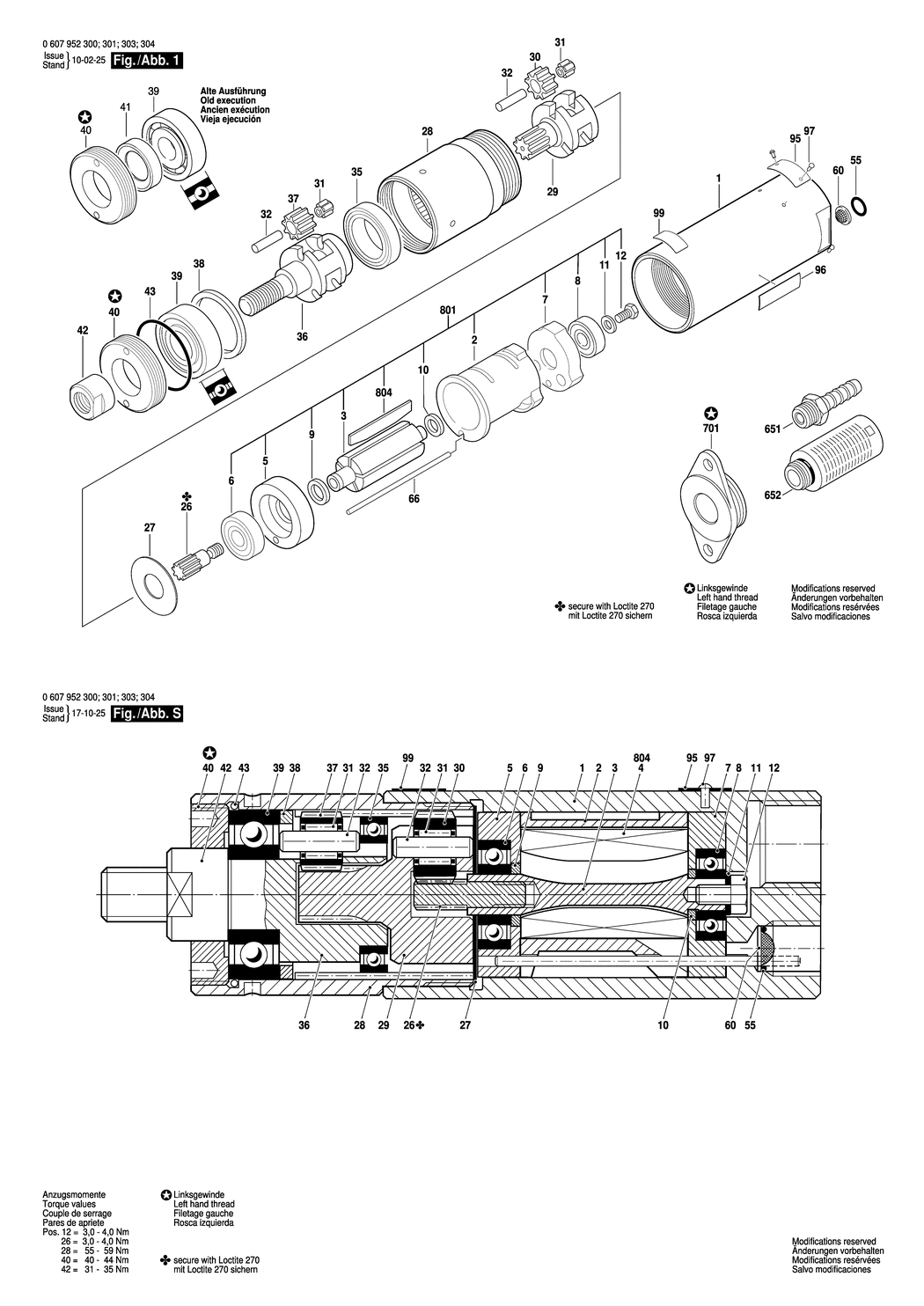

1 - MOTOR HOUSING
BSD-3605125002.A1
3605125002
|
£195.26
|
£234.31
|
|
|
2 - STATOR 550W
BSD-3604090009.A7
3604090009
|
£93.88
|
£112.65
|
|
|
3 - ROTOR
BSD-3604220005.A11
3604220005
|
£72.18
|
£86.62
|
|
|
5 - BEARING FLANGE
BSD-3605700014.A51
3605700014
|
£59.53
|
£71.44
|
|
|
6 - GROOVE BALL BEARING 10x26x8
BSD-1900905127.A13
1900905127
|
£27.23
|
£32.68
|
|
|
7 - BEARING FLANGE
BSD-3605700010.A5
3605700010
|
£59.53
|
£71.44
|
|
|
8 - BALL BEARING 8x22x7
BSD-1900905029.A162
1900905029
|
£21.52
|
£25.83
|
|
|
9 - SPACER RING
BSD-2600200007.A64
2600200007
|
£10.10
|
£12.12
|
|
|
10 - SPACER RING
BSD-3600202004.A26
3600202004
|
£11.30
|
£13.56
|
|
|
11 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A50
2916011012
|
£1.75
|
£2.10
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A141
2911061150
|
£2.61
|
£3.13
|
|
|
26 - PINION
BSD-3606300156.A12
3606300156
|
£31.64
|
£37.97
|
|
|
27 - STOP DISC
BSD-3600101004.A67
3600101004
|
£2.61
|
£3.13
|
|
|
28 - RING GEAR Z=46
BSD-3606334002.A27
3606334002
|
£135.25
|
£162.30
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337010.A3
3606337010
|
£93.88
|
£112.65
|
|
|
30 - CYLINDRICAL GEAR
BSD-3606316102.A16
3606316102
|
£31.64
|
£37.97
|
|
|
31 - NEEDLE-ROLLER ASSEMBLY
BSD-3600910000.A62
3600910000
|
£4.26
|
£5.11
|
|
|
32 - NEEDLE ROLLER
BSD-3603201005.A52
3603201005
|
£2.80
|
£3.36
|
|
|
35 - GROOVE BALL BEARING 25x37x7
BSD-3600905001.A41
3600905001
|
£31.64
|
£37.97
|
|
|
36 - PLANETARY-GEAR CARRIER
BSD-3606337012.A1
3606337012
|
£102.57
|
£123.08
|
|
|
37 - CYLINDRICAL GEAR Z=16
BSD-3606316091.A6
3606316091
|
£2.80
|
£3.36
|
|
|
38 - STOP DISC
BSD-3600101005.A7
3600101005
|
£6.52
|
£7.83
|
|
|
39 - GROOVE BALL BEARING
BSD-3600905025.A41
3600905025
|
£16.41
|
£19.69
|
|
|
40 - THREADED RING
BSD-3603344001.A12
3603344001
|
£16.41
|
£19.69
|
|
|
42 - THREADED SLEEVE
BSD-3600390004.A14
3600390004
|
£31.64
|
£37.97
|
|
|
43 - O-RING 41.0x1.78 MM
BSD-3600210006.A5
3600210006
|
£2.16
|
£2.59
|
|
|
55 - O-RING 8x2.5 MM
BSD-1900210105.A4
1900210105
|
£1.75
|
£2.10
|
|
|
60 - STRAINER
BSD-3600002000.A278
3600002000
|
£3.72
|
£4.47
|
|
|
66 - STRAIGHT PIN
BSD-3604710000.A44
3604710000
|
£5.58
|
£6.70
|
|
|
95 - NAMEPLATE
BSD-3601100430.A4
3601100430
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601110331.A68
3601110331
|
£3.72
|
£4.47
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A17
3603133000
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1887
3601119236
|
£3.72
|
£4.47
|
|
|
651 - HOSE FITTING
BSD-2603386002.A138
2603386002
|
£5.30
|
£6.36
|
|
|
652 - SILENCER
BSD-3607000073.A245
3607000073
|
£18.96
|
£22.75
|
|
|
701 - FASTENING FLANGE
BSD-3605700046.A5
3605700046
|
£120.11
|
£144.13
|
|
|
801 - ASSEMBLY OF SERVICE PARTS
BSD-3607031033.A1
3607031033
|
£306.65
|
£367.98
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030260.A48
3607030260
|
£21.68
|
£26.01
|
|
