Bosch 550 WATT-SERIE / 0607352120 / --- Spare Parts

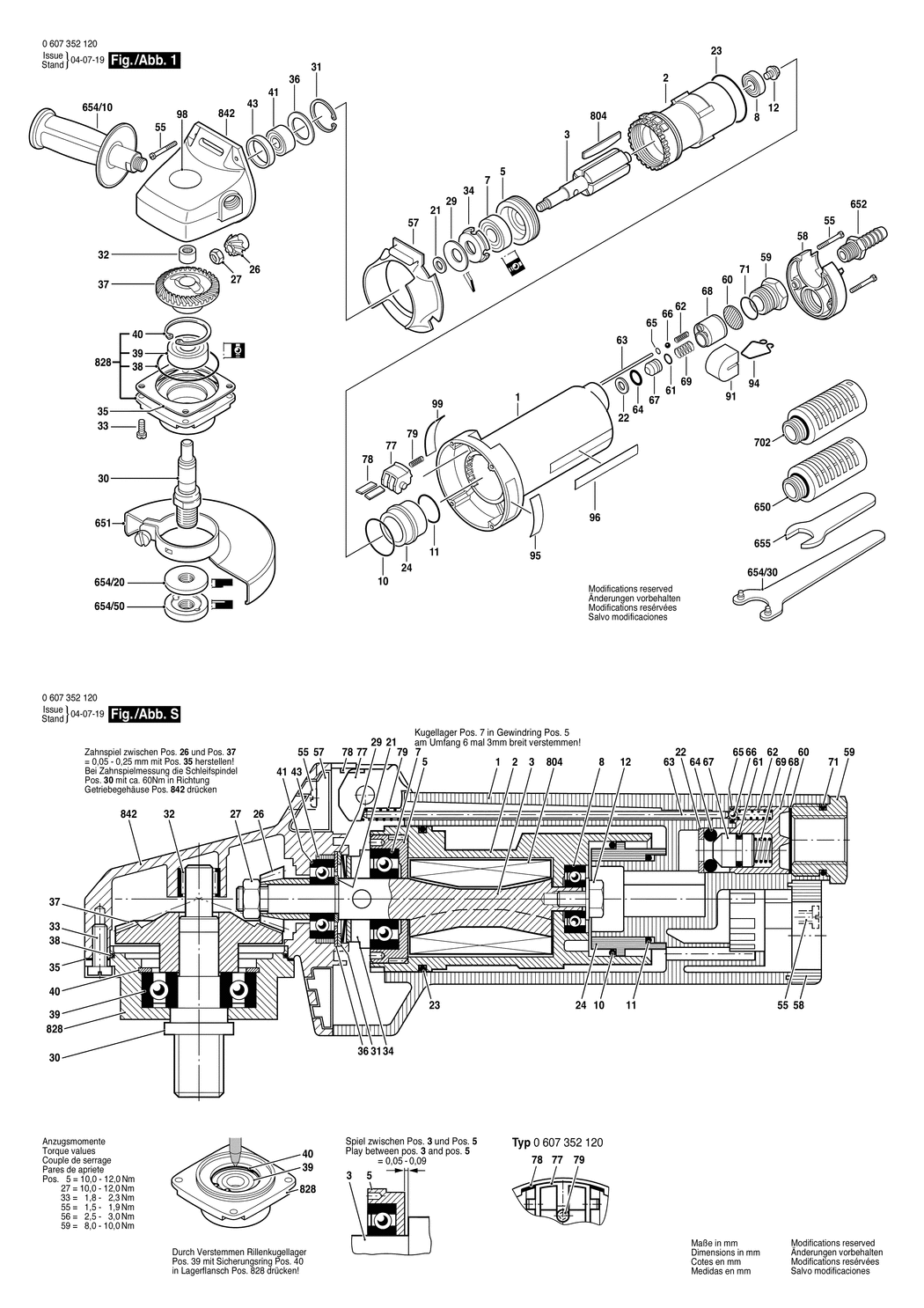

An exploded drawing and listing for the Bosch 550 WATT-SERIE / 0607352120 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605108059.A9 3605108059	£27.23	£32.68
2 - STATOR 550W BSD-3604090049.A0 3604090049	£98.57	£118.28
3 - ROTOR BSD-3604220077.A4 3604220077	£102.57	£123.08
5 - BEARING FLANGE BSD-3605700074.A0 3605700074	£28.59	£34.31
7 - GROOVE BALL BEARING BSD-3600905038.A3 3600905038	£15.65	£18.78
8 - GROOVE BALL BEARING DIN 625-7x19x6 BSD-3600905148.A10 3600905148	£8.92	£10.70
10 - O-RING 28x2 MM BSD-1900210127.A18 1900210127	£5.57	£6.68
11 - O-RING 20x2 MM BSD-1900210118.A46 1900210118	£2.80	£3.36
12 - HEX SCREW BSD-3603450006.A22 3603450006	£5.30	£6.36
21 - INTERMEDIATE RING BSD-3600100099.A2 3600100099	£18.96	£22.75
22 - STOP DISC BSD-3600100044.A2 3600100044	£2.61	£3.13
23 - O-RING 39.0x2.0 MM BSD-3600210022.A44 3600210022	£3.72	£4.47
24 - GUIDE SLEEVE BSD-3600327000.A15 3600327000	£3.72	£4.47
26 - BEVEL GEAR Z=11 BSD-1606333242.A79 1606333242	£48.38	£58.06
27 - HEX NUT BSD-3603300005.A1 3603300005	£16.41	£19.69
29 - DISC SPRING DIN 2093-C25G21 BSD-2916160109.A13 2916160109	£2.16	£2.59
30 - GRINDING SPINDLE 5/8 BSD-1603523122.A0 1603523122	£27.31	£32.77
31 - SPRING RETAINING RING DIN 472-25x1.2MM BSD-2916660009.A144 2916660009	£2.16	£2.59
32 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A829 1600910018	£5.57	£6.68
33 - THREAD-FORMING TAP. SCREW DIN 7500-TM4x12 BSD-2914471401.A51 2914471401	£1.75	£2.10
34 - THRUST RING BSD-3600203002.A8 3600203002	£33.74	£40.49
35 - SHIM 0.1 MM BSD-1600136012.A90 1600136012	£1.75	£2.10
35 - SHIM 0.2 MM BSD-1600136010.A90 1600136010	£2.61	£3.13
35 - SHIM 0.3 MM BSD-1600136011.A233 1600136011	£2.16	£2.59
36 - STOP DISC BSD-3600101008.A47 3600101008	£1.75	£2.10
36 - PLAIN WASHER 0.5 MM BSD-1600101603.A43 1600101603	-
37 - CROWN GEAR Z=36 BSD-1606333601.A71 1606333601	£8.49	£10.19
38 - O-RING 46.0x1.1 MM BSD-3600210124.A202 3600210124	£2.80	£3.36
39 - GROOVE BALL BEARING 12x32x10 BSD-1600905007.A78 1600905007	£11.30	£13.56
40 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A458 2916660013	£2.16	£2.59
41 - GROOVE BALL BEARING 8x22x7 BSD-1600905016.A7 1600905016	£10.10	£12.12
43 - RUBBER RING BSD-1600206025.A725 1600206025	£2.16	£2.59
55 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A842 2910211021	£1.75	£2.10
57 - COVER PLATE BSD-3600591000.A10 3600591000	£11.30	£13.56
58 - CONNECTION COVER BSD-3605500032.A18 3605500032	£8.67	£10.41
59 - FITTING BSD-3603462011.A49 3603462011	£14.91	£17.89
60 - FILTER SCREEN BSD-3600002004.A31 3600002004	£2.80	£3.36
61 - O-RING 6.0x2.0 MM BSD-3600210023.A6 3600210023	£3.91	£4.69
62 - COMPRESSION SPRING BSD-2604611025.A21 2604611025	£2.80	£3.36
63 - STRAIGHT PIN BSD-3604710054.A10 3604710054	£3.72	£4.47
64 - O-RING 5.94x3.53 MM BSD-3600210024.A50 3600210024	£2.27	£2.72
65 - O-RING 2.7x1.5 MM BSD-3600210025.A6 3600210025	£2.16	£2.59
66 - BALL DIN 5401-3 MM-III-ST BSD-1903230004.A143 1903230004	£2.27	£2.72
69 - COMPRESSION SPRING BSD-3604610024.A27 3604610024	£1.75	£2.10
71 - O-RING 15x2 MM BSD-1900210112.A63 1900210112	£2.61	£3.13
77 - TOGGLE SWITCH BSD-3602033001.A24 3602033001	£3.91	£4.69
78 - HOLDING PLATE BSD-3601100021.A5 3601100021	£5.30	£6.36
79 - COMPRESSION SPRING BSD-3604610008.A7 3604610008	£1.75	£2.10
91 - SILENCER BSD-3601010001.A26 3601010001	£2.16	£2.59
94 - HOLDING SPRING BSD-3601250003.A35 3601250003	£2.94	£3.53
95 - NAMEPLATE BSD-160111A3HF.A74 160111A3HF	£3.91	£4.69
96 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A232 1601110481	£2.27	£2.72
98 - REFERENCE PLATE BSD-3601119239.A4 3601119239	£7.78	£9.33
99 - REFERENCE PLATE BSD-3601119236.A1449 3601119236	£3.91	£4.69
650 - SILENCER BSD-3607000073.A177 3607000073	£19.91	£23.89
651 - PROTECTIVE COVER dia 125 MM BSD-1605510155.A5 1605510155	£48.38	£58.06
652 - HOSE FITTING BSD-3603386068.A54 3603386068	£22.60	£27.12
654/10 - AUXILIARY HANDLE M10 BSD-1602025027.A24 1602025027	£6.85	£8.22
654/20 - CLAMPING-FLANGE 5/8-FL+B BSD-3603340501.A2 3603340501	£5.57	£6.68
654/30 - PIN-TYPE FACE-WRENCH BSD-1607950052.A243 1607950052	£3.91	£4.69
654/50 - ROUND NUT 5/8 BSD-3603340503.A2 3603340503	£19.91	£23.89
655 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A894 2607950511	£4.48	£5.37
702 - SILENCER BSD-3607000073.A176 3607000073	£19.91	£23.89
804 - ASSEMBLY OF SERVICE PARTS BSD-3607030260.A32 3607030260	£21.68	£26.01
810 - PISTON ASSEMBLY GROUP BSD-3607030494.A18 3607030494	£18.96	£22.75
828 - BEARING FLANGE BSD-1607000936.A69 1607000936	£27.23	£32.68
842 - GEAR HOUSING BSD-3605806067.A1 3605806067	£33.74	£40.49

Attribute Name	Value
Brand	Bosch
