Bosch 400 WATT-SERIE / 0607461208 / --- Spare Parts

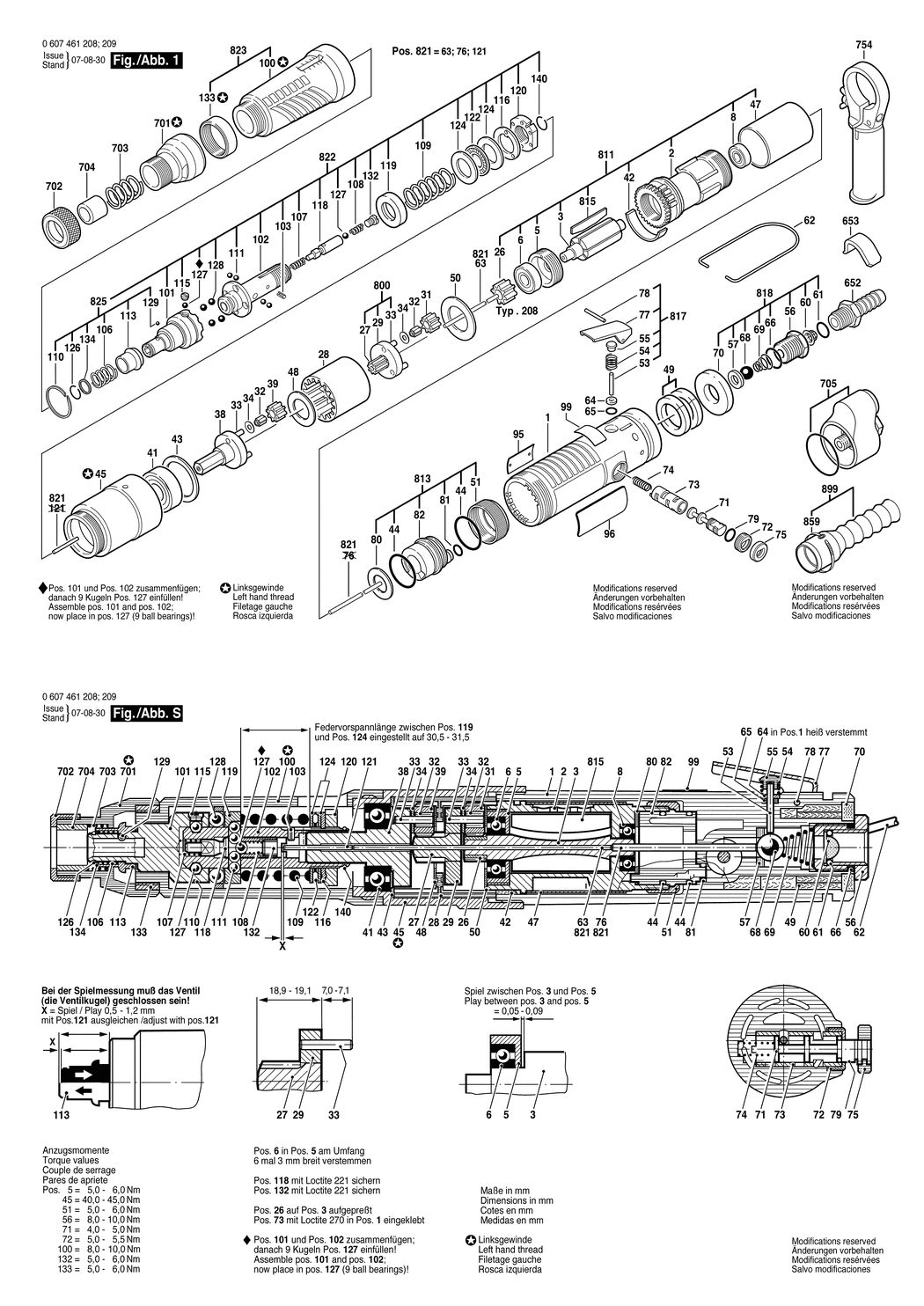

An exploded drawing and listing for the Bosch 400 WATT-SERIE / 0607461208 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605108072.A2 3605108072	£31.64	£37.97
2 - STATOR 320-400W BSD-3604090044.A4 3604090044	£81.81	£98.17
3 - ROTOR BSD-3604220064.A3 3604220064	£81.81	£98.17
5 - BEARING FLANGE BSD-3605700076.A29 3605700076	£48.38	£58.06
6 - GROOVE BALL BEARING 9x24x7 MM BSD-3600905039.A77 3600905039	£12.04	£14.45
8 - GROOVE BALL BEARING 7x17x5 BSD-1900905028.A224 1900905028	£33.74	£40.49
26 - CYLINDRICAL GEAR Z=15 BSD-3606316063.A5 3606316063	£37.27	£44.72
27 - PINION Z=12 BSD-3606300071.A5 3606300071	£33.74	£40.49
28 - RING GEAR Z=42 BSD-3606334054.A19 3606334054	£10.10	£12.12
29 - CARRIER BSD-3606337113.A5 3606337113	-
31 - CYLINDRICAL GEAR Z=15 BSD-3606316059.A16 3606316059	-
32 - NEEDLE-ROLLER CAGE BSD-3600913006.A18 3600913006	£7.36	£8.83
33 - NEEDLE ROLLER BSD-3603201047.A15 3603201047	£1.75	£2.10
34 - SHIM 0.20 MM BSD-2600100586.A75 2600100586	£1.75	£2.10
38 - PLANETARY-GEAR CARRIER BSD-3606337118.A5 3606337118	£68.42	£82.10
39 - CYLINDRICAL GEAR BSD-3606316116.A7 3606316116	£21.68	£26.01
41 - GROOVE BALL BEARING BSD-3600905045.A28 3600905045	£16.41	£19.69
42 - NON-WOVEN FABRIC BSD-3601010028.A7 3601010028	-
43 - STOP DISC BSD-3600102021.A29 3600102021	£3.72	£4.47
44 - O-RING 26.0x1.5 MM BSD-2600210018.A80 2600210018	£3.72	£4.47
45 - GEAR HOUSING BSD-3605125038.A7 3605125038	£48.38	£58.06
47 - SPIGOT BSD-3600700032.A24 3600700032	£21.68	£26.01
48 - STOP DISC BSD-3600101040.A20 3600101040	£2.16	£2.59
49 - SILENCER BSD-3601010006.A31 3601010006	£1.75	£2.10
50 - RETAINING WASHER BSD-3600101036.A20 3600101036	£4.26	£5.11
51 - UNION NUT BSD-3603313001.A27 3603313001	£14.91	£17.89
53 - NEEDLE ROLLER BSD-3603201050.A5 3603201050	£1.75	£2.10
54 - COMPRESSION SPRING BSD-3604611006.A172 3604611006	£2.16	£2.59
55 - VALVE CONE BSD-3603132000.A6 3603132000	£2.80	£3.36
56 - FITTING BSD-3603458008.A108 3603458008	£8.67	£10.41
57 - SEALING DISK BSD-3600206006.A32 3600206006	-
60 - STRAINER BSD-3600002000.A98 3600002000	£3.72	£4.47
61 - O-RING 10x2 MM BSD-1900210306.A50 1900210306	£1.75	£2.10
62 - SUSPENSION LOOP BSD-3604720004.A37 3604720004	£2.80	£3.36
63 - STRAIGHT PIN BSD-3604710055.A10 3604710055	£7.36	£8.83
64 - PLAIN WASHER DIN 125-A3.2-ST BSD-2916011006.A180 2916011006	£1.75	£2.10
65 - O-RING 2.4x1.9 MM BSD-2600210007.A4 2600210007	£2.16	£2.59
66 - O-RING 16x1.25 MM BSD-3600210036.A3 3600210036	£2.16	£2.59
68 - BALL DIN 5401-9.5MM-III-ST BSD-1903230528.A82 1903230528	£1.75	£2.10
69 - COMPRESSION SPRING BSD-3604616008.A30 3604616008	-
70 - SILENCER BSD-3600105002.A64 3600105002	£10.10	£12.12
71 - CONTROL PISTON BSD-3608750023.A4 3608750023	£45.67	£54.80
72 - THREADED RING BSD-3603344023.A9 3603344023	£31.64	£37.97
73 - VALVE BUSHING BSD-3600340005.A5 3600340005	£54.42	£65.30
74 - COMPRESSION SPRING BSD-3604611006.A171 3604611006	£2.16	£2.59
75 - RETAINING SNAP RING BSD-3600202012.A5 3600202012	£10.10	£12.12
76 - STRAIGHT PIN BSD-3604710051.A19 3604710051	£10.10	£12.12
77 - CONTROL LEVER BSD-3601902007.A0 3601902007	£6.52	£7.83
78 - GROOVED PIN DIN 1475-2x18-ST BSD-2917700040.A139 2917700040	£2.80	£3.36
79 - O-RING 9.0x1.2 MM BSD-3600210038.A118 3600210038	£2.61	£3.13
80 - SEALING PLATE BSD-3600054004.A9 3600054004	£6.52	£7.83
81 - O-RING 8.0x1.5 MM BSD-1900210103.A33 1900210103	£2.80	£3.36
82 - INTERMEDIATE PIECE BSD-3608750027.A25 3608750027	£14.91	£17.89
95 - NAMEPLATE BSD-160111A3HF.A460 160111A3HF	£3.72	£4.47
96 - MANUFACTURER'S NAMEPLATE BSD-3601110039.A26 3601110039	£5.30	£6.36
99 - REFERENCE PLATE BSD-3601119236.A874 3601119236	£3.72	£4.47
100 - HOUSING BSD-3605125035.A9 3605125035	£16.41	£19.69
101 - CLUTCH ELEMENT BSD-3606445032.A17 3606445032	£135.25	£162.30
102 - DRIVE SHAFT BSD-3606122008.A6 3606122008	£120.11	£144.13
103 - COILED SPRING PIN DIN 7343-2x5 BSD-2917800033.A58 2917800033	£1.75	£2.10
106 - COMPRESSION SPRING BSD-3604615009.A9 3604615009	£2.16	£2.59
107 - COMPRESSION SPRING BSD-3604610003.A85 3604610003	£3.72	£4.47
108 - COMPRESSION SPRING BSD-3604610002.A25 3604610002	£3.72	£4.47
109 - COMPRESSION SPRING dia 3.5 MM BSD-3604619005.A36 3604619005	£7.36	£8.83
110 - RETAINING RING BSD-3604601001.A29 3604601001	£2.16	£2.59
111 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A605 1903230007	£1.75	£2.10
113 - CLAMPING SLEEVE BSD-3600422005.A13 3600422005	£8.67	£10.41
115 - SEALING PLATE BSD-3609992353.A13 3609992353	£2.80	£3.36
116 - ADJUSTING DISC BSD-3600134000.A105 3600134000	£2.80	£3.36
118 - LOCKING BOLT BSD-3603150203.A1 3603150203	£45.67	£54.80
119 - COUPLING PLATE BSD-3600114001.A72 3600114001	£18.96	£22.75
120 - ROUND NUT BSD-3603301004.A89 3603301004	£21.68	£26.01
121 - STRAIGHT PIN 35.3 MM BSD-3603201002.A18 3603201002	£5.30	£6.36
122 - ROLLER THRUST BEARING BSD-3600921000.A12 3600921000	£6.52	£7.83
124 - SUPPORT DISC BSD-3600101002.A62 3600101002	£2.16	£2.59
126 - RETAINING RING BSD-3600224006.A151 3600224006	£2.80	£3.36
127 - BALL DIN 5401-5 G28 BSD-1903230009.A615 1903230009	£1.75	£2.10
128 - BALL DIN 5401-6 G28 BSD-1903230011.A328 1903230011	£2.61	£3.13
129 - BALL DIN 5401-3 MM-III-ST BSD-1903230004.A322 1903230004	£2.16	£2.59
132 - SCREW PLUG BSD-3603463000.A60 3603463000	£2.61	£3.13
133 - KNURLED NUT BSD-3603340019.A12 3603340019	£16.41	£19.69
134 - STOP DISC dia11.15xdia12.85 MM BSD-3600101039.A9 3600101039	£2.16	£2.59
140 - RETAINING RING 14 DIN 9045 BSD-2916600008.A155 2916600008	£2.80	£3.36
652 - HOSE FITTING BSD-2603386002.A74 2603386002	£5.30	£6.36
653 - ANGLE PIECE BSD-3601329007.A207 3601329007	£4.26	£5.11
701 - SCREW CAP BSD-3600508014.A5 3600508014	£10.10	£12.12
702 - UNION NUT BSD-3603313002.A3 3603313002	£16.41	£19.69
703 - COMPRESSION SPRING BSD-3604615000.A89 3604615000	£1.75	£2.10
704 - GUIDE SLEEVE BSD-3600329000.A12 3600329000	£7.36	£8.83
705 - AIR HOSE SET BSD-3607030024.A25 3607030024	£37.72	£45.27
754 - AUXILIARY HANDLE BSD-3602025009.A9 3602025009	£18.96	£22.75
800 - PLANETARY-GEAR CARRIER BSD-3606337110.A1 3606337110	£68.42	£82.10
811 - ASSEMBLY OF SERVICE PARTS BSD-3607030054.A2 3607030054	£306.65	£367.98
813 - ASSEMBLY OF SERVICE PARTS BSD-3607030057.A0 3607030057	£27.23	£32.68
815 - ROTOR LAMELLA BSD-3607030030.A41 3607030030	£31.64	£37.97
817 - ASSEMBLY OF SERVICE PARTS BSD-3607030060.A0 3607030060	£21.52	£25.83
818 - ASSEMBLY OF SERVICE PARTS BSD-3607030033.A17 3607030033	£31.64	£37.97
821 - ASSEMBLY OF SERVICE PARTS BSD-3607030059.A5 3607030059	£37.27	£44.72
822 - ASSEMBLY OF SERVICE PARTS BSD-3607030061.A0 3607030061	£306.65	£367.98
823 - ASSEMBLY OF SERVICE PARTS BSD-3607030062.A3 3607030062	£37.27	£44.72
825 - ASSEMBLY OF SERVICE PARTS BSD-3607030064.A13 3607030064	£14.91	£17.89
859 - HOLDING BELT BSD-3604710062.A72 3604710062	£1.75	£2.10
899 - AIR HOSE BSD-3607000027.A28 3607000027	£33.74	£40.49
