Bosch 400 WATT-SERIE / 0607461207 / --- Spare Parts

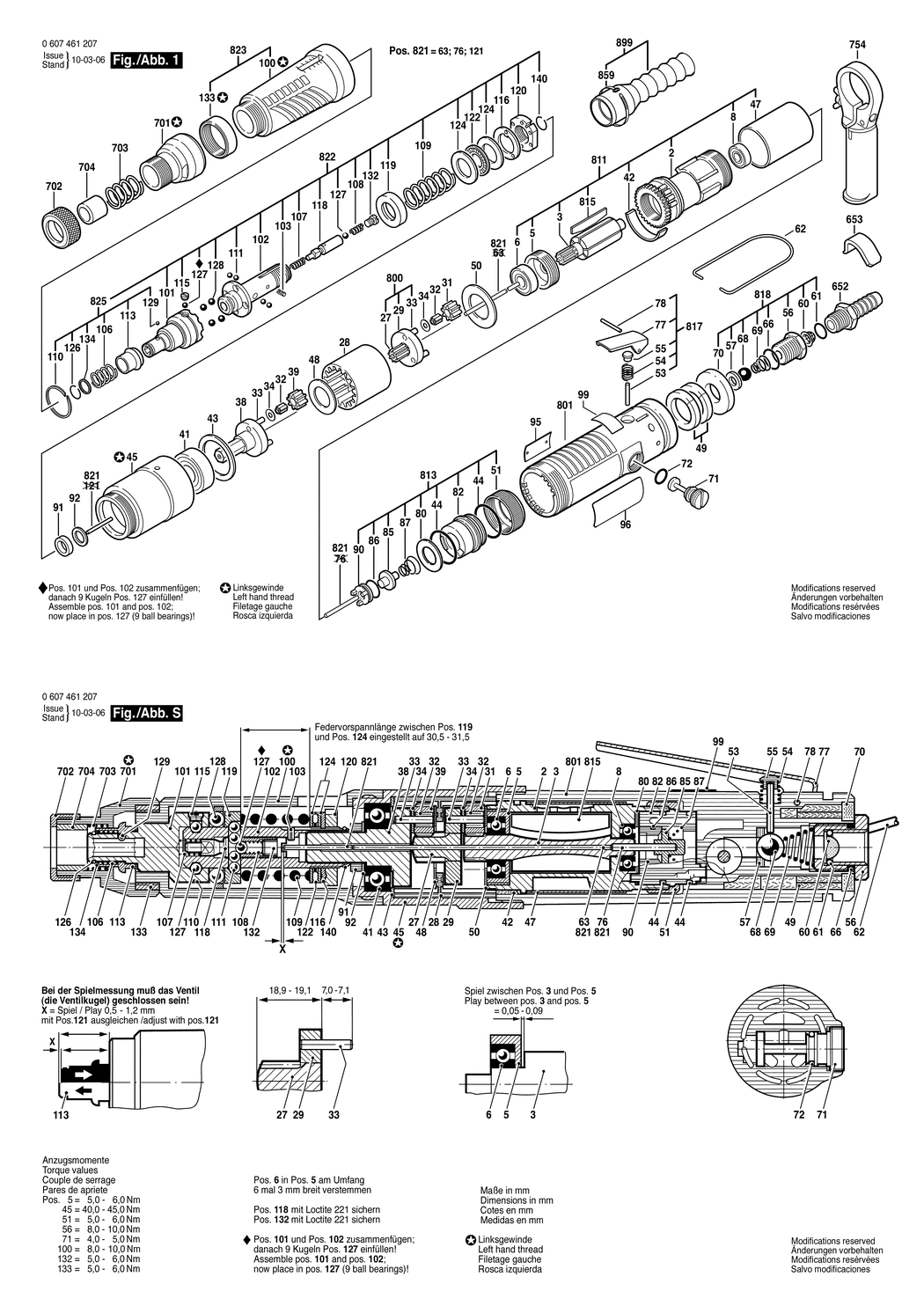

An exploded drawing and listing for the Bosch 400 WATT-SERIE / 0607461207 / ---

	Ex VAT	Inc VAT
2 - STATOR 400W BSD-3604090046.A34 3604090046	£102.57	£123.08
3 - ROTOR BSD-3604220063.A7 3604220063	£93.88	£112.65
5 - BEARING FLANGE BSD-3605700076.A30 3605700076	£48.38	£58.06
6 - GROOVE BALL BEARING 9x24x7 MM BSD-3600905039.A76 3600905039	£12.04	£14.45
8 - GROOVE BALL BEARING 7x17x5 BSD-1900905028.A223 1900905028	£33.74	£40.49
27 - PINION Z=12 BSD-3606300071.A6 3606300071	£33.74	£40.49
28 - RING GEAR Z=42 BSD-3606334054.A21 3606334054	£10.10	£12.12
29 - CARRIER BSD-3606337115.A12 3606337115	£31.64	£37.97
31 - CYLINDRICAL GEAR Z=16 BSD-3606316075.A4 3606316075	£13.41	£16.09
32 - NEEDLE-ROLLER CAGE BSD-3600913006.A17 3600913006	£7.36	£8.83
33 - NEEDLE ROLLER BSD-3603201047.A16 3603201047	£1.75	£2.10
34 - SHIM 0.20 MM BSD-2600100586.A74 2600100586	£1.75	£2.10
38 - PLANETARY-GEAR CARRIER BSD-3606337118.A4 3606337118	£68.42	£82.10
39 - CYLINDRICAL GEAR BSD-3606316116.A6 3606316116	£21.68	£26.01
41 - GROOVE BALL BEARING BSD-3600905045.A29 3600905045	£16.41	£19.69
42 - NON-WOVEN FABRIC BSD-3601010028.A8 3601010028	-
43 - STOP DISC BSD-3600102021.A28 3600102021	£3.72	£4.47
44 - O-RING 26.0x1.5 MM BSD-2600210018.A81 2600210018	£3.72	£4.47
45 - GEAR HOUSING BSD-3605125038.A6 3605125038	£48.38	£58.06
47 - SPIGOT BSD-3600700032.A25 3600700032	£21.68	£26.01
48 - STOP DISC BSD-3600101040.A21 3600101040	£2.16	£2.59
49 - SILENCER BSD-3601010006.A30 3601010006	£1.75	£2.10
50 - RETAINING WASHER BSD-3600101036.A21 3600101036	£4.26	£5.11
51 - UNION NUT BSD-3603313001.A28 3603313001	£14.91	£17.89
53 - NEEDLE ROLLER BSD-3603201050.A4 3603201050	£1.75	£2.10
54 - COMPRESSION SPRING BSD-3604611006.A169 3604611006	£2.16	£2.59
55 - VALVE CONE BSD-3603132000.A5 3603132000	£2.80	£3.36
56 - FITTING BSD-3603458008.A109 3603458008	£8.67	£10.41
57 - SEALING DISK BSD-3600206006.A33 3600206006	-
60 - STRAINER BSD-3600002000.A97 3600002000	£3.72	£4.47
61 - O-RING 10x2 MM BSD-1900210306.A51 1900210306	£1.75	£2.10
62 - SUSPENSION LOOP BSD-3604720004.A38 3604720004	£2.80	£3.36
63 - STRAIGHT PIN L=93.5 MM BSD-3603201067.A9 3603201067	£6.52	£7.83
66 - O-RING 16x1.25 MM BSD-3600210036.A1 3600210036	£2.16	£2.59
68 - BALL DIN 5401-9.5MM-III-ST BSD-1903230528.A84 1903230528	£1.75	£2.10
69 - COMPRESSION SPRING BSD-3604616008.A31 3604616008	-
70 - SILENCER BSD-3600105002.A65 3600105002	£10.10	£12.12
71 - VALVE PISTON BSD-3608750028.A7 3608750028	£5.58	£6.70
72 - O-RING BSD-1900210307.A15 1900210307	£4.26	£5.11
76 - STRAIGHT PIN BSD-3604710058.A0 3604710058	£5.58	£6.70
77 - CONTROL LEVER BSD-3601902001.A15 3601902001	£6.52	£7.83
78 - GROOVED PIN DIN 1475-2x18-ST BSD-2917700040.A138 2917700040	£2.80	£3.36
80 - SEALING PLATE BSD-3600054004.A10 3600054004	£6.52	£7.83
82 - INTERMEDIATE PIECE BSD-3608750027.A24 3608750027	£14.91	£17.89
85 - VALVE CONE BSD-3603203013.A5 3603203013	£21.52	£25.83
86 - O-RING 12.0x2.0 MM BSD-1610210233.A39 1610210233	£2.80	£3.36
87 - COMPRESSION SPRING BSD-3604643014.A0 3604643014	£2.80	£3.36
90 - BACKUP RING BSD-3600221000.A12 3600221000	£10.10	£12.12
91 - INTERMEDIATE RING BSD-3600209007.A1 3600209007	-
92 - SHIM 0.2 MM BSD-1600101617.A128 1600101617	£1.75	£2.10
95 - NAMEPLATE BSD-160111A3HF.A458 160111A3HF	£3.72	£4.47
96 - MANUFACTURER'S NAMEPLATE BSD-3601110039.A24 3601110039	£5.30	£6.36
99 - REFERENCE PLATE BSD-3601119236.A873 3601119236	£3.72	£4.47
100 - HOUSING BSD-3605125035.A10 3605125035	£16.41	£19.69
101 - CLUTCH ELEMENT BSD-3606445032.A18 3606445032	£135.25	£162.30
102 - DRIVE SHAFT BSD-3606122008.A5 3606122008	£120.11	£144.13
103 - COILED SPRING PIN DIN 7343-2x5 BSD-2917800033.A59 2917800033	£1.75	£2.10
106 - COMPRESSION SPRING BSD-3604615009.A8 3604615009	£2.16	£2.59
107 - COMPRESSION SPRING BSD-3604610003.A87 3604610003	£3.72	£4.47
108 - COMPRESSION SPRING BSD-3604610002.A23 3604610002	£3.72	£4.47
109 - COMPRESSION SPRING BSD-3604619004.A12 3604619004	£6.52	£7.83
110 - RETAINING RING BSD-3604601001.A31 3604601001	£2.16	£2.59
111 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A604 1903230007	£1.75	£2.10
113 - CLAMPING SLEEVE BSD-3600422005.A15 3600422005	£8.67	£10.41
115 - SEALING PLATE BSD-3609992353.A12 3609992353	£2.80	£3.36
116 - ADJUSTING DISC BSD-3600134000.A106 3600134000	£2.80	£3.36
118 - LOCKING BOLT BSD-3603150203.A2 3603150203	£45.67	£54.80
119 - COUPLING PLATE BSD-3600114001.A71 3600114001	£18.96	£22.75
120 - ROUND NUT BSD-3603301004.A87 3603301004	£21.68	£26.01
122 - ROLLER THRUST BEARING BSD-3600921000.A11 3600921000	£6.52	£7.83
124 - SUPPORT DISC BSD-3600101002.A61 3600101002	£2.16	£2.59
126 - RETAINING RING BSD-3600224006.A149 3600224006	£2.80	£3.36
127 - BALL DIN 5401-5 G28 BSD-1903230009.A616 1903230009	£1.75	£2.10
128 - BALL DIN 5401-6 G28 BSD-1903230011.A327 1903230011	£2.61	£3.13
129 - BALL DIN 5401-3 MM-III-ST BSD-1903230004.A323 1903230004	£2.16	£2.59
132 - SET SCREW BSD-3603400001.A2 3603400001	£2.80	£3.36
133 - KNURLED NUT BSD-3603340019.A13 3603340019	£16.41	£19.69
134 - STOP DISC dia11.15xdia12.85 MM BSD-3600101039.A8 3600101039	£2.16	£2.59
140 - RETAINING RING 14 DIN 9045 BSD-2916600008.A154 2916600008	£2.80	£3.36
652 - HOSE FITTING BSD-2603386002.A73 2603386002	£5.30	£6.36
653 - ANGLE PIECE BSD-3601329007.A208 3601329007	£4.26	£5.11
701 - SCREW CAP BSD-3600508014.A6 3600508014	£10.10	£12.12
702 - UNION NUT BSD-3603313002.A2 3603313002	£16.41	£19.69
703 - COMPRESSION SPRING BSD-3604615000.A88 3604615000	£1.75	£2.10
704 - GUIDE SLEEVE BSD-3600329000.A13 3600329000	£7.36	£8.83
705 - AIR HOSE SET BSD-3607030024.A24 3607030024	£37.72	£45.27
754 - AUXILIARY HANDLE BSD-3602025009.A10 3602025009	£18.96	£22.75
800 - PLANETARY-GEAR CARRIER BSD-3606337111.A5 3606337111	£68.42	£82.10
801 - MOTOR HOUSING BSD-3607031572.A2 3607031572	£63.50	£76.20
811 - ASSEMBLY OF SERVICE PARTS BSD-3607030080.A0 3607030080	£283.50	£340.20
813 - INTERMEDIATE PIECE BSD-3607030082.A0 3607030082	£59.53	£71.44
815 - ROTOR LAMELLA BSD-3607030030.A42 3607030030	£31.64	£37.97
817 - CONTROL LEVER BSD-3607030032.A8 3607030032	£13.12	£15.75
818 - ASSEMBLY OF SERVICE PARTS BSD-3607030033.A16 3607030033	£31.64	£37.97
821 - CONTROL PIN BSD-3607030083.A6 3607030083	£33.74	£40.49
822 - ASSEMBLY OF SERVICE PARTS BSD-3607030084.A0 3607030084	-
823 - ASSEMBLY OF SERVICE PARTS BSD-3607030062.A4 3607030062	£37.27	£44.72
825 - ASSEMBLY OF SERVICE PARTS BSD-3607030064.A12 3607030064	£14.91	£17.89
859 - HOLDING BELT BSD-3604710062.A71 3604710062	£1.75	£2.10
899 - AIR HOSE BSD-3607000027.A29 3607000027	£33.74	£40.49

Attribute Name	Value
Brand	Bosch
